Default Another take on an NC turbo - Front mount!

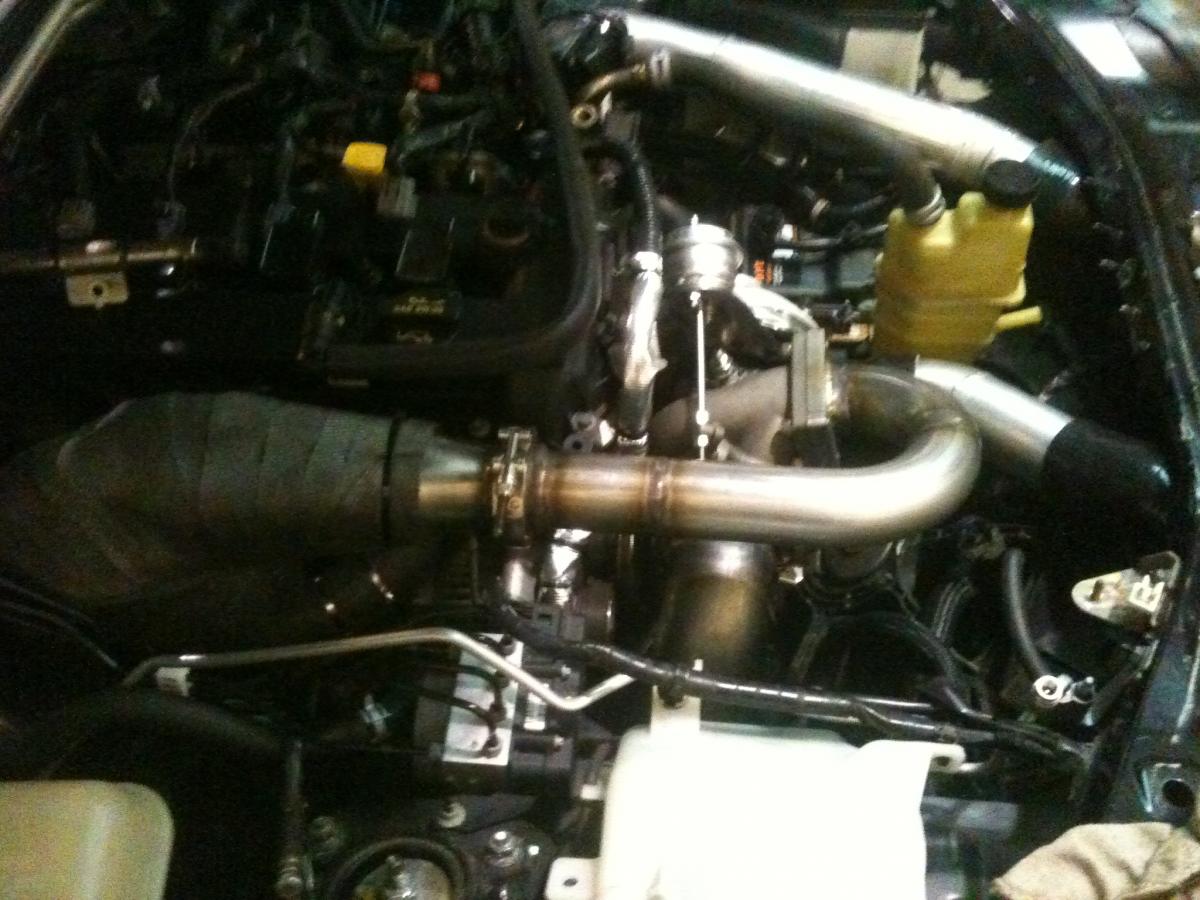

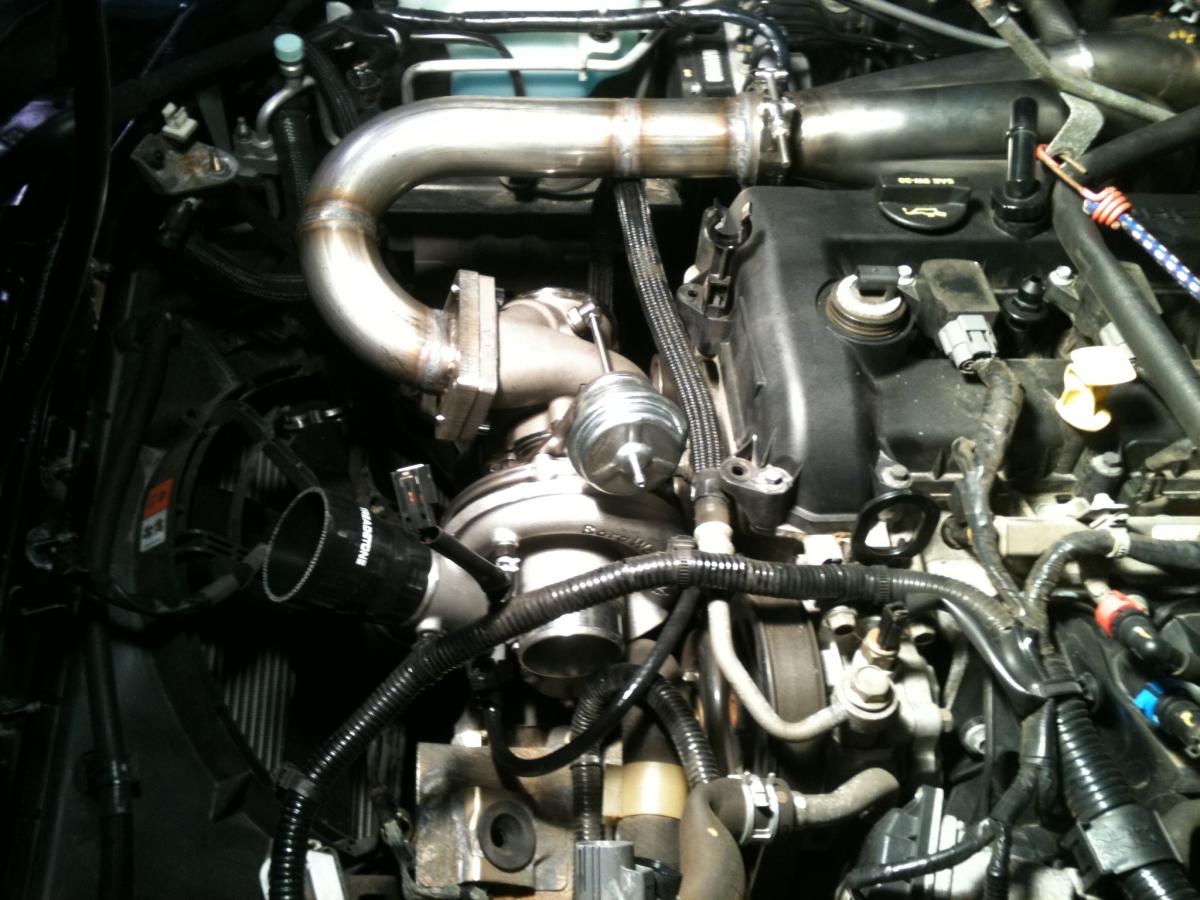

Had a tuning customer send me some pictures of this thing. Truly some impressive space utilization. Note the blow through MAF...

link
Attached Thumbnails
Another take on an NC turbo - Front mount!-picture-010.jpg   Another take on an NC turbo - Front mount!-picture-001.jpg   Another take on an NC turbo - Front mount!-picture-004.jpg   Another take on an NC turbo - Front mount!-picture-008.jpg   Another take on an NC turbo - Front mount!-picture-015.jpg

mann is offline   Reply With Quote
Old 04-26-2011, 09:56 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

wonder how long the drive belts will last.
Braineack is online now   Reply With Quote
Old 04-26-2011, 10:22 PM   #3
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

...and how much fun they will be to change.
Stealth97 is offline   Reply With Quote
Old 04-26-2011, 11:35 PM   #4
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

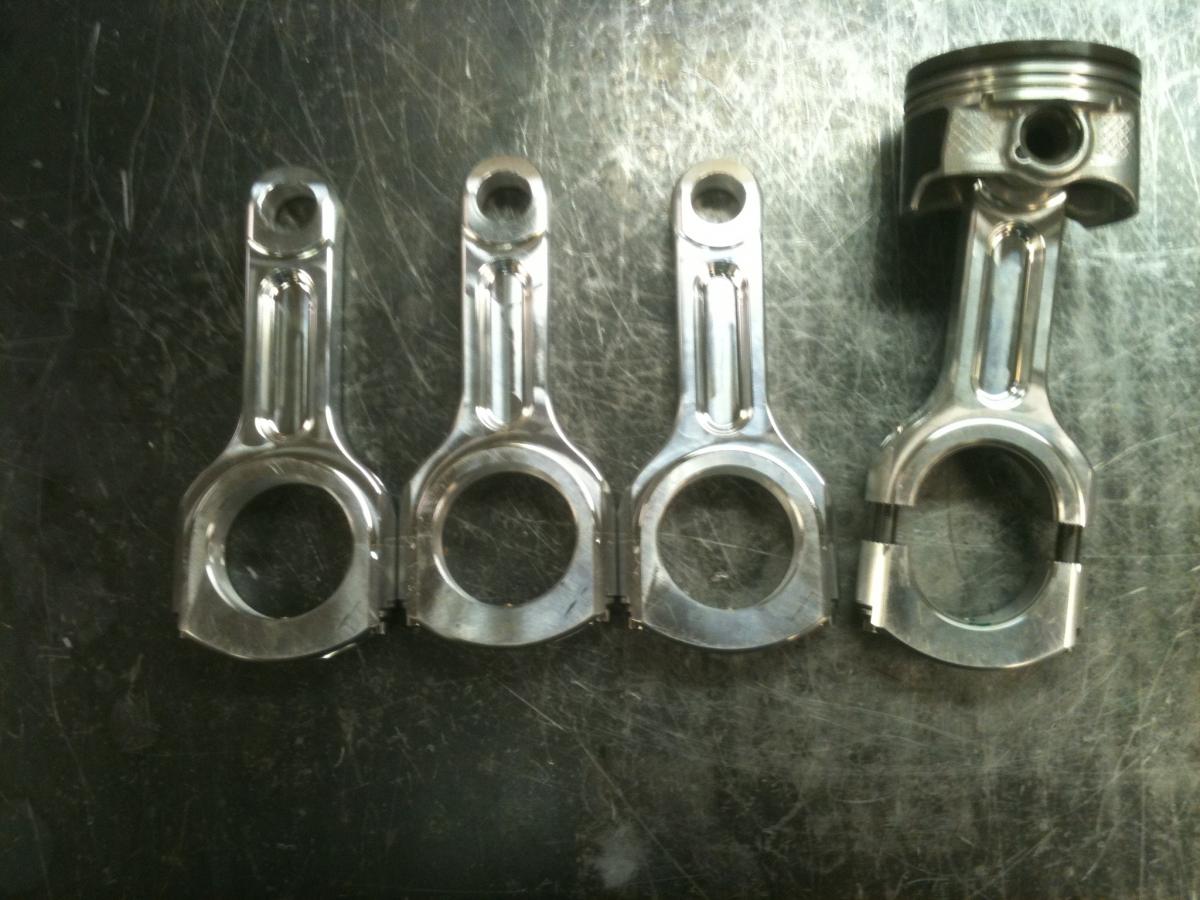

and how often he'll have to change the con rods.

Different is good generally.
TurboTim is offline   Reply With Quote
Old 04-27-2011, 12:15 AM   #5
Elite Member
iTrader: (10)

rccote's Avatar

Join Date: Jan 2008
Location: Buffalo NY
Posts: 1,595
Total Cats: 17
Default

I don't see any kind of support. Is it just dangling there?
rccote is offline   Reply With Quote
Old 04-27-2011, 12:31 AM   #6
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

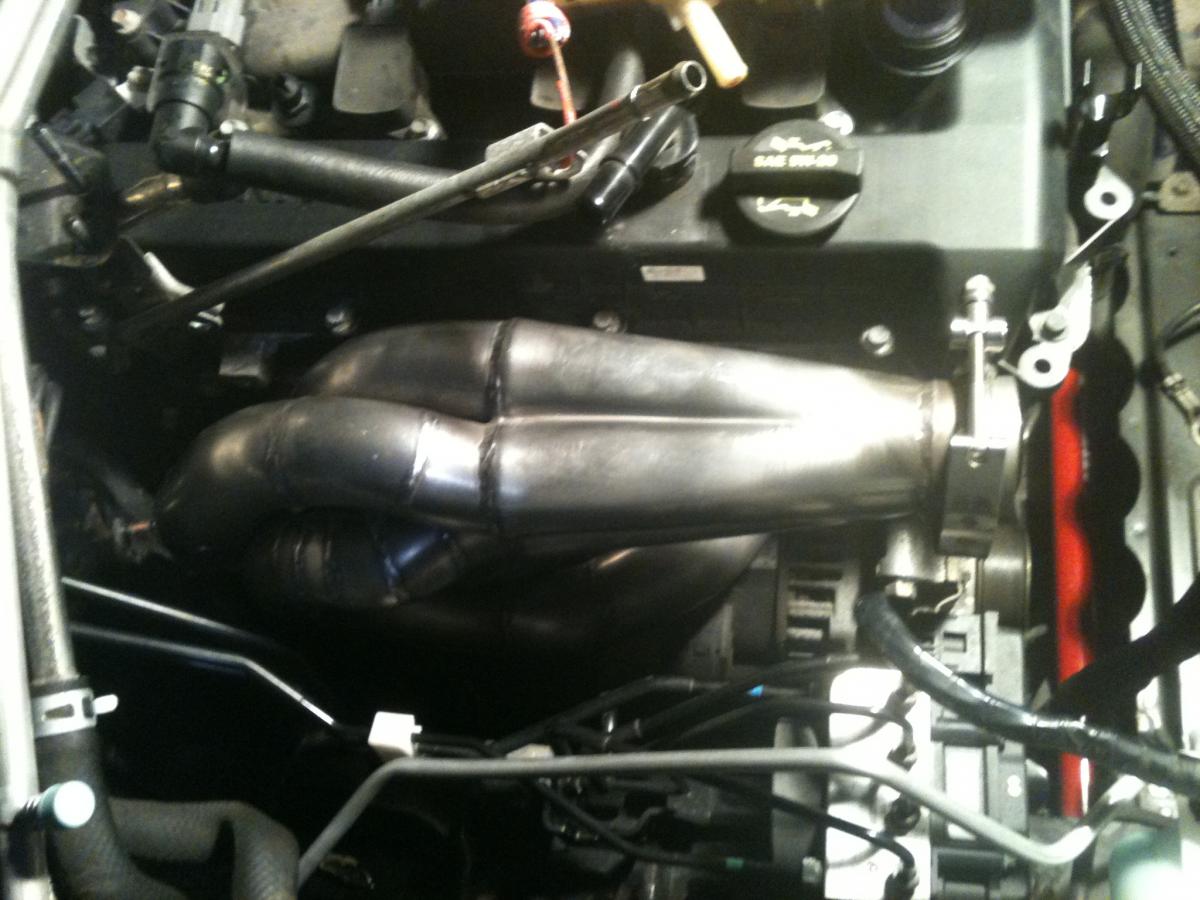

I think the bungee cord in the 4th pic is supporting it.
mgeoffriau is offline   Reply With Quote
Old 04-27-2011, 07:03 PM   #7
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,898
Total Cats: 109
Default

Glad to see more NC posts.

Is he setting this up for drag racing?
miata2fast is offline   Reply With Quote
Old 04-27-2011, 07:15 PM   #8
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,197
Total Cats: 2,584
Default

Pretty cool.
The guys bring up valid questions, however s2000's have been doing this type of setup for years and all put down humongous numbers with few issues. Same design is used by big turbo k20 cars as well.
18psi is offline   Reply With Quote
Old 04-28-2011, 09:42 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,896
Total Cats: 1,792
Default

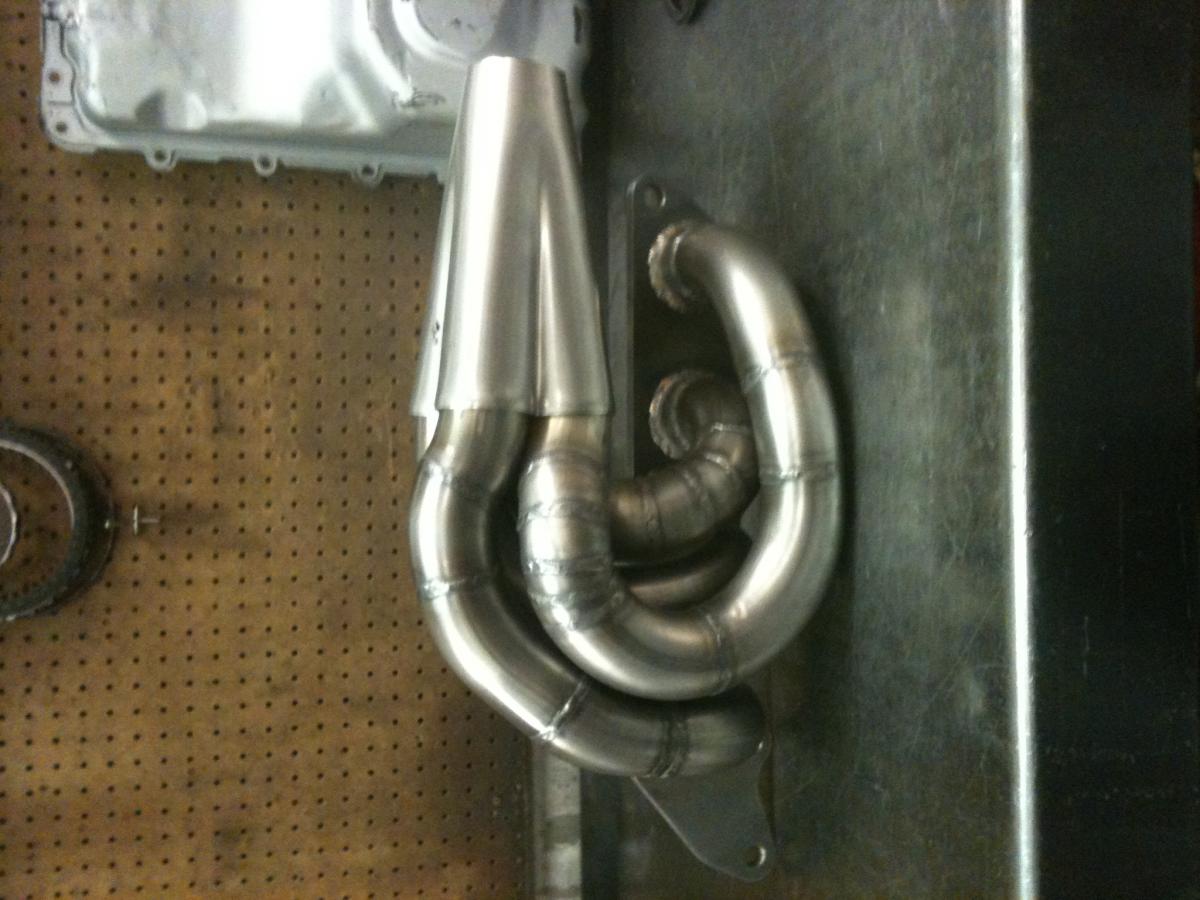

it does have the most ideal collector.
Braineack is online now   Reply With Quote
Old 04-28-2011, 08:34 PM   #10
Junior Member
Thread Starter

Join Date: Dec 2006
Posts: 54
Total Cats: 1
Default

lol bungee cord I can only imagine is to keep the water pipe out of the way during the fab; it runs right across the top there.

The front setup does allow you to run a big *** turbo. The lower mount like mine in the begi kits is great but once those compressor housings get bigger that 1mm of space to the motor mount is not enough.
