Default ArtieParty's 95 ABSURDflow Miata

Engine:
1.8l 94 shortblock
95 head
GT2560R Ball bearing turbo with stainless steel oil feed and drain.
Custom made Absurdflow manifold
3 inch custom Absurdflow downpipe
Full 3 inch Magnaflow exhaust by Shore Motorsports in Toms River, NJ.
Borla metalcore cat.
2.5 inch aluminum intercooler piping
18x12x3 core CRX racing intercooler
K&N oval air filter
Flyin Miata BOV
M-Tuned Coolant Reroute
RX-7 550cc injectors
Walboro 190lph fuel pump
Toyota Coil over Plugs (COPS)
Ebay oil catch can
Mazda 323GTX PCV valve
ACT extreme clutch/ pressure plate
GM electronic boost control solenoid + manual boost controller
AC deleted for weight savings

Engine Management:
Megasquirt PNP full standalone
AEM Uego wideband o2
AEM boost gauge

Suspension:
MSM suspension off an 05 miata
Cobalt 3 point strut tower brace
Hard dog M2 Sport 4 point mounting roll bar
Jackson Racing solid front sway bar
Stainless Steel frame rail stiffeners

Wheels:
156 SSR comps (8.3lbs each)
Nitto NT-01s 205/50R15
Axxis Ultimate brake pads.

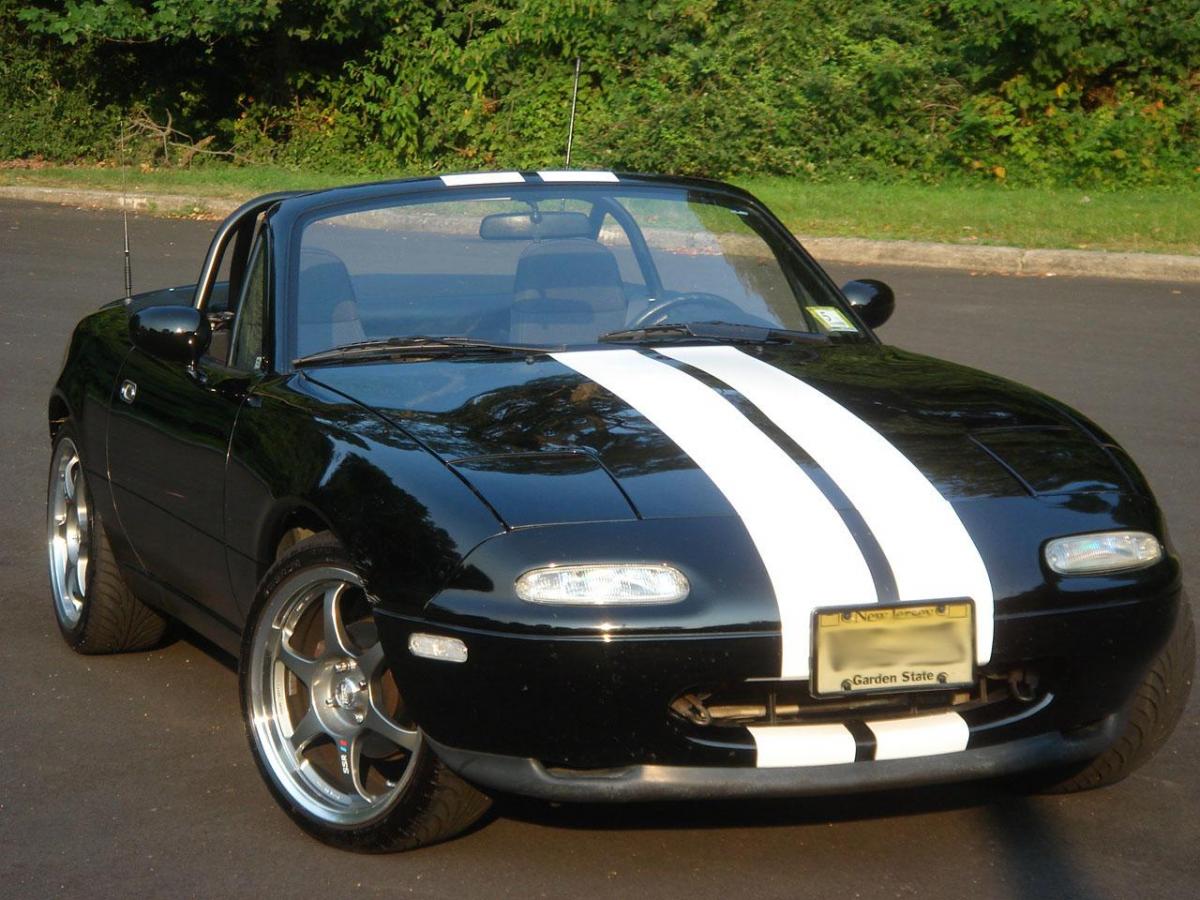

Exterior:
Moss low profile headlights
Ebay tail lights
Dual 7 white racing stripes
Robbins stayfast cloth top with glass window
Cool breeze scoop

Interior:
Ebay short shifter
Momo Steering wheel and Hub
Voodoo shift ****
Moss ebrake handle
Miata chrome door sill plates
Moss chrome vent rings
Custom radio plate with engine start button and power inverter
Radio Shack CB
Pioneer Radio with Ipod adapter
Custom rear deck Infinity speakers

I probably missed some stuff but thats all I could think of off the top of my head.
Attached Thumbnails
ArtieParty's 95 ABSURDflow Miata-e_e3150161_.jpg   ArtieParty's 95 ABSURDflow Miata-2371133150101974249rimpsc_fs.jpg   ArtieParty's 95 ABSURDflow Miata-3377780050_f443eebbd5_o.jpg
ArtieParty is offline   Reply With Quote
Old 03-12-2010, 01:24 PM   #2
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,121
Total Cats: 44
Default

You get a dyno of it with your 95 head?

What happened to your 99 head?

I've always liked your list of mods
flier129 is offline   Reply With Quote
Old 03-12-2010, 01:25 PM   #3
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,687
Total Cats: 216
Default

Whats up with the catch can?

Still hooked to the manifold but without the PCV? Im confused
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-12-2010, 01:33 PM   #4
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

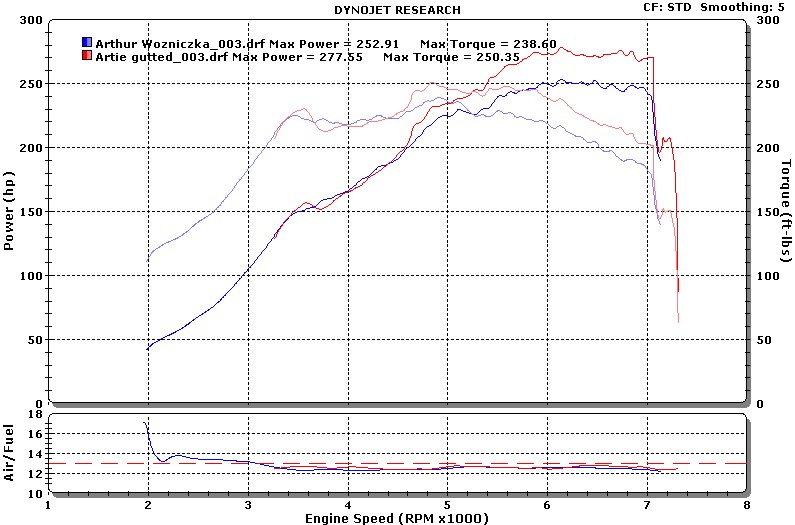

I did get the 95 head dyno'd.

The 95 head was dyno'd at 13psi and tappered off to 12psi by redline.

The 99 head had the gutted intake manifold and was running 15psi and dropping to 14psi by redline I believe.
Attached Thumbnails
ArtieParty's 95 ABSURDflow Miata-95-head-vs-99-head.jpg
ArtieParty is offline   Reply With Quote
Old 03-12-2010, 01:36 PM   #5
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Whats up with the catch can?

Still hooked to the manifold but without the PCV? Im confused

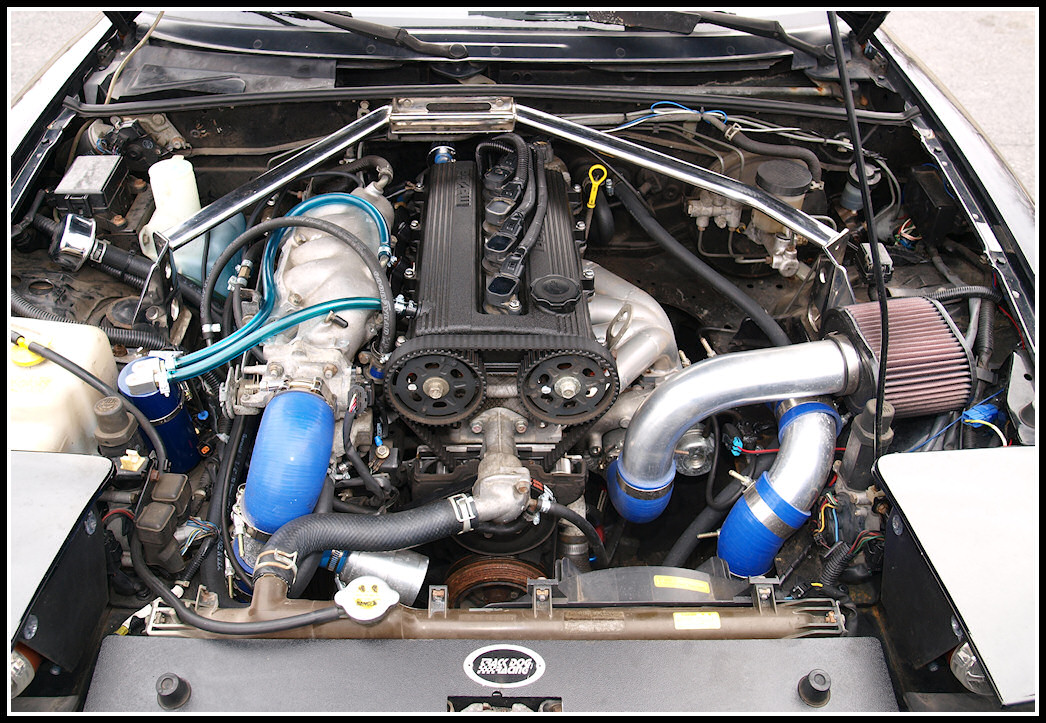

Catch can has actually been redone. There is a 323GTX PCV coming off the valve cover. That goes to the catch can like in the pic but with a regular black hose now. The side that leaves the catch can is now venting to atmosphere. I run another black hose from that port to behind the head where you cant see the other end.
ArtieParty is offline   Reply With Quote
Old 03-12-2010, 01:58 PM   #6
Elite Member
iTrader: (18)

Join Date: Dec 2007
Location: oahu
Posts: 1,720
Total Cats: 2
Default

That valve cover is fantastic! I love the pic with the girl riding co-driver, her expression is priceless.
astroboy is offline   Reply With Quote
Old 03-12-2010, 03:47 PM   #7
Newb

Join Date: Mar 2010
Location: Gwinnett county GA
Posts: 25
Total Cats: 0
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Whats up with the catch can?

Still hooked to the manifold but without the PCV? Im confused
Ok i've got a major noob question...what is a catch can? and what was wrong with that setup...
boostedgr is offline   Reply With Quote
Old 03-12-2010, 04:21 PM   #8
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

Quote:
Originally Posted by boostedgr View Post
Ok i've got a major noob question...what is a catch can? and what was wrong with that setup...
Catch cans prevent oil from the head to make it to the intake manifold.
Pen2_the_penguin is offline   Reply With Quote
Old 03-12-2010, 05:13 PM   #9
Junior Member
iTrader: (4)

Join Date: Feb 2009
Location: Raleigh, NC
Posts: 321
Total Cats: 0
Default

First off, awesome setup, love it.

Second, another noob question, the ic piping can't go straight down (from compressor) on the Absurdflow setup? (clocked like fm) It seems like then the piping could just make a 90 and come straight forward? What's in the way?


*edit: I see it has been done, carry on
kewilso3 is offline   Reply With Quote
Old 03-12-2010, 05:52 PM   #10
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

Quote:
Originally Posted by astroboy View Post
I love the pic with the girl riding co-driver, her expression is priceless.
actually, the car was standing still. the girl is enormous.
budget racer is offline   Reply With Quote
Old 03-12-2010, 07:19 PM   #11
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Needs more testimonial. to tim at absurdflow dot com.
TurboTim is offline   Reply With Quote
Old 03-17-2010, 04:19 PM   #12
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Quote:
Originally Posted by budget racer View Post
actually, the car was standing still. the girl is enormous.
That chick was far from enormous. That was Matt's gf. I think his name was Matt.
ArtieParty is offline   Reply With Quote
Old 03-17-2010, 04:19 PM   #13
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Quote:
Originally Posted by TurboTim View Post
Needs more testimonial. to tim at absurdflow dot com.
Dammit. Lemme work on one now since I got some time at work. (less than an hour)
ArtieParty is offline   Reply With Quote
Old 03-29-2010, 01:12 AM   #14
Junior Member
iTrader: (4)

Join Date: Feb 2009
Location: Raleigh, NC
Posts: 321
Total Cats: 0
Default

Quote:
Originally Posted by ArtieParty View Post
Catch can has actually been redone. There is a 323GTX PCV coming off the valve cover. That goes to the catch can like in the pic but with a regular black hose now. The side that leaves the catch can is now venting to atmosphere. I run another black hose from that port to behind the head where you cant see the other end.
why bother with catch can if you're vta? Just being friendly to the environment?
kewilso3 is offline   Reply With Quote
Old 03-29-2010, 08:17 AM   #15
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Originally, it was hooked up a different way. Now its just there for looks mainly.
ArtieParty is offline   Reply With Quote
Old 03-31-2010, 02:02 PM   #16
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Just realized this pic doesn't have the M-tuned coolant reroute in it. I'll have to take some new ones today and post them up later.
