Old 01-13-2010, 09:43 AM   #1
"Quality" is my first name.
Thread Starter
iTrader: (3)

Quality Control Bot's Avatar

Join Date: Dec 2007
Posts: 2,611
Total Cats: 69
Arrow Drift Miata from italy



It's always interesting to see how passion can push people to create very unique cars, and this Miata from Italy is the perfect example. The owner and avid reader of Speedhunters, Filippo Pirini, has been working on his little Mazda for 3 years and plans to have the car ready in the next year or so. Filippo will compete in one of the Italian drift championships so has carefully chosen every modification to help him create a nice set-up for drifting.

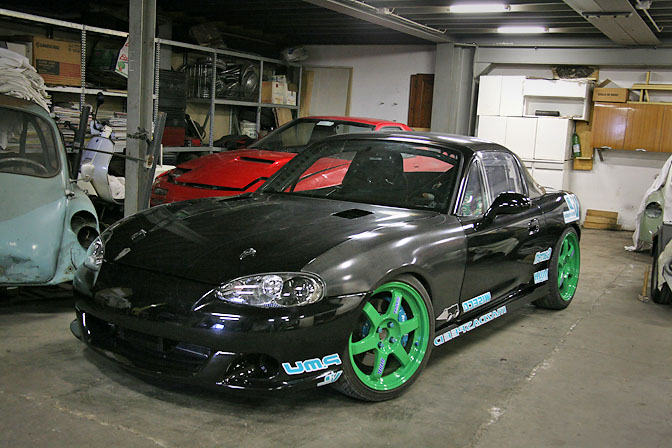

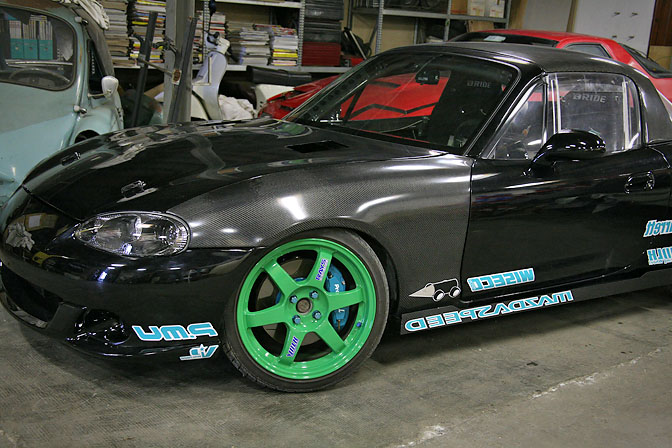

The NB was stripped down and stiffened up thanks to a custom-fabricated roll cage while a lot of work went into shaving weight off. If you look carefully you can notice that the front fenders are made in dry-carbon...

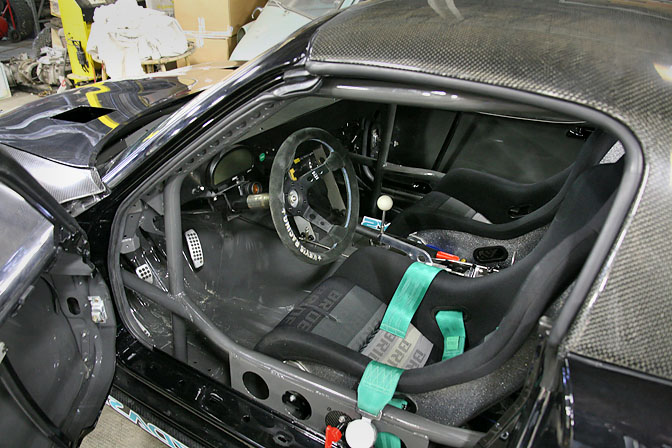

...as are the skirts, trunk lid and hard top which all helped to get the weight down to 900 kg. All the glass has been replaced with lexan. There is a very authentic JDM feel and attention to detail to the whole build, check out the Bride/Takata combo for seats and harnesses and the chunky Key's Racing steering wheel.

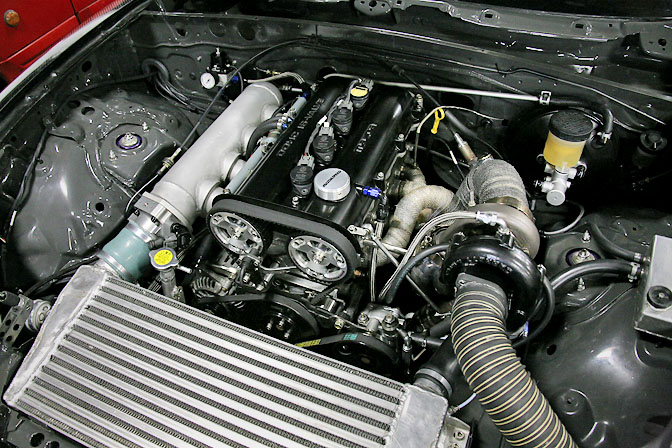

The BP has been highly tuned thanks to the addition of a Garrett GT2560R turbocharger. The bottom end is beefed up with Wiseco forged pistons and Carrillo rods. Notice how the intercooler has been mounted horizontally in the engine bay in a V-mount position with the Koyo radiator. This has allowed for the piping to be kept very short, something that guarantees good throttle response. Filippo says it's a pity the custom intake plenum hides the four intake funnels, parts that were made in dry-carbon at ToroRosso! The engine develops 330 HP which will be more than enough for a nice balanced set-up.



Filippo runs D2 drift-specific suspension and went for a catchy set of green 17-inch TE37s. Braking has also been upgraded thanks to Project 4-pot calipers at the front and Wilwood 4-pots at the rear.




I'm planning on shooting this car in Italy when it will be completed, as well as checking out Filippo in action. One to look forward to for 2010!


-Dino Dalle Carbonare
source
Quality Control Bot is offline   Reply With Quote
Old 01-13-2010, 09:59 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

lol at the inter-heater.
Braineack is offline   Reply With Quote
Old 01-13-2010, 10:06 AM   #3
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

Quote:
Originally Posted by Braineack View Post
lol at the inter-heater.
With a proper extractor hood (and the car going forwards instead of sideways), it should work if all is sealed well.

He did drop some coin on that car.
Stein is offline   Reply With Quote
Old 01-13-2010, 10:15 AM   #4
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

All that and he went with a 2560? Maybe the light weight pays off and throttle response is more important.

I've also never understood mounting the intercooler above the rad...
gospeed81 is offline   Reply With Quote
Old 01-13-2010, 10:22 AM   #5
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

I never understood how someone can take years and years to build a car. I can't stand taking longer than a few weeks to put stuff together.
neogenesis2004 is offline   Reply With Quote
Old 01-13-2010, 10:47 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

Quote:
Originally Posted by Stein View Post
With a proper extractor hood (and the car going forwards instead of sideways), it should work if all is sealed well.
keywords: with, extractor, and hood.
Braineack is offline   Reply With Quote
Old 01-13-2010, 11:15 AM   #7
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Hood has to be in process then. Otherwise... how can it take them 3 years to build stupidity?
Splitime is offline   Reply With Quote
Old 01-13-2010, 09:27 PM   #8
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

damn, dry carbon is expensive ****.
cardriverx is offline   Reply With Quote
Old 01-13-2010, 09:32 PM   #9
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

V-band housing for the 2560?


Where the **** did he find that? :(
thesnowboarder is offline   Reply With Quote
Old 01-13-2010, 09:56 PM   #10
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

They also need to dump the ribbed intake stuff.
Splitime is offline   Reply With Quote
Old 01-13-2010, 11:47 PM   #11
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

splitime, it looks like that actual quality aircraft stuff... but it is alot less agressive as a piped setup
shlammed is offline   Reply With Quote
