Old 12-23-2011, 11:58 PM   #21
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

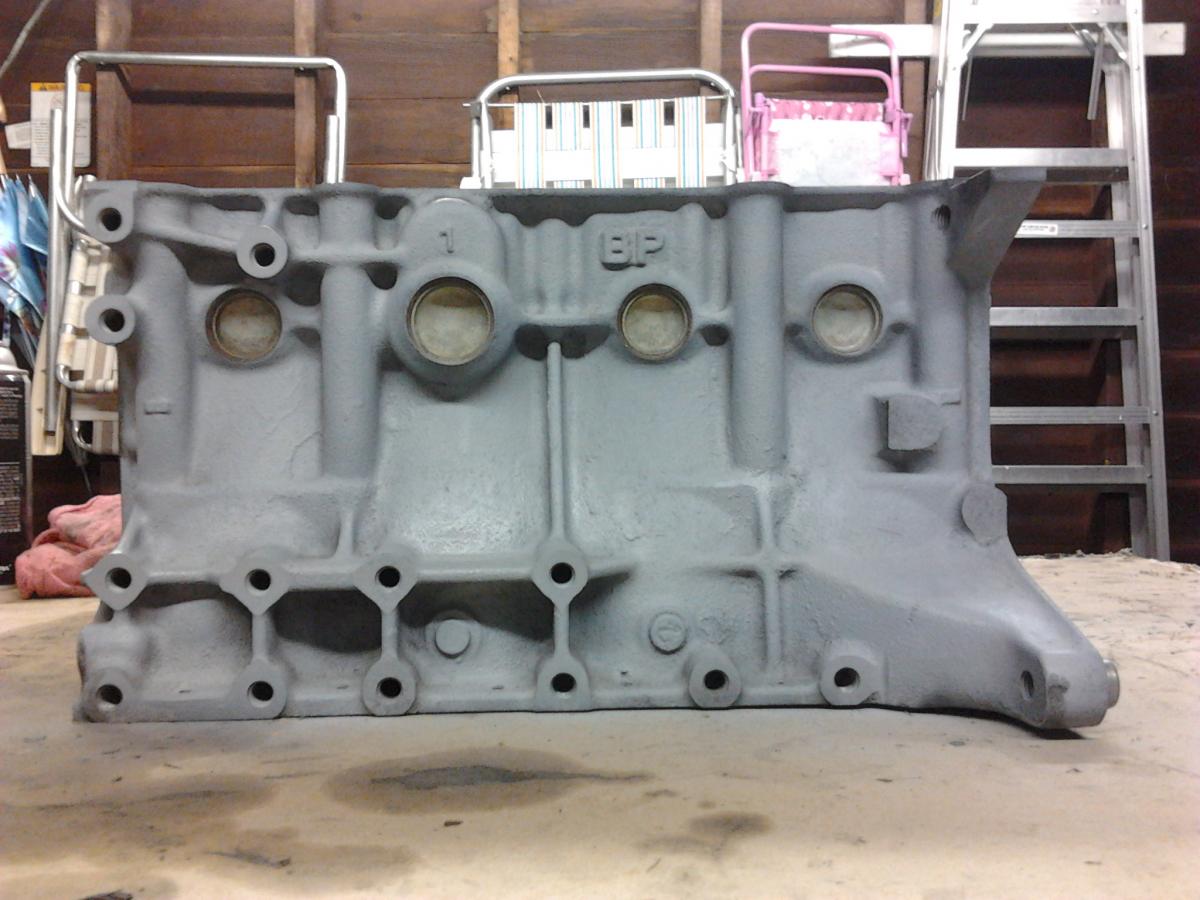

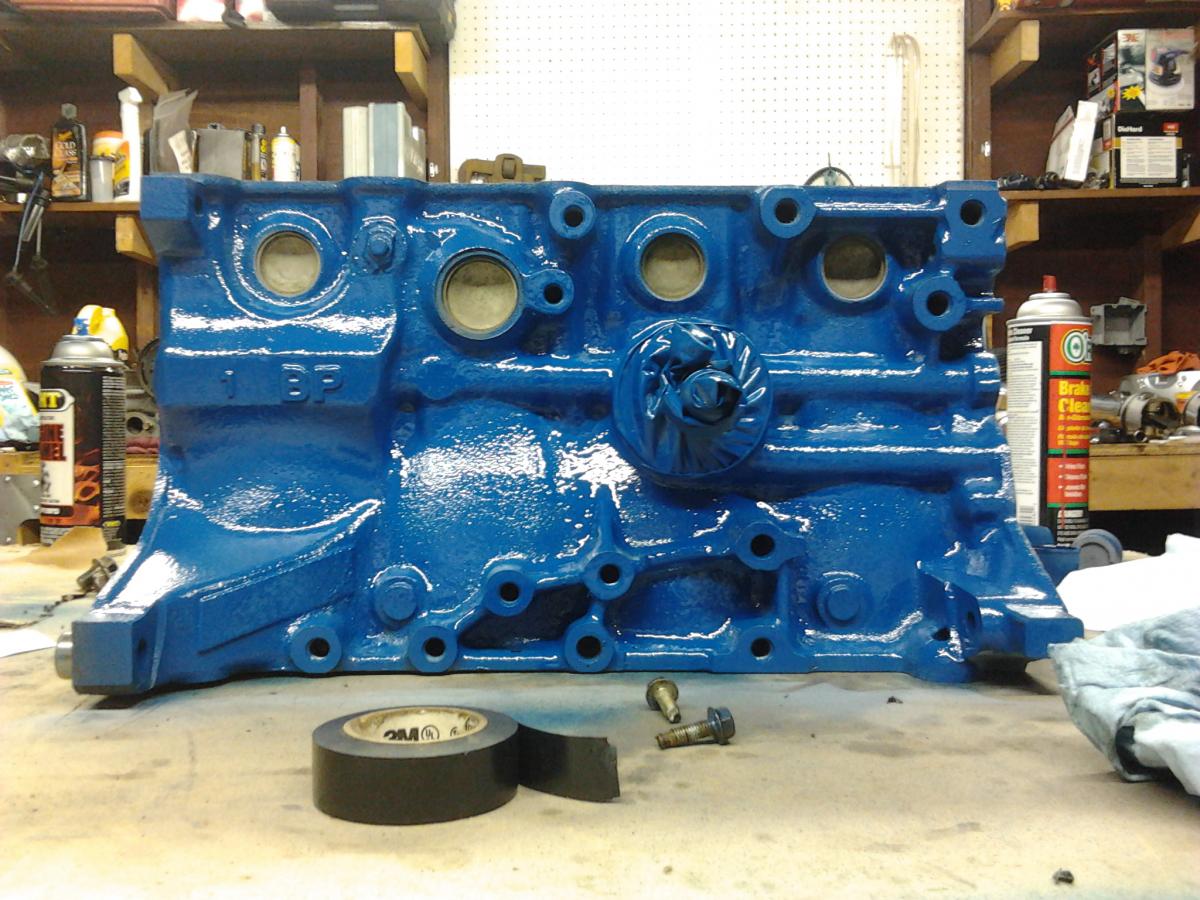

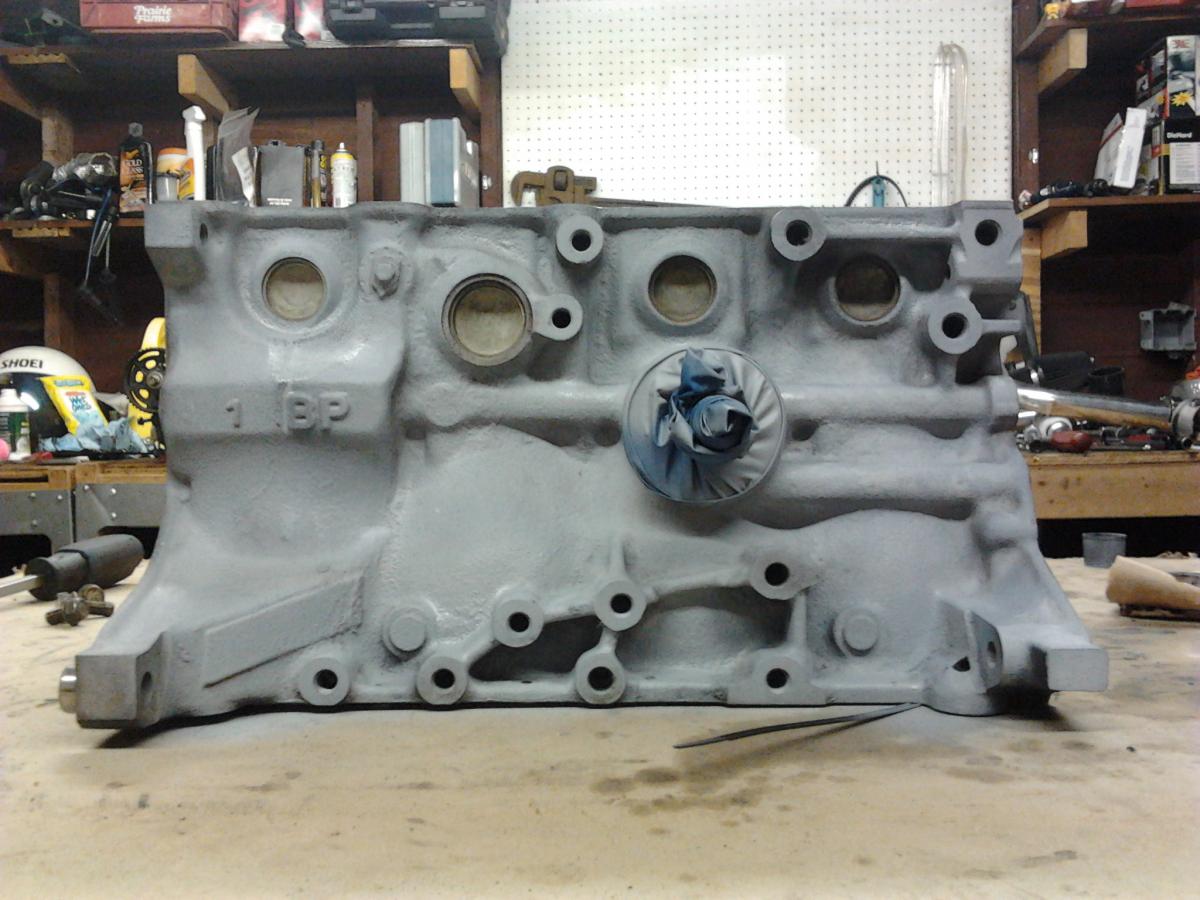

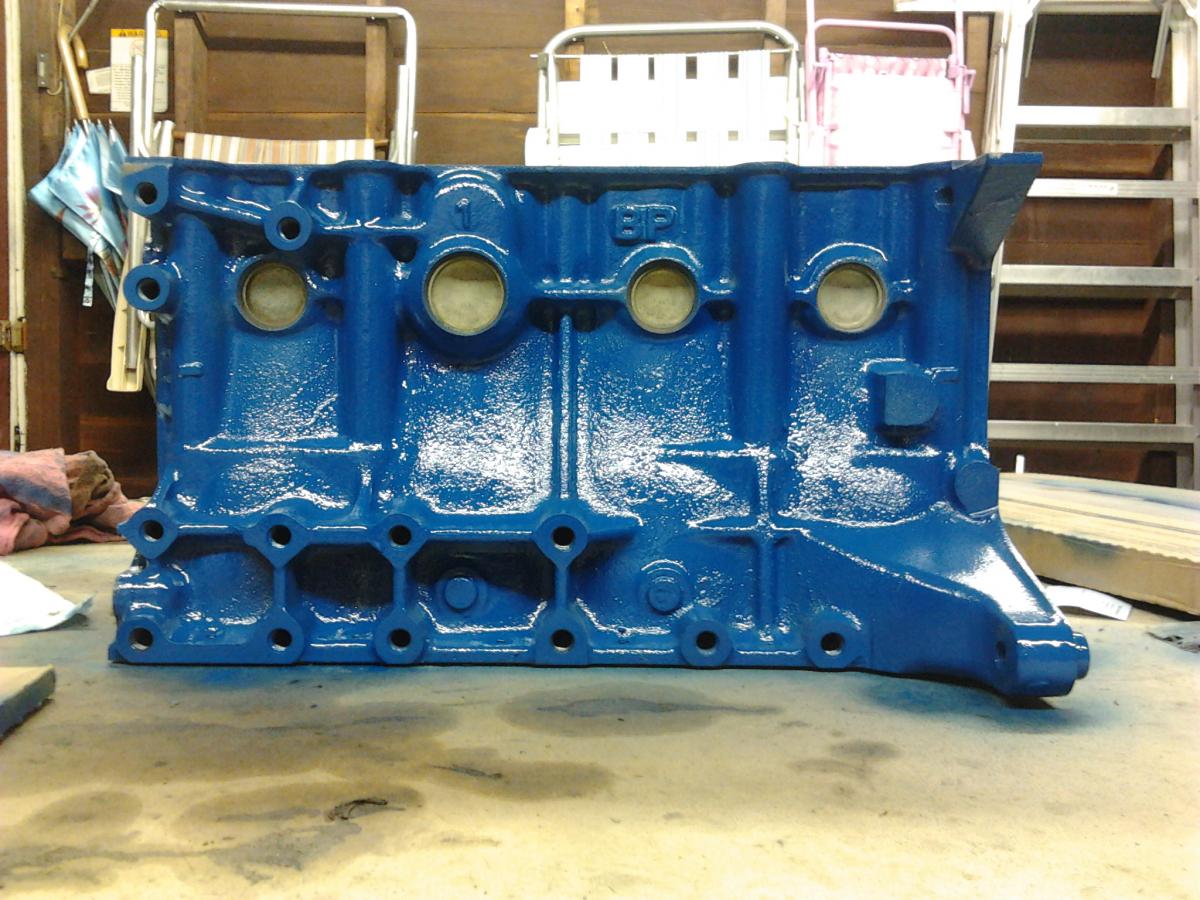

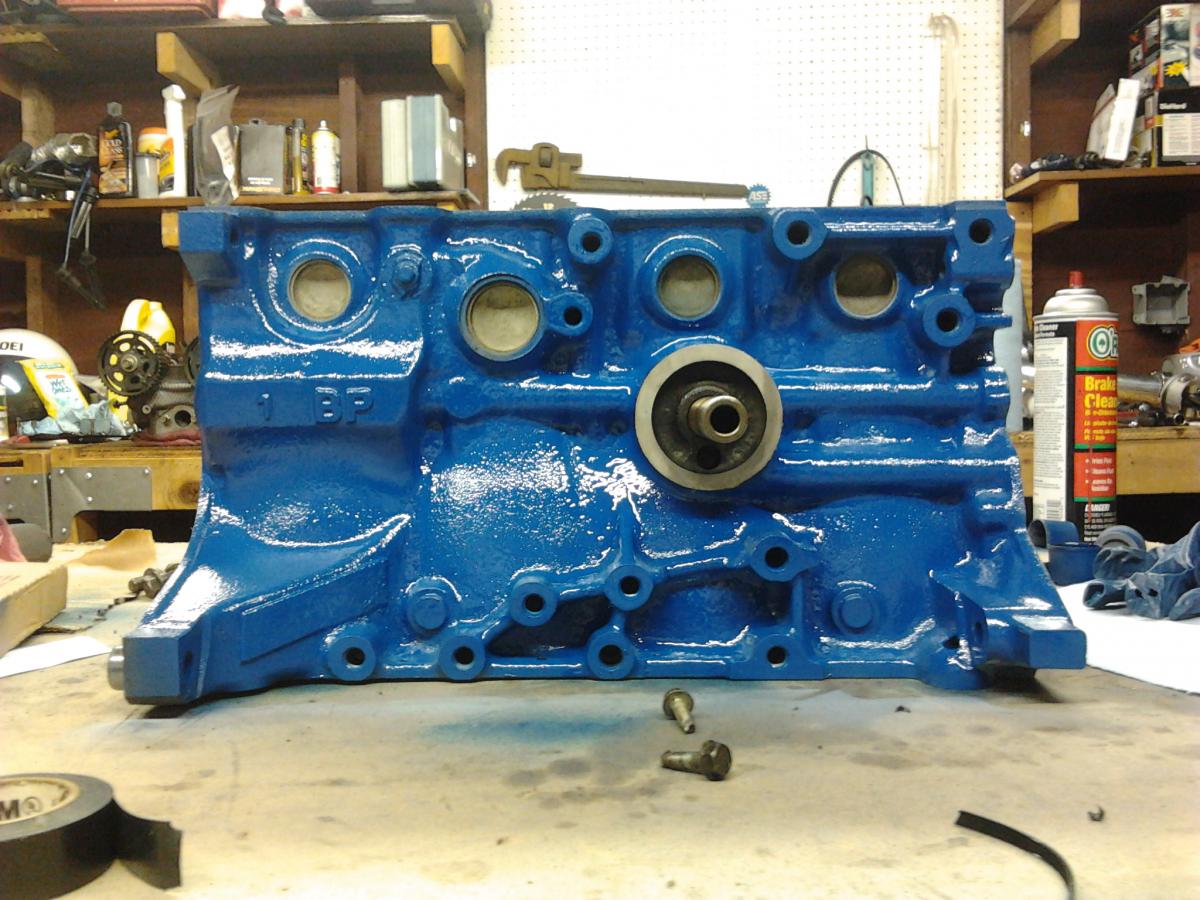

New paint! I think it'll look nice in a silver engine compartment.
Attached Thumbnails
Sh*t just got real son!-img_20111223_212708.jpg   Sh*t just got real son!-img_20111223_212723.jpg   Sh*t just got real son!-img_20111223_223153.jpg   Sh*t just got real son!-img_20111223_223208.jpg   Sh*t just got real son!-img_20111223_223415.jpg

flounder is offline   Reply With Quote
Old 12-24-2011, 12:32 AM   #22
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

not a fan of the blue, but its not terrible.
18psi is offline   Reply With Quote
Old 12-24-2011, 01:50 PM   #23
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

It's VHT ford light blue. I'm gonna bite others style and do a black wrinkle paint for the valve cover and fill in the lettering with the same blue. I'm thinking about flat blacking the IC pipes as well.

Today will be all about assembling the bottom end. I'll be installing the rotating assembly, oil pump, water pump, oil cooler, pick up tube and oil pan.

Progress pics to come.
flounder is offline   Reply With Quote
Old 12-24-2011, 09:29 PM   #24
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

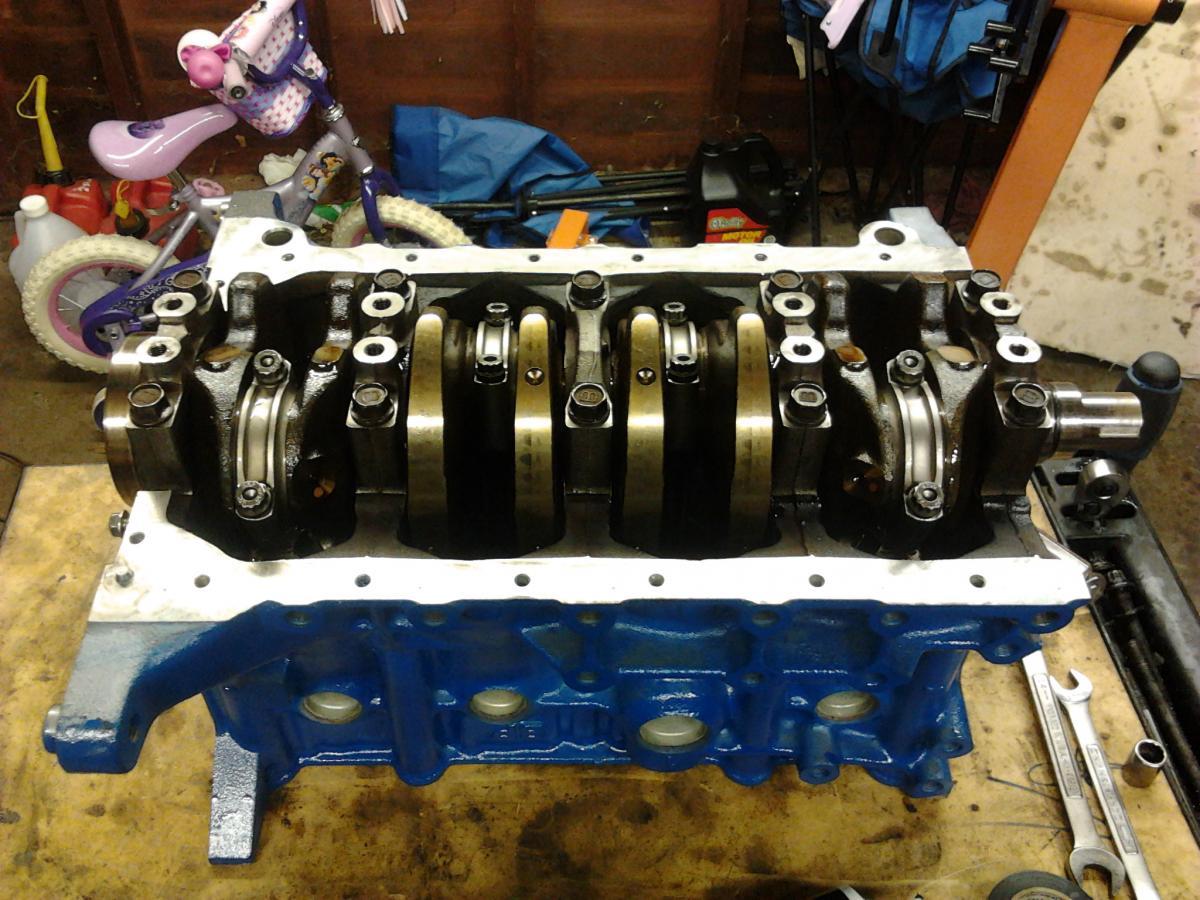

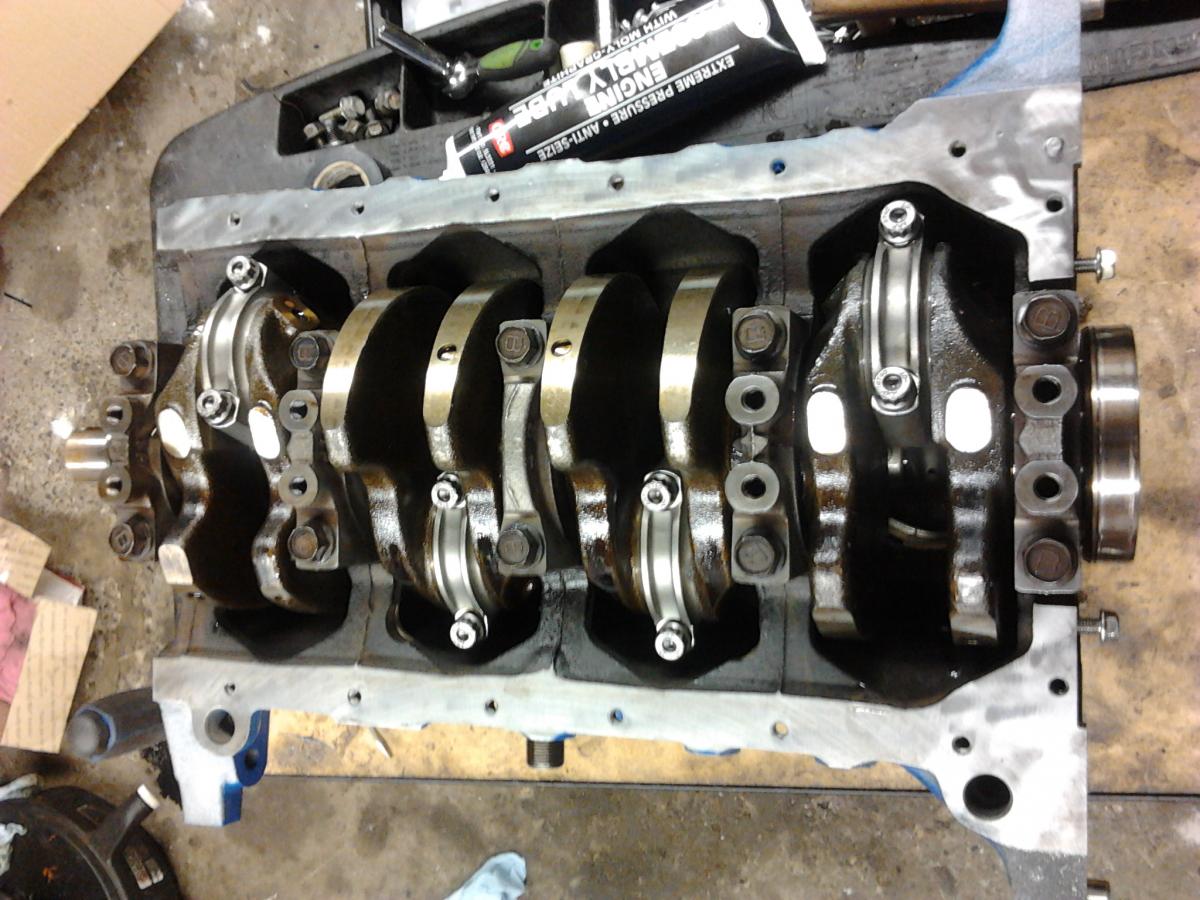

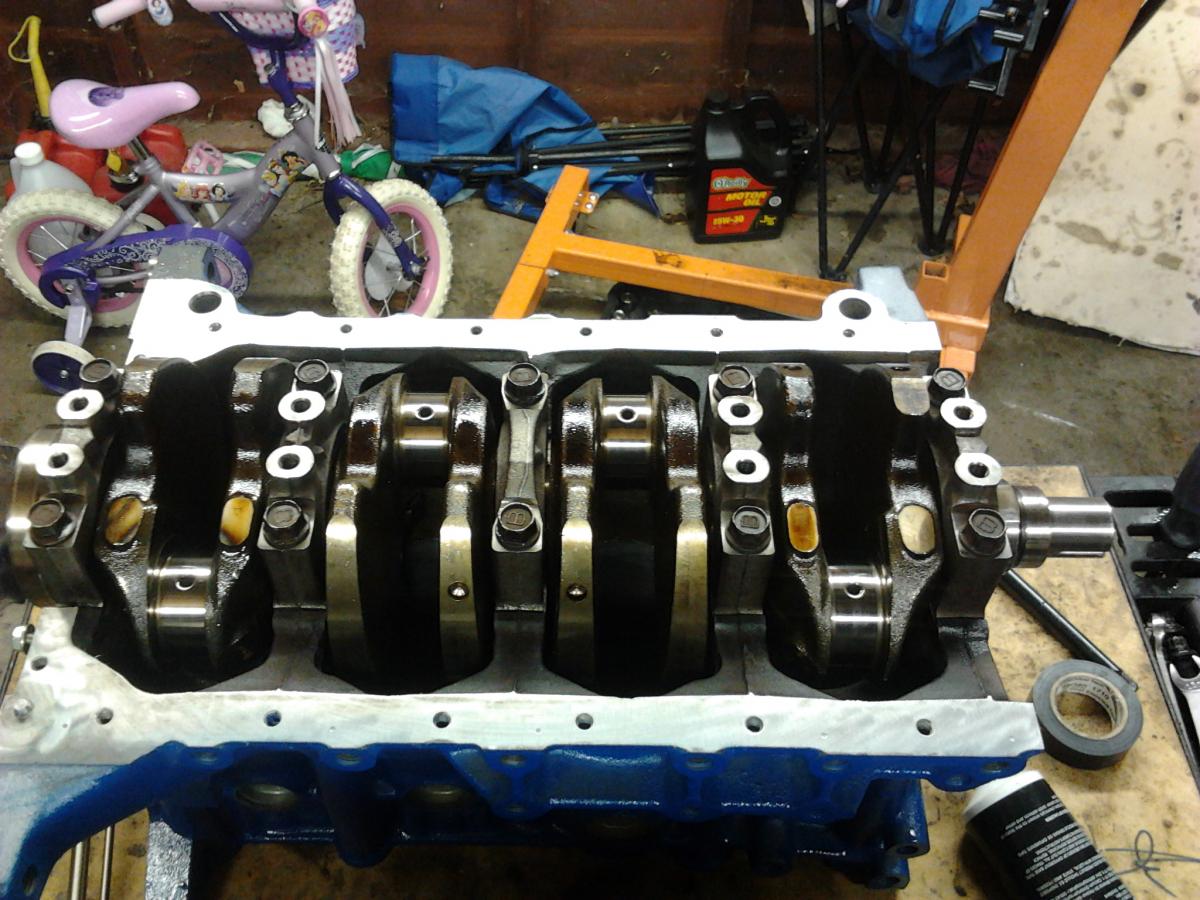

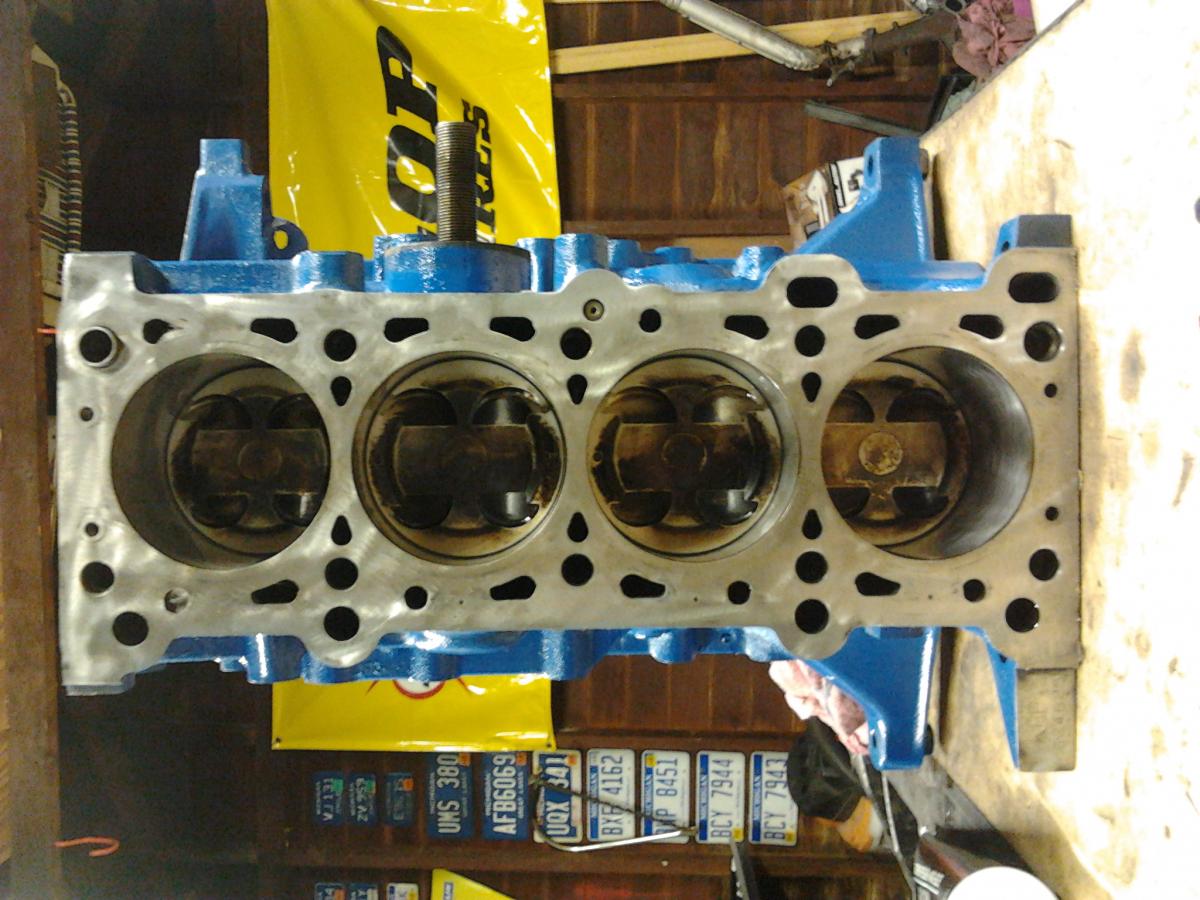

Got busy today and only ended up installing the crank and rods. Maybe after xmas dinner tomorrow, I can sneak away for a few hours and get more done.
Attached Thumbnails
Sh*t just got real son!-img_20111224_162839.jpg   Sh*t just got real son!-img_20111224_183446.jpg   Sh*t just got real son!-img_20111224_183458.jpg   Sh*t just got real son!-img_20111224_191129.jpg
flounder is offline   Reply With Quote
Old 12-25-2011, 11:14 PM   #25
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

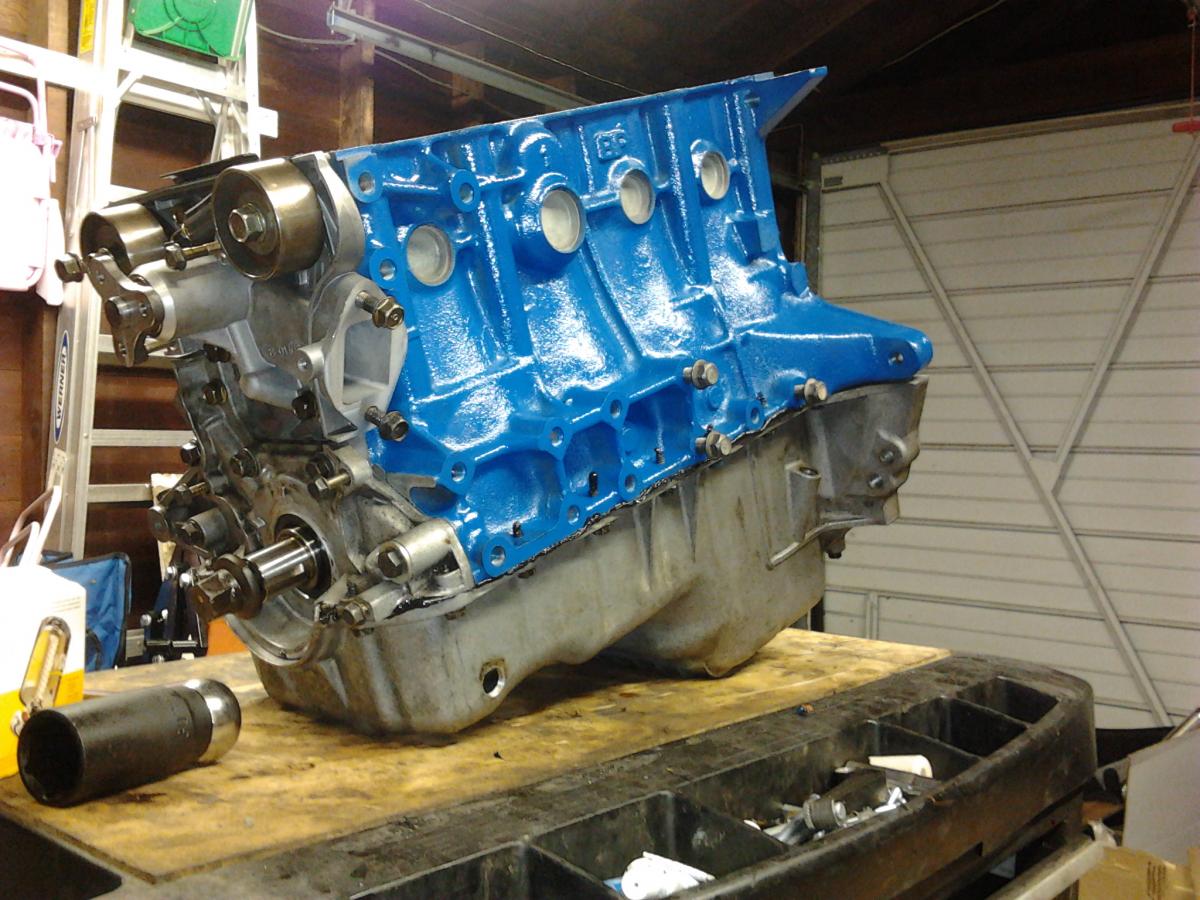

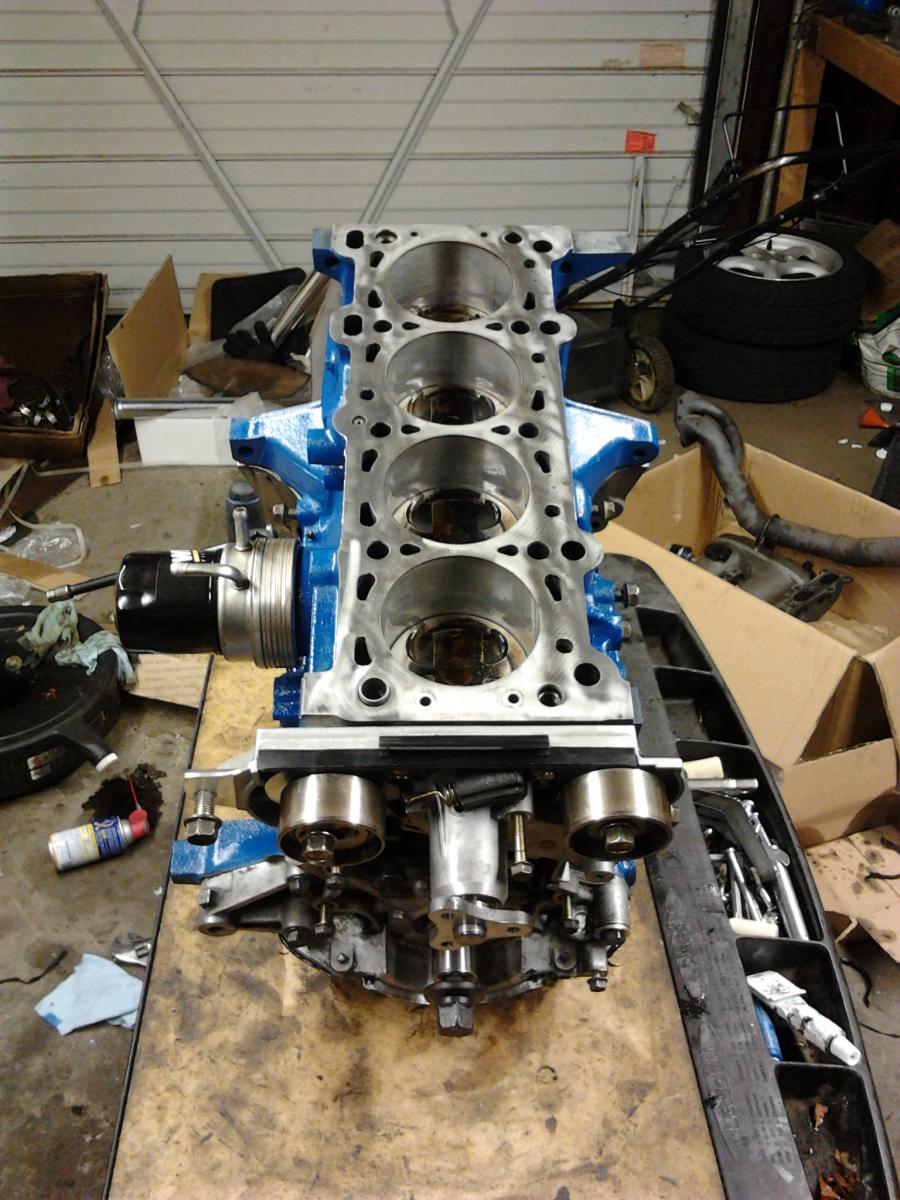

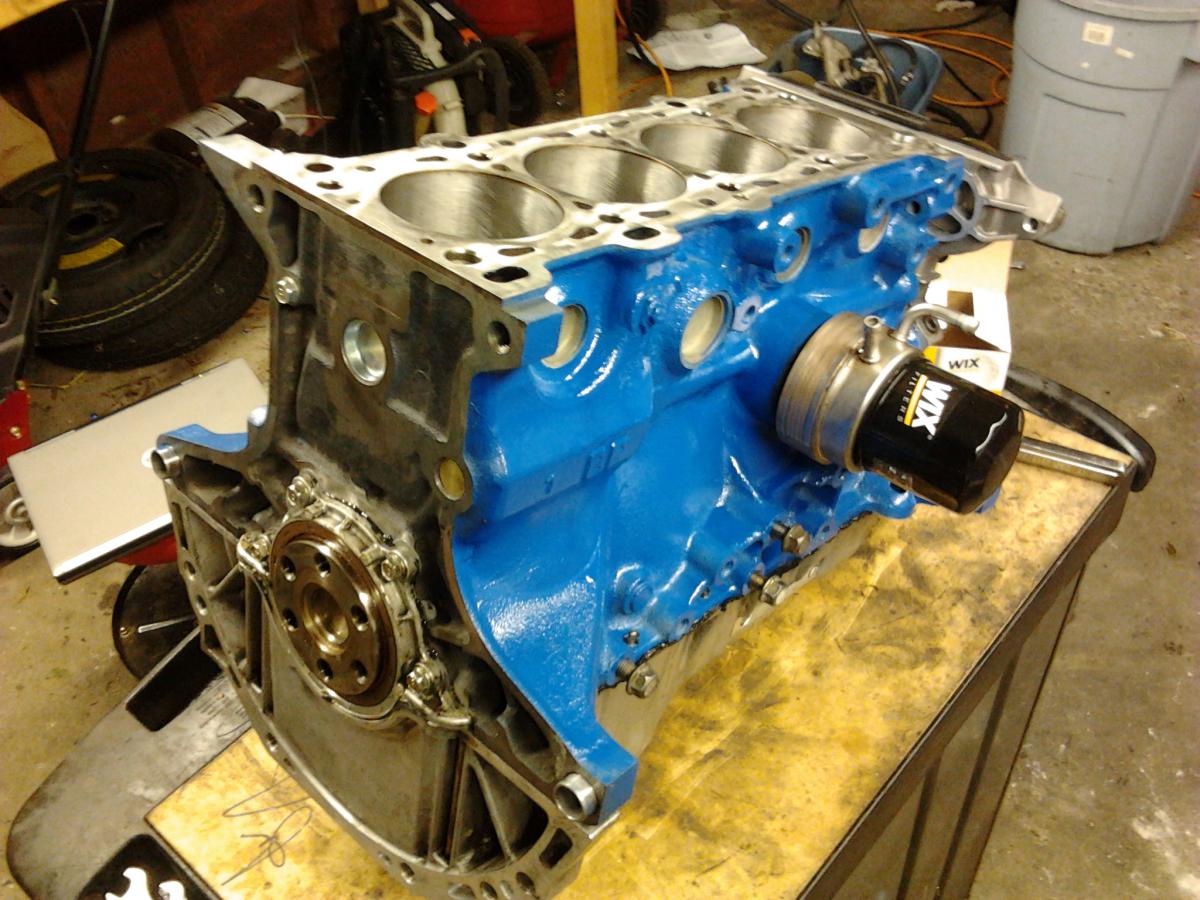

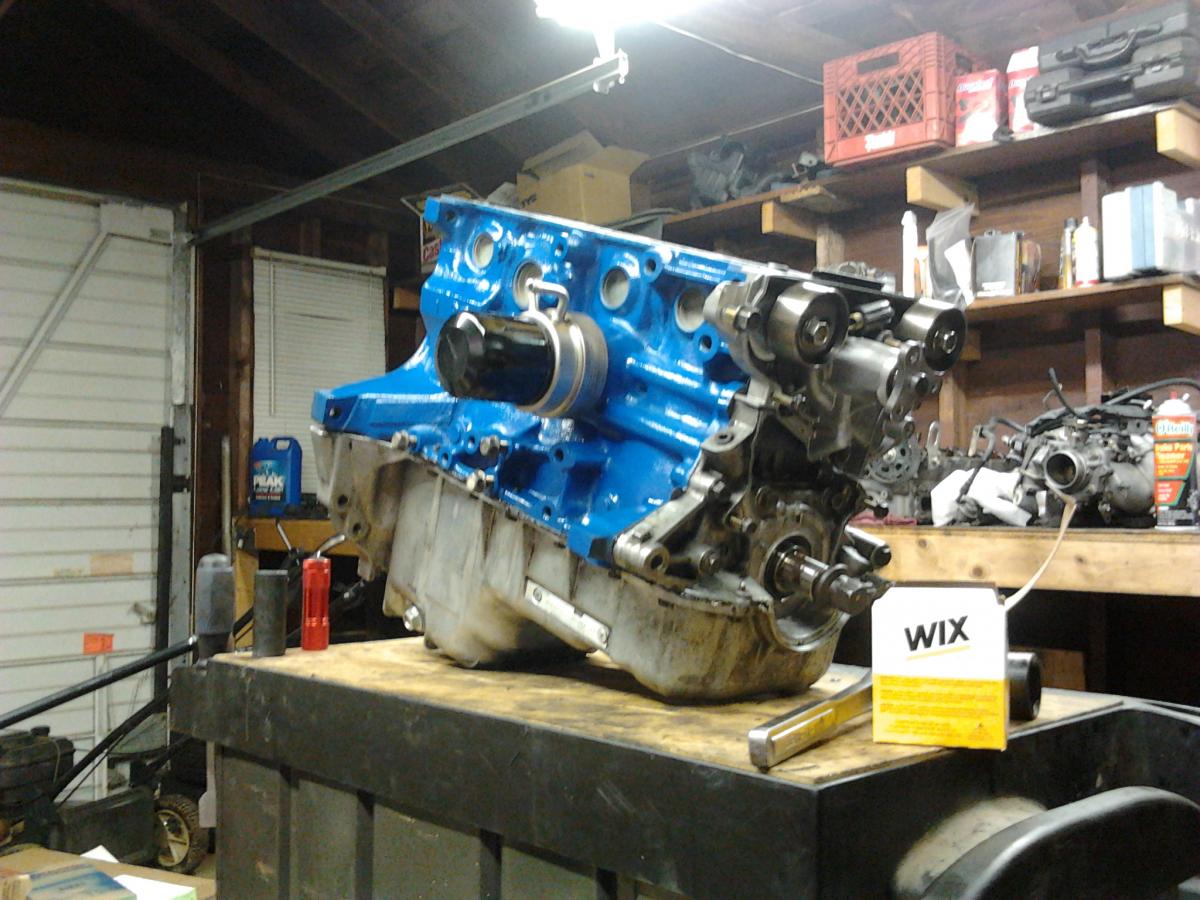

I was able to put some more time in today and got most of the lower end put together. New rear main seal and gasket, crank seal, oil pump gasket, cooler gasket, new water pump, and oil pan installed.

And yes, I am aware my garage is super cluttered.
Attached Thumbnails
Sh*t just got real son!-img_20111225_201517.jpg   Sh*t just got real son!-img_20111225_201605.jpg   Sh*t just got real son!-img_20111225_201843.jpg   Sh*t just got real son!-img_20111225_201621.jpg
flounder is offline   Reply With Quote
Old 12-28-2011, 02:18 AM   #26
Senior Member
iTrader: (4)

Join Date: Nov 2009
Location: Toronto, ON
Posts: 1,479
Total Cats: 6
Default

Which rod bearings did you go with?
dgmorr is offline   Reply With Quote
Old 12-28-2011, 12:14 PM   #27
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Quote:
Originally Posted by dgmorr View Post
Which rod bearings did you go with?
Clevite rod/main bearings and hastings rings. All standard size. I ordered them from one of our engine suppliers at my work.

In other news, I just finished replacing the cam seals, rear vc cap, front and rear coolant gaskets earlier today. The head is all ready to bolt back on tonight. Pictures to follow.
flounder is offline   Reply With Quote
Old 12-29-2011, 08:53 PM   #28
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

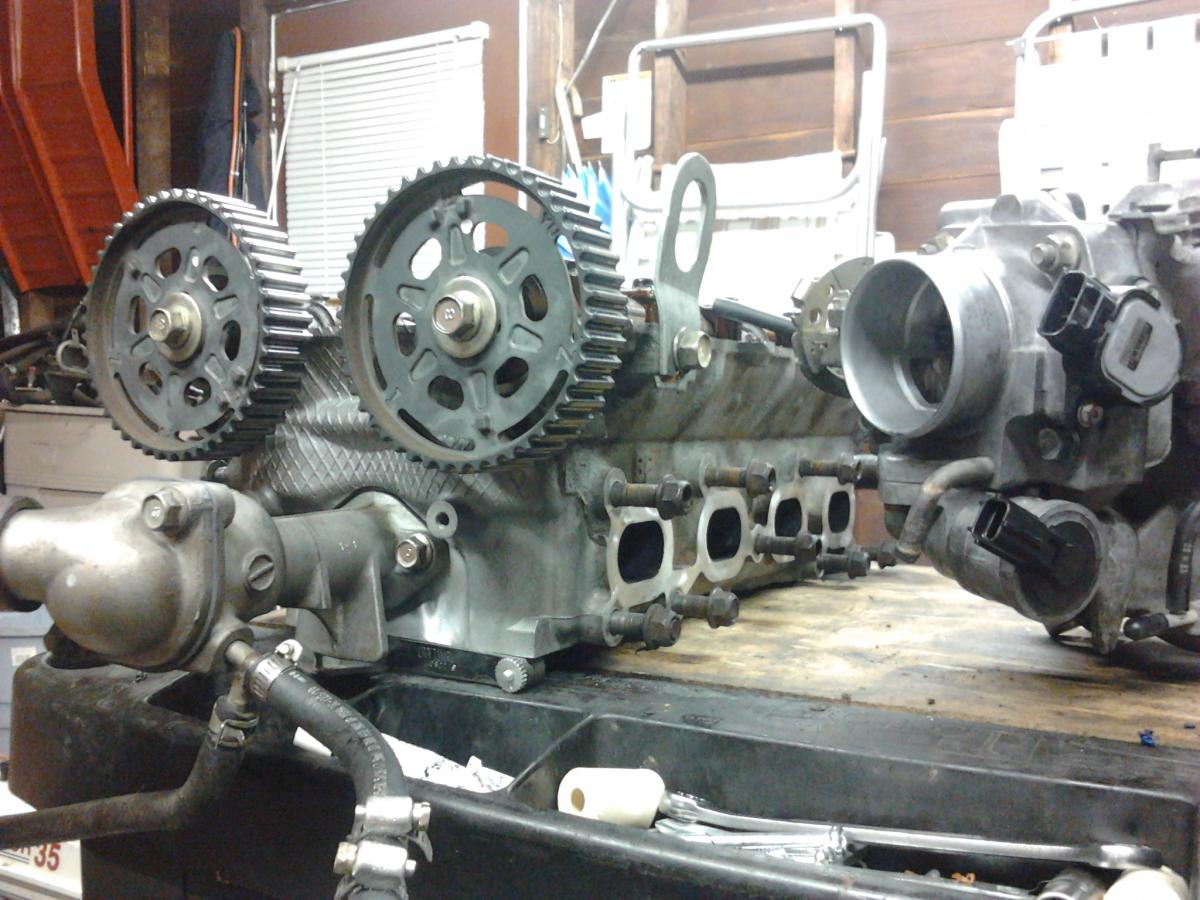

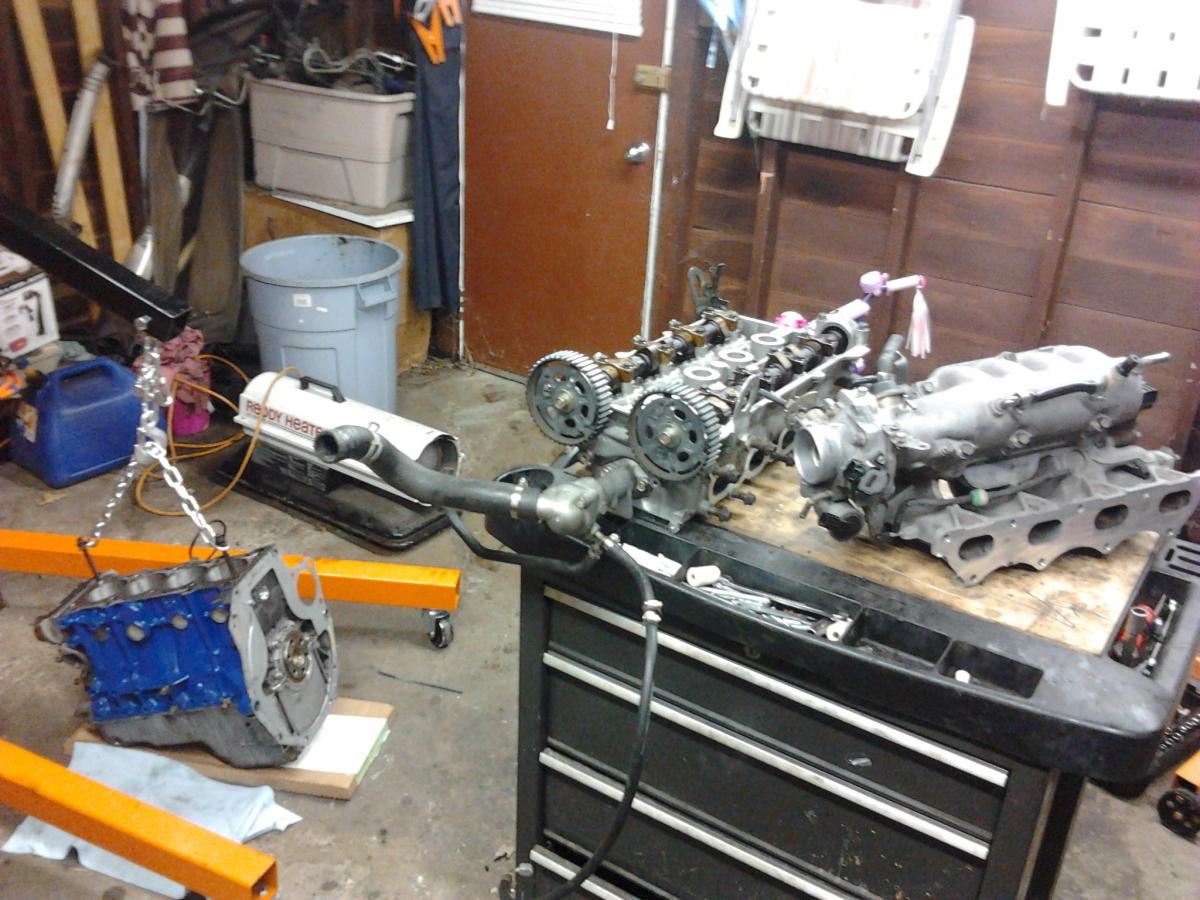

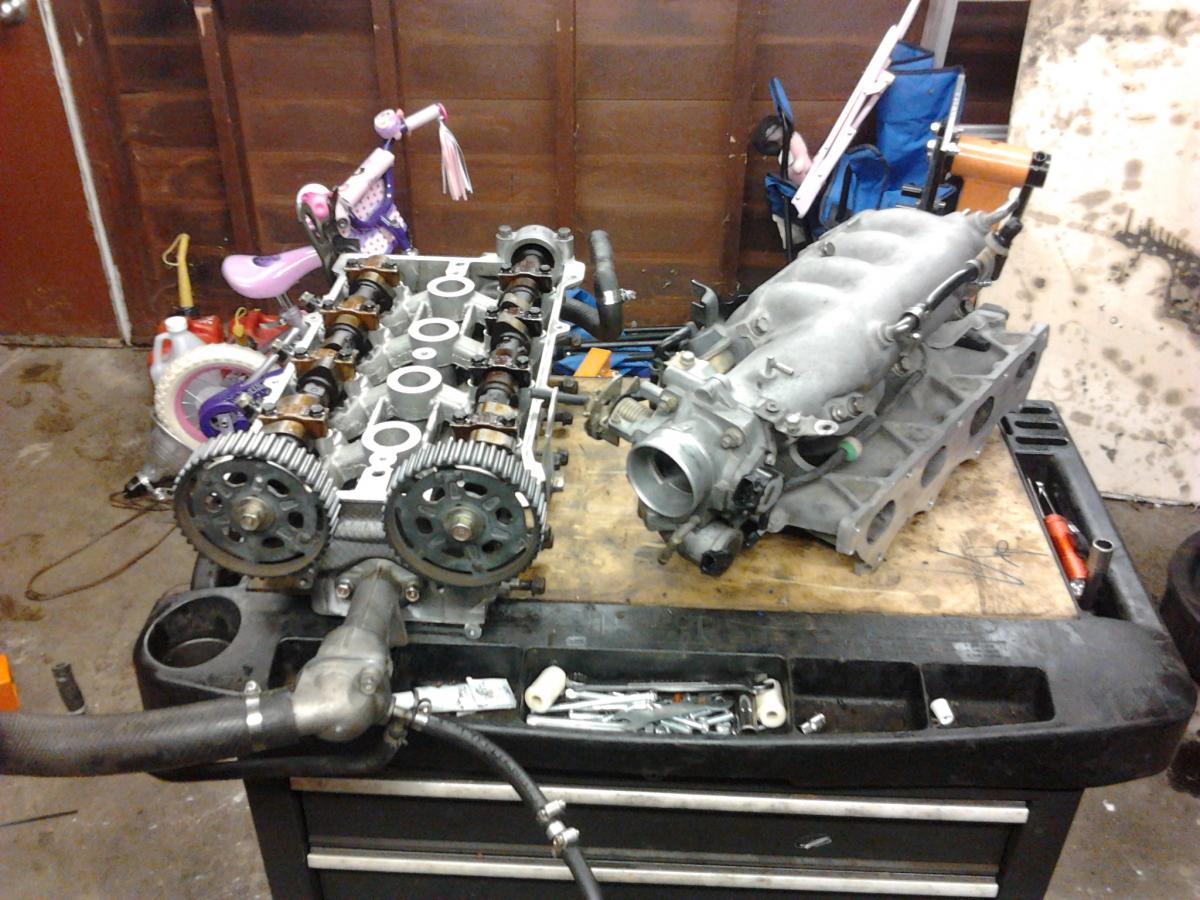

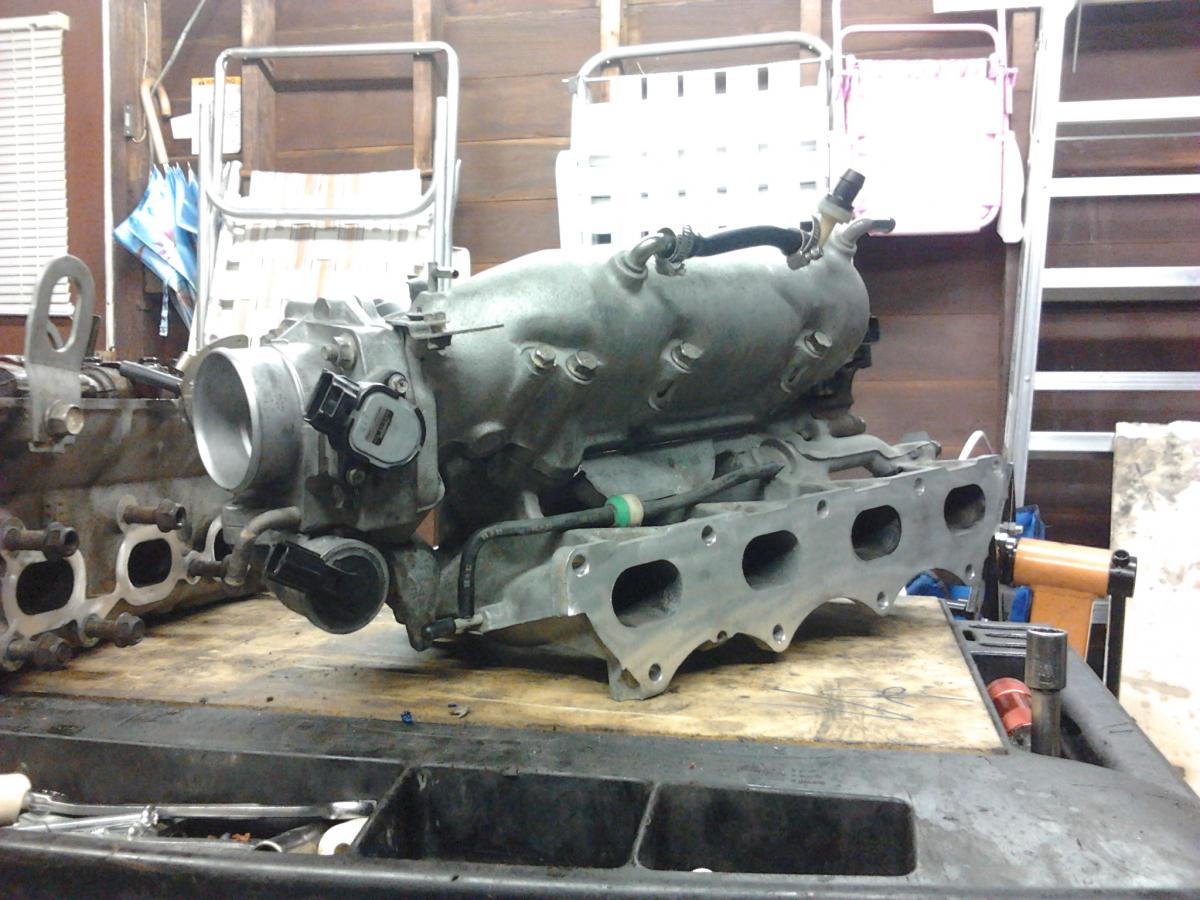

Not much to look at here, but the manifold is all back together after a thorough trip through the parts washer at work and has all new gaskets throughout.

The head got a good spray down with brakeclean and I hit the HG surface and ex/in with an abrasive disc. Everything is back in my garage now and I think i'm gonna put off assembly until the weekend.

The anticipation must be killing everybody.

Edit- quick question, I had the cam sprockets off and forgot how they go back on. Right now I have the intake cam sprocket (I) mark lined up with the pin, and the exhaust sprocket (E) mark lined up with the pin. Is that right?
Attached Thumbnails
Sh*t just got real son!-img_20111229_193114.jpg   Sh*t just got real son!-img_20111229_193123.jpg   Sh*t just got real son!-img_20111229_193134.jpg   Sh*t just got real son!-img_20111229_193146.jpg
flounder is offline   Reply With Quote
Old 01-01-2012, 06:22 PM   #29
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

I was all set to install the head this weekend but decided to be patient and remember that this is a winter project, not a 4 week project.

The head gasket kit came with new premium valve stem seals, and even though I just had the head professionally refreshed 7k miles ago, I figured better to be safe than sorry and regret not doing this while it was already out of the car. So....

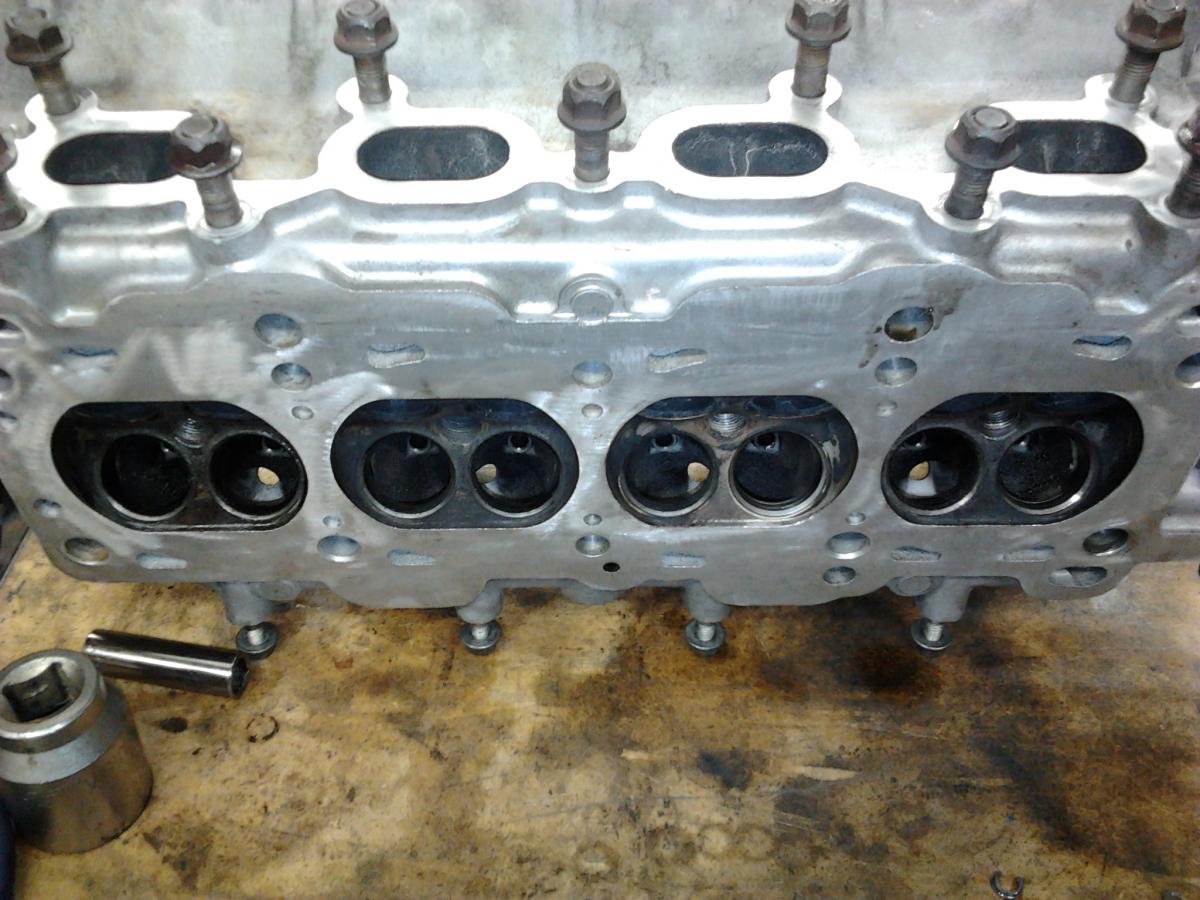

I ended up disassembling the valve train so I can lap the seats/valves and install the new seals.

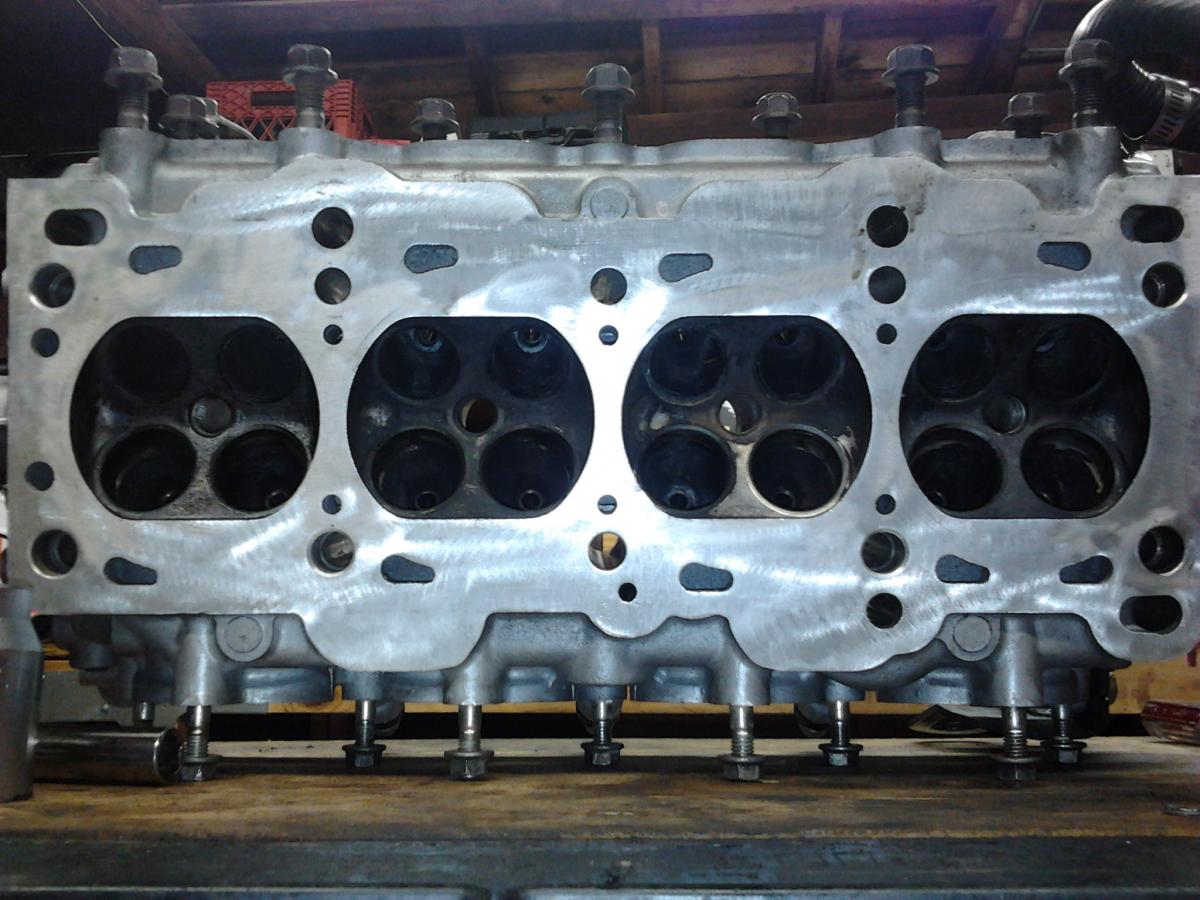

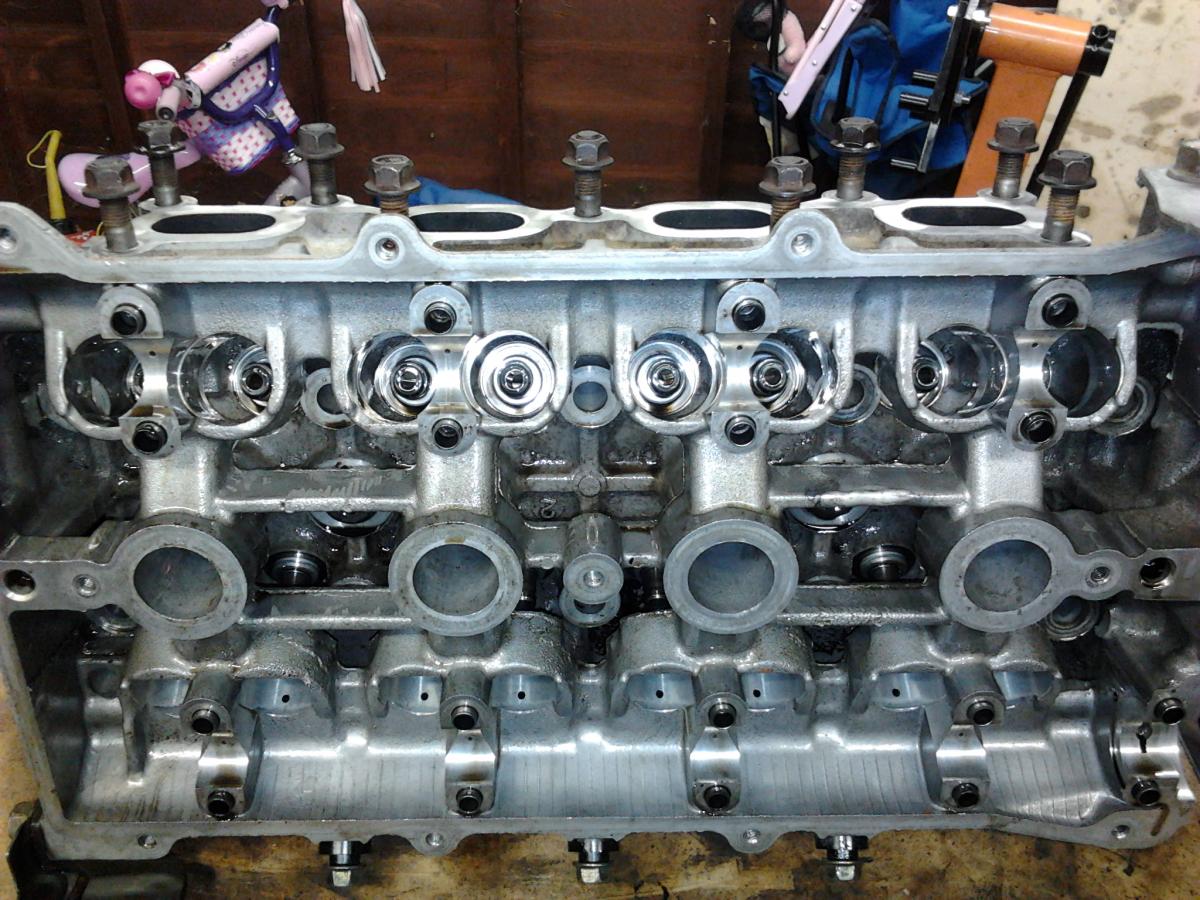

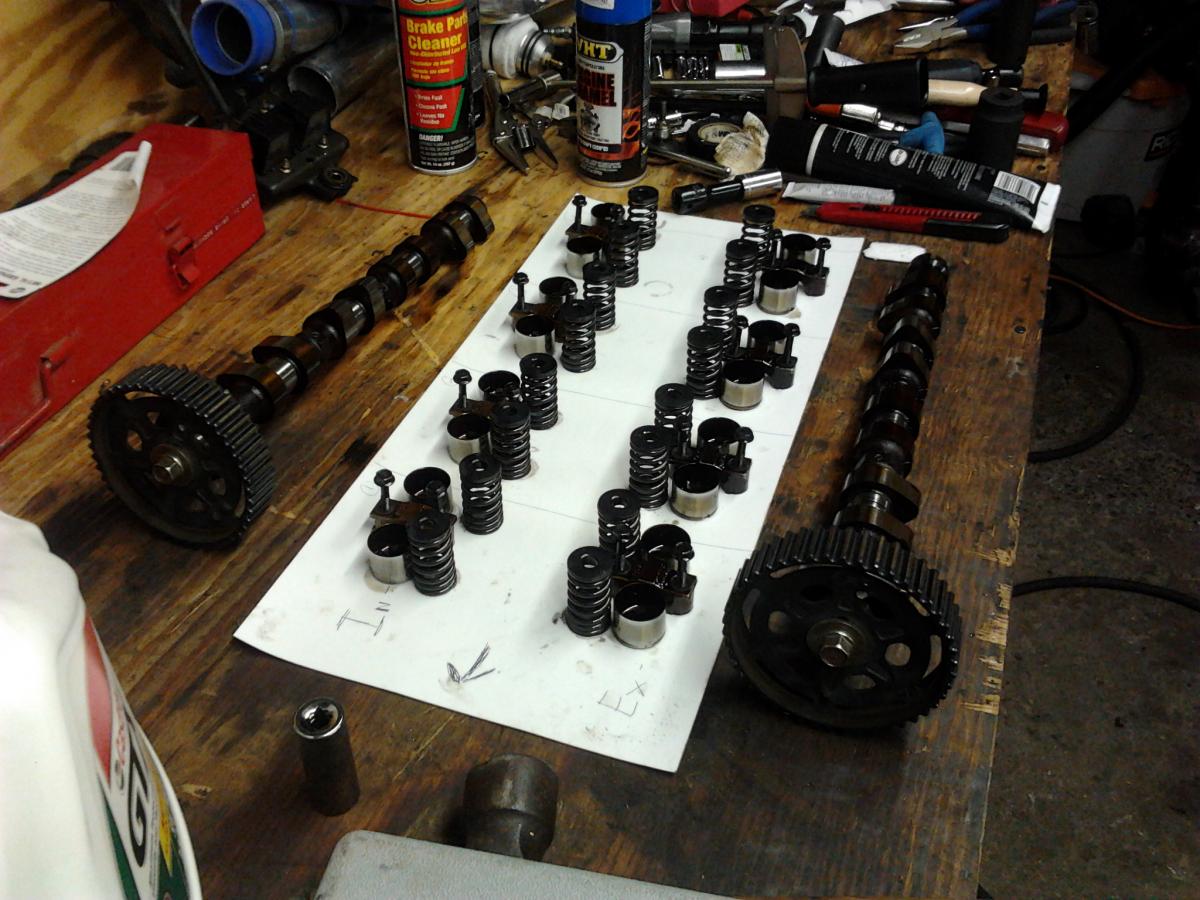

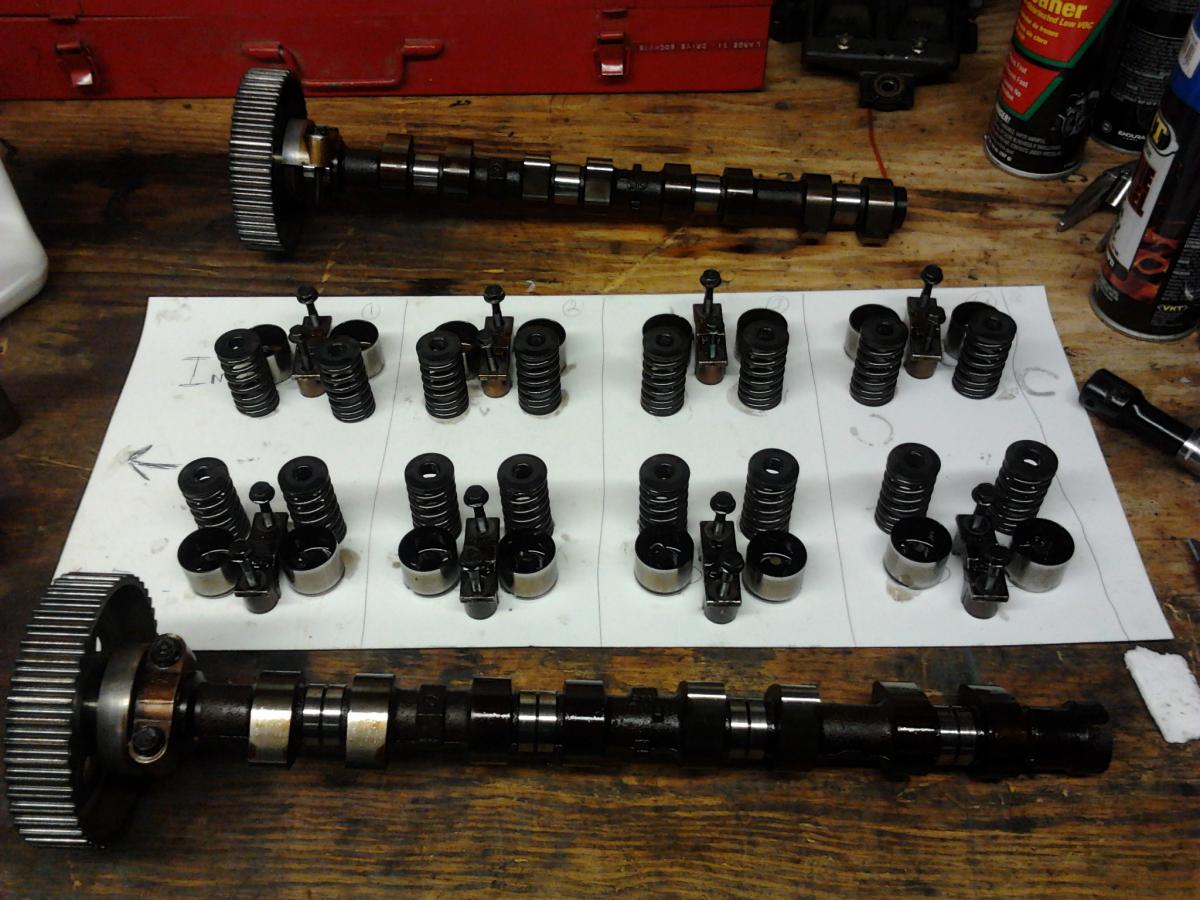

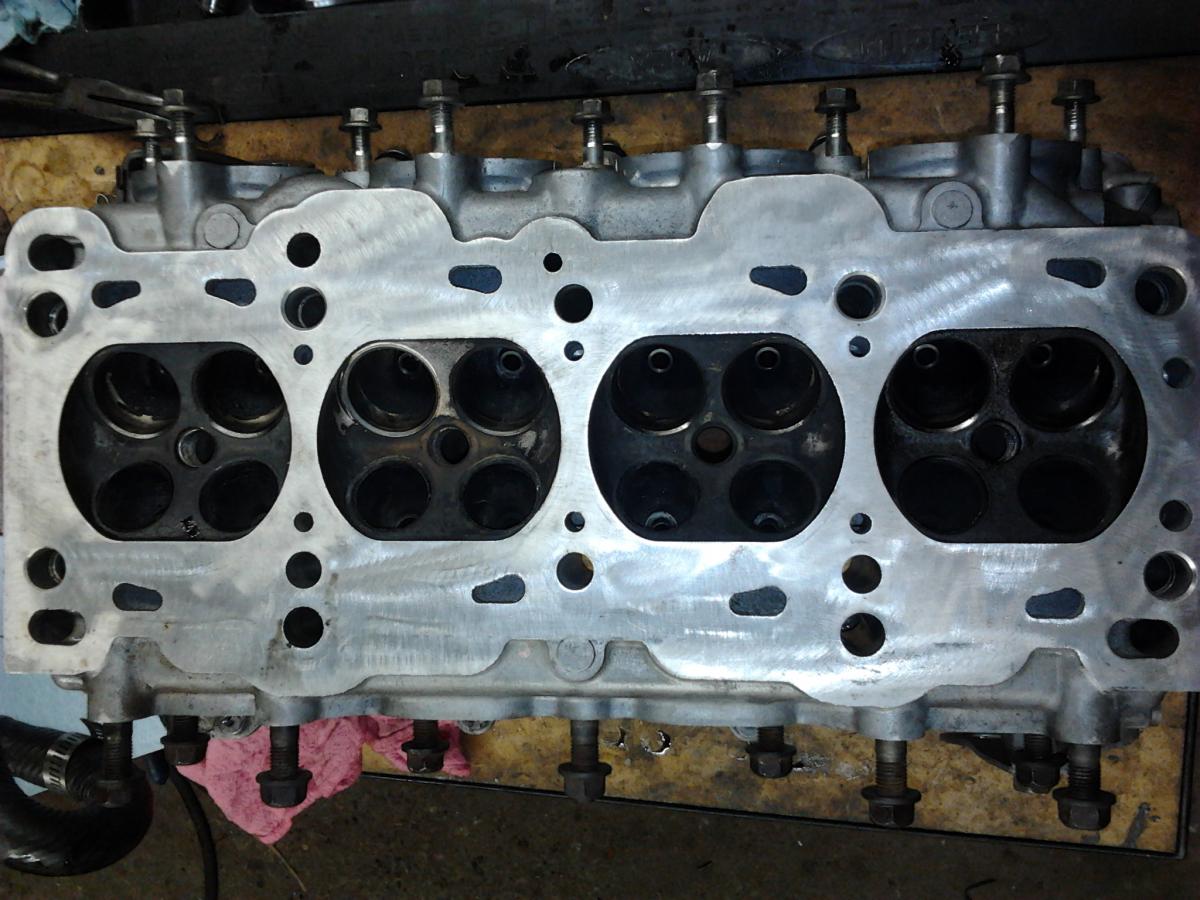

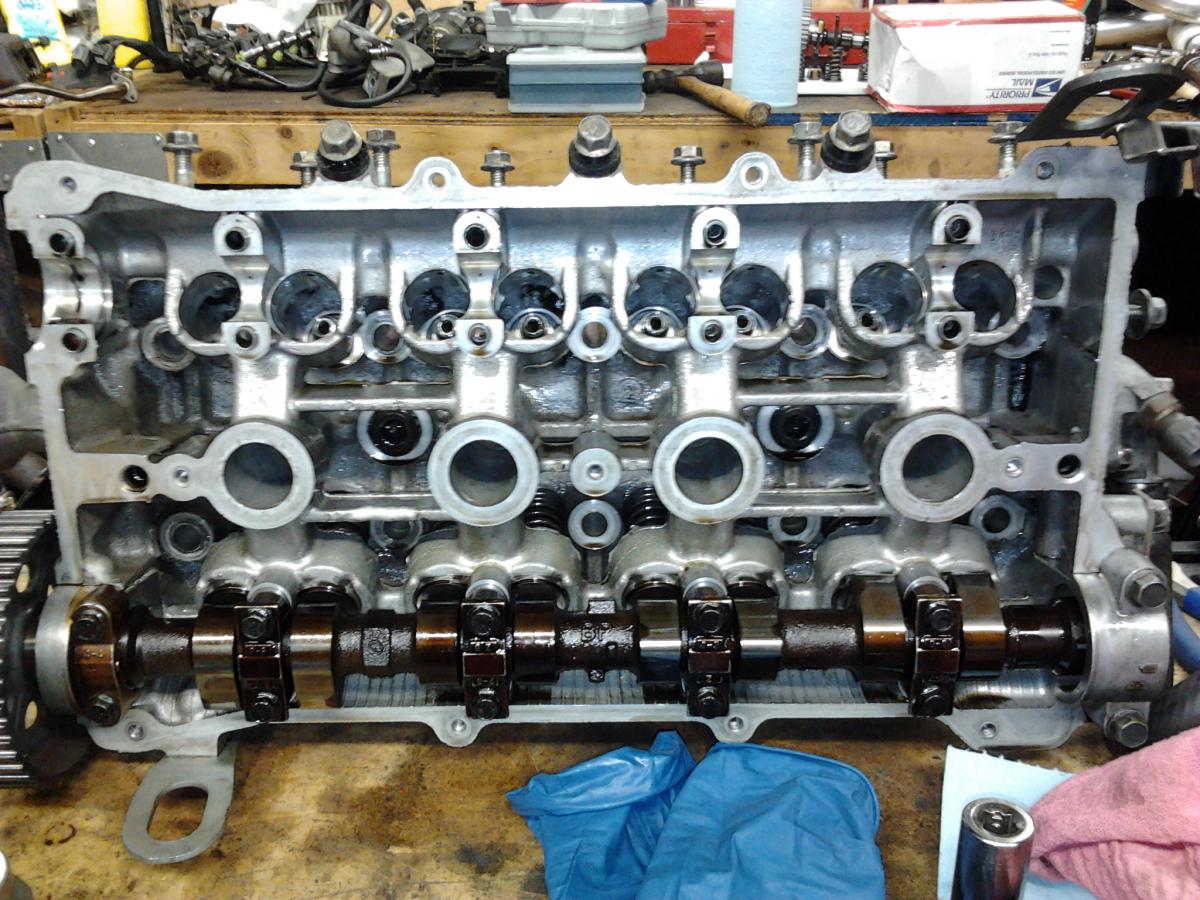

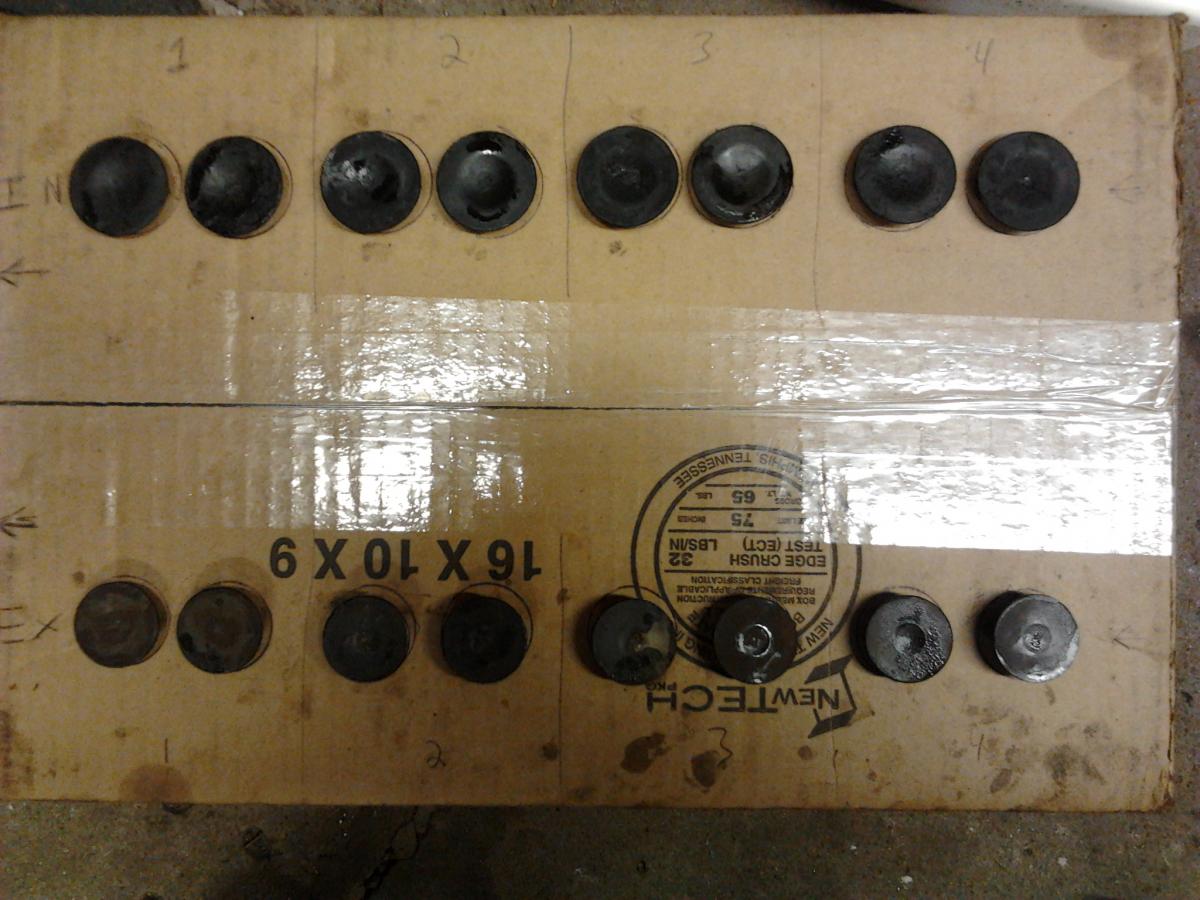

Here are some pics of the lobotomy. The valves and caps will be going to work with me tomorrow so I can de-carbonize them on the wirewheel and clean them in the parts washer. Lapping (can I say lapping Rick?) and final assembly will be done at home. I may even try my hand at some porting but probably not.
Attached Thumbnails
Sh*t just got real son!-img_20120101_162516.jpg   Sh*t just got real son!-img_20120101_162849.jpg   Sh*t just got real son!-img_20120101_165411.jpg   Sh*t just got real son!-img_20120101_165419.jpg   Sh*t just got real son!-img_20120101_165427.jpg

Sh*t just got real son!-img_20120101_154031.jpg   Sh*t just got real son!-img_20120101_162507.jpg   Sh*t just got real son!-img_20120101_162448.jpg
flounder is offline   Reply With Quote
Old 01-01-2012, 07:12 PM   #30
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,071
Total Cats: 253
Default

Are you changing any of the hotside parts while you're building the motor?
viperormiata is online now   Reply With Quote
Old 01-01-2012, 07:39 PM   #31
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Not right now. If I have an issue with the heli-coiled turbo (see above) then I may be forced to.

I will be adding a new exhaust system besides the begi downpipe once I am certain it runs good and isn't going to blowup but it'll stay stock until then.

Plans for the year include, exhaust, wheels/tires, suspension upgrades, and finally I'd like to convert the tan leather interior to all black with either cloth or racing seats. That's probably when I'll upgrade to a full stand alone as well. I was never a fan of the silver/tan combo, but the price was right and it came with a hardtop.

Last edited by flounder; 01-01-2012 at 10:40 PM.
flounder is offline   Reply With Quote
Old 01-03-2012, 10:44 PM   #32
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

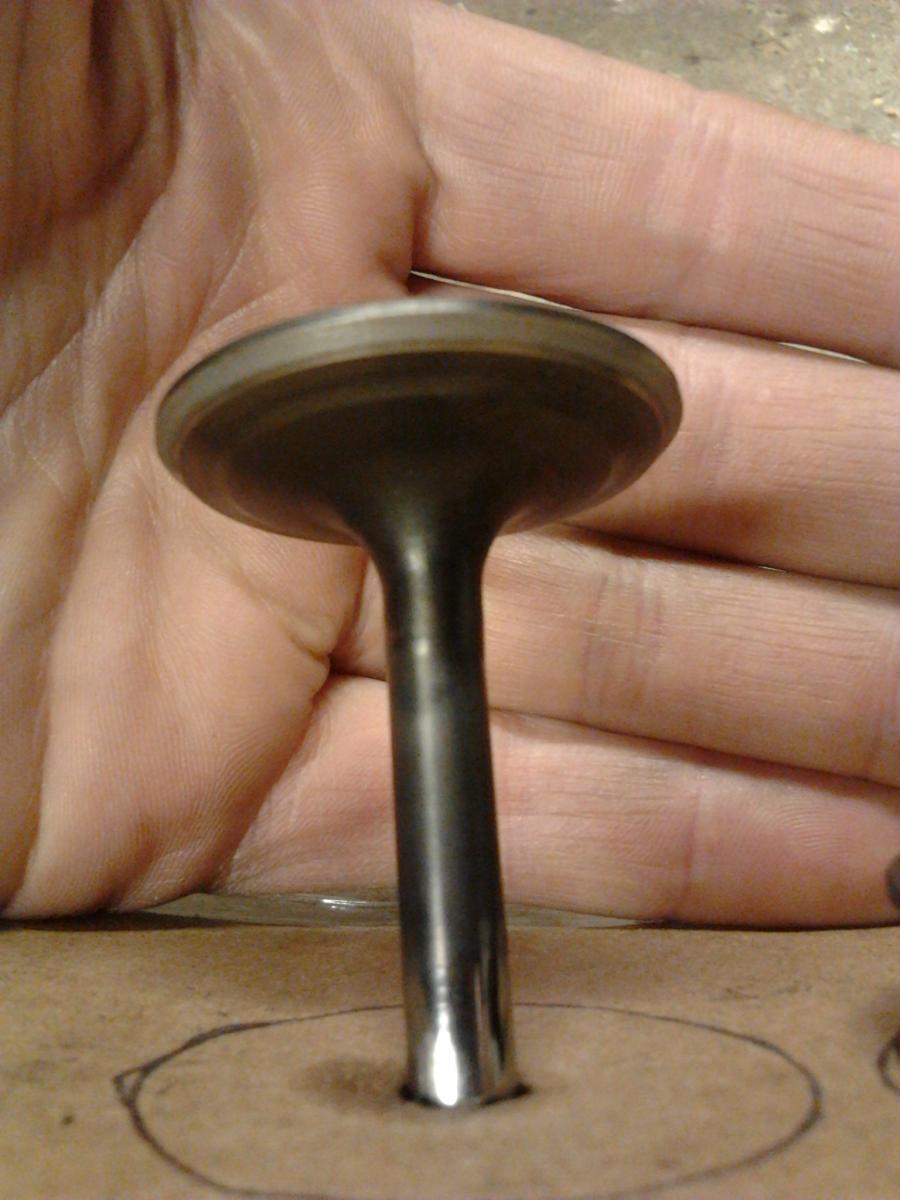

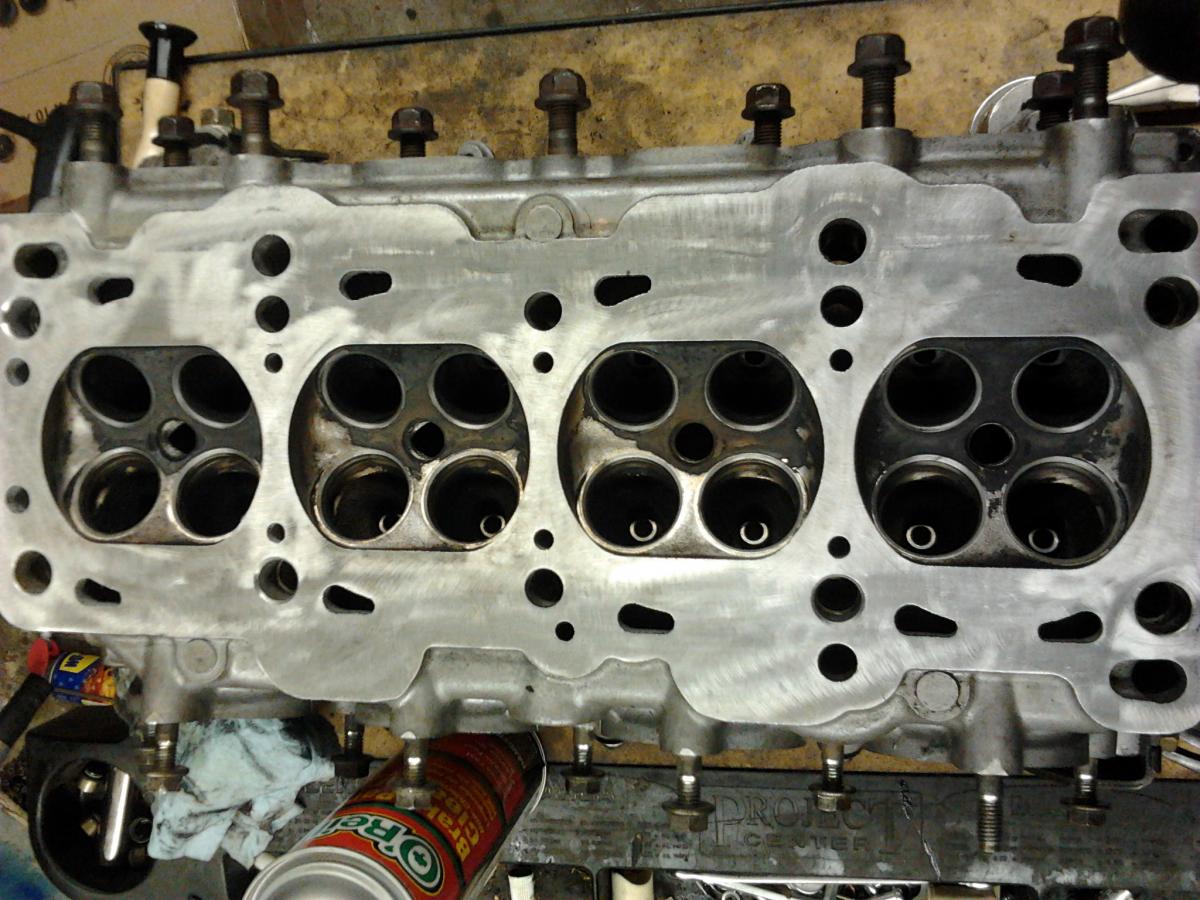

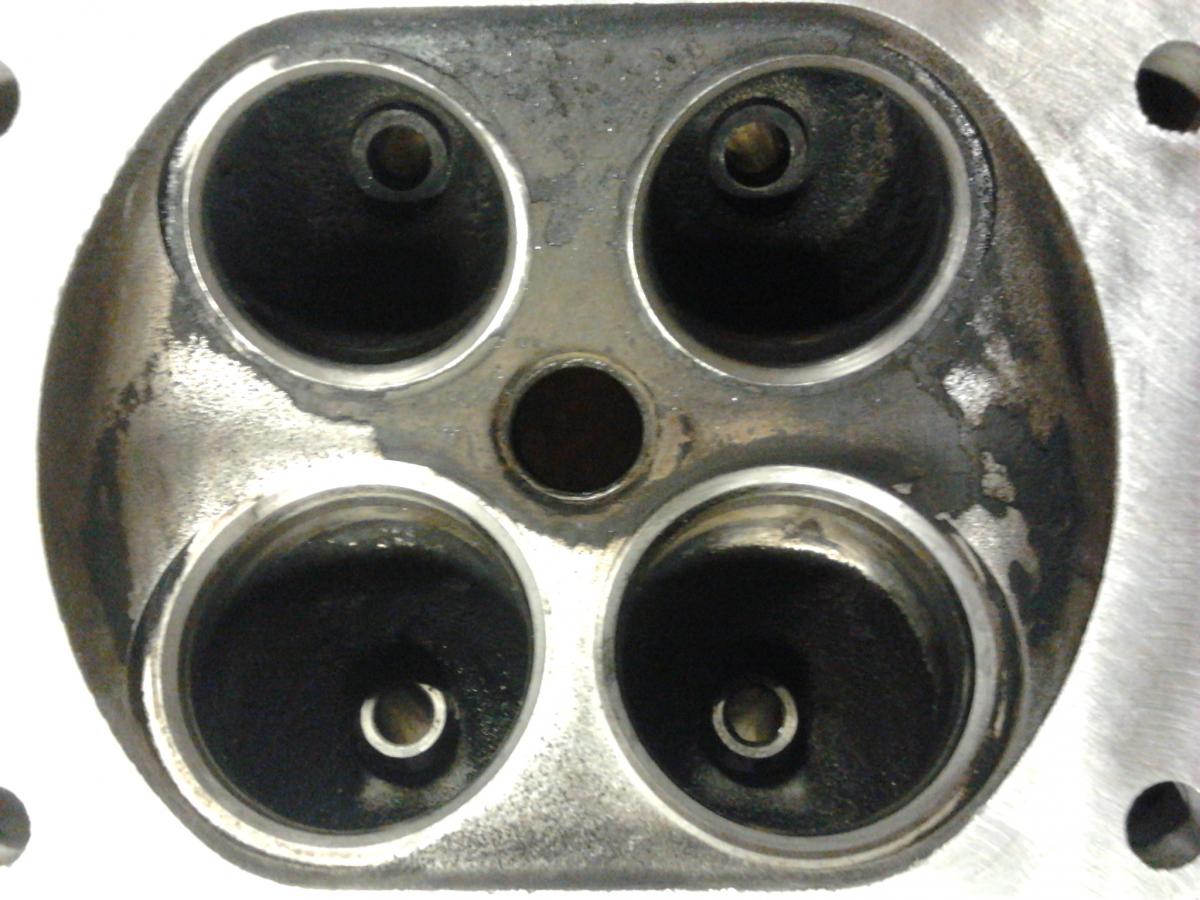

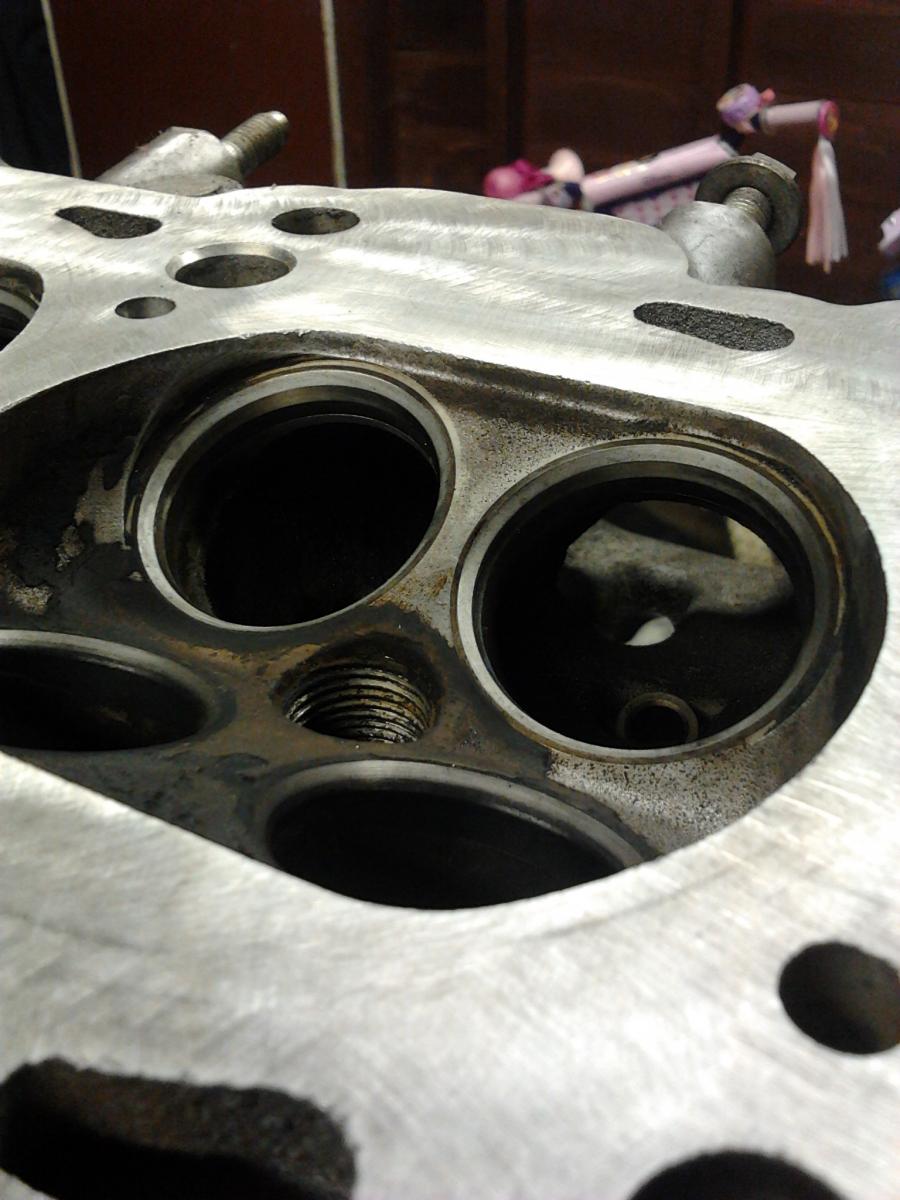

Finished lapping the valves. What a messy, time consuming project that was.

I still need to brake clean the hell out of all of it so none of that compound finds its way into the bearings.
Attached Thumbnails
Sh*t just got real son!-img_20120103_212818.jpg   Sh*t just got real son!-img_20120103_212847.jpg   Sh*t just got real son!-img_20120103_212831.jpg   Sh*t just got real son!-img_20120103_212932.jpg
flounder is offline   Reply With Quote
Old 01-08-2012, 06:09 PM   #33
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

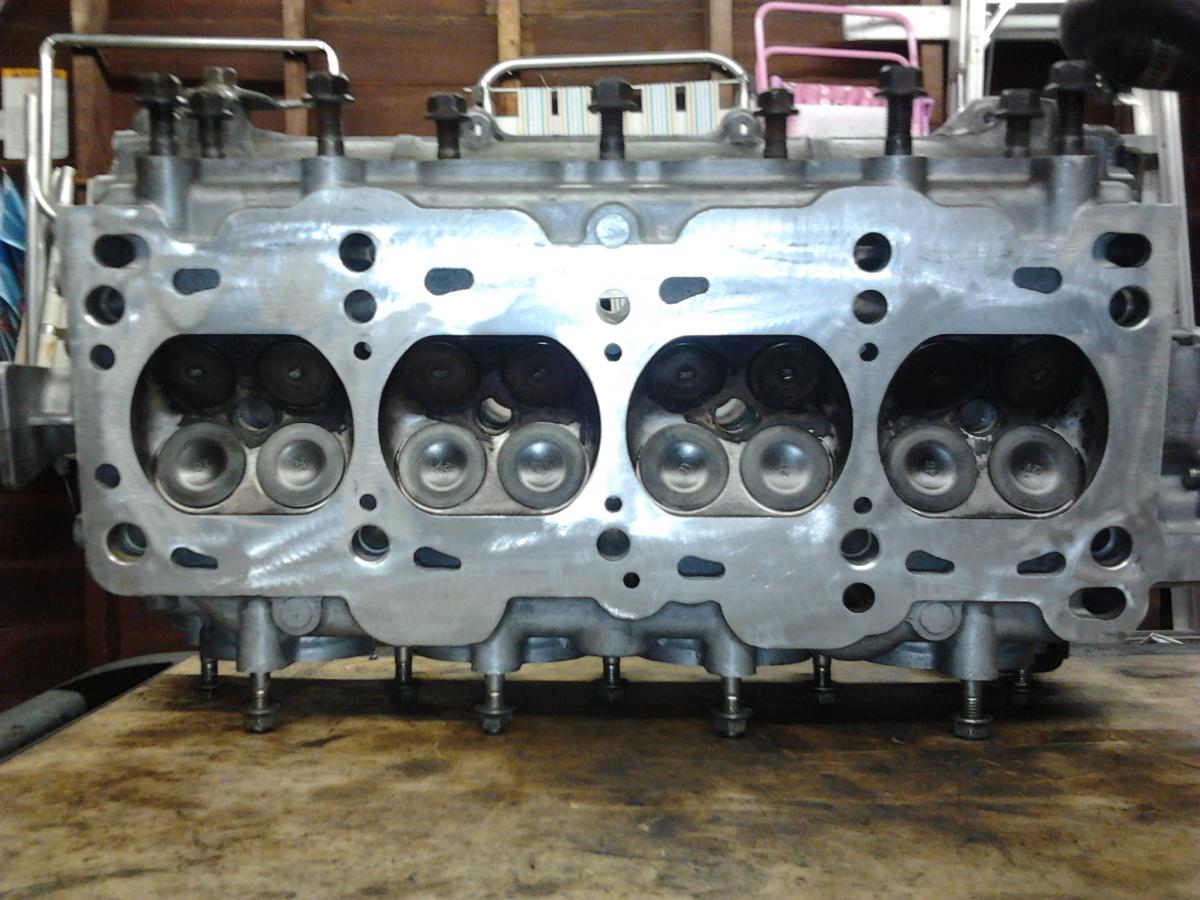

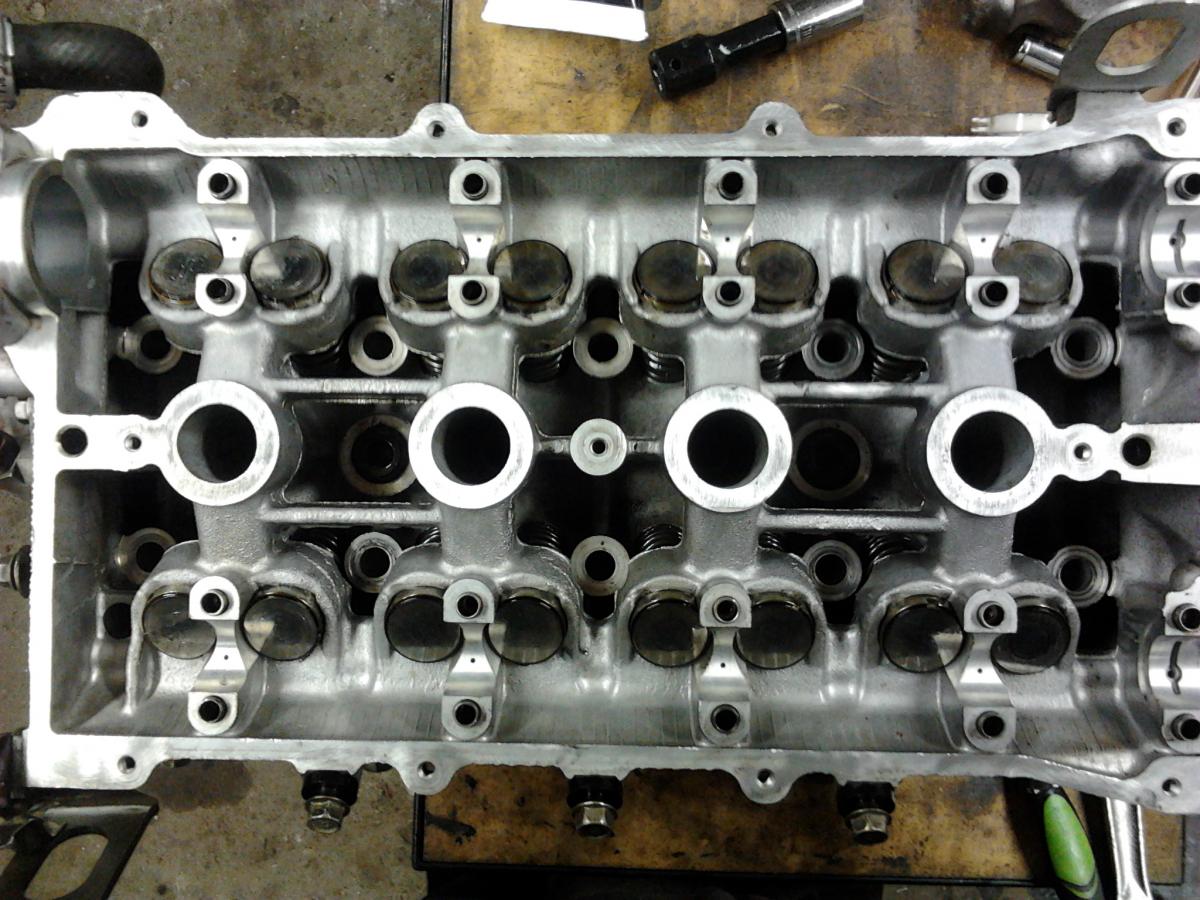

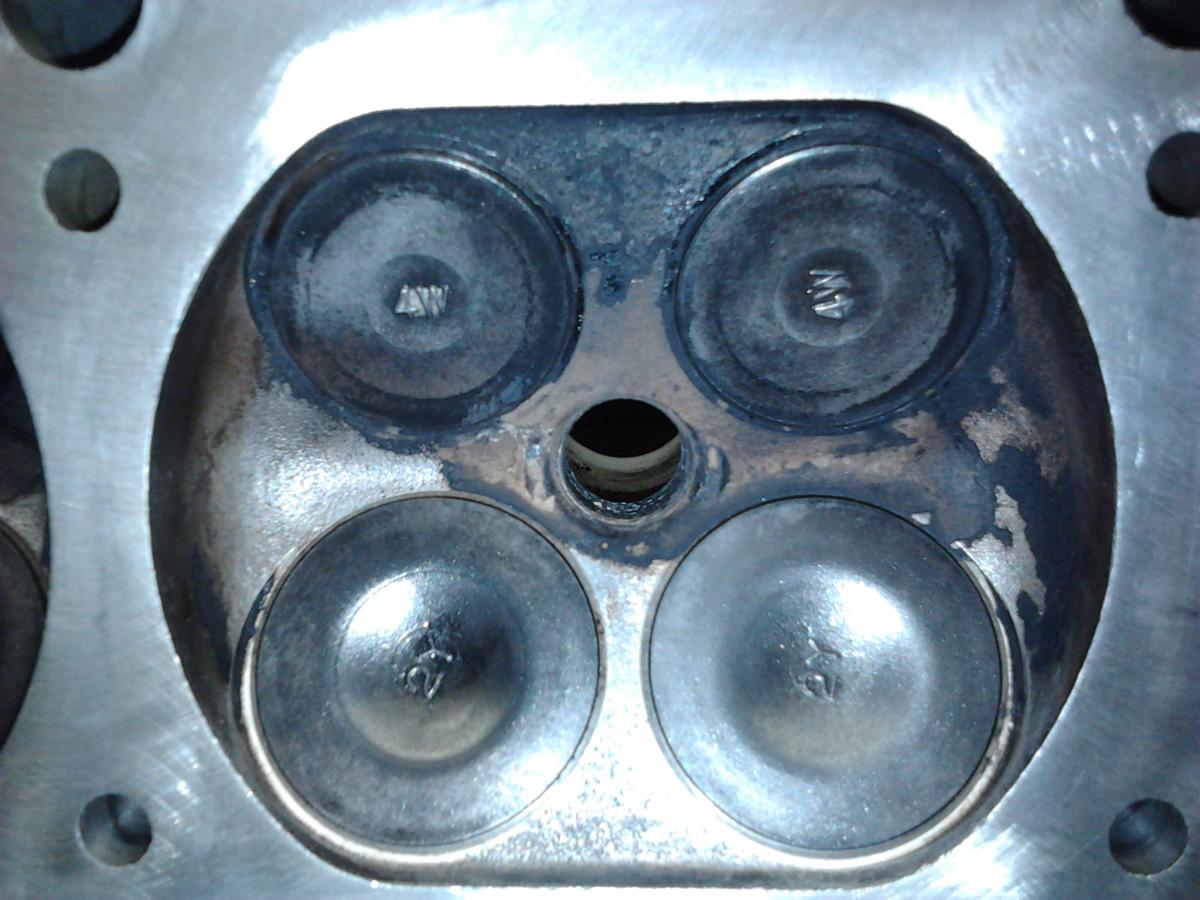

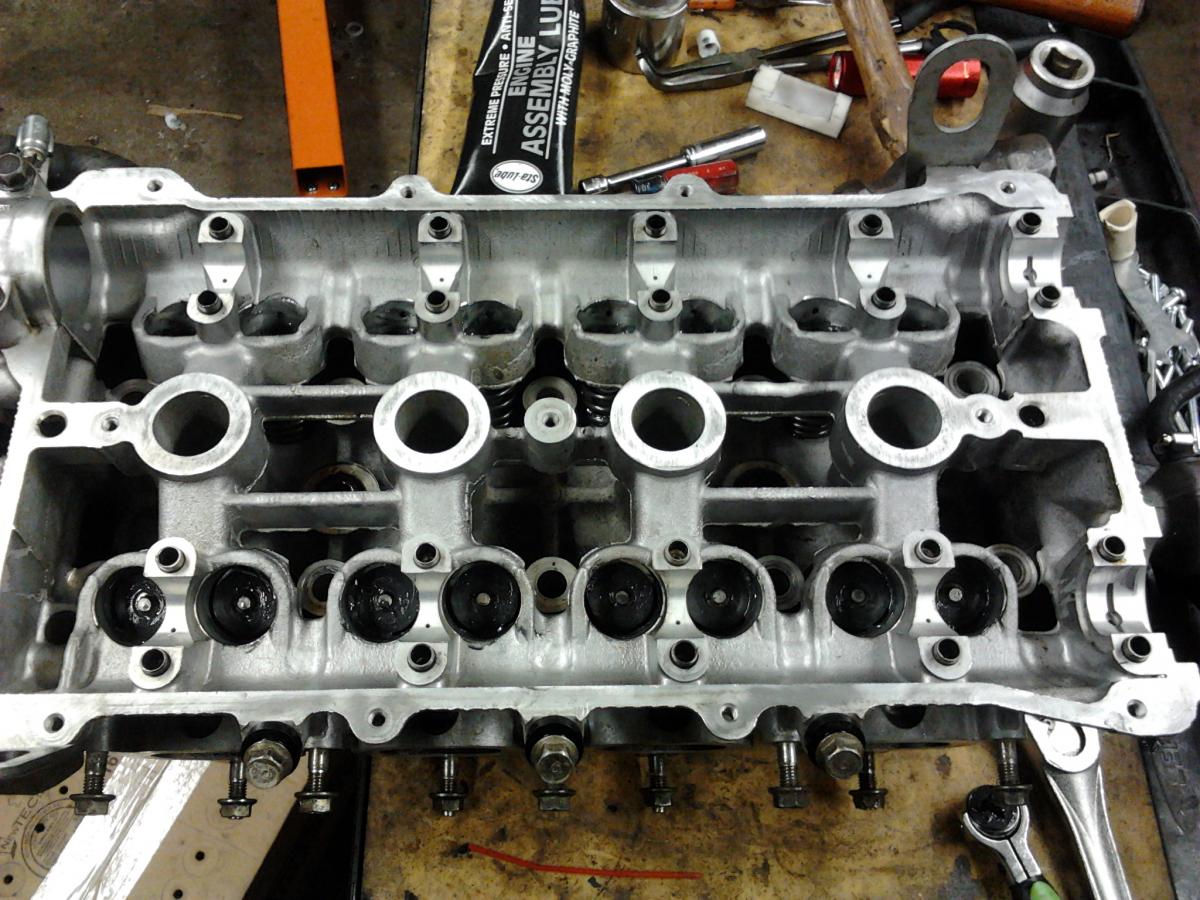

Ok. Valves lapped, head got a decent cleaning, new seals installed, valves, springs, washers, keepers, and tappets installed. So far so good.

I think I'm going to wait until the head is back on the block to install the cams and check lash.

More updates to come later in the week.
Attached Thumbnails
Sh*t just got real son!-img_20120108_163720.jpg   Sh*t just got real son!-img_20120108_164129.jpg   Sh*t just got real son!-img_20120108_164451.jpg   Sh*t just got real son!-img_20120108_164512.jpg
flounder is offline   Reply With Quote
Old 01-09-2012, 08:46 AM   #34
Junior Member

Golferluke's Avatar

Join Date: Oct 2009
Location: Springfield, MO
Posts: 497
Total Cats: 3
Default

So how hard was it to install valve seals? I'm going to be installing rings/rods shortly. I've never done anything more than a water pump as far as motor goes so I'm a little nervous about the whole thing. I wasn't planning on touching the head but after some reading I guess I better replace the seals while I'm in there. Just curious as to what im getting myself into.
Golferluke is offline   Reply With Quote
Old 01-09-2012, 09:20 AM   #35
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

The seals themselves are way easy, pull off- slip on - the time consuming part will be compressing the springs and getting the retainers in place.
GeneSplicer is offline   Reply With Quote
Old 01-14-2012, 11:04 PM   #36
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

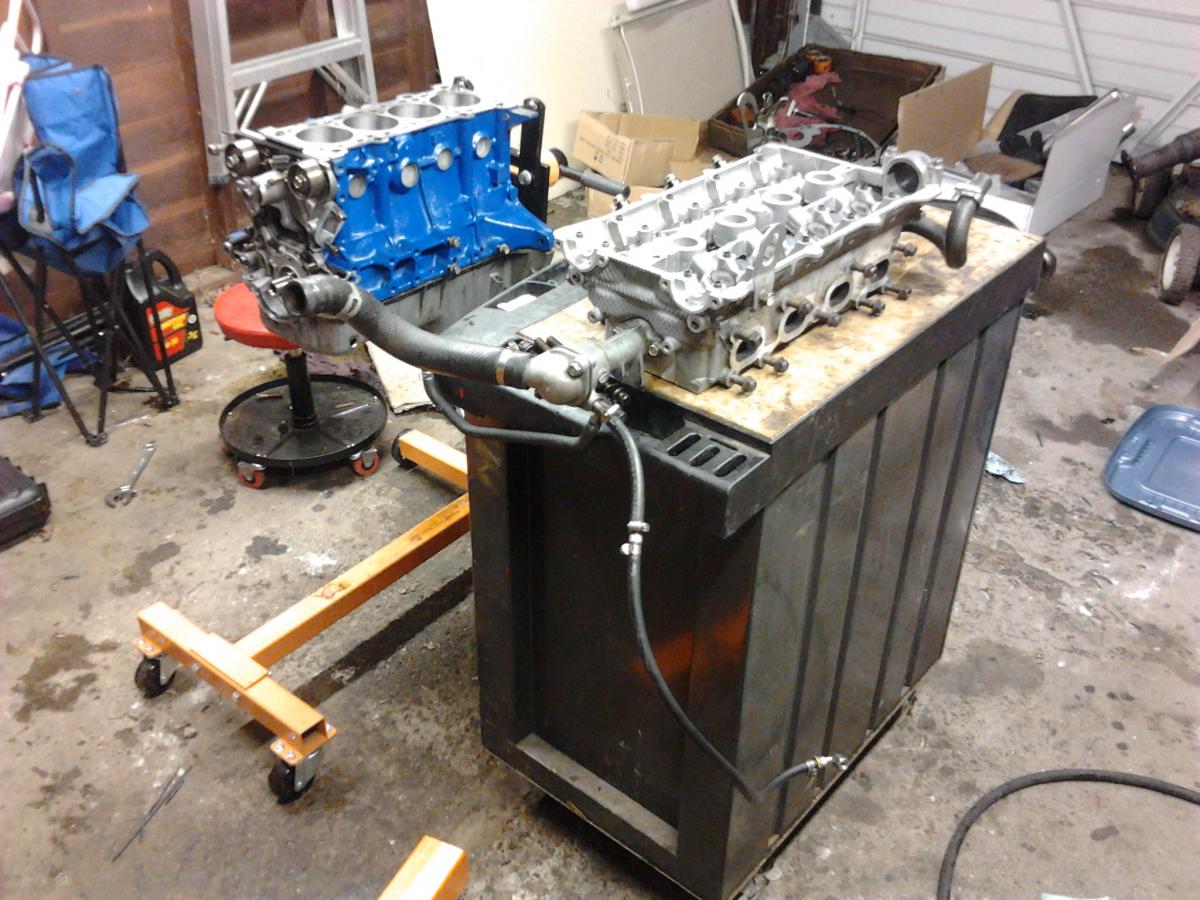

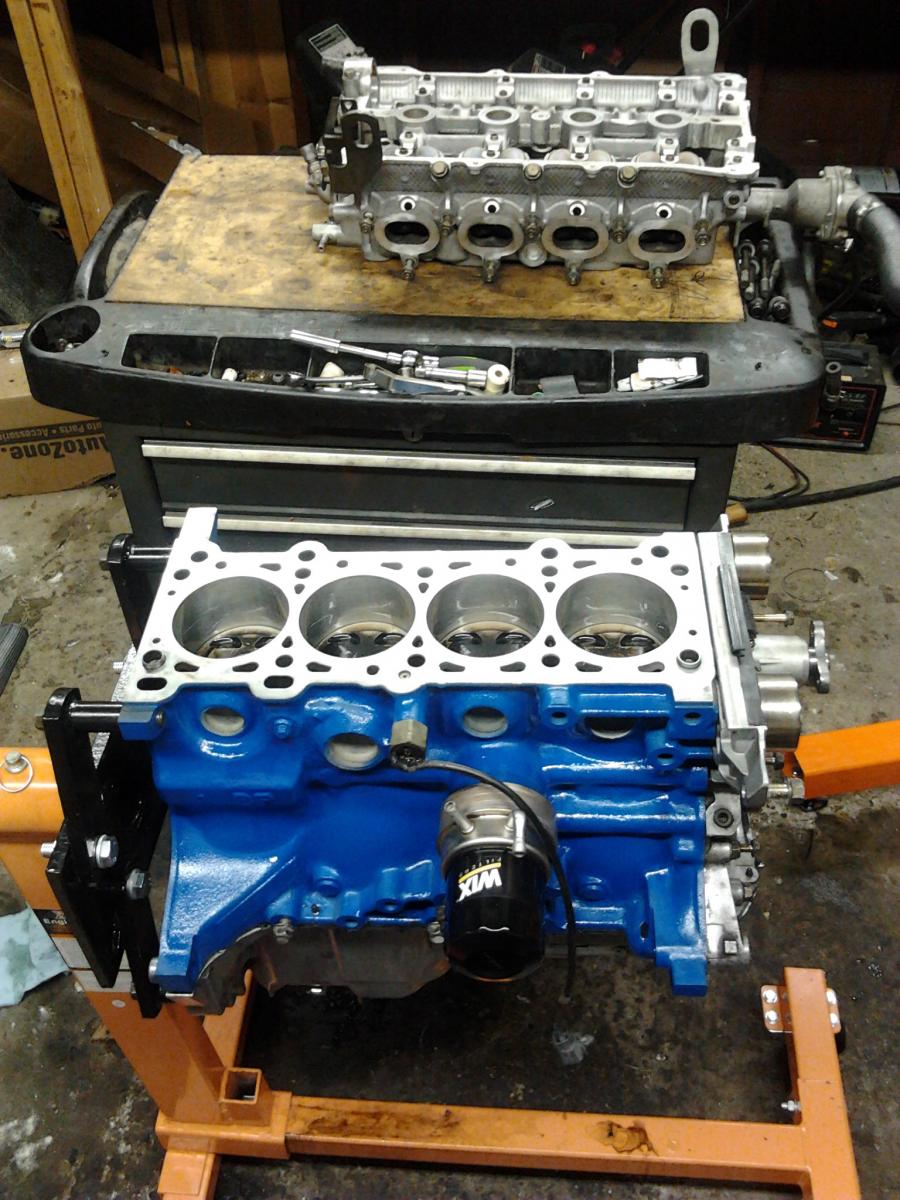

Head meet block.

I'm hoping to have the majority of the engine back together by tomorrow night. I still need to order my clutch kit, anyone have luck with F1? I plan on resurfacing the stock flywheel and re-using it.
Attached Thumbnails
Sh*t just got real son!-img_20120114_213150.jpg   Sh*t just got real son!-img_20120114_213217.jpg
flounder is offline   Reply With Quote
Old 01-15-2012, 02:11 PM   #37
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

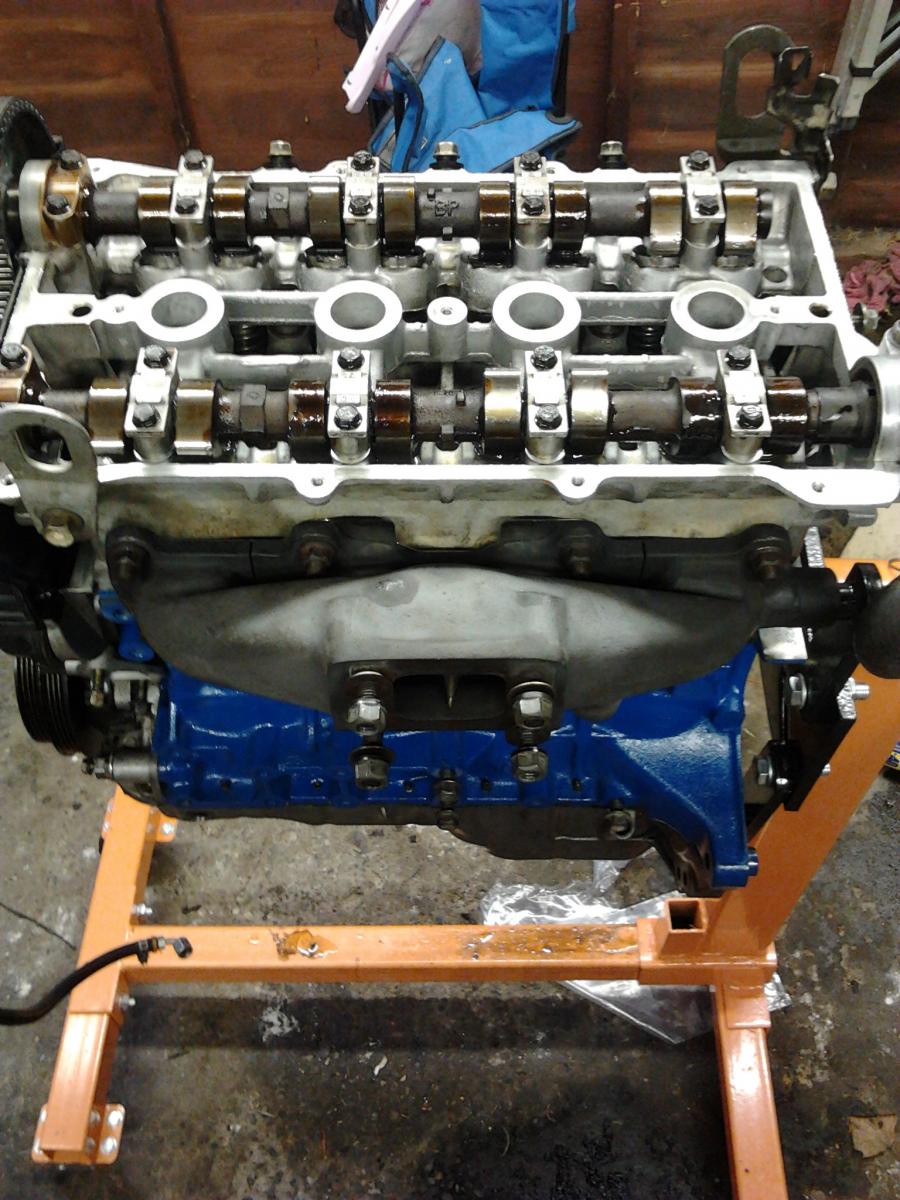

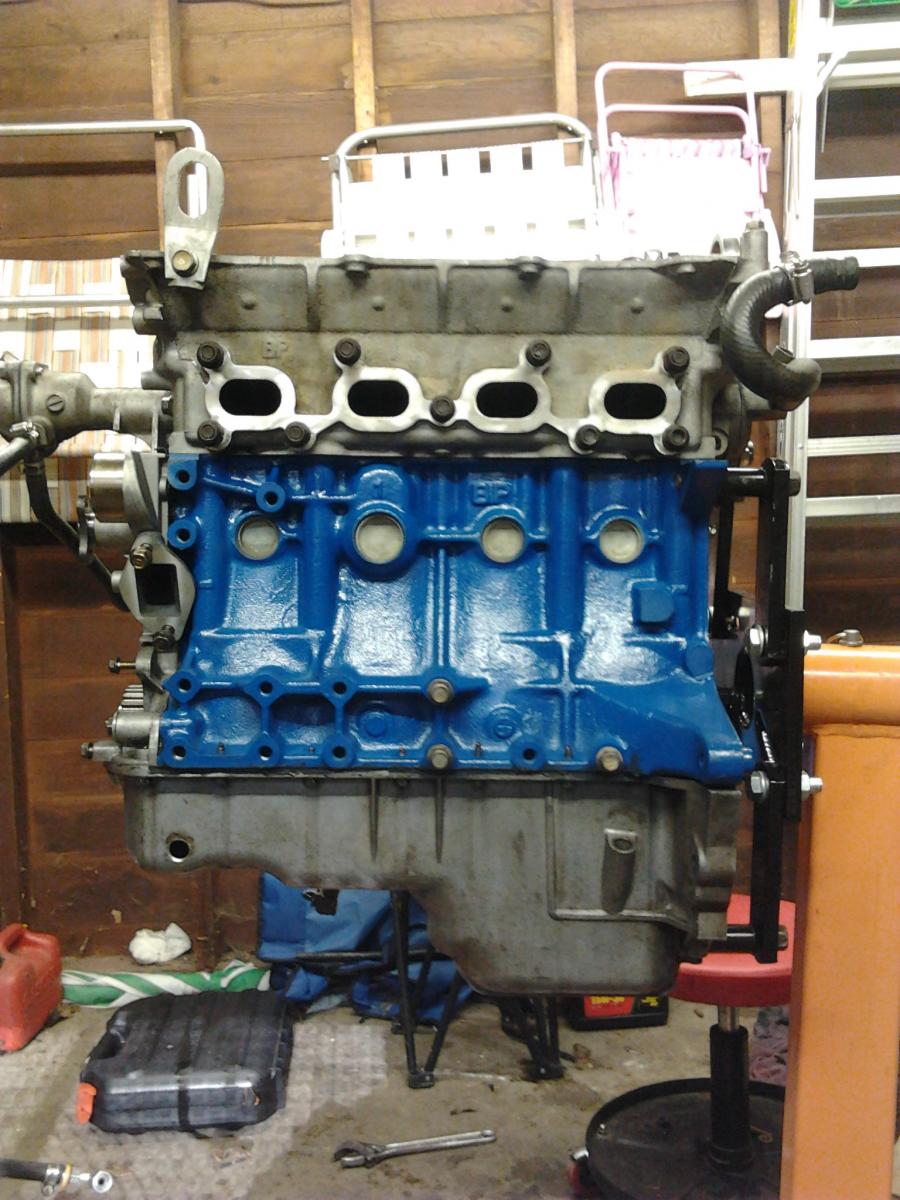

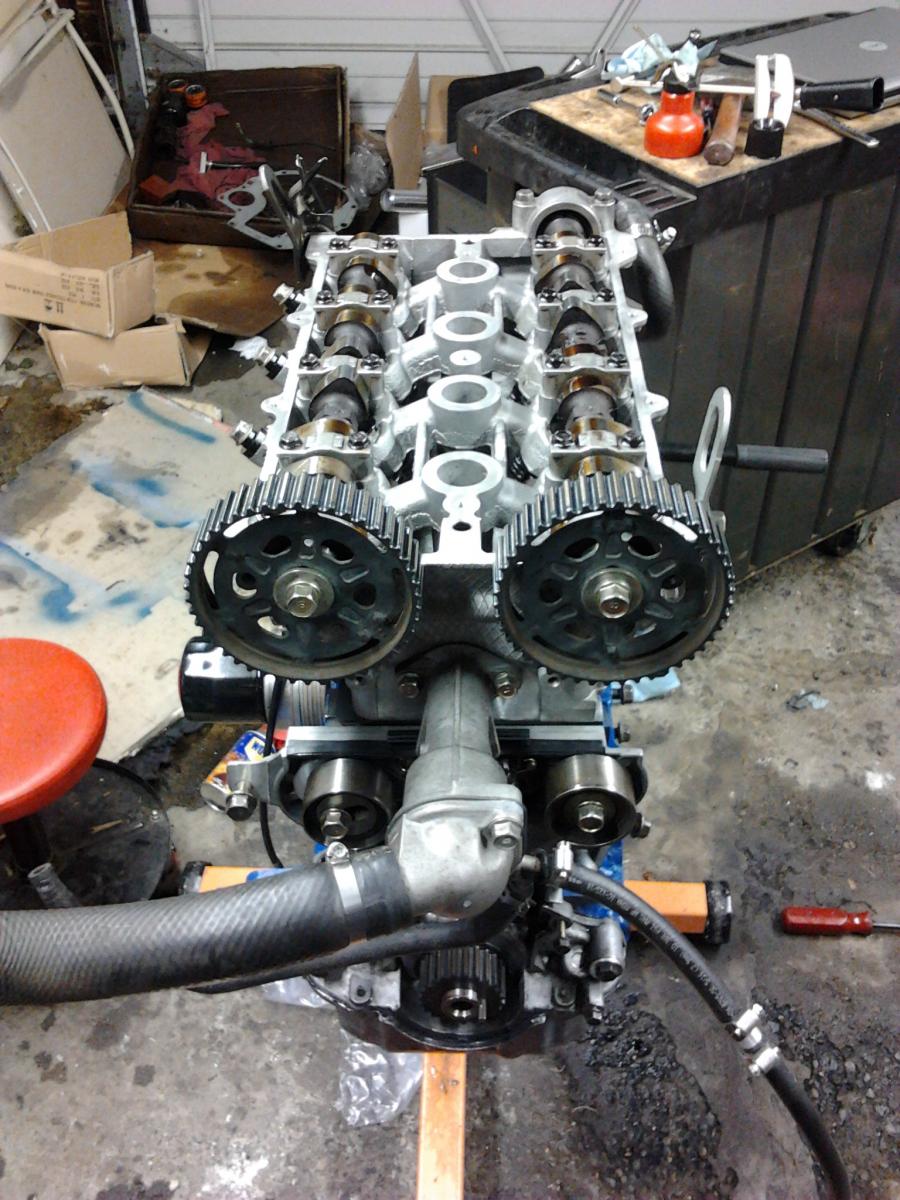

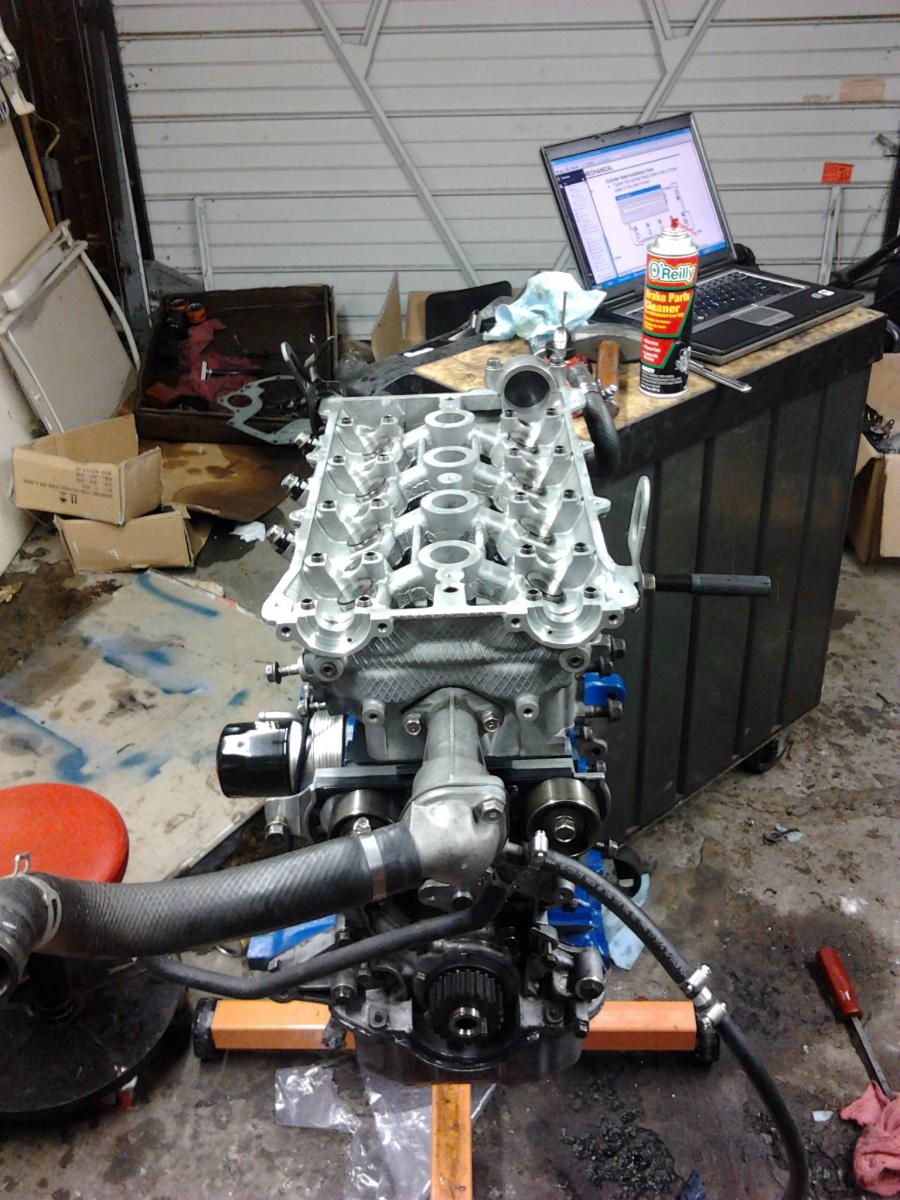

Head installed and torqued to spec.
Cams installed and torqued to spec.
Valve lash checked and to my surprise all 16 are still within spec.

Next up, timing belt...
Attached Thumbnails
Sh*t just got real son!-img_20120115_120818.jpg   Sh*t just got real son!-img_20120115_120830.jpg   Sh*t just got real son!-img_20120115_123722.jpg   Sh*t just got real son!-img_20120115_123800.jpg
flounder is offline   Reply With Quote
Old 01-15-2012, 05:16 PM   #38
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

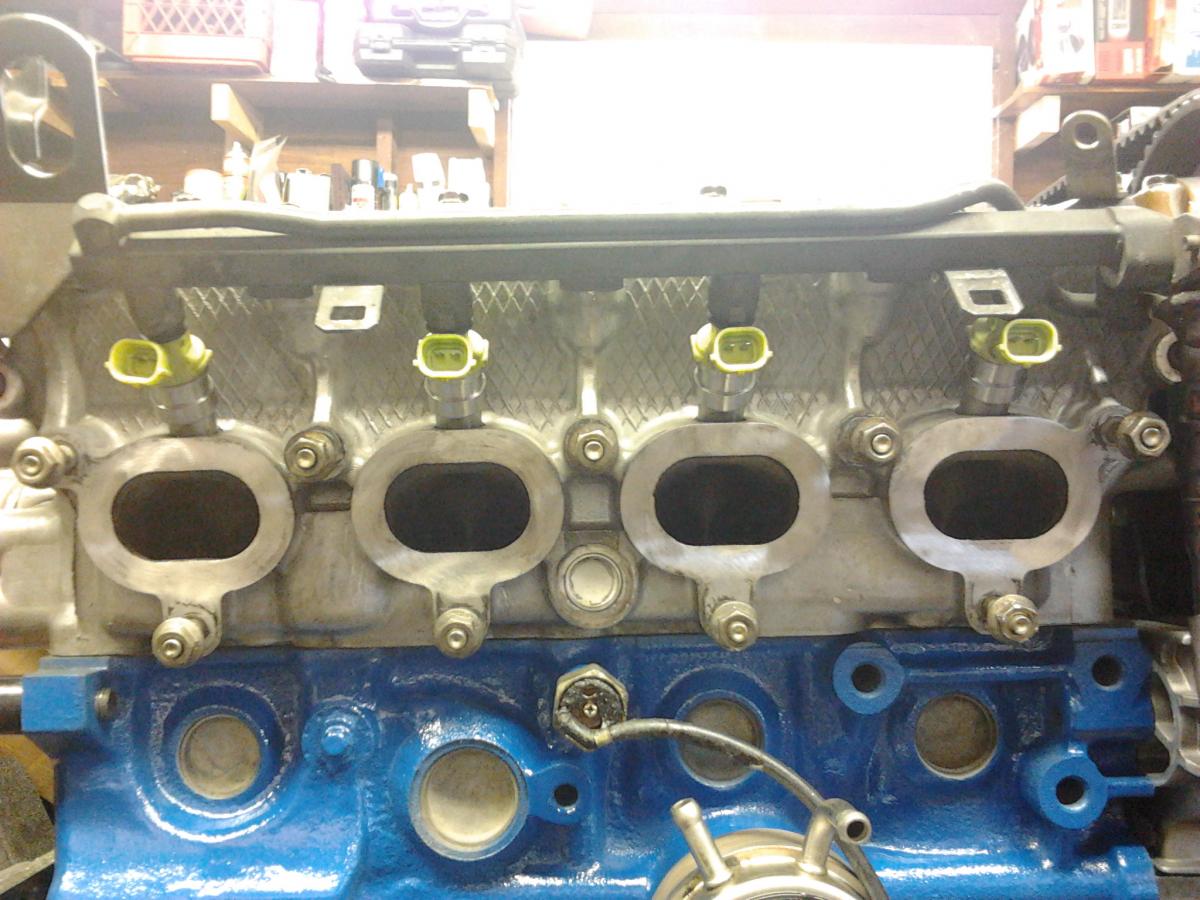

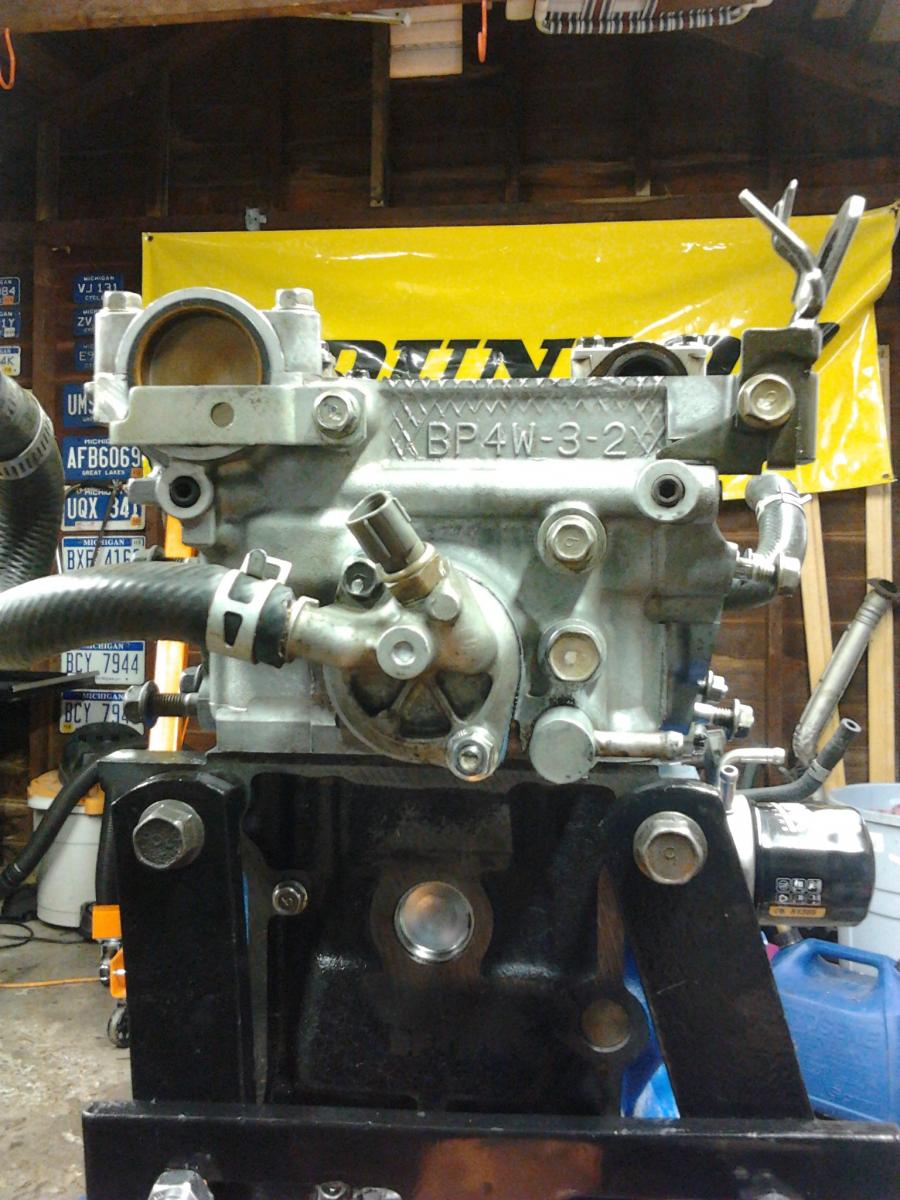

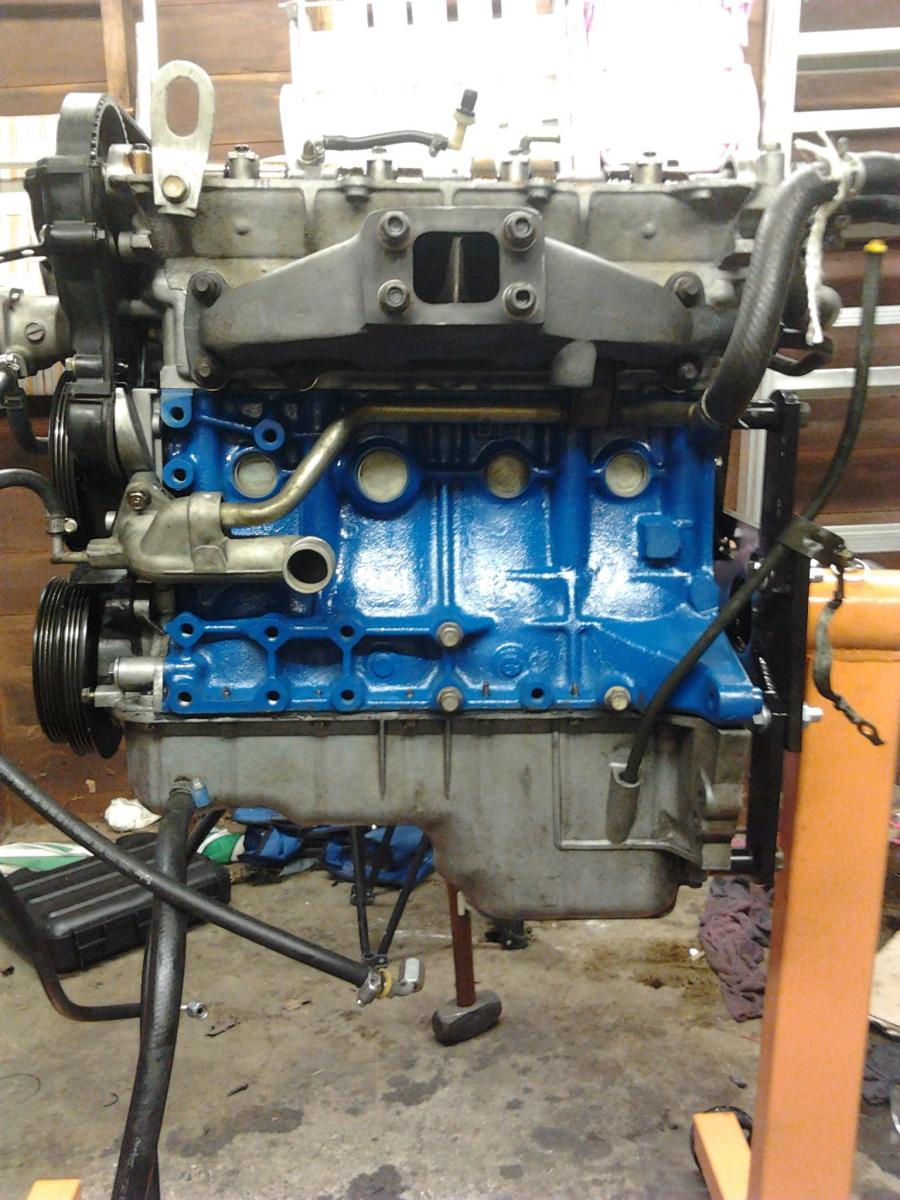

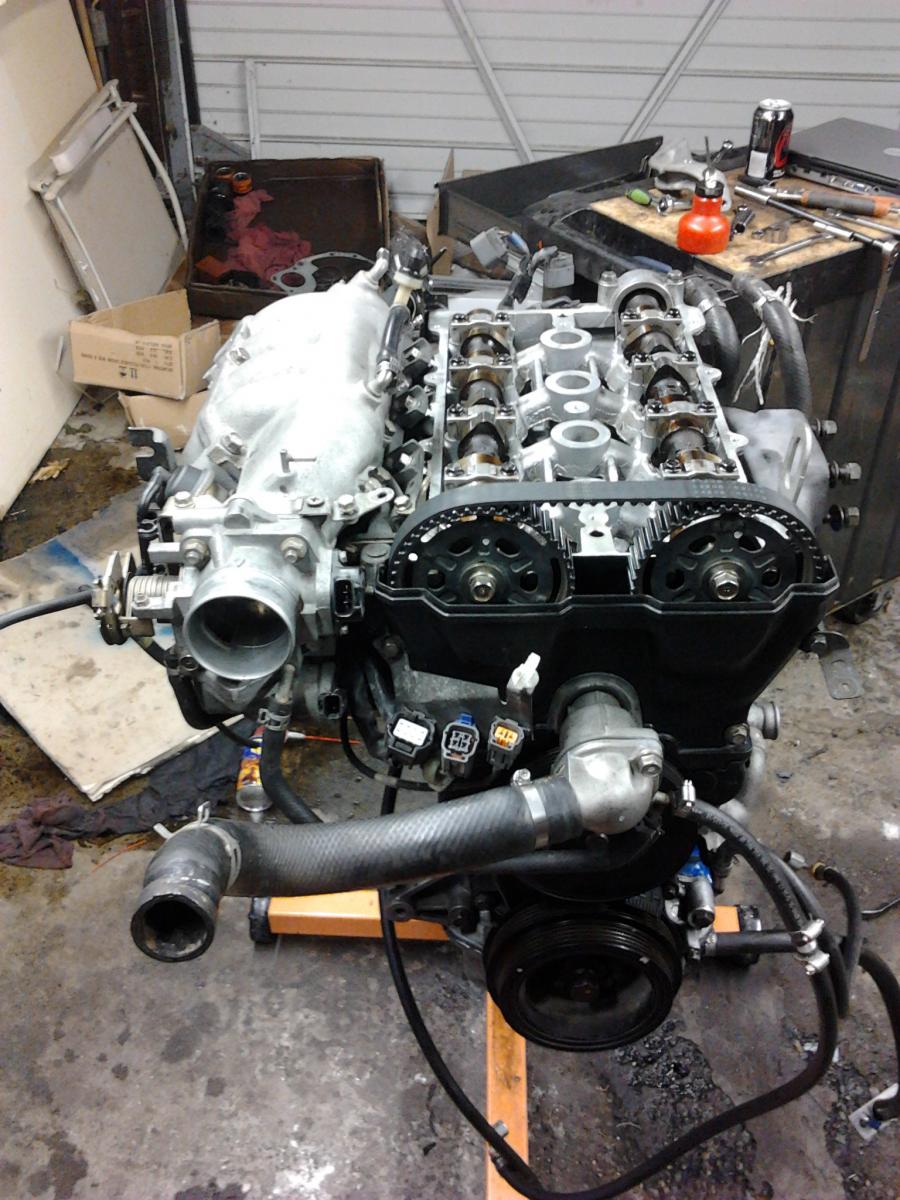

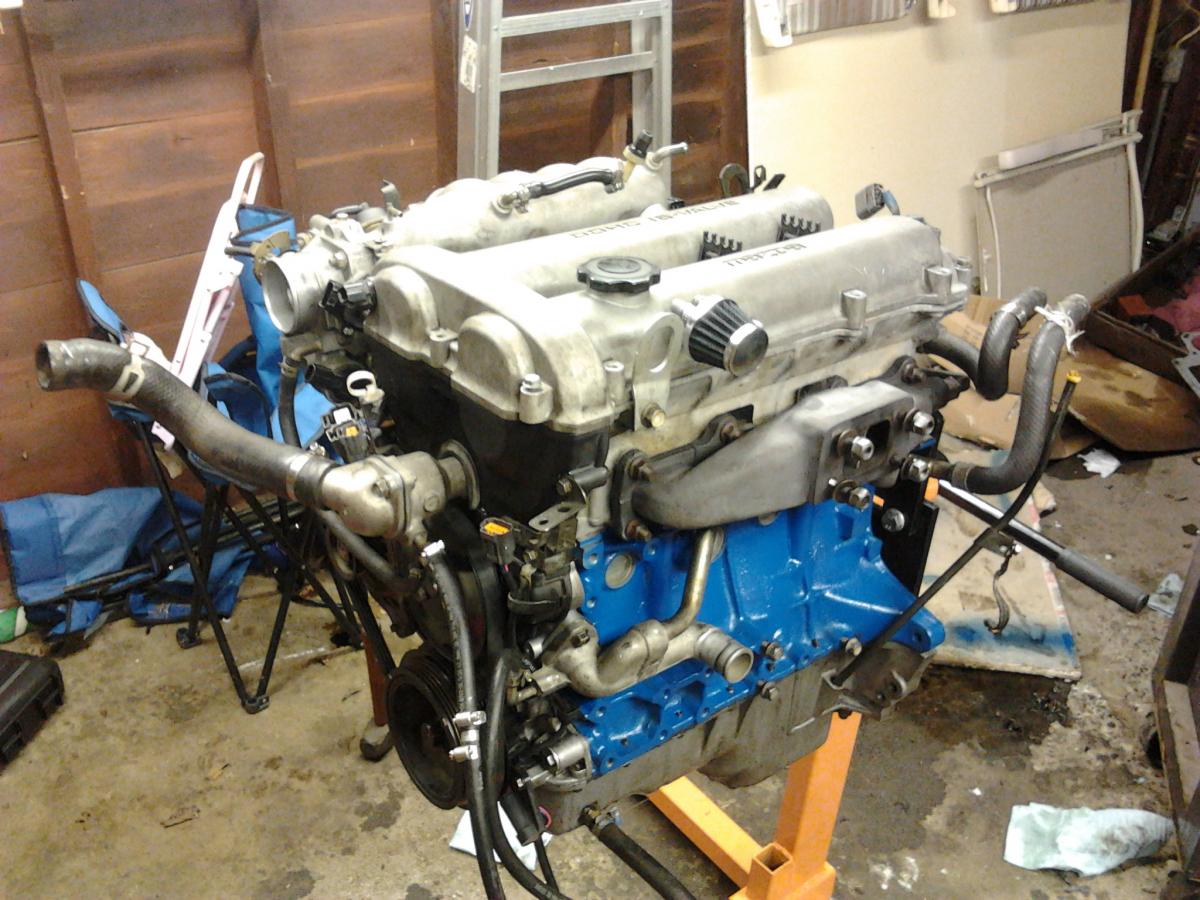

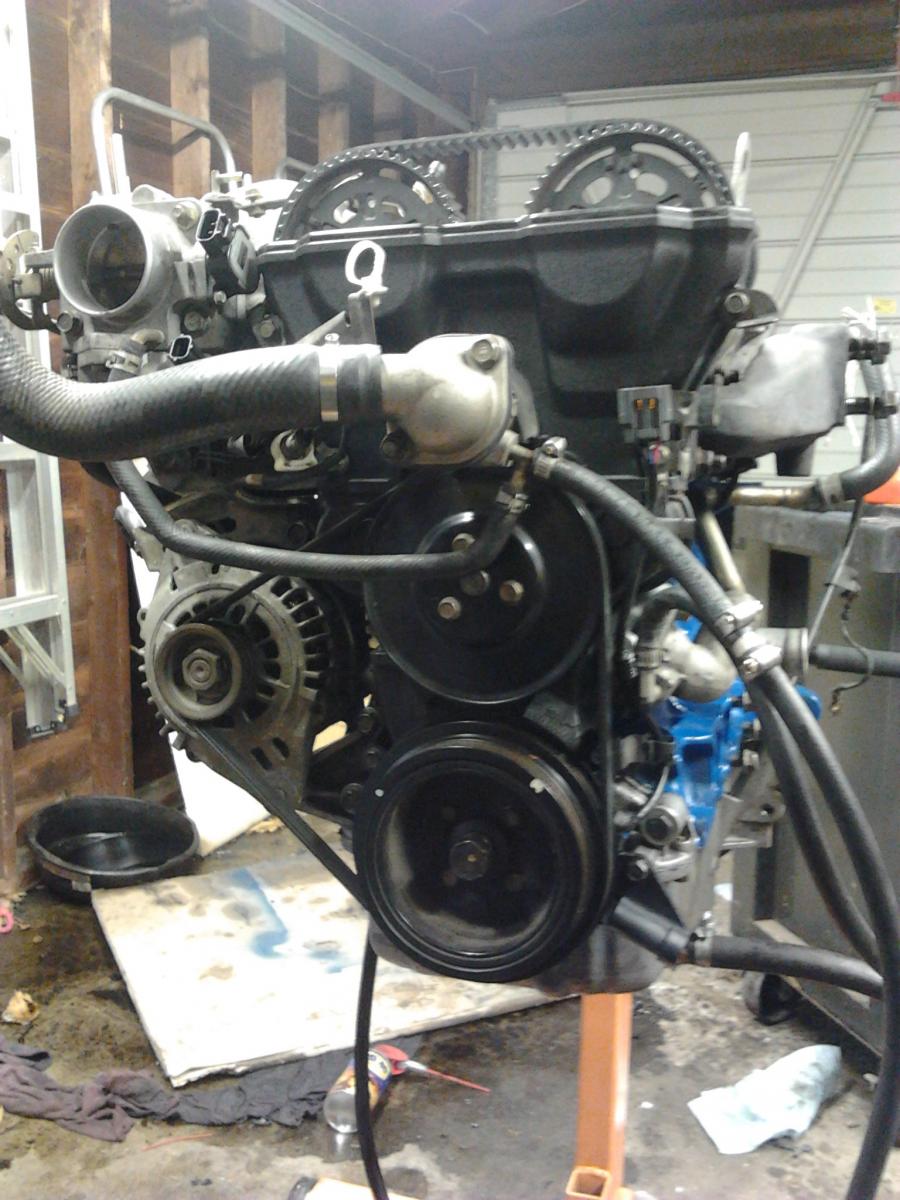

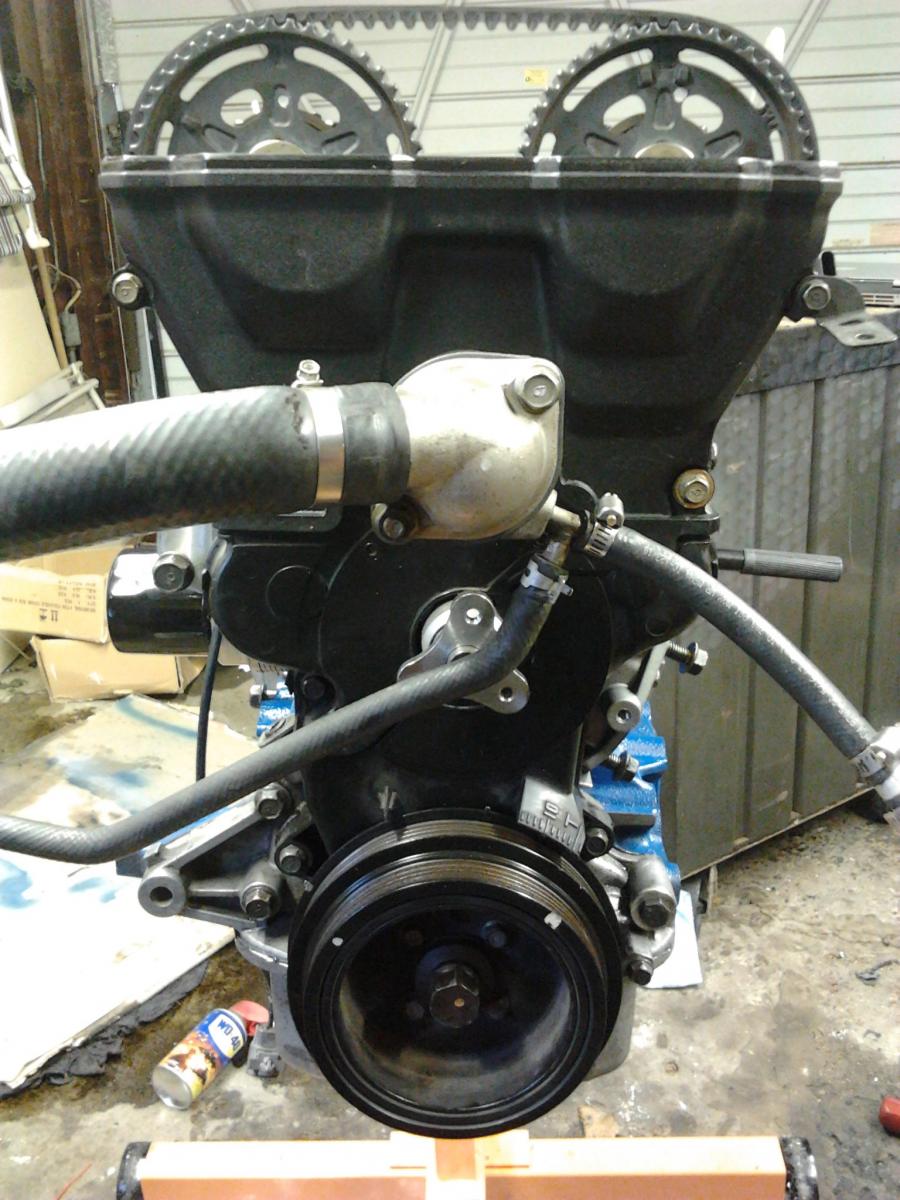

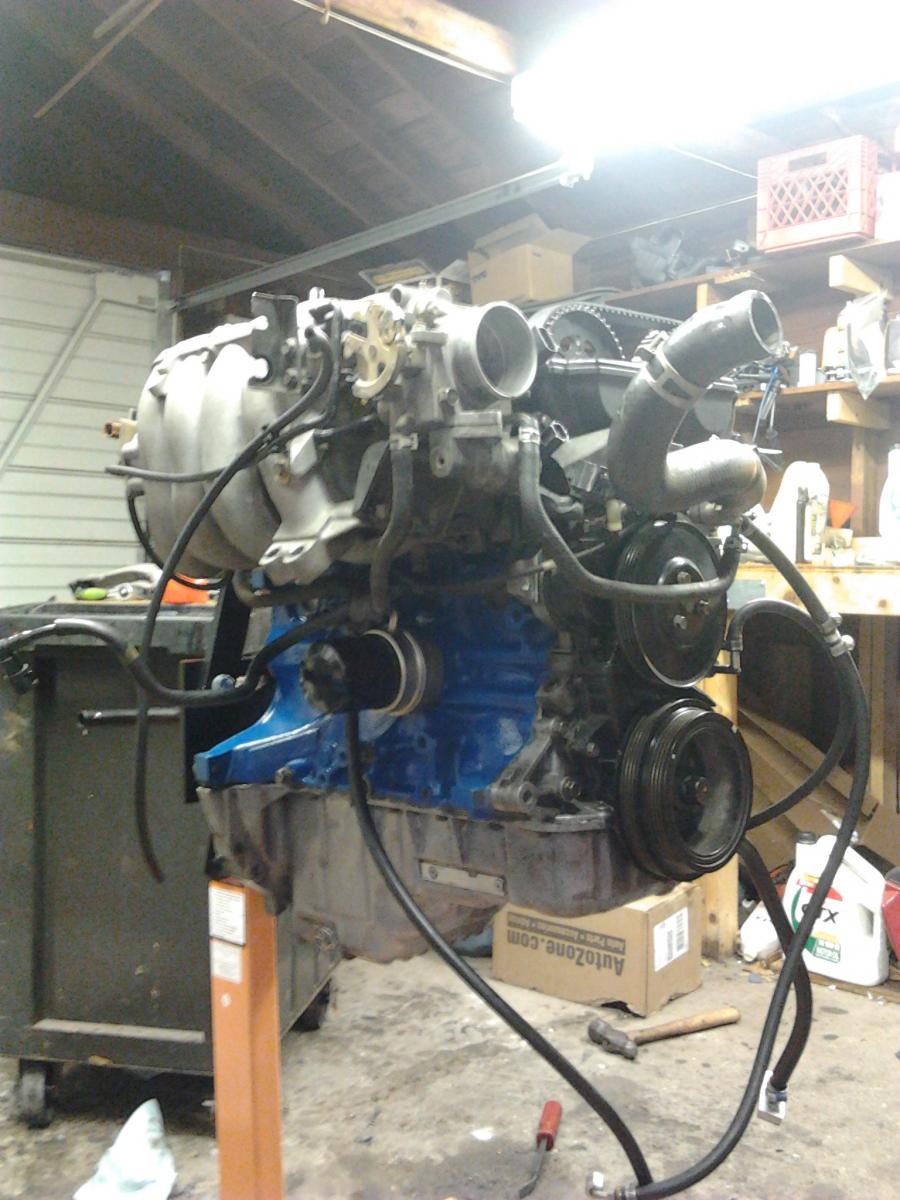

More pics-

I have the urge to replace my turbo to manifold studs so I'm waiting to mount the turbo until I aquire some.

Also, I just bought some black wrinkle paint so the cover won't look like that for long.
Attached Thumbnails
Sh*t just got real son!-img_20120115_140218.jpg   Sh*t just got real son!-img_20120115_143130.jpg   Sh*t just got real son!-img_20120115_143939.jpg   Sh*t just got real son!-img_20120115_153318.jpg   Sh*t just got real son!-img_20120115_153331.jpg

Sh*t just got real son!-img_20120115_153340.jpg   Sh*t just got real son!-img_20120115_154556.jpg   Sh*t just got real son!-img_20120115_154901.jpg
flounder is offline   Reply With Quote
Old 01-16-2012, 11:47 PM   #39
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

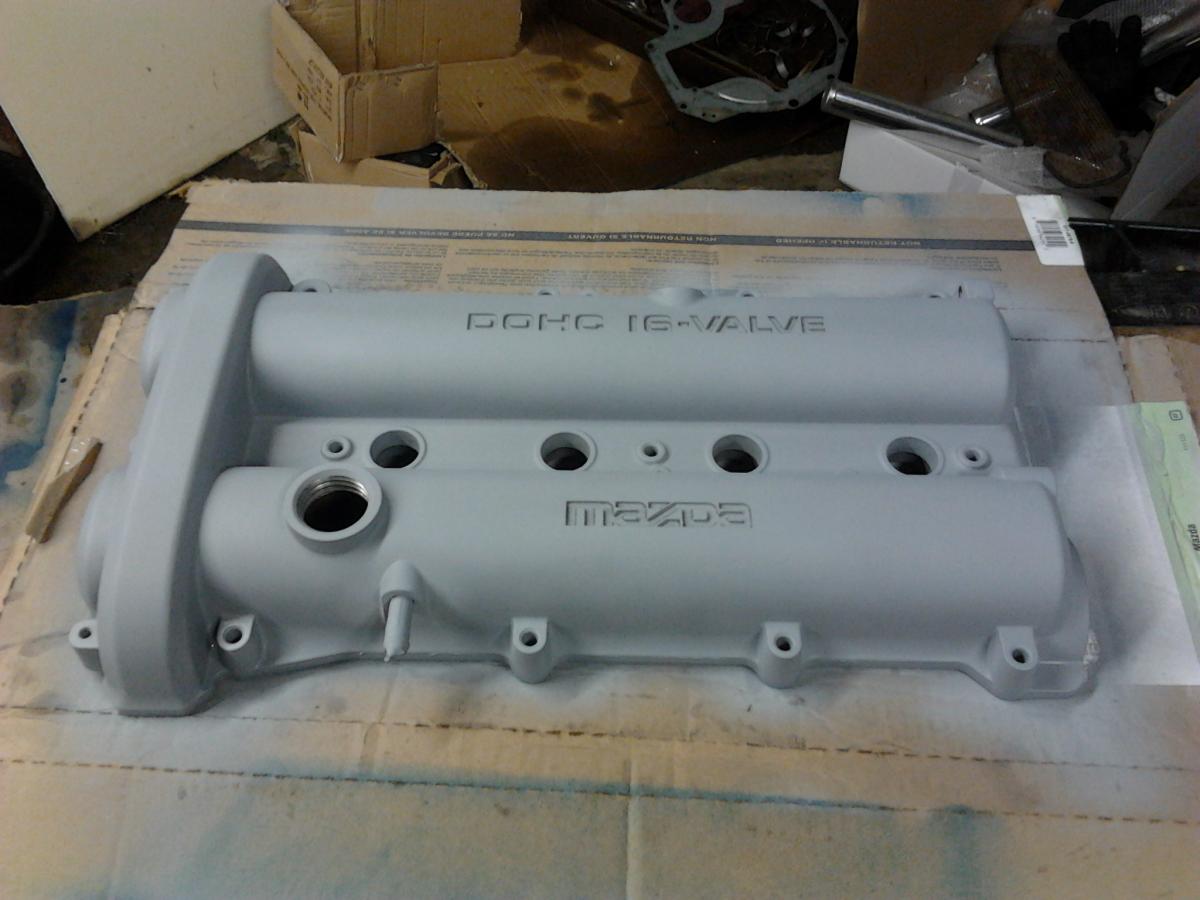

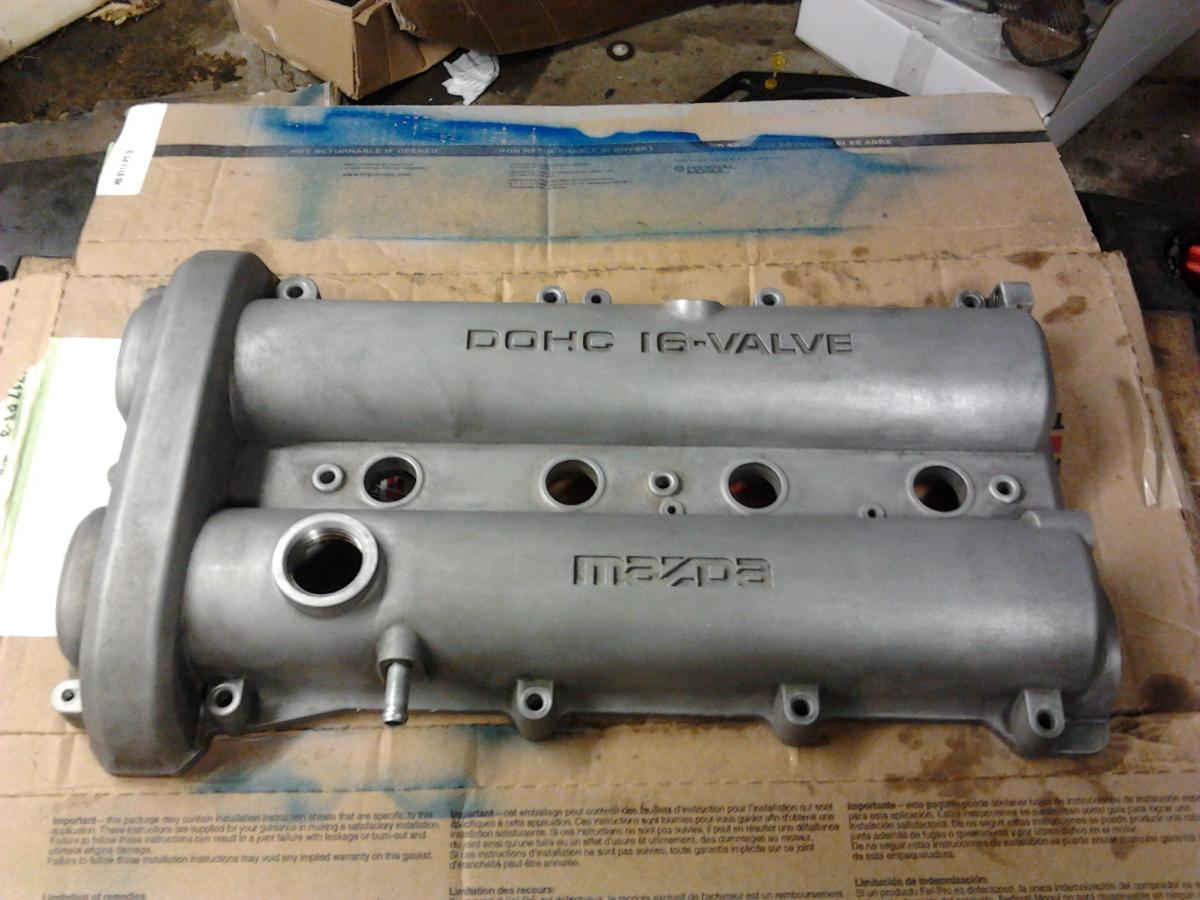

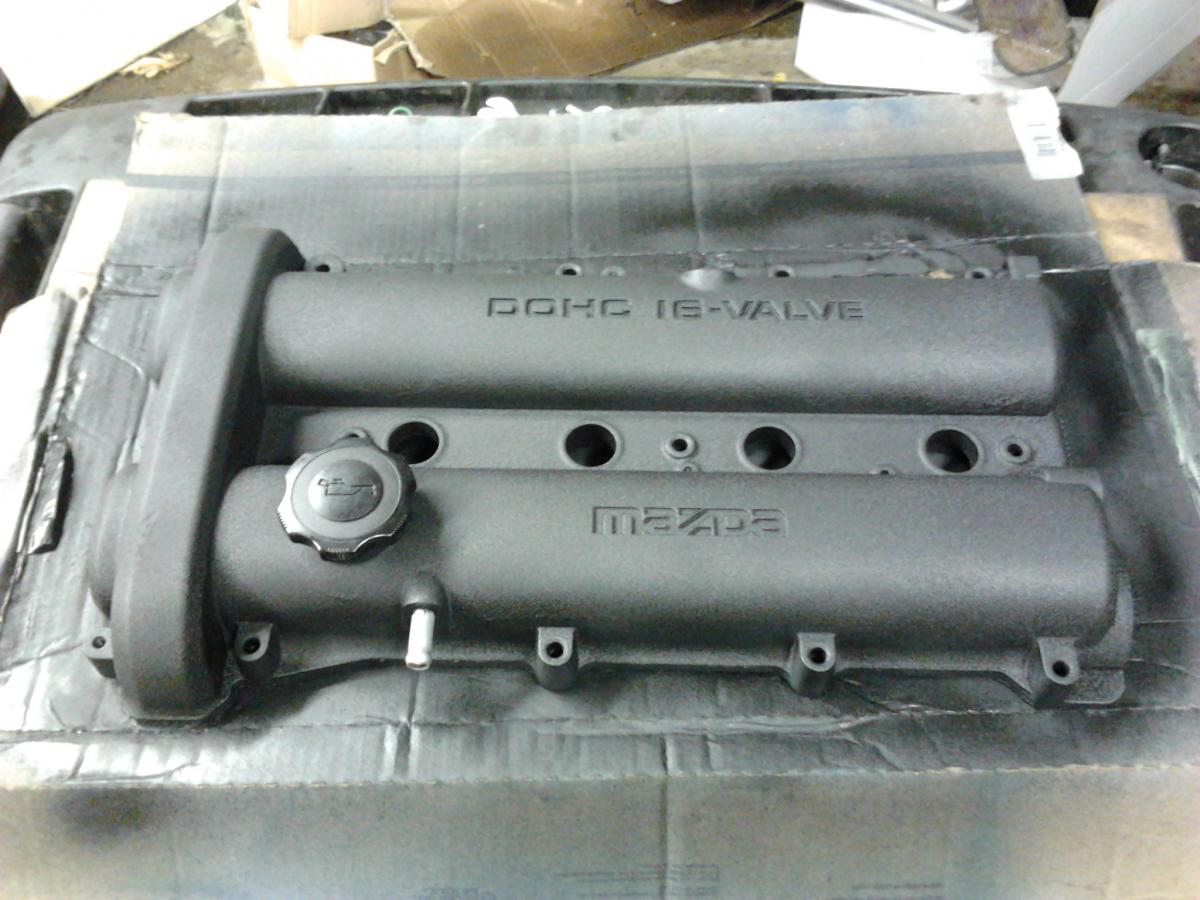

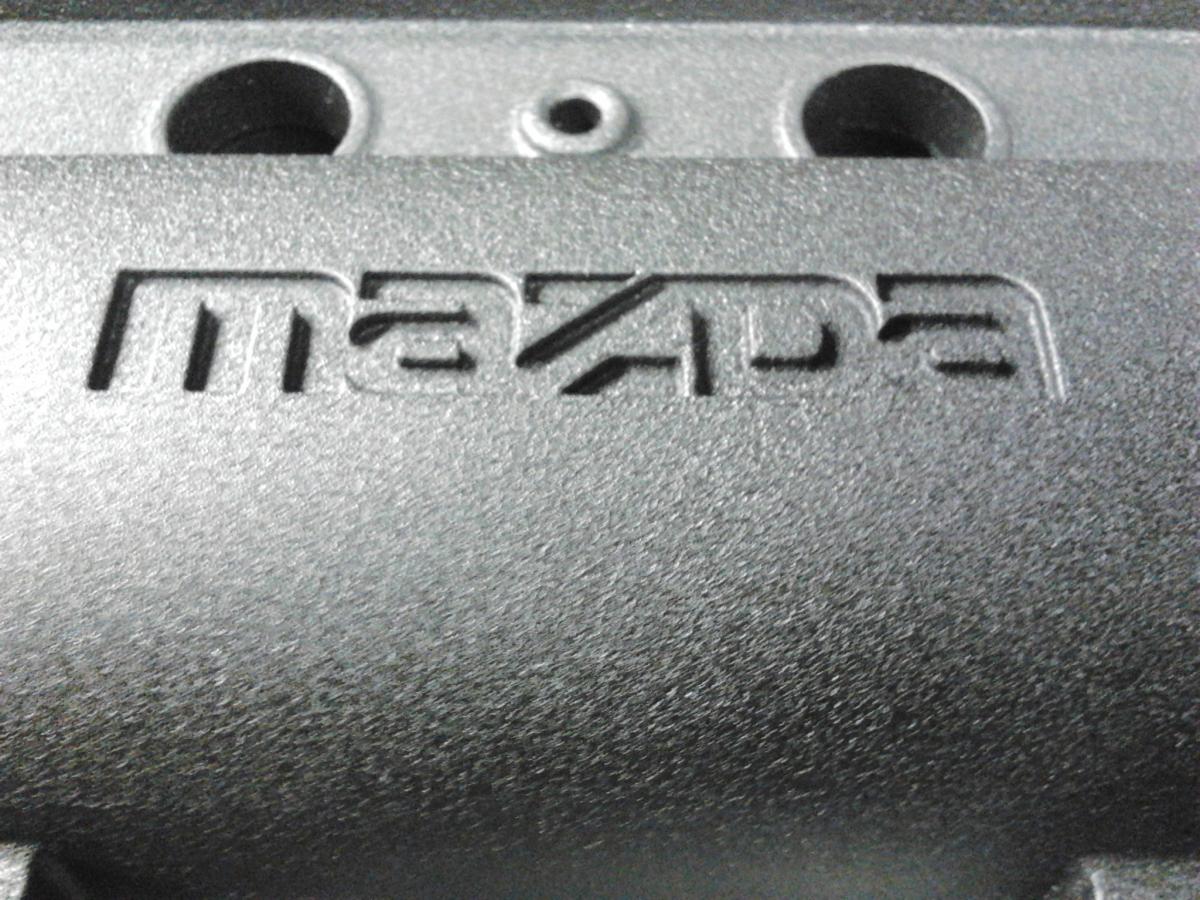

sanded
primed

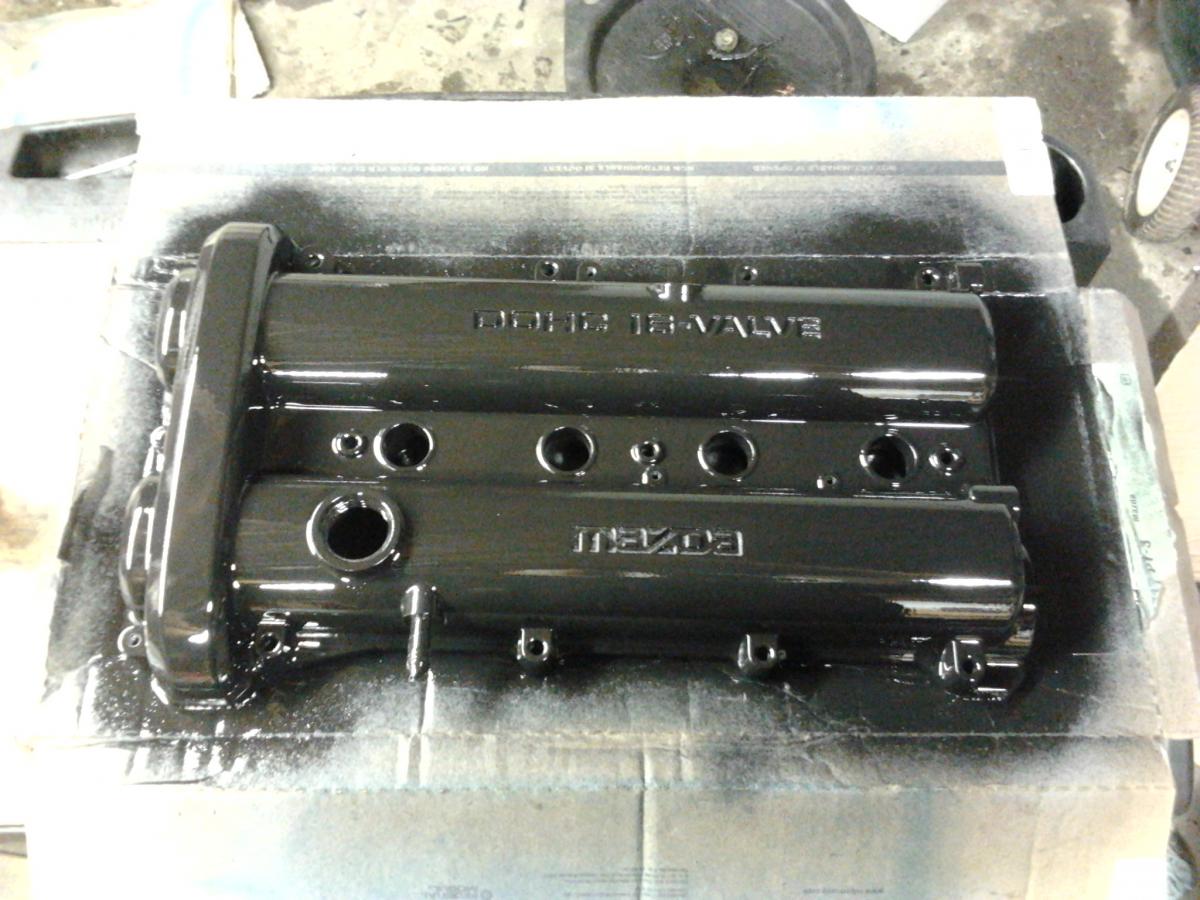

wet coat
coat after 10 minutes in front of my kerosene torpedo heater. For some reason the pics look way lighter than in person.

I'll post a pic tomorrow after it dries completely, and then after I fill in the lettering.
Attached Thumbnails
Sh*t just got real son!-img_20120116_204030.jpg   Sh*t just got real son!-img_20120116_205617.jpg   Sh*t just got real son!-img_20120116_213101.jpg   Sh*t just got real son!-img_20120116_223206.jpg   Sh*t just got real son!-img_20120116_223354.jpg

flounder is offline   Reply With Quote
Old 01-18-2012, 10:41 PM   #40
Elite Member
Thread Starter

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

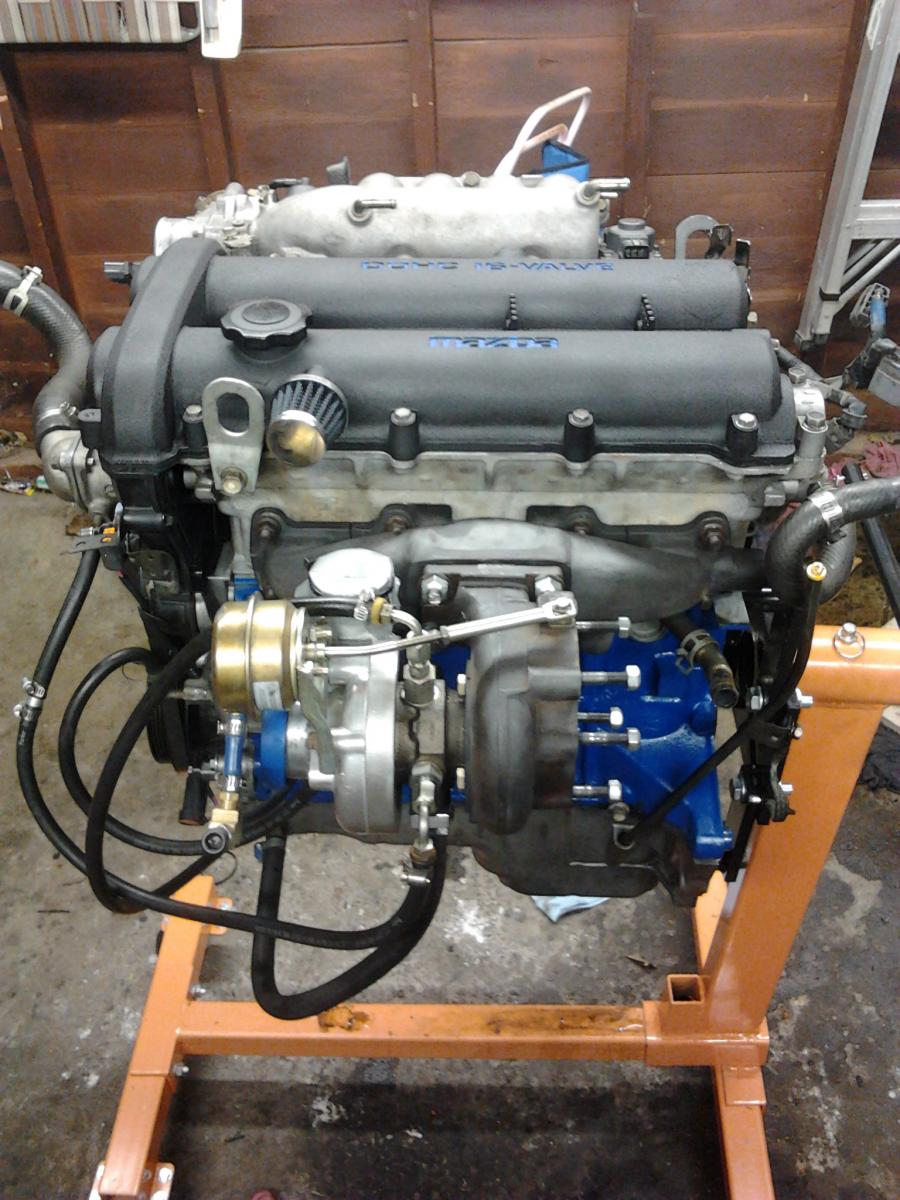

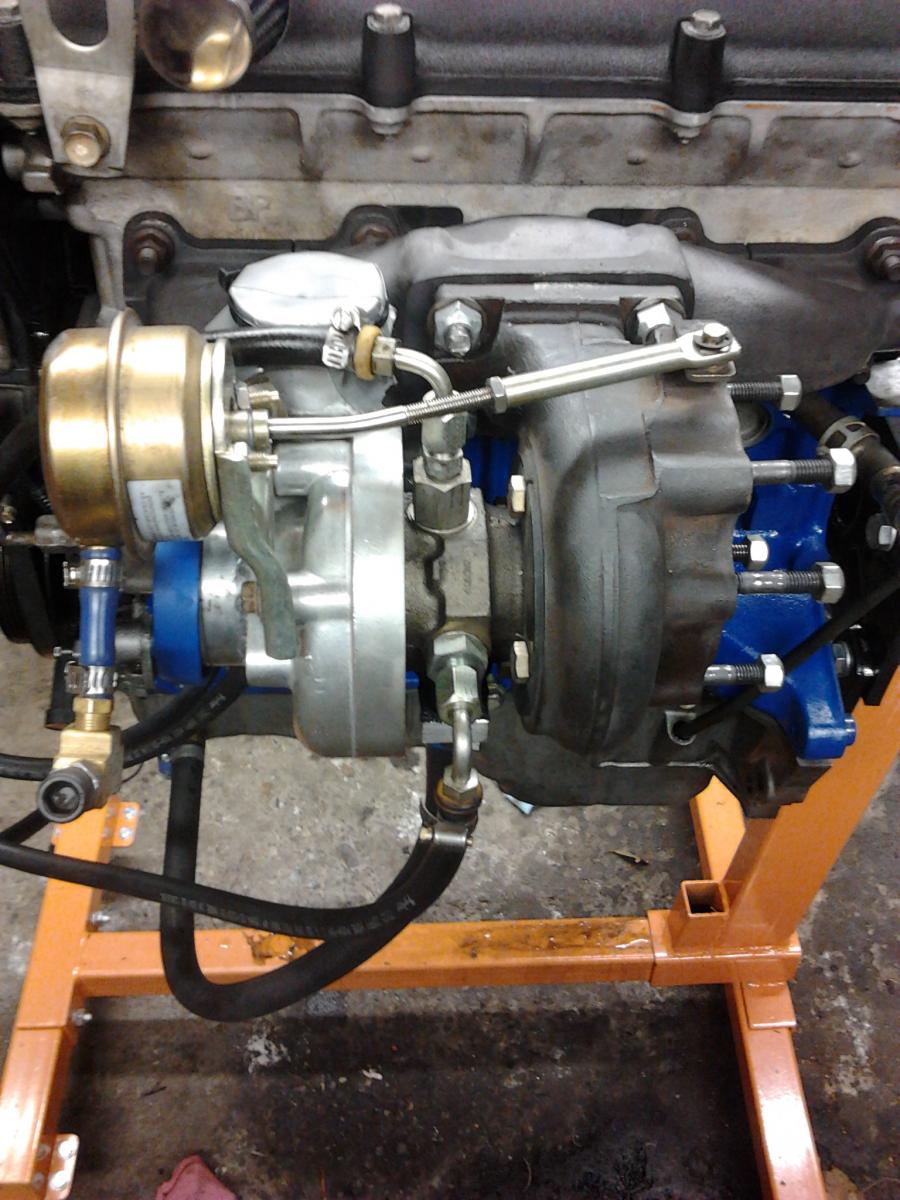

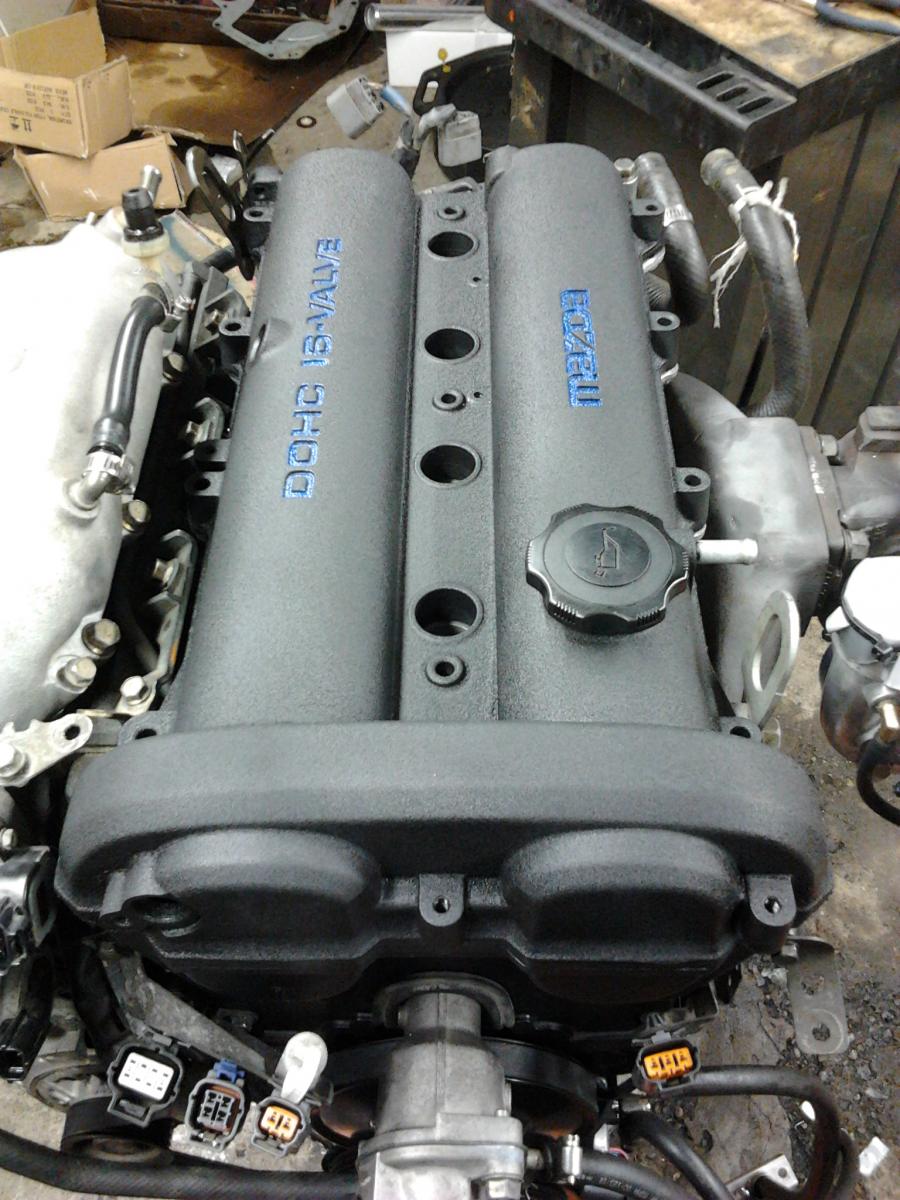

I Filled in the lettering today and installed the cover. I also got around to swapping all the studs and nuts out, mounting the turbo and running all the oil and coolant lines.

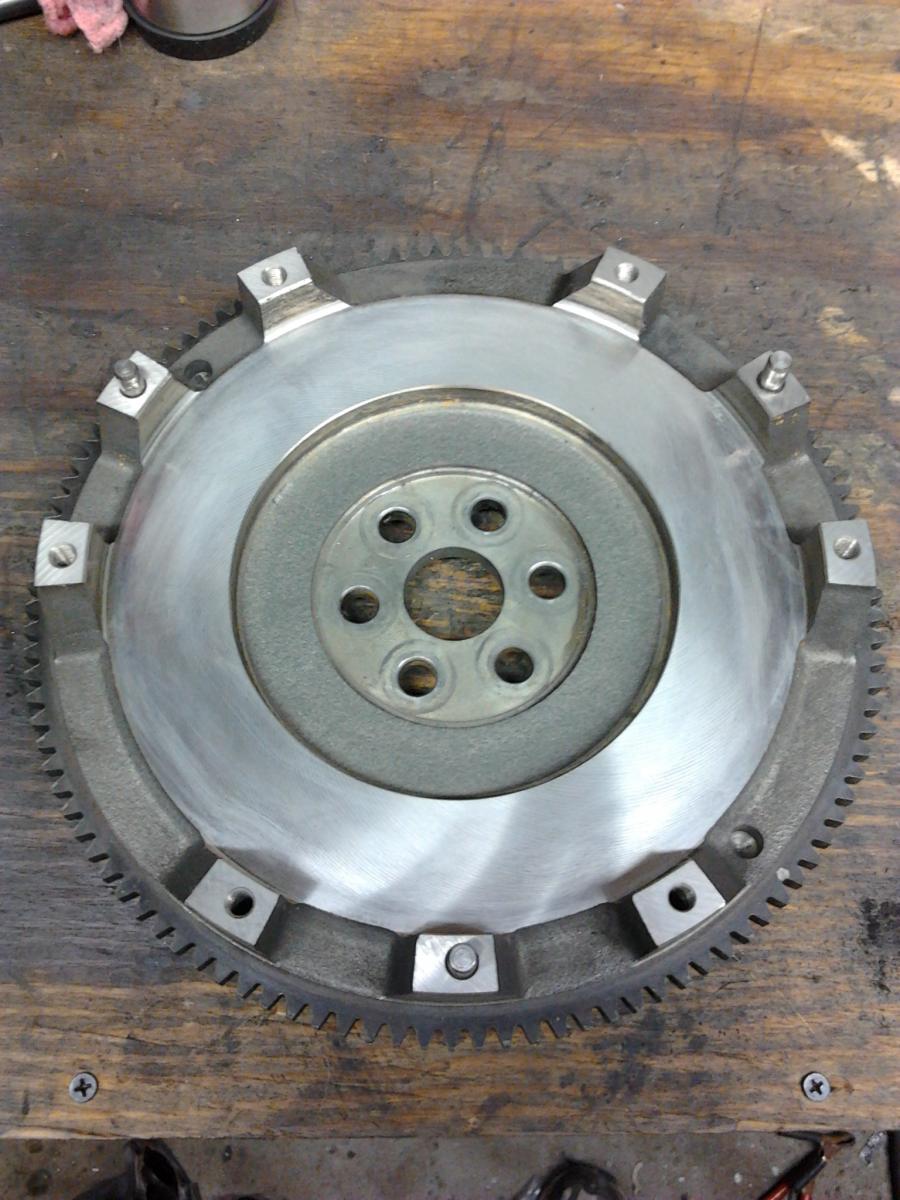

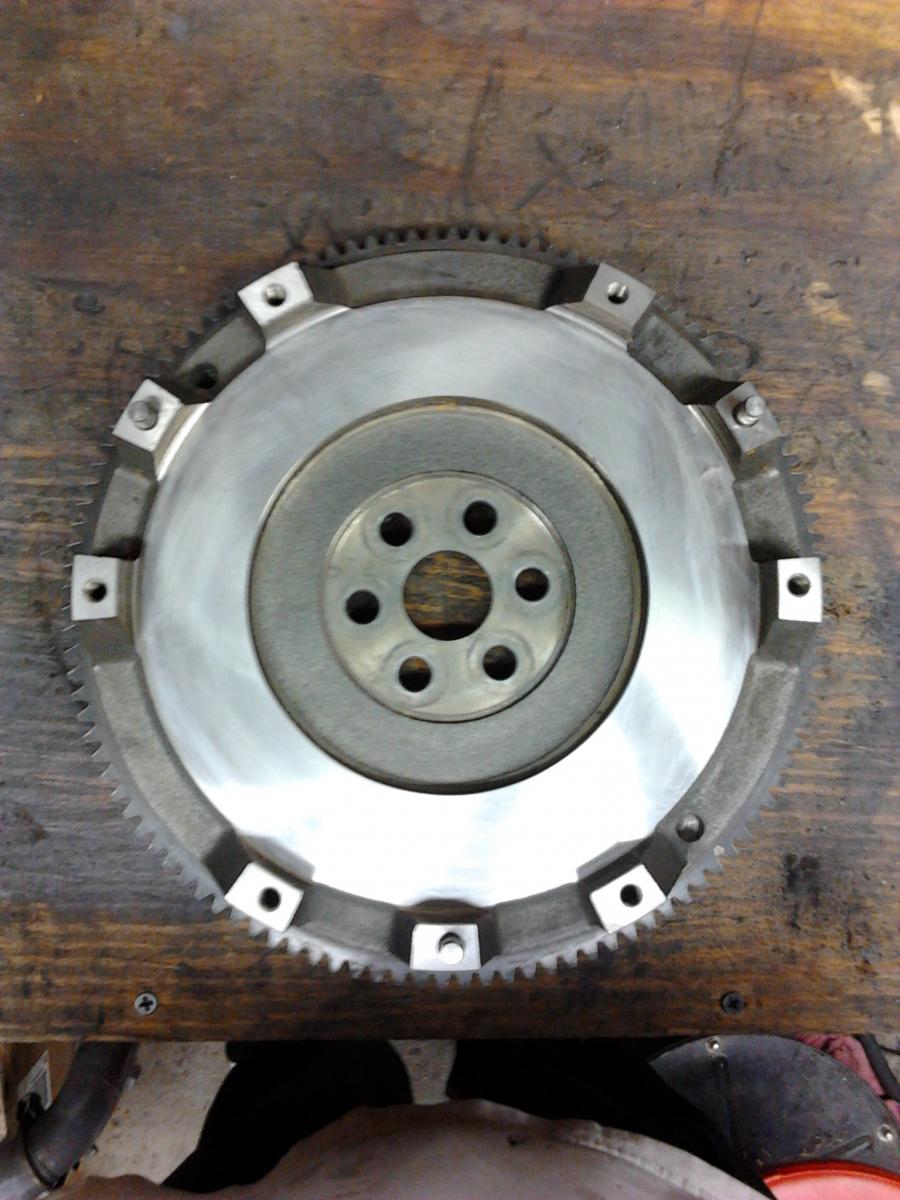

On the way home tonight I stopped to pick up my flywheel from getting resurfaced. Hopefully my clutch kit will show up friday morning.
Attached Thumbnails
Sh*t just got real son!-img_20120118_184741.jpg   Sh*t just got real son!-img_20120118_211057.jpg   Sh*t just got real son!-img_20120118_211841.jpg   Sh*t just got real son!-img_20120118_211848.jpg   Sh*t just got real son!-img_20120118_211042.jpg

flounder is offline   Reply With Quote
