Default 94 M-edition from WA. Soon to be turbo'd

Hi all,

I bought my 94 M-edition stock 1.5 years ago and have been acquiring the parts for turbo. Located in Redmond.

Current Mods:
Flyin' Miata front sway bar
Jackson Racing exhaust
Hard Dog roll bar
Megan EZ Street Coilovers
15x8" Bronze 6UL's with 225/45/15 Hankook Ventus R-S3's
OEM style lip, OEM mud guards
ebay clear turn signals
Rennenmetal tow hooks
MS3X running COPs
Innovate MTX-L, gauge currently being RMA'd... :(
Home-made aluminum license plate mount, inspired by GarageStar :P

Jeremy

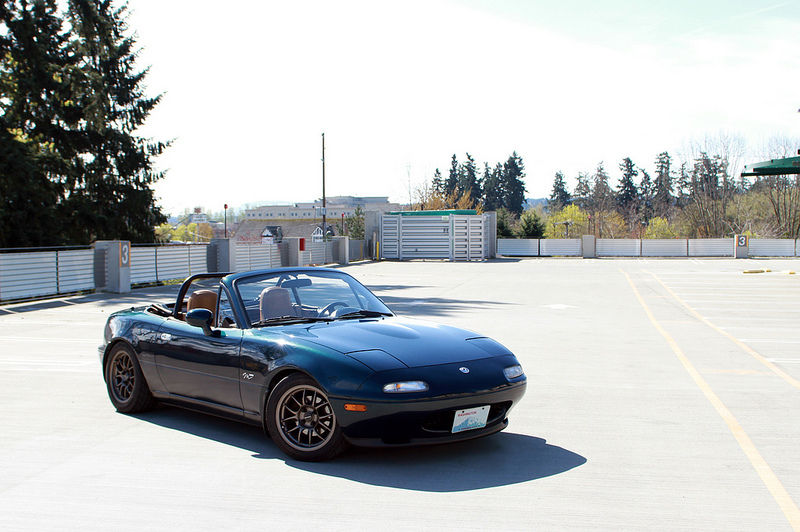

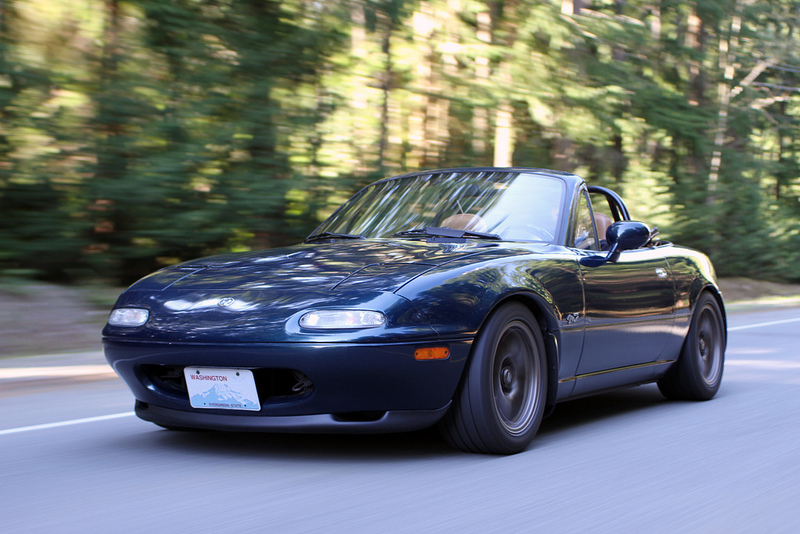

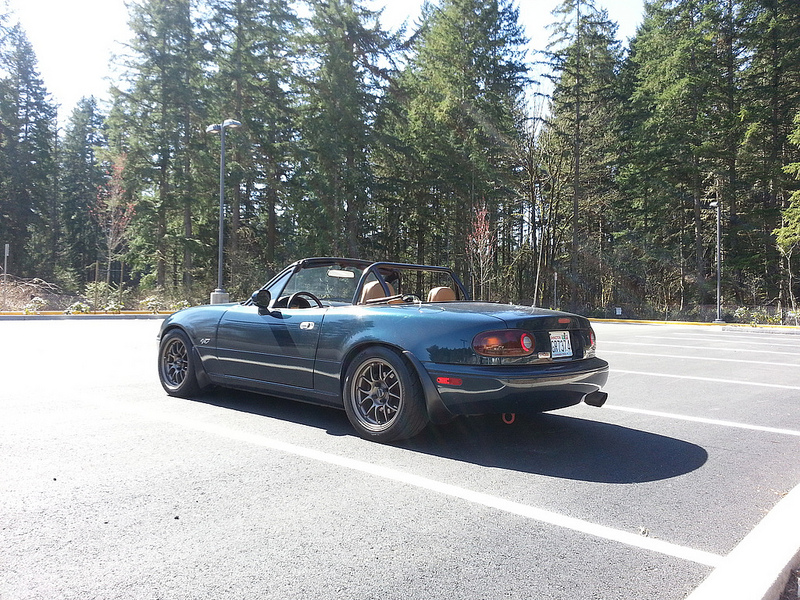

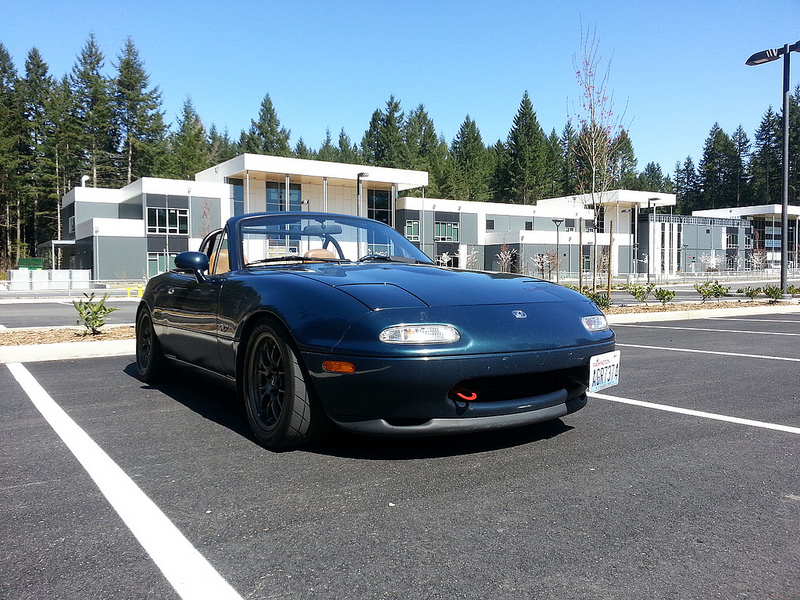

A couple of older pics...



Attached Thumbnails
94 M-edition from WA. Soon to be turbo'd-8604958900_03de59b664_c.jpg   94 M-edition from WA. Soon to be turbo'd-6932142496_148aaa74d2_c.jpg   94 M-edition from WA. Soon to be turbo'd-8603856457_0fa42d3129_c.jpg   94 M-edition from WA. Soon to be turbo'd-7078218095_7fcd7b6e75_c.jpg
Yezzir is offline   Reply With Quote
Old 05-02-2013, 12:08 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,196
Total Cats: 2,583
Default

Welcome
nice miata. like everything but the megans
18psi is offline   Reply With Quote
Old 05-02-2013, 03:40 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Welcome, Yezzir. Check out the Miata Gallery and post up some pics!
Braineack is offline   Reply With Quote
Old 12-25-2013, 07:22 AM   #4
Junior Member
Thread Starter

Join Date: Mar 2013
Location: Redmond, WA
Posts: 110
Total Cats: 42
Default

It's been a long time and I've finally gotten around to posting some progress pics of the turbo project. Can't wait til I can drive it again! Enjoy!

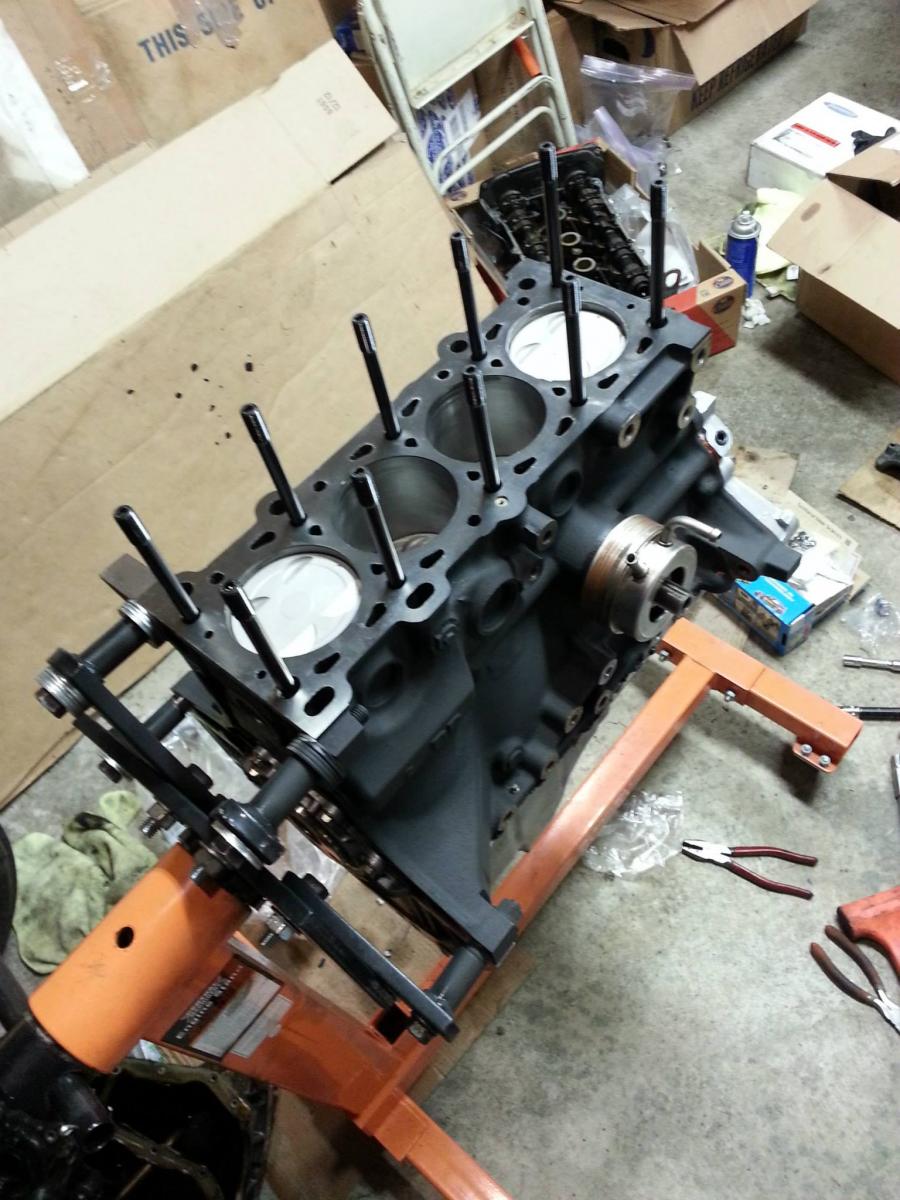

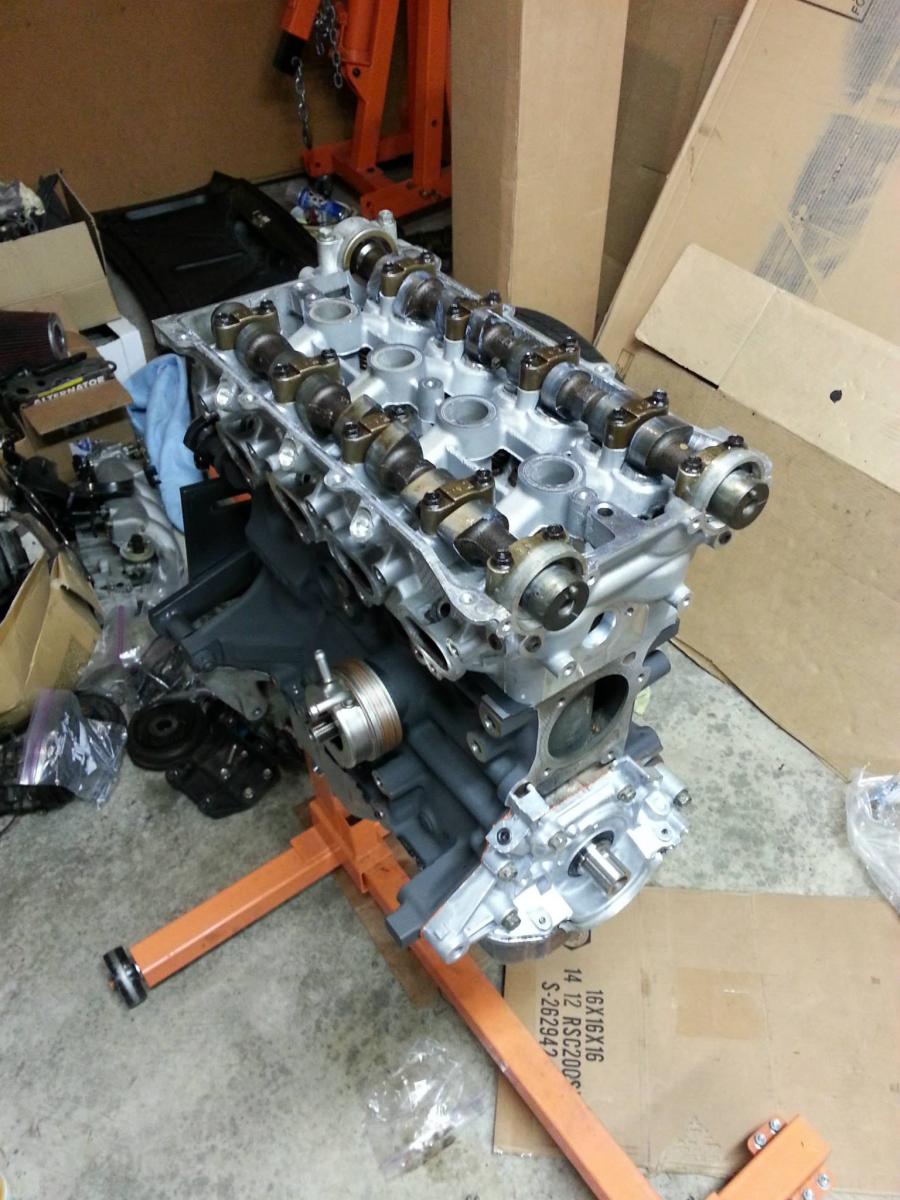

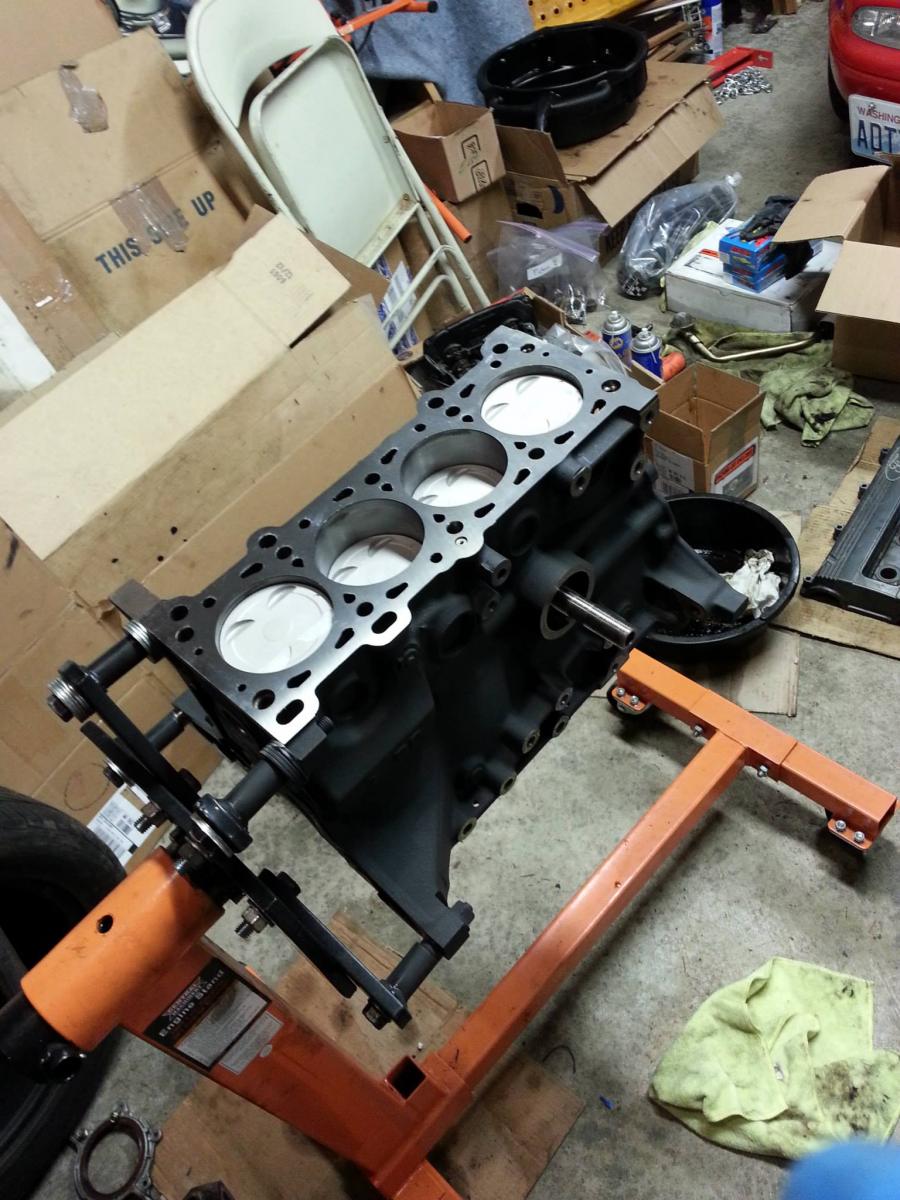

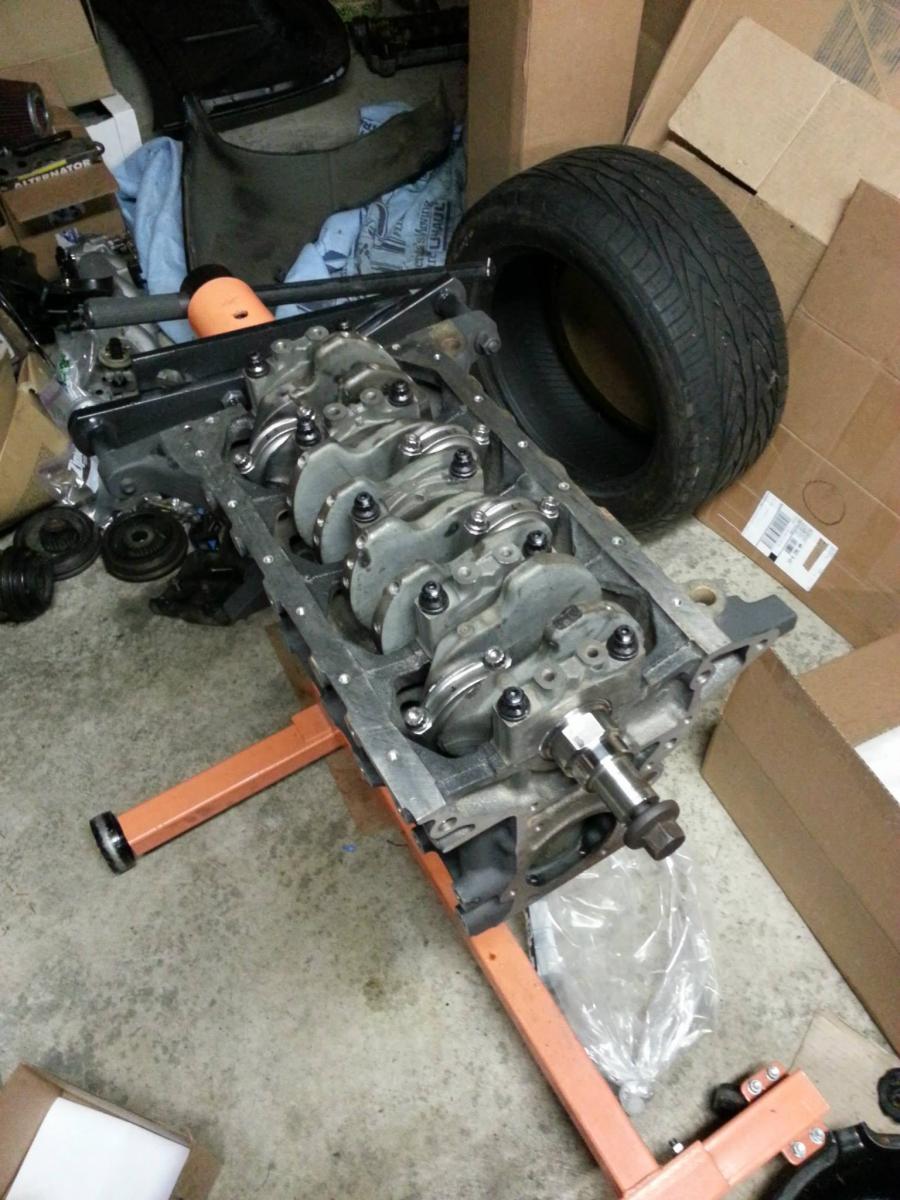

Putting together the new engine with forged rods

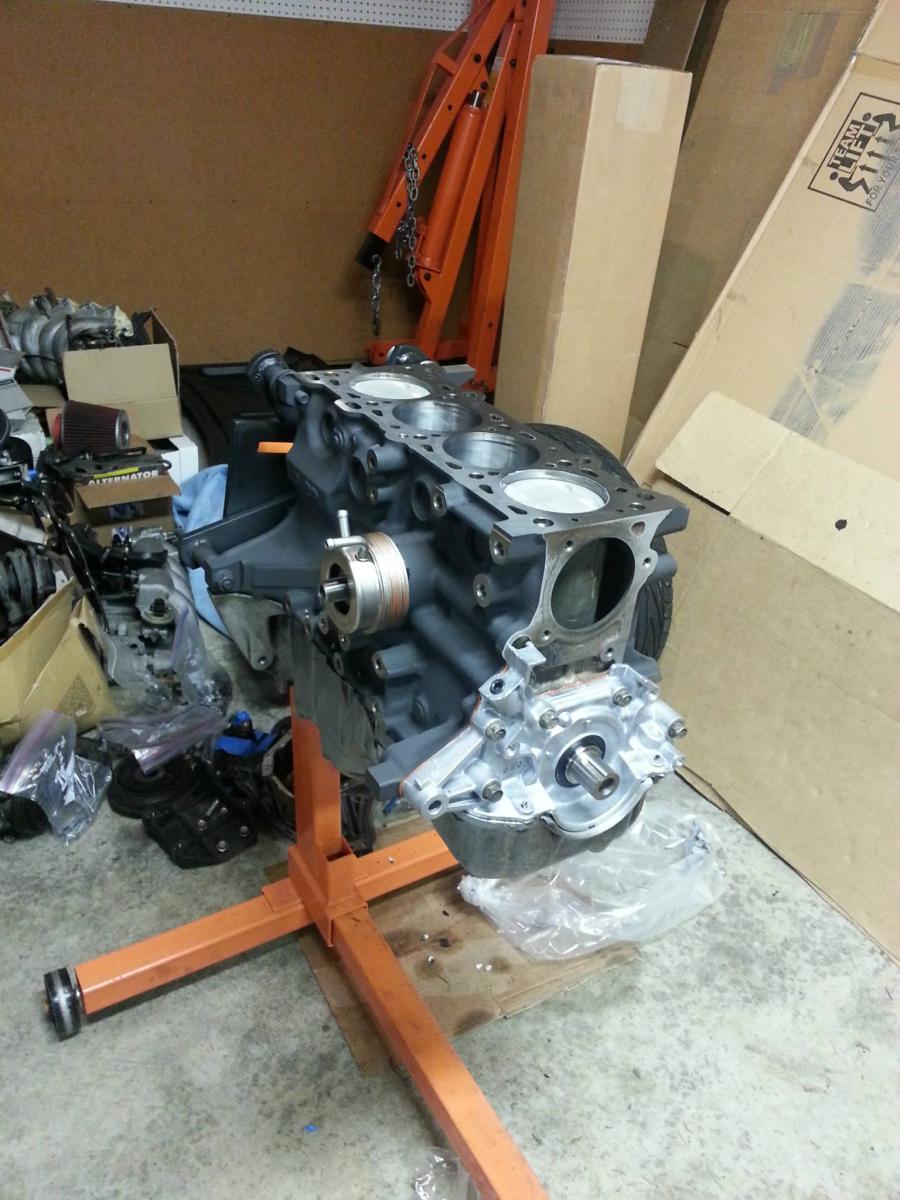

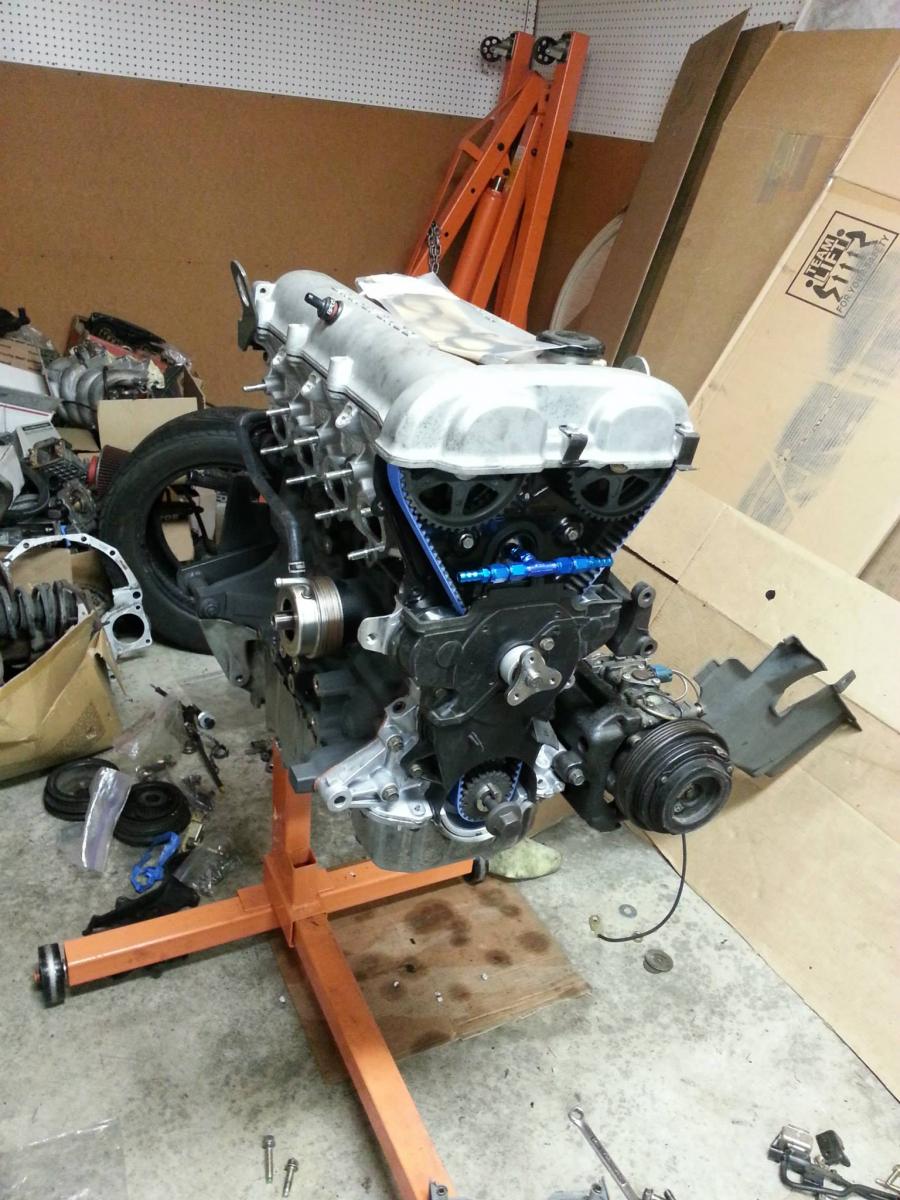

She's ready...

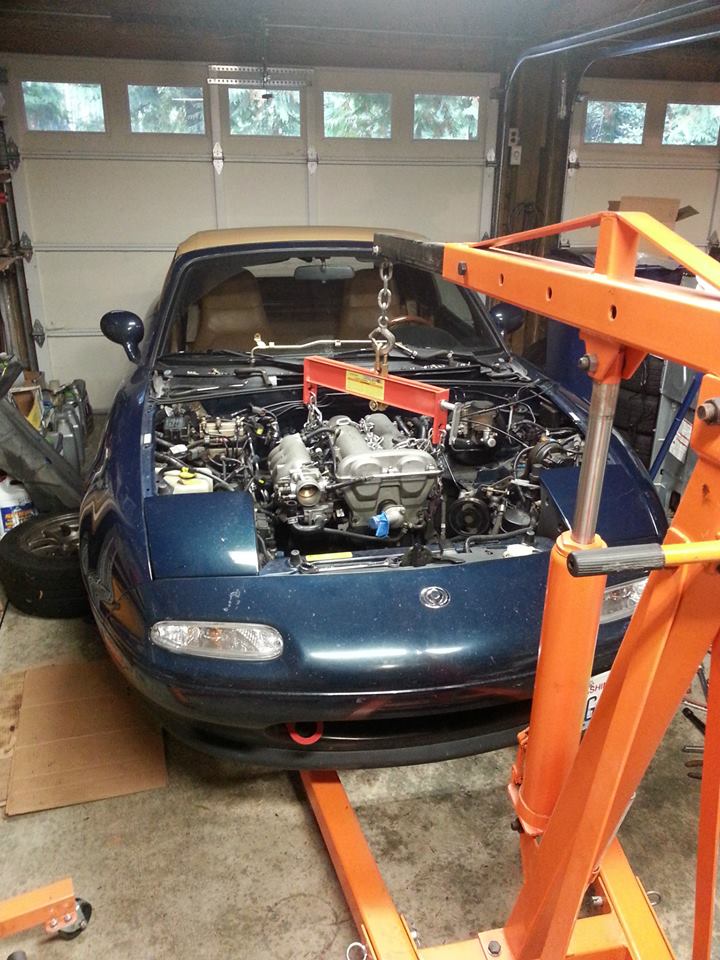

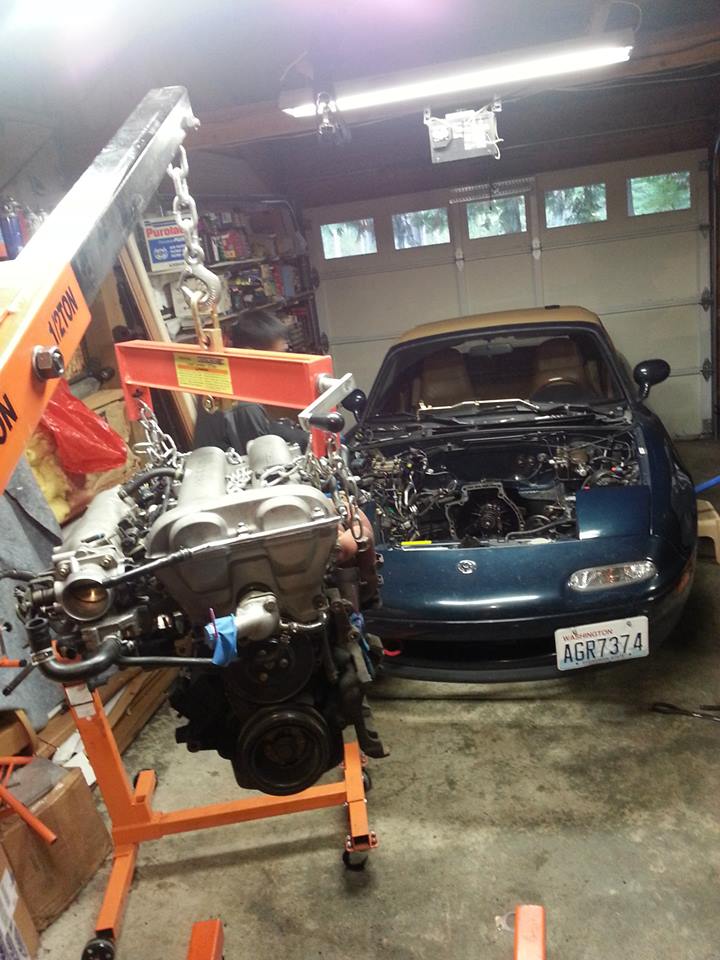

Ripping that old engine out

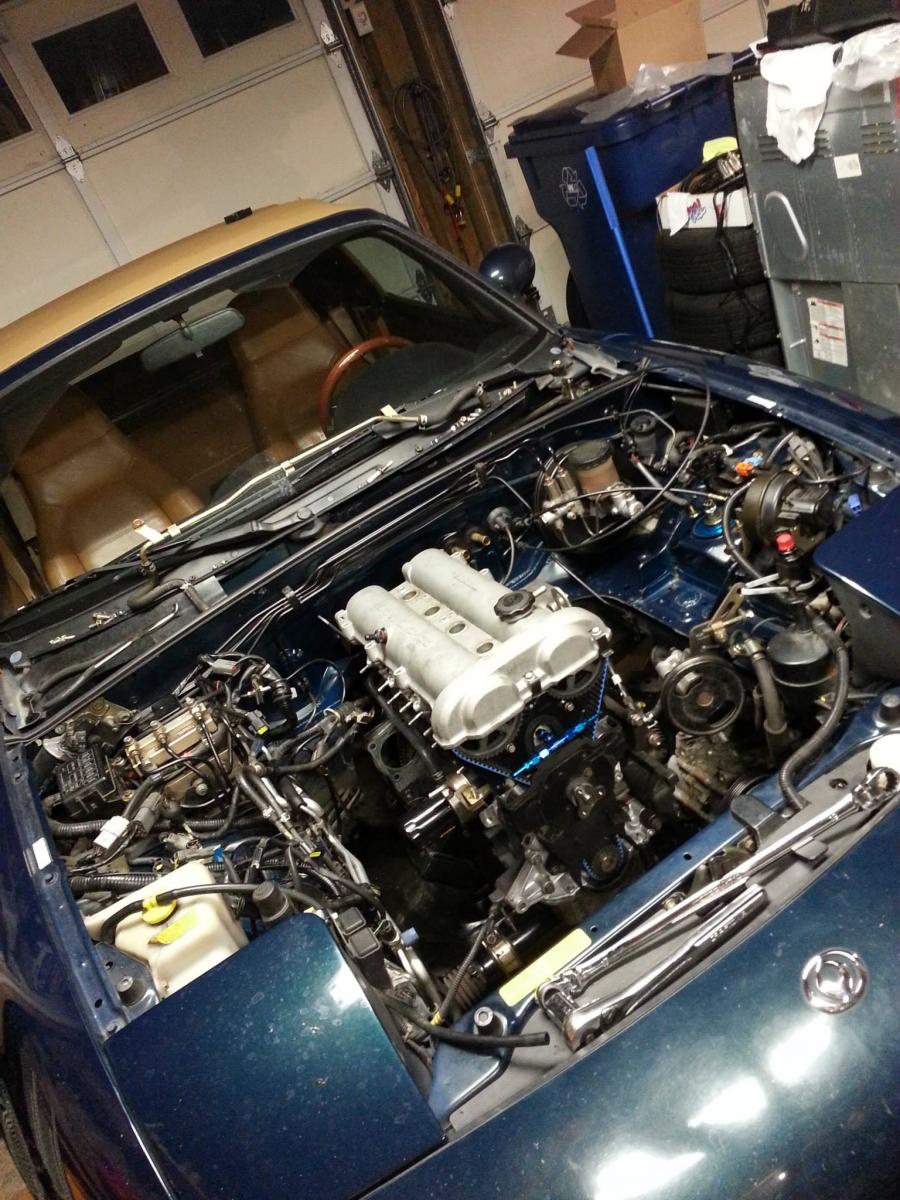

That new engine is in!


And then I decided to start using a decent camera instead of my phone...

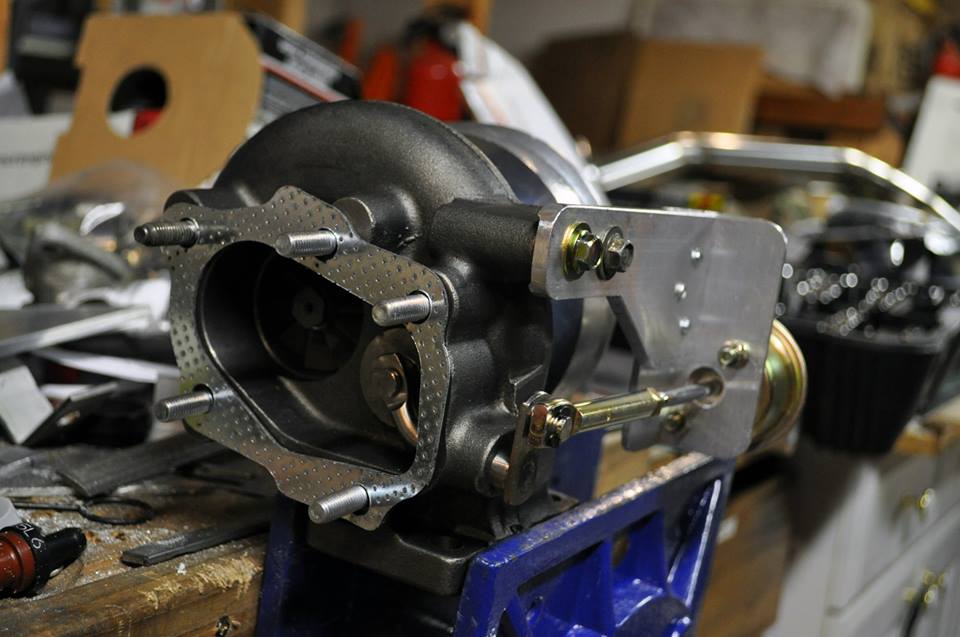

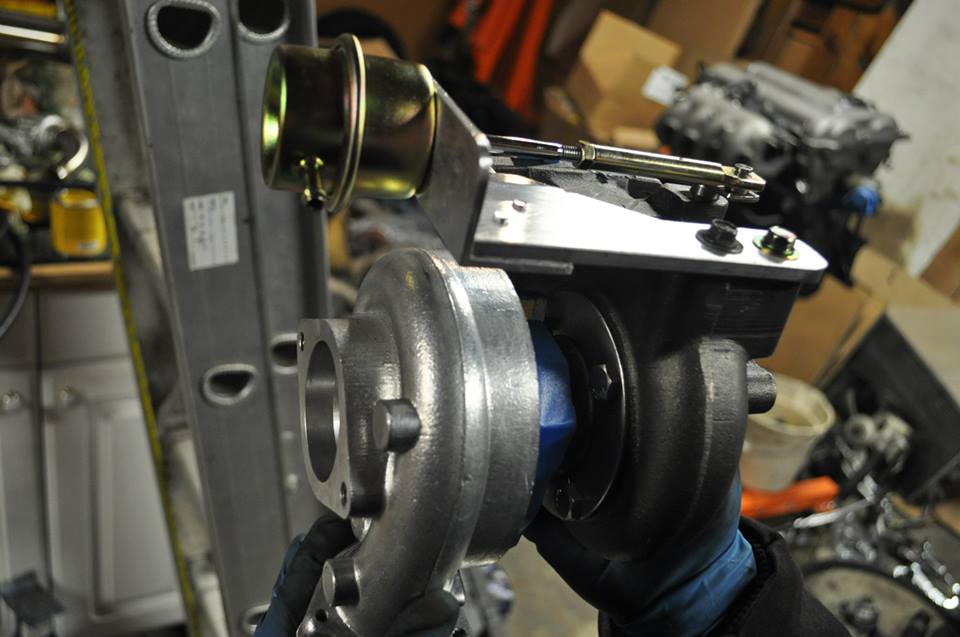

Had to make a custom bracket for the vacuum actuator and when you can't weld, you do this.

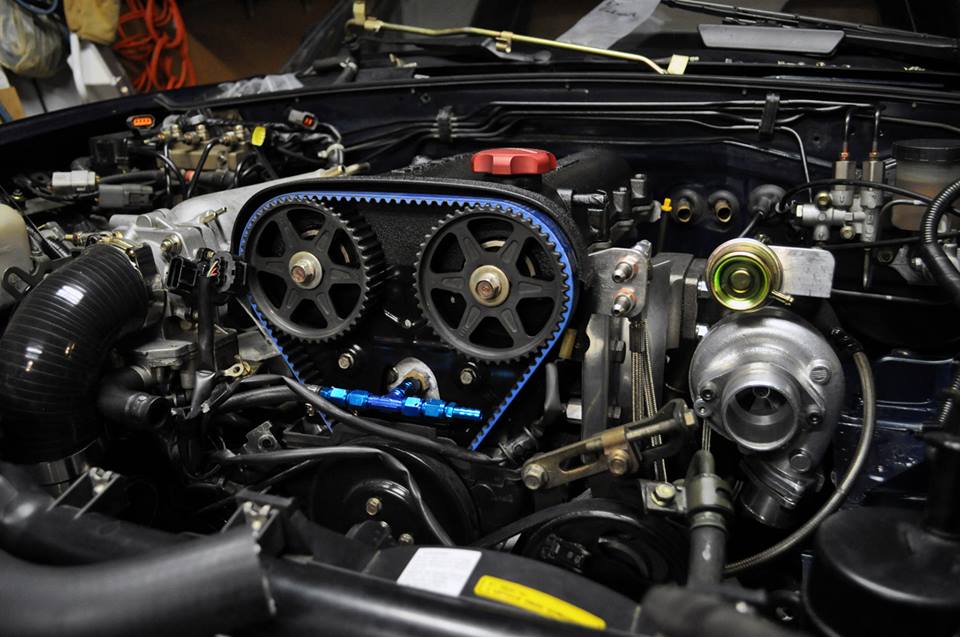

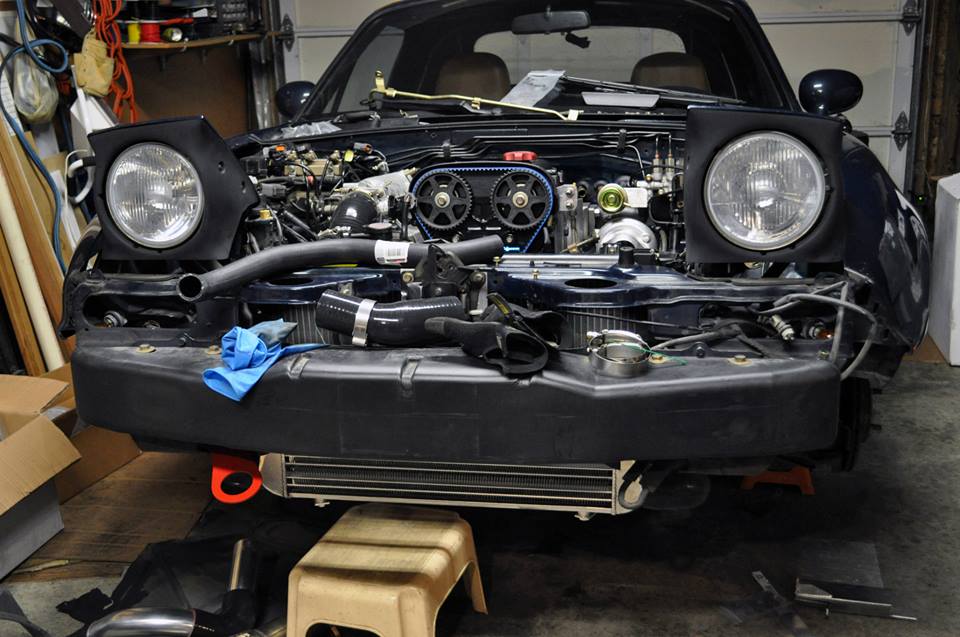

It's getting there! Will post more pics of updates
Attached Thumbnails
94 M-edition from WA. Soon to be turbo'd-859186_10200892602628792_1425476401_o.jpg   94 M-edition from WA. Soon to be turbo'd-921631_10200892602588791_2056334880_o.jpg   94 M-edition from WA. Soon to be turbo'd-1496155_10200892603188806_267902641_o.jpg   94 M-edition from WA. Soon to be turbo'd-1534896_10200892603508814_416741524_o.jpg   94 M-edition from WA. Soon to be turbo'd-1507476_10200892603668818_488632225_o.jpg

94 M-edition from WA. Soon to be turbo'd-1506267_10200825015219149_367184034_o.jpg   94 M-edition from WA. Soon to be turbo'd-37015_10200825015339152_783616475_n.jpg   94 M-edition from WA. Soon to be turbo'd-1472774_10200825015579158_881915978_n.jpg   94 M-edition from WA. Soon to be turbo'd-1229970_10200825015219149_367184034_n.jpg   94 M-edition from WA. Soon to be turbo'd-1471197_10200825021659310_52358190_n.jpg

94 M-edition from WA. Soon to be turbo'd-1486658_10200825020499281_1279955692_n.jpg   94 M-edition from WA. Soon to be turbo'd-1489107_10200825021739312_642157041_n.jpg   94 M-edition from WA. Soon to be turbo'd-1467374_10200825022259325_45961719_n.jpg   94 M-edition from WA. Soon to be turbo'd-1519934_10200892627509414_779366258_o.jpg
Yezzir is offline   Reply With Quote
Old 12-25-2013, 11:29 AM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Very nice start, a nice clean engine too!

As pretty as your blue T is, I'd worry about it cracking from vibrations, I'd keep an eye on that. We have that issue when we try T fittings on the oil pressure sensor for turbo oil feeds.
curly is offline   Reply With Quote
Old 12-25-2013, 04:49 PM   #6
Junior Member
Thread Starter

Join Date: Mar 2013
Location: Redmond, WA
Posts: 110
Total Cats: 42
Default

Thanks curly,
I'll keep an eye on it, although my brother is rethinking about redoing it with a thicker plate and using bigger fittings. Would it still be an issue without the weight of a pressure sending unit hanging off it?
