Default Hey y'all, I just got a turbo'ed miata!

Hello!
My name is Dylan, I'm 27 years old, and I live in minneapolis mn. I have a garage full of nice tools and I kinda know how to use them. I've had about a dozed project cars and bikes, but this is my first turbo(other than a vw tdi). I am comfortable doing just about any job except some that involve internals, but dad (vw mechanic for 30+ years) always helps when I get myself in too deep. My friends dont give a ---- about cars, so I rely on forums for support. I've been lurking here for a few months while waiting for a cheap miata too pop up around here, and I finally found one last night!!! Its a 92 5spd w/116k, its got a greddy kit installed, and the turbo its fried!!! I drove this think home about 10 miles last night and by the time I got her into the garage I thought I was going to blow chunks all over myself and pass out from the fumes! It was awesome!! So, I pulled the turbo(td04h) and sure enough, tons of shaft play. I am extremely stoked to get this thing running, but I am on a very tight budget and I have to find a new turbo. From the little research I've done so far, it seems that this setup is a bit obsolete and I'm not going to find a ebay td04h for a few hundred bucks. So here are a few thoughts/questions:
*I know there are a variety of td04h turbos out there, but how do I know for sure what one this is? (i think its a 15t 15g???? sorry, dont know ---- about turbos!)
*I think the td04h was the stock turbo on some saabs and volvos and others, but are they the same as this one?
*can I find a more common turbo that would be an upgrade and a direct replacement for the td04h? perhaps a td05 or t25?
Basically, I am trying to find a cheap turbo to get this thing back on the road for less then the cost of a rebuild(a few hundred bucks?), if at all possible. If not possible, I'm effed and I'll have to park it for now. Any advice you dudes have for me would be greatly appreciated. here's a few pics. sorry for the poor quality, I'll get some nice ones up soon. Thanks in advance for your input!!!




Attached Thumbnails

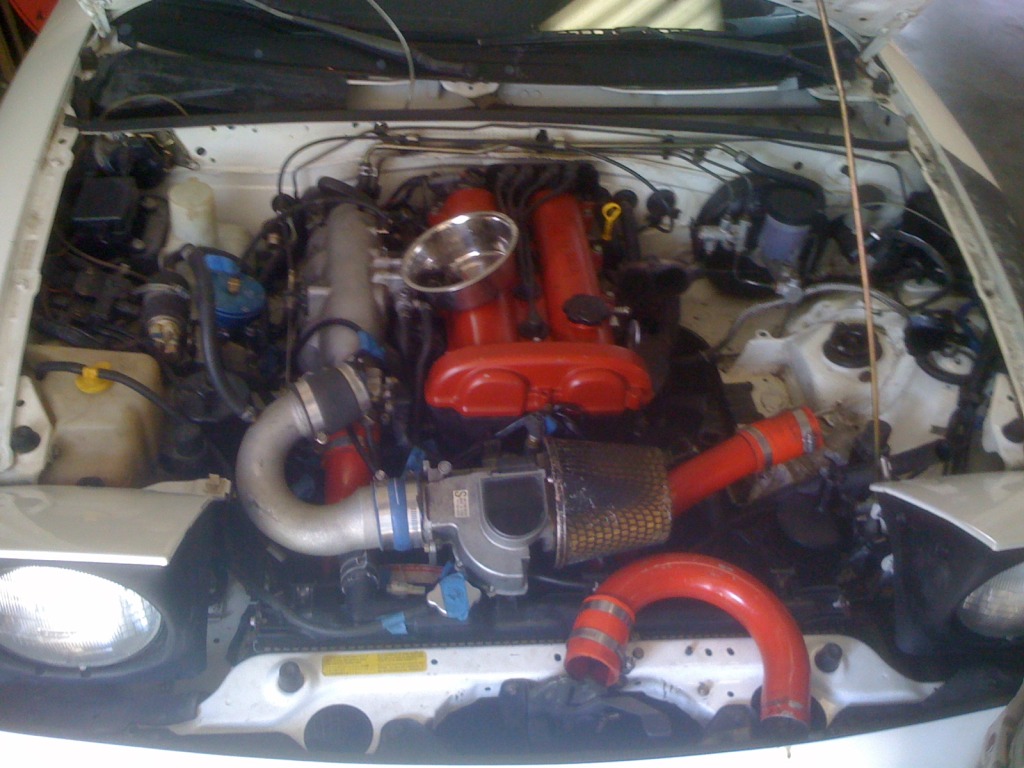

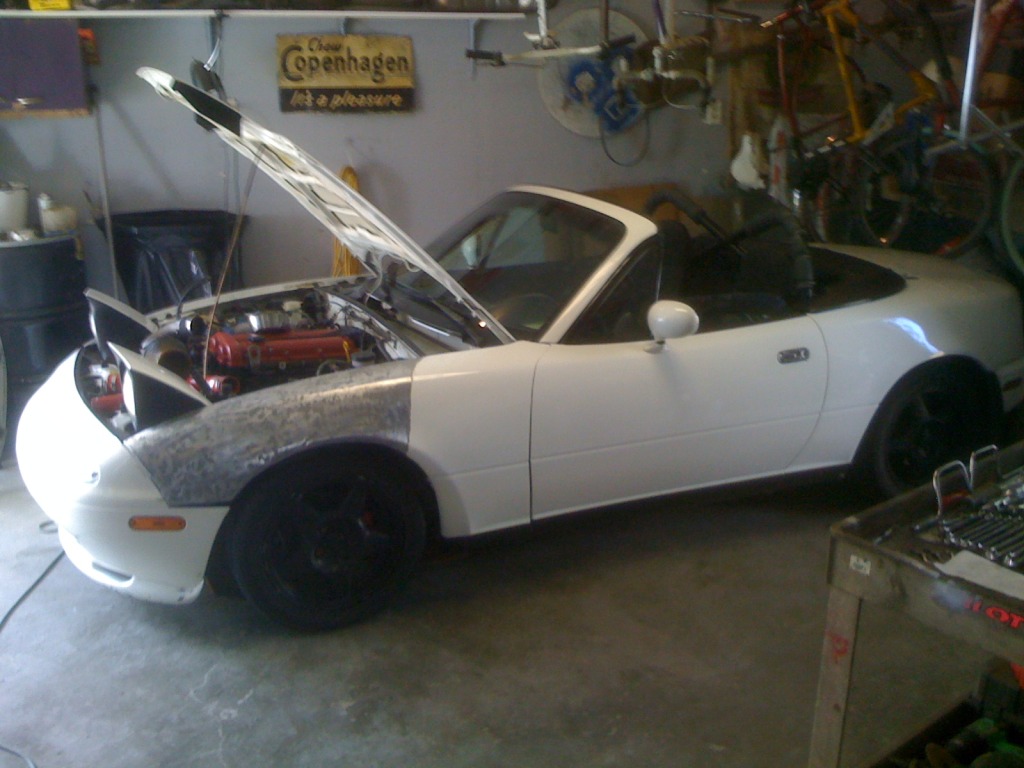

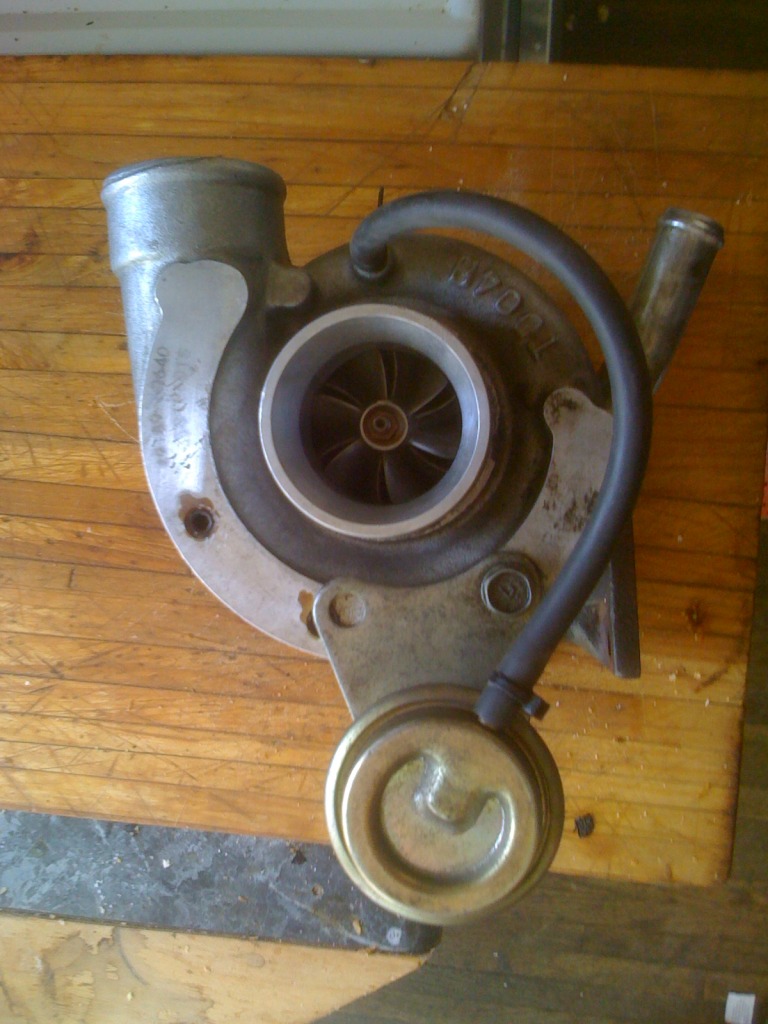

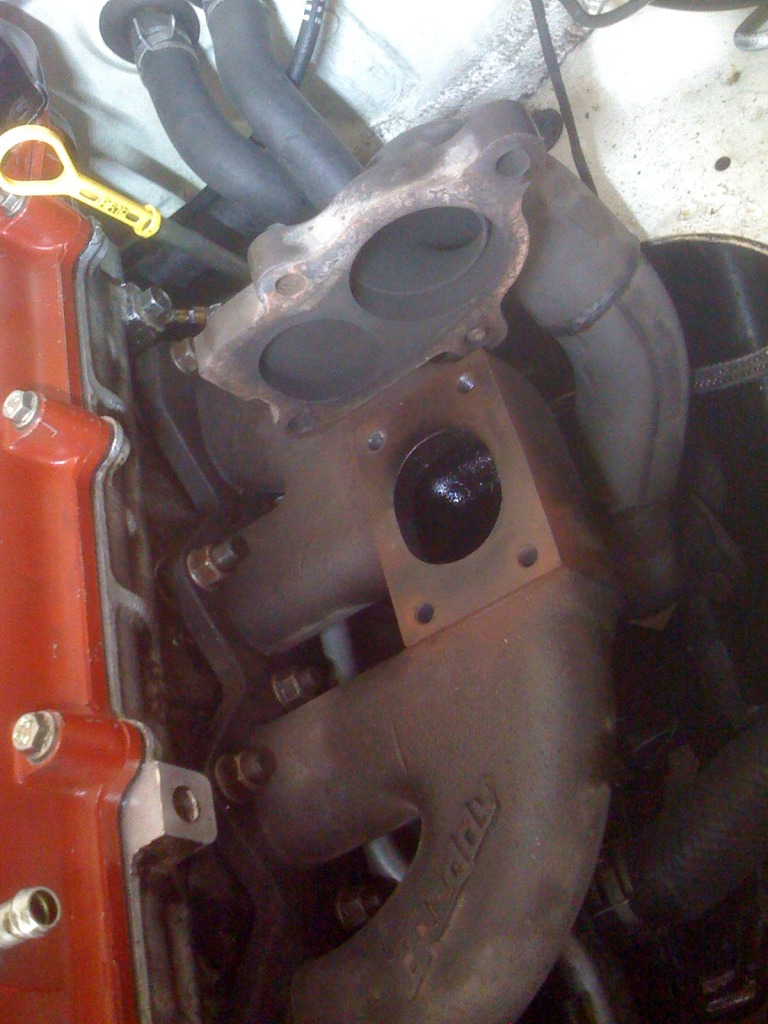

Hey y'all, I just got a turbo'ed miata!-img_00521.jpg   Hey y'all, I just got a turbo'ed miata!-img_00531.jpg   Hey y'all, I just got a turbo'ed miata!-img_00541.jpg   Hey y'all, I just got a turbo'ed miata!-img_00551.jpg   Hey y'all, I just got a turbo'ed miata!-img_00561.jpg

bloodnstuff is offline   Reply With Quote
Old 07-24-2012, 08:17 PM   #2
Junior Member
iTrader: (3)

Join Date: Dec 2009
Posts: 163
Total Cats: -7
Default

You might tear down the turbo and see if its damaged, if not rebuilding it might be a good option that saves money over another used turbo.
foxyroadster is offline   Reply With Quote
Old 07-24-2012, 08:49 PM   #3
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

It's a very specific turbo. Nearly identically sized turbos do exist, but with up to 4 different bolt flanges. Remember you have the compressor inlet(air filter) and outlet(intercooler), along with the turbine inlet(manifold) and outlet(downpipe) to match.

A rebuild kit is under $100 from gpopshop.com, I'm 90% sure you can get one from them, they have great customer service, shoot them an email.
curly is offline   Reply With Quote
Old 07-24-2012, 09:51 PM   #4
Newb
Thread Starter
iTrader: (1)

Join Date: May 2012
Location: minneapolis mn
Posts: 15
Total Cats: 0
Default

can I rebuild a turbo myself? I've heard if you diy it can be unbalanced and not work right. Im also thinking it would be smarter to swap to a more common/better turbo then to put money into this one. I am willing and able to modify my downpipe for a different outlet flange, but what turbo would work well with my setup and bolt up to my t2 greddy manifold?
bloodnstuff is offline   Reply With Quote
Old 07-24-2012, 10:17 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Yes you can rebuild it yourself, loads of people here and elsewhere have done it at home, myself included. There's a step by step tutorial floating around somewhere, it's easier than it seems.

If you're going to change turbos, you could do any GT25 turbo, the one of an SR20 DET being the cheapest and most easily found, but I'd suggest a rebuild on a used one of those as well, and they're no bigger.
curly is offline   Reply With Quote
Old 07-24-2012, 10:40 PM   #6
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Attached Thumbnails
Hey y'all, I just got a turbo'ed miata!-ermahgerd_d_060612023823.jpg
pusha is offline   Reply With Quote
Old 07-25-2012, 01:06 AM   #7
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

That's the same roll bar I have!
thirdgen is offline   Reply With Quote
Old 07-25-2012, 01:56 AM   #8
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

Quote:
Originally Posted by bloodnstuff
I am extremely stoked to get this thing running, but I am on a very tight budget
Rebuild kit. I've also rebuilt one and it worked out fine and was still going strong 3+yrs later last I heard. Just pay attention, don't bend any fins, mark alignment with a sharpie, etc.
matthewdesigns is offline   Reply With Quote
Old 07-25-2012, 11:14 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

Welcome to the site bloodnstuff, thanks for joining up!
Braineack is online now   Reply With Quote
Old 07-25-2012, 11:58 AM   #10
Newb
Thread Starter
iTrader: (1)

Join Date: May 2012
Location: minneapolis mn
Posts: 15
Total Cats: 0
Default

Alrighty then, rebuild it is! Now, should I take the rebuild cartridge to a turbo shop for balancing after I rebuild, or is that unnecessary? I'm looking on gpopshop and they have a standard and a full rebuild kit. I'm thinking I'll go full, but I need to identify my compressor wheel to buy the full kit. (flatback or superback, 14g or 15t etc.) how do I do that?
bloodnstuff is offline   Reply With Quote
Old 07-25-2012, 10:32 PM   #11
Newb
Thread Starter
iTrader: (1)

Join Date: May 2012
Location: minneapolis mn
Posts: 15
Total Cats: 0
Default

My rebuild kit is on the way. I pulled apart the turbo and the shaft is groovy, but I found a new one locally at midwest turbo connection. they can also balance my shaft, so it looks like I should have this beotch done this weekend for about $300 total. Should I worry about the cartridge bearing surfaces being warn out like the shaft was? its very hard to see/feel in there, and judging by the wear I found on the shaft, this poor little guy went through hell.
bloodnstuff is offline   Reply With Quote
Old 07-26-2012, 12:06 AM   #12
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

You'll be replacing the bearings with the included replacements in the rebuild kit.
curly is offline   Reply With Quote
Old 07-26-2012, 01:03 AM   #13
Newb
Thread Starter
iTrader: (1)

Join Date: May 2012
Location: minneapolis mn
Posts: 15
Total Cats: 0
Default

Yes, I realize that, I guess I worded that question poorly. I meant the surface, or bearing race of the cartridge itself. Or is the bearing in a fixed position in the cartridge?(Doesn't rotate in the cartridge) Sorry for all the basic turbo questions, I'm not retarded and I DO know how to work on cars, I just have NO experience with turbos.
bloodnstuff is offline   Reply With Quote
Old 07-26-2012, 12:16 PM   #14
Free Moustache Rides
iTrader: (8)

matthewdesigns's Avatar

Join Date: Jun 2008
Location: Colorado Springs
Posts: 1,656
Total Cats: 49
Default

My impression of the Garrett I rebuilt was that the bearing sleeves rotated (or at least could rotate) since they were a drop-in replacement, as opposed to a press-in affair. Not only that, but there were oiling holes through the bearing, which led me to believe that they floated inside the assembly.

I did not have my CHRA balanced. I left the turbine wheel on the shaft, and marked the nut/shaft/wheel on the compressor side, reassembling as close to those marks as humanly possible.
matthewdesigns is offline   Reply With Quote
Old 07-29-2012, 01:50 PM   #15
Newb
Thread Starter
iTrader: (1)

Join Date: May 2012
Location: minneapolis mn
Posts: 15
Total Cats: 0
Default

The turbo is back in the car! The rebuild went great(i think), there was really nothing to it. Total cost for parts and balancing was about 300 so I'm happy I went that route, thanks for pushing me in that direction. However, this car is no where near ready to be driven regularly. I have to track down the source of the massive pool of oil the thing dumped on my garage floor, and I think its running extremely rich. My air/fuel gauge is ALWAYS in the green (even at idle!) unless I unplug my inline fuel pump,(I dont thing its even supposed to have an inline fuel pump?) then it at least bounces to red a little during cruising and at idle. After boost when shifting gears, it blows a huge cloud of smoke/vapor which I think/hope is unburnt fuel. The longer I'm in boost, the bigger the cloud. It does not smell like oil or coolant although I have not completely ruled that out 100%. If it was oil or coolant and not fuel, then why would it only blow smoke after boost? Oh and btw, I'm running a vortech fmu, stock injectors, and apparently an inline fuel pump. I'm tempted to just get a cheapo manual boost controller, plug the inline pump back in, check the timing, crank the boost up to 7-8psi (it makes 5psi now) and see what happens. I believe its dumping enough fuel for more boost, and I dont have any other discs for the fmu, so this seems logical right?
bloodnstuff is offline   Reply With Quote
Old 07-29-2012, 02:12 PM   #16
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by bloodnstuff View Post
The turbo is back in the car! The rebuild went great(i think), there was really nothing to it. Total cost for parts and balancing was about 300 so I'm happy I went that route, thanks for pushing me in that direction. However, this car is no where near ready to be driven regularly. I have to track down the source of the massive pool of oil the thing dumped on my garage floor, and I think its running extremely rich. My air/fuel gauge is ALWAYS in the green (even at idle!) unless I unplug my inline fuel pump,(I dont thing its even supposed to have an inline fuel pump?) then it at least bounces to red a little during cruising and at idle. After boost when shifting gears, it blows a huge cloud of smoke/vapor which I think/hope is unburnt fuel. The longer I'm in boost, the bigger the cloud. It does not smell like oil or coolant although I have not completely ruled that out 100%. If it was oil or coolant and not fuel, then why would it only blow smoke after boost? Oh and btw, I'm running a vortech fmu, stock injectors, and apparently an inline fuel pump. I'm tempted to just get a cheapo manual boost controller, plug the inline pump back in, check the timing, crank the boost up to 7-8psi (it makes 5psi now) and see what happens. I believe its dumping enough fuel for more boost, and I dont have any other discs for the fmu, so this seems logical right?
If the cost of a turbo originally almost made you part out the car, then turning up the boost and blowing a motor will be well over your budget. I highly suggest that you do not touch the amount of boost and track down and fix all the other problems first.
shuiend is offline   Reply With Quote
Old 07-29-2012, 02:51 PM   #17
Newb
Thread Starter
iTrader: (1)

Join Date: May 2012
Location: minneapolis mn
Posts: 15
Total Cats: 0
Default

Quote:
Originally Posted by shuiend View Post
If the cost of a turbo originally almost made you part out the car, then turning up the boost and blowing a motor will be well over your budget. I highly suggest that you do not touch the amount of boost and track down and fix all the other problems first.
yeah, you are right. This thing is just so SLOW at 5psi. If I can get it to run right with this setup then maybe it will quicken up a little. At some point I will go megasquirt and big injectors, but for now I am stuck with 5psi so I may as well make the most of it. Any thoughts on my huge after boost smoke cloud? And i mean HUGE, after a 4th gear pull from 3.5k to 6k on the freeway, all 3 lanes of cars behind me DISAPPEARED behind the cloud. It was not cool.
bloodnstuff is offline   Reply With Quote
Old 07-29-2012, 05:13 PM   #18
Newb
Thread Starter
iTrader: (1)

Join Date: May 2012
Location: minneapolis mn
Posts: 15
Total Cats: 0
Default

I am going to verify that it is not a bad head gasket and that its not burning oil, but I really dont see how those could be the problem when the heavy smoke only happens after boost. I know what burning oil and burning coolant smell like and this smell is not either of those, its is almost odorless. I know its not water vapor because there is coolant in the cooling system and not just water. is there any reason why oil or coolant could be burned only after boost? is it possible for my fuel system to continue to dump so much fuel after boost that I get a mushroom cloud of unburned fuel?
bloodnstuff is offline   Reply With Quote
Old 07-29-2012, 09:03 PM   #19
Junior Member
iTrader: (1)

Join Date: Nov 2011
Location: Independence Mo
Posts: 109
Total Cats: 1
Default

I see you have a maf, do you have an open air bov?

With a system that meters the air, if you release a bunch of air you get super rich right after.
Not sure that would cause a cloud of smoke like that. But it will run stupid rich for a second after.
AkaZero is offline   Reply With Quote
Old 07-29-2012, 09:38 PM   #20
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

have you done a compression test & leak down yet to determine the health of your engine? before you get too impatient about turning up boost give your care some tune up action.
krissetsfire is offline   Reply With Quote
