Old 12-21-2012, 11:30 AM   #61
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,647
Total Cats: 1,559
Default

The 1.6 is a couple of centimeters shorter in overall length, if I recall correctly.
sixshooter is online now   Reply With Quote
Old 12-21-2012, 12:42 PM   #62
Senior Member
iTrader: (1)

Join Date: Sep 2008
Location: Tucson, Arizona
Posts: 889
Total Cats: 55
Default

Am I the only one that enjoys hearing Brain talk about 1.6's?

If you pick the 1.6 for non financial reasons you should get a ban.

Seriously 0 benefit to the 1.6 other than $$$.
krissetsfire is offline   Reply With Quote
Old 12-21-2012, 12:43 PM   #63
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

Quote:
Originally Posted by sixshooter View Post
The 1.6 is a couple of centimeters shorter in overall length, if I recall correctly.
HOLY ****! that must make it REALLY EASY to tune.


Braineack is online now   Reply With Quote
Old 12-21-2012, 02:43 PM   #64
Newb
Thread Starter

Join Date: Dec 2012
Location: Nottingham, England
Posts: 44
Total Cats: 2
Default

Ok, so I should go for the 1.8 then....I assume they both used the same 5 speed transmission? What are the final drives on the 1.6 and 1.8 cars mentioned as I run a 4.1:1 in my axle?

Thanks
sylva_phoenix is offline   Reply With Quote
Old 12-21-2012, 02:43 PM   #65
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,647
Total Cats: 1,559
Default

It is a couple of centimeters shorter to tune, lol.
sixshooter is online now   Reply With Quote
Old 12-21-2012, 02:49 PM   #66
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Quote:
Originally Posted by sylva_phoenix View Post
Ok, so I should go for the 1.8 then....I assume they both used the same 5 speed transmission? What are the final drives on the 1.6 and 1.8 cars mentioned as I run a 4.1:1 in my axle?

Thanks
Same 5 speed, and most of the Miata diffs are 4.1:1 also, so it should work fine for you. And this is useful for looking at the differences between different miata gearboxes and diffs.
thenuge26 is offline   Reply With Quote
Old 12-21-2012, 02:52 PM   #67
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

1.6l got shitty easy to break 4.3 rears
Braineack is online now   Reply With Quote
Old 12-21-2012, 04:04 PM   #68
Newb
Thread Starter

Join Date: Dec 2012
Location: Nottingham, England
Posts: 44
Total Cats: 2
Default

Brilliant, that means it's geared perfectly for me. The ford type 9 has a low 2nd gear that requires money spending on new ratios to get it to the ones that are standard in the Miata transmission. Bonus.
sylva_phoenix is offline   Reply With Quote
Old 12-21-2012, 06:05 PM   #69
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by Braineack View Post
1.6l got shitty easy to break 4.3 rears

Some of the Jap imports got 4.3 torsens, FWIW
richyvrlimited is online now   Reply With Quote
Old 12-21-2012, 06:31 PM   #70
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

Quote:
Originally Posted by Braineack View Post
1.8L vs my 1.6L

I'm running about 13psi and he's running about 8-9psi.

Very similar setup



notice how mine's a POS.



The 1.6L is a bastard child motor. It's not any easier to tune; they are essentially the same motor. It's easier to make less power with it, so it's easier to be slower with it.

Please stop taking advice from 70 year old grandpas that enjoy chrome accents and luggage racks and actively engage in discussions about the best all-season tire for driving in parades with costumes on.
TRUTH

all of it.

also LOL
18psi is offline   Reply With Quote
Old 12-21-2012, 11:20 PM   #71
Newb
Thread Starter

Join Date: Dec 2012
Location: Nottingham, England
Posts: 44
Total Cats: 2
Default

The power output is perfect but, much more importantly look at that WALL OF TORQUE from 3.5k. Mid gear acceleration is what I'm really interested in and that kind of brute force will make my phoenix utterly, pant-shattingly fast. sorry British terminology.

Last edited by sylva_phoenix; 12-21-2012 at 11:23 PM. Reason: typo
sylva_phoenix is offline   Reply With Quote
Old 12-21-2012, 11:45 PM   #72
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I have a feeling you are going to be rowing through the gears with a quickness. Did you ever dyno the xflow?

I hope like hell you own a GoPro because I want to watch this thing fly. I have this urge to sell all my other projects and build a Locost or a Phoenix
EO2K is offline   Reply With Quote
Old 12-22-2012, 07:45 AM   #73
Newb
Thread Starter

Join Date: Dec 2012
Location: Nottingham, England
Posts: 44
Total Cats: 2
Default

I'll just use 3rd an 4th most of the time and ride the torque. my only concern with all of this is the smoothness of delivery as is it could kick the rear end out mid corner if I'm not careful. I'm planning to have it tuned on a rolling road, so hopefully the larger engine running relatively low boost will be nicely driveable. I have a suction camera mount which I use with a regular Canon powershot, seems to come out ok, although wind noise is always a problem.
sylva_phoenix is offline   Reply With Quote
Old 12-22-2012, 10:42 AM   #74
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

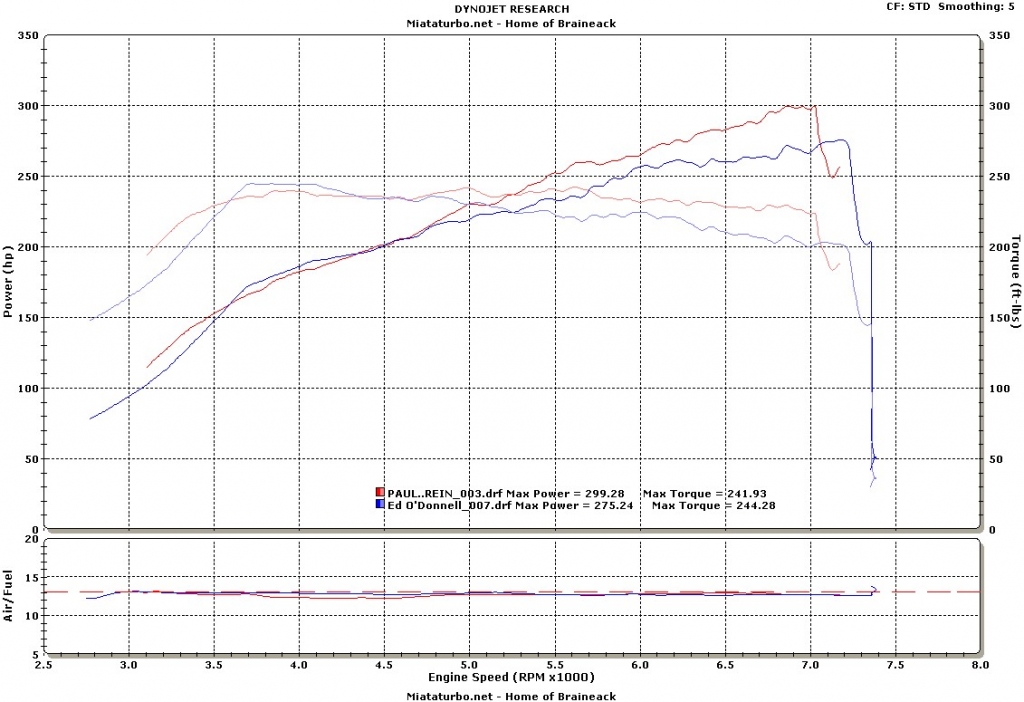

wall of torque?




no 1.6L is going to do this.
Attached Thumbnails
Introduction - Brit wants a turbo in his life and not just in his diesel volvo-paul_vs_ed.jpg
Braineack is online now   Reply With Quote
Old 12-23-2012, 09:09 AM   #75
Newb
Thread Starter

Join Date: Dec 2012
Location: Nottingham, England
Posts: 44
Total Cats: 2
Default

Thats awesome, but I'm sure I would break the axle with that much torque. Would be fun thing though. Is that with a gt28 turbo?
sylva_phoenix is offline   Reply With Quote
Old 12-23-2012, 10:29 AM   #76
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,824
Total Cats: 1,781
Default

2560 at around 14psi on 1.8L motors. Dont get a 1.6L motor, or a 1.6L rear end, or brakes, or clutch.
Braineack is online now   Reply With Quote
Old 12-23-2012, 12:33 PM   #77
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,065
Total Cats: 253
Default

1.6 is the greatest motor ever made.

OP post some pics. Lots of pics.
viperormiata is offline   Reply With Quote
Old 01-05-2013, 06:27 AM   #78
Newb
Thread Starter

Join Date: Dec 2012
Location: Nottingham, England
Posts: 44
Total Cats: 2
Default

Update, here's my shopping list:
1.8 or 1.6 engine and transmission, from series 1 or 2 mx5 (depends what's available at the right price)
Megassquirt ms2 enhanced ecu (does the job and fits the budget)
Wideband lambda and controller from trigger wheels.com,
Walbro 255 fuel pump or equivalent,
Garrett t25 turbo, or kkk k04 from Audi tt 225 hp version,
Down pipe for turbo,
Custom fabricated exhaust manifold to my own design,
Custom exhaust and silencer to my own design,
Intercooler-various types on eBay so depends on cost and size to fit kit car.
Pipes and hoses to fit intercooler,
Oil and coolant feed and return for turbo,
Sump modifications to shorten engine and return oil feed from turbo
Uprated clutch (and flywheel if budget allows)
Fabricated engine and transmission mounts.
High pressure fuel feed and return lines plus fuel filters (modify tank for return line input)
Modified clutch pedal for hydraulic (was cable on previous trans)
Professional dyno session.
Larger radiator, probably golf gti or similar.
Oil pressure line take off for gauge
Oil cooler and take off plate plus hoses.

Can't think of anything else, butt tell me if I've missed something obvious.
Target is 180-200 whp and total cost less than 1800.

Thanks for the advice
Laurence
sylva_phoenix is offline   Reply With Quote
Old 01-05-2013, 06:02 PM   #79
Senior Member
iTrader: (9)

Join Date: Sep 2009
Location: Yamato Japan
Posts: 692
Total Cats: 26
Default

Quote:
Originally Posted by sylva_phoenix View Post
Update, here's my shopping list:
1.8 or 1.6 engine and transmission, from series 1 or 2 mx5 (depends what's available at the right price)
Megassquirt ms2 enhanced ecu (does the job and fits the budget)
Wideband lambda and controller from trigger wheels.com,
Walbro 255 fuel pump or equivalent,
Garrett t25 turbo, or kkk k04 from Audi tt 225 hp version,
Down pipe for turbo,
Custom fabricated exhaust manifold to my own design,
Custom exhaust and silencer to my own design,
Intercooler-various types on eBay so depends on cost and size to fit kit car.
Pipes and hoses to fit intercooler,
Oil and coolant feed and return for turbo,
Sump modifications to shorten engine and return oil feed from turbo
Uprated clutch (and flywheel if budget allows)
Fabricated engine and transmission mounts.
High pressure fuel feed and return lines plus fuel filters (modify tank for return line input)
Modified clutch pedal for hydraulic (was cable on previous trans)
Professional dyno session.
Larger radiator, probably golf gti or similar.
Oil pressure line take off for gauge
Oil cooler and take off plate plus hoses.

Can't think of anything else, butt tell me if I've missed something obvious.
Target is 180-200 whp and total cost less than 1800.

Thanks for the advice
Laurence
I personally ran a GT2554 on a 97 (old style) 1.8 at 10-12ish psi and dynoed at almost exactly 200whp

A "run of the mill" turbo miata build will meet your needs EASILY and you won't have to do anything special.

My recommendation? I don't know what parts availability is like over the pond, but I sold my old gt2554 for something stupid like $100 (61GBP!!!!) and if you farted it would spool (like full at ~2500rpm). In the states those turbos are everywhere. 200 is the sweet spot for it, but it will do 220-230. the 2560 is almost as cheap, and will do 250-270hp.

Not exactly miata related but I've always dealt with John at FIC for all my injectors and only use EV14 style. CHEAP. And AWESOME.

Get a 99 style engine (pre VVT, better head). Throw some $200 (~120GBP) ebay/mtuned rods in it. Don't touch the pistons. Don't touch the head. Cheap garret turbo. Do a coolant re-route. Boost ~12psi. Keep revs sensible. If you're making the exhaust yourself that's all there is to it. Spend extra cash on injectors, computers, and nice fitting/fire sleeve.

Best of all that type of build is so vanilla, EVERYTHING you're doing has been covered to death. It'll run forever and the "search" function will literally hold your hand the whole way (not pimping you to search, you're one of the good guys. Just saying).

BTW, to put it in terms you chaps use, your car is the badger's nadgers!
tasty danish is offline   Reply With Quote
Old 01-05-2013, 06:38 PM   #80
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

Quote:
Originally Posted by tasty danish View Post
I personally ran a GT2554 on a 97 (old style) 1.8 at 10-12ish psi and dynoed at almost exactly 200whp

A "run of the mill" turbo miata build will meet your needs EASILY and you won't have to do anything special.

My recommendation? I don't know what parts availability is like over the pond, but I sold my old gt2554 for something stupid like $100 (61GBP!!!!) and if you farted it would spool (like full at ~2500rpm). In the states those turbos are everywhere. 200 is the sweet spot for it, but it will do 220-230. the 2560 is almost as cheap, and will do 250-270hp.

Not exactly miata related but I've always dealt with John at FIC for all my injectors and only use EV14 style. CHEAP. And AWESOME.

Get a 99 style engine (pre VVT, better head). Throw some $200 (~120GBP) ebay/mtuned rods in it. Don't touch the pistons. Don't touch the head. Cheap garret turbo. Do a coolant re-route. Boost ~12psi. Keep revs sensible. If you're making the exhaust yourself that's all there is to it. Spend extra cash on injectors, computers, and nice fitting/fire sleeve.

Best of all that type of build is so vanilla, EVERYTHING you're doing has been covered to death. It'll run forever and the "search" function will literally hold your hand the whole way (not pimping you to search, you're one of the good guys. Just saying).

BTW, to put it in terms you chaps use, your car is the badger's nadgers!
Better than previous years yes.
Better than vvt? NO
18psi is offline   Reply With Quote
