Default My 1991 Mazda Mx5 1.6T

Hi guys this is my mazda mx5 1.6, i'm here to get a little help on changing the turbo for my mx5 discovering that the one on it now is a eBay one aghhh!

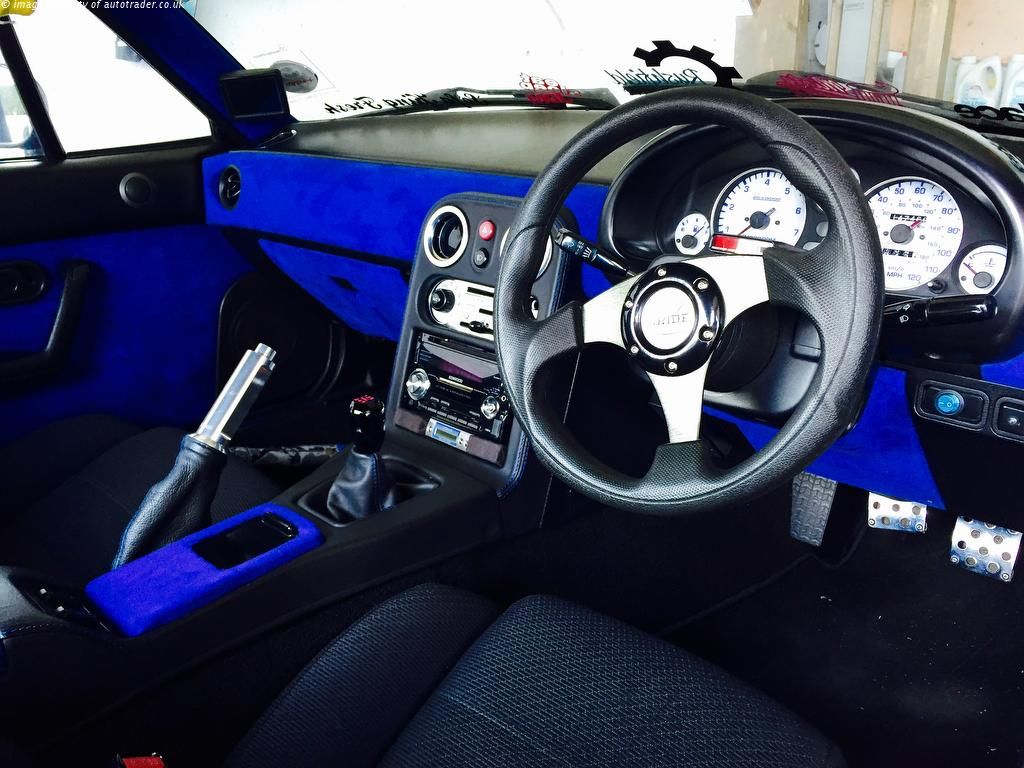

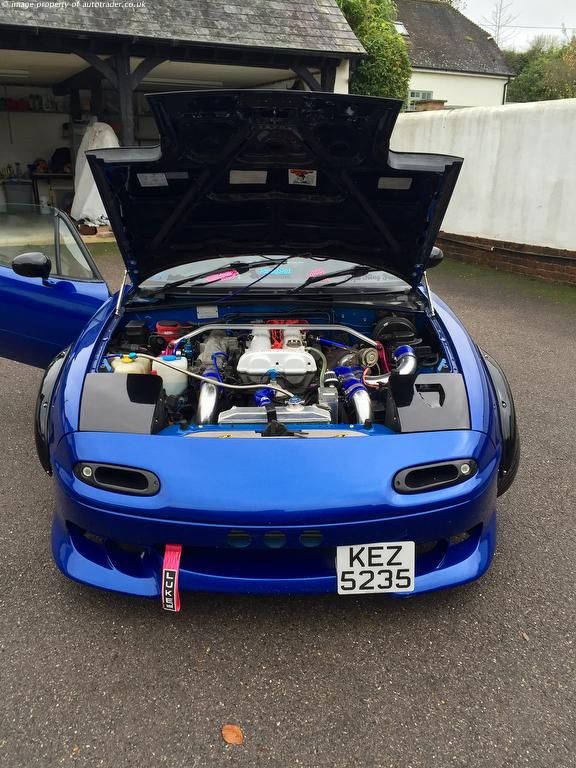

Attached Thumbnails
My 1991 Mazda Mx5 1.6T-80-mazdamx5_57538a1f14882e2a11902c4587042115c0c202c1.jpg   My 1991 Mazda Mx5 1.6T-80-mazdamx52_9c778e160a7c3cd3a878e8b75ebfb6ad0f595861.jpg   My 1991 Mazda Mx5 1.6T-80-mx54_50ba94ed12a009676e01439f29e697fcdfa43e04.jpg   My 1991 Mazda Mx5 1.6T-80-mazdamx53_9c6eabc038e1e0489df206eb78d97f98982bd063.jpg

Last edited by Sean Young; 06-19-2017 at 05:26 PM.
Sean Young is offline   Reply With Quote
Old 11-26-2015, 04:16 PM   #2
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,905
Total Cats: 613
Default

white VC, pink brackets n ****, gay radiator, stock AFM(aidz?), 205s and flares bro, and youre worried about the churbo? lol

welcome Sean, im Sean
hi_im_sean is offline   Reply With Quote
Old 11-26-2015, 04:22 PM   #3
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Can't get a good look at the mani. if its cast you are if its welded you fucked.
aidandj is offline   Reply With Quote
Old 11-26-2015, 04:22 PM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

you have MUCH bigger problems than just an ebay churbo
MUCH MUCH bigger
18psi is offline   Reply With Quote
Old 11-26-2015, 05:02 PM   #5
Newb
Thread Starter

Join Date: Nov 2015
Posts: 4
Total Cats: 0
Default

but what are these MUCH bigger problems that you guys can see? also the manifold is a custom one i have receipts etc defiantly not a cheap custom manifold

Last edited by Sean Young; 06-19-2017 at 05:25 PM.
Sean Young is offline   Reply With Quote
Old 11-26-2015, 05:05 PM   #6
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Uugh!
hornetball is offline   Reply With Quote
Old 11-26-2015, 06:38 PM   #7
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,905
Total Cats: 613
Default

Quote:
Originally Posted by Sean Young View Post
Obviously im going to be changing a lot, i have only just picked it up, but what are these MUCH bigger problems that you guys can see? also the manifold is a custom one i have receipts etc defiantly not a cheap custom manifold
Aidz and stupid radiator would be a start.
hi_im_sean is offline   Reply With Quote
Old 11-26-2015, 07:53 PM   #8
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,690
Total Cats: 1,562
Default My 1991 Mazda Mx5 1.6T

The things that people are concerned about include the fact that it is not running an aftermarket computer to control fuel and spark and it is using a strange radiator that appears to be much smaller than stock when the stock radiators tend to have overheating problems. The air fuel meter is an obstruction to your intake and can be done away with once you get a proper computer to control the engine. There is nothing wrong with most of the eBay turbos so don't worry about it. You do not have a coolant re route which can be a problem if running for extended periods in boost because the back cylinders get much hotter than the front ones and detonation occurs. I will have to stop typing to look at your pictures again, but you get the point.

Edit: the shock tower brace is a non functional item and is simply there for looks in this case. You will do well to remove it and sell it to another enthusiast. The 0 offset wheels are great for having the car appear to be wider than it is but they make the car handle much worse and handling is one of the things that make these cars special. The car will actually corner much more poorly with 0 offset wheels then if it had the same width wheels tucked closer to the frame.
sixshooter is online now   Reply With Quote
Old 11-26-2015, 08:00 PM   #9
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,690
Total Cats: 1,562
Default

The aidz being referred to above by Sean is the fuel management strategy that does not employ and actual aftermarket computer to control fuel and spark. What you are running is called band aids or AIDS commonly on this board because it is a bad thing to have.

On the good side, if you have a custom built manifold built by a competent individual and an eBay Turbo then that part will likely be okay.
sixshooter is online now   Reply With Quote
Old 11-26-2015, 08:23 PM   #10
Newb
Thread Starter

Join Date: Nov 2015
Posts: 4
Total Cats: 0
Default

Thank you for the help sixshooter, i appreciate it, also it is running a Greddy Emanage ECU

Last edited by Sean Young; 06-19-2017 at 05:24 PM.
Sean Young is offline   Reply With Quote
Old 11-26-2015, 08:36 PM   #11
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,812
Total Cats: 187
Default

Emanage is fine. It's old school, but then again, your car is a 91. Run it. It'll do everything you need it to do.
thirdgen is offline   Reply With Quote
Old 11-26-2015, 08:40 PM   #12
Newb
Thread Starter

Join Date: Nov 2015
Posts: 4
Total Cats: 0
Default

Quote:
Originally Posted by thirdgen View Post
Emanage is fine. It's old school, but then again, your car is a 91. Run it. It'll do everything you need it to do.
it is already running it, is there something on this that shouldn't be if i have a emanage ecu already running with a map?
Sean Young is offline   Reply With Quote
Old 11-26-2015, 09:38 PM   #13
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,905
Total Cats: 613
Default

Will the emanage run with a map sensor or even alpha-n so he can delete the AFM?

I have to say, the car is clean and does appeal to me in some strange way, although i havnt figured out how. Maybe its because we both spell our names correctly instead of like a faggit.
hi_im_sean is offline   Reply With Quote
Old 11-26-2015, 09:54 PM   #14
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by hi_im_sean View Post
Will the emanage run with a map sensor or even alpha-n so he can delete the AFM?

I have to say, the car is clean and does appeal to me in some strange way, although i havnt figured out how. Maybe its because we both spell our names correctly instead of like a faggit.
Yes. JoeP has an old writeup.
aidandj is offline   Reply With Quote
Old 11-27-2015, 02:29 AM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

Welcome to the site Sean Young, thanks for joining up!
Braineack is offline   Reply With Quote
