Old 04-24-2014, 02:57 PM   #21
Senior Member
iTrader: (3)

Join Date: Apr 2011
Location: Volo, IL
Posts: 1,247
Total Cats: 140
Default

This thread suddenly got a whole lot cooler.
dieselmiata is offline   Reply With Quote
Old 04-24-2014, 03:34 PM   #22
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,657
Total Cats: 1,558
Default

Autos and turbos work well in drag cars because the turbo stays spooled when it shifts. And there's the torque multiplication the torque converter provides during the launch, which is a benefit.

For those who don't understand how this works:

Quote:
It took the addition of a small device called the stator to increase the efficiency of the fluid coupling and transform it into a torque converter. The stator redirects fluid from the turbine to the impeller, radically increasing the force of the fluid entering the impeller and multiplying the torque input from the engine. Basically, the fluid exits the center of the turbine and is redirected by the stator back into the impeller. This is a very slick trick and can be worth up to 2.5 times engine torque! This means that at a 2:1 torque multiplication ratio, an engine that is making 300 lb-ft of torque at a stall speed of 2,500 rpm will actually apply 600 lb-ft of torque to the input shaft of the transmission as the car leaves the starting line.

Last edited by sixshooter; 04-24-2014 at 03:47 PM.
sixshooter is online now   Reply With Quote
Old 04-24-2014, 06:00 PM   #23
Junior Member
Thread Starter

Join Date: Apr 2014
Location: Phoenix AZ
Posts: 55
Total Cats: -22
Default

Quote:
Originally Posted by sixshooter View Post
Autos and turbos work well in drag cars because the turbo stays spooled when it shifts. And there's the torque multiplication the torque converter provides during the launch, which is a benefit.

For those who don't understand how this works:
In my hemi ran the sun coast converter I had built true stalled at 2800 you can see it in the video I uploaded. It would flash stall at 3000 it had 2.5 vs 1.9 stock torque multiplication a billet housing and organic clutches.

Another cool feature on a high stall converter is the car doesn't automatically shift out of first until around stall. So crawling in parking lots your in D but locked in first gear until 2800.

If my turbo starts to spool around 3500 rpm I would have a 3300 rpm stall converter built so I would leave the line off boost for just 200 rpm. Mega squirt has launch control it would be interesting to see that in action

I like both types of racing equally but drag bang for buck is pretty darn high.
zoomazoomzoom is offline   Reply With Quote
Old 04-24-2014, 06:59 PM   #24
Junior Member
Thread Starter

Join Date: Apr 2014
Location: Phoenix AZ
Posts: 55
Total Cats: -22
Default

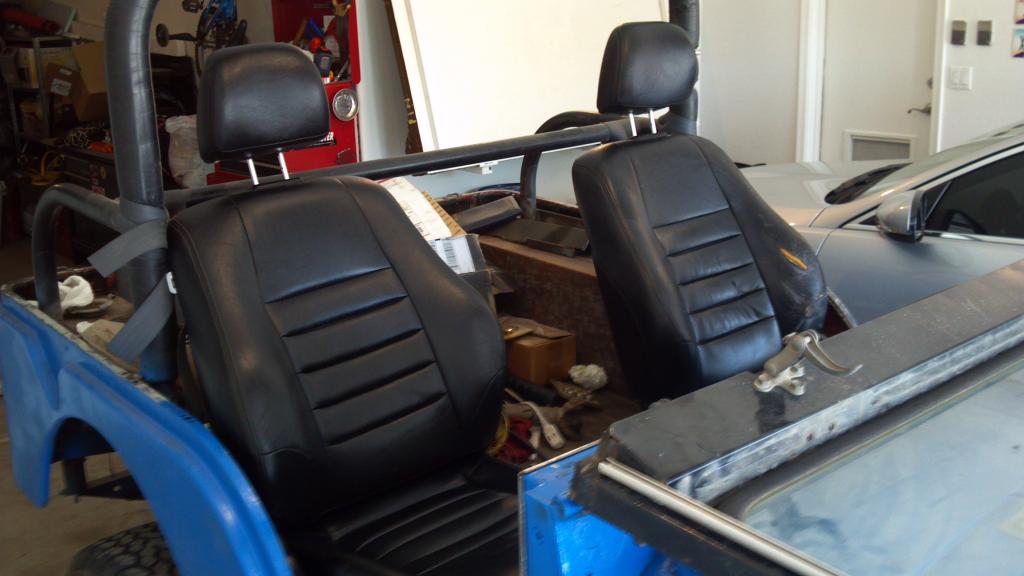

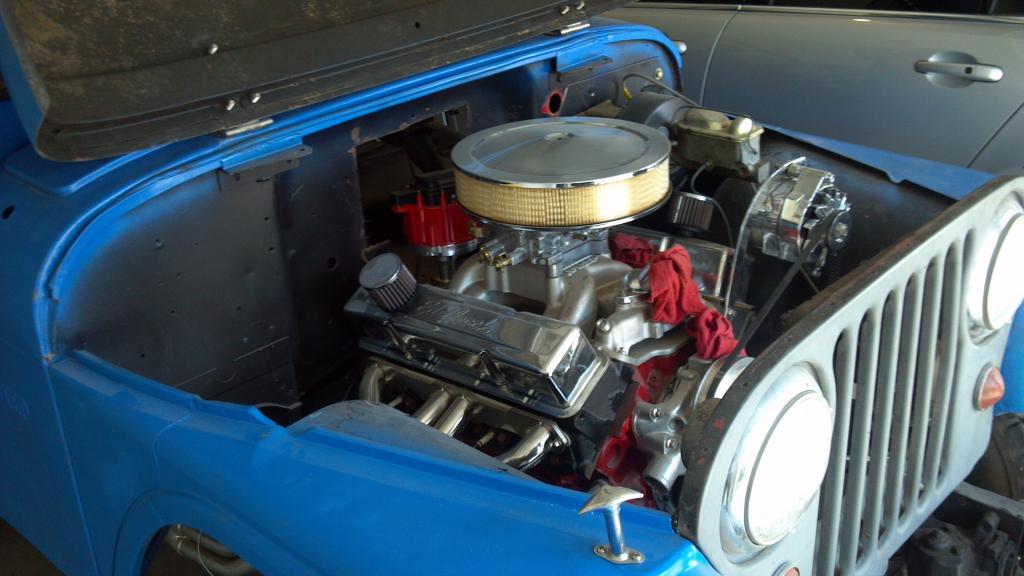

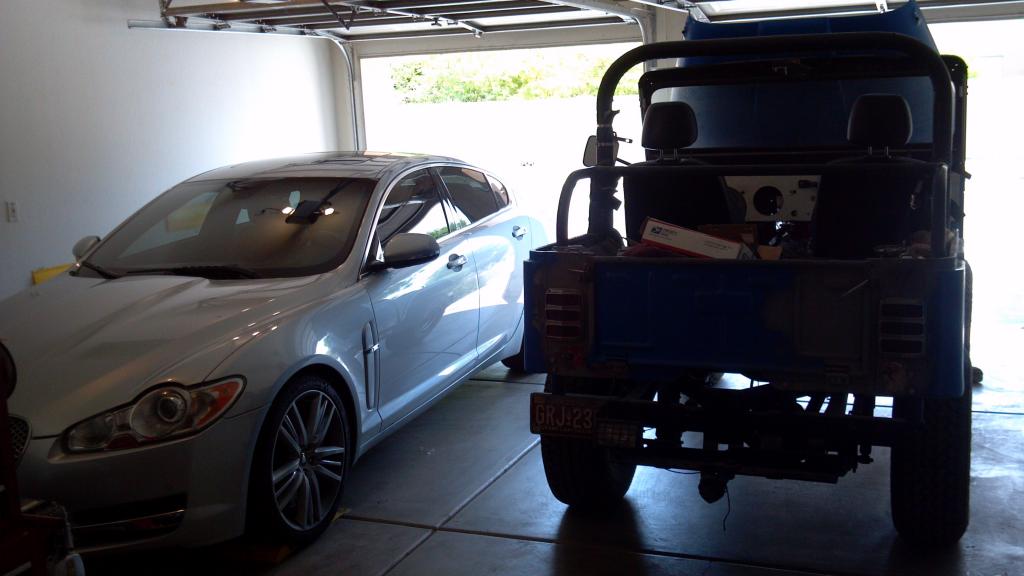

My other other project car is a 1965 cj-5 jeep that I crammed a 1966 327 from an SS Chevelle . It's all roller but the cam and has worked over 1969 camaro heads. The transmission is a sm420 from a 1960's one ton Chevy truck. This 4spd manual has a 7:1 first gear. I bought a set of leather manual honda prelude buckets for it. Am working on cutting out the wheel wells in the tub and welding in a flat floor so I have more leg room and swapping a better front axle.




Attached Thumbnails
Phoenix noob love Miatas and women-2013-06-27_11-15-54_845_zpsa2da6eda.jpg   Phoenix noob love Miatas and women-2013-06-27_11-14-15_54_zpsf4e35759.jpg   Phoenix noob love Miatas and women-2013-06-27_11-16-20_509_zpsfef81ae7.jpg
zoomazoomzoom is offline   Reply With Quote
