Default $5.43 to a helper

Offering $5.43 to anyone who can take my tune file and modify it/tell me what to change to get my car running on Megasquirt. Most of the basic settings are taken care of; I'm having a hard time with the starting settings e.g. cranking pulse width, cranking spark angle, etc. I have a timing light on the way to figure timing out, but figured some of the base tune stuff could be figured out ahead of time. Help with afterstart settings would also be much appreciated.

1992 1.6L Miata
DIYMS2
Located in Michigan
Naturally Aspirated with stock injectors (I have RX8's, but am fine with just getting the car started on stocks)
Can tell you anything else you need to know to help me. Thank you.

Link below will take you to where the file can be downloaded.

Tune File
Bodhimeister is offline   Reply With Quote
Old 02-01-2016, 06:11 AM   #2
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

We need more info.
Does it not run at all? Does it catch and then stall? Does it stay running for a couple of seconds?
WestfieldMX5 is offline   Reply With Quote
Old 02-01-2016, 08:02 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

so it's actually running?

then I'd like that $5.43 now please.
Braineack is online now   Reply With Quote
Old 02-01-2016, 08:57 AM   #4
Junior Member
Thread Starter

Join Date: Jul 2015
Posts: 77
Total Cats: -7
Default

As of now, it cranks without catching. No sputtering, no running, just cranking. Sorry about not mentioning that.
Bodhimeister is offline   Reply With Quote
Old 02-01-2016, 09:03 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

and DIYMS2 means exactly?

DIYPNP?
V3.0 PCB MS2 with a custom patch harness?
MS2PNP?

????


NEED THE INFO.
Braineack is online now   Reply With Quote
Old 02-01-2016, 09:31 AM   #6
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Quote:
Originally Posted by Braineack View Post
NEED THE INFO.
.43 to a helper-image.jpg
thirdgen is offline   Reply With Quote
Old 02-01-2016, 09:46 AM   #7
Junior Member
Thread Starter

Join Date: Jul 2015
Posts: 77
Total Cats: -7
Default

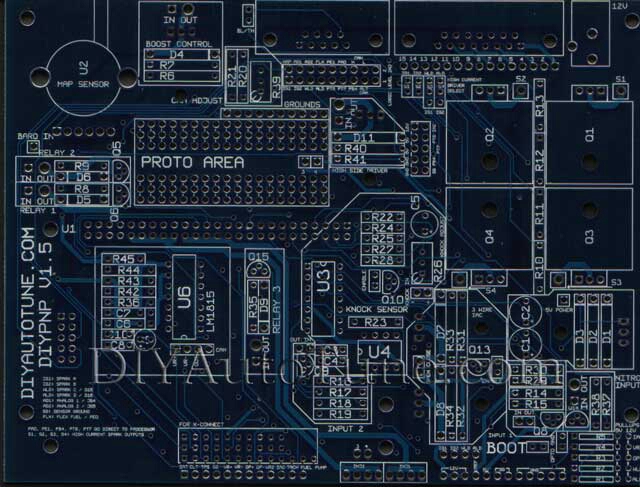

DIYPNP
Board V1.5 like below
Attached Thumbnails
.43 to a helper-v15top.jpg
Bodhimeister is offline   Reply With Quote
Old 02-01-2016, 09:54 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

did you build it yourself?

did you do the HIGH OUT circuit for the fuel pump? Did you forget to remove the ST-SIGN before cranking using this method of fuel pump activating?
Braineack is online now   Reply With Quote
Old 02-01-2016, 10:00 AM   #9
Junior Member
Thread Starter

Join Date: Jul 2015
Posts: 77
Total Cats: -7
Default $5.43 to a helper

I only jumpered it. It was a 94-95 car, I changed it for a 90-93.
Fuel Pump output to High Side Driver input, then High Side Driver output to 1C on adapter board.
I did remove the ST SIGN fuse.
Bodhimeister is offline   Reply With Quote
Old 02-01-2016, 10:16 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

is it wired for vTPS and you still have your oe TPS connected?

can you connect with a laptop?

are you getting any RPMs in TS when cranking?

what basemap are you using?
Braineack is online now   Reply With Quote
Old 02-01-2016, 12:00 PM   #11
Junior Member
Thread Starter

Join Date: Jul 2015
Posts: 77
Total Cats: -7
Default

I left the VTPS port alone, and my TPS plug is still plugged in on my car.

My laptop will connect.

I'm not sure, I'll check later today.

I believe I'm using the base map below. Base Map

If not that one, it's this one. But it's probably the one above.
2nd Base Map
Bodhimeister is offline   Reply With Quote
Old 02-01-2016, 09:56 PM   #12
Junior Member
Thread Starter

Join Date: Jul 2015
Posts: 77
Total Cats: -7
Default

No tach signal when cranking.
Bodhimeister is offline   Reply With Quote
Old 02-01-2016, 09:59 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

need to fix your jumpers.
Braineack is online now   Reply With Quote
Old 02-01-2016, 10:10 PM   #14
Junior Member
Thread Starter

Join Date: Jul 2015
Posts: 77
Total Cats: -7
Default

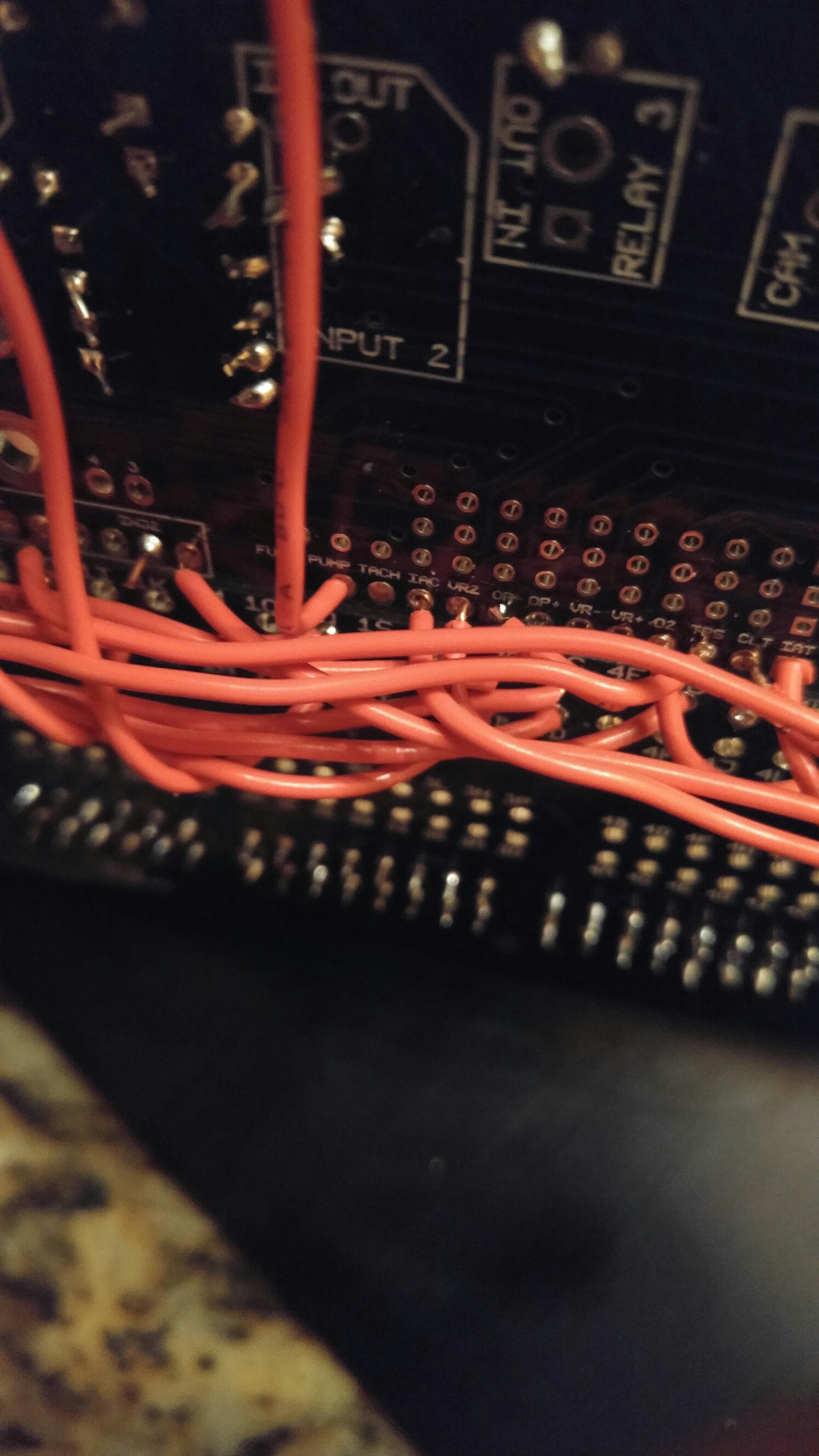

Correction. My TPS signal is grounded, and there's nothing going to tach. Where should it be going to?
Attached Thumbnails
.43 to a helper-1454378947235.jpg
Bodhimeister is offline   Reply With Quote
Old 02-01-2016, 10:18 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

that's tachout.

tach in is opt- and vr2.
Braineack is online now   Reply With Quote
Old 02-01-2016, 10:27 PM   #16
Junior Member
Thread Starter

Join Date: Jul 2015
Posts: 77
Total Cats: -7
Default

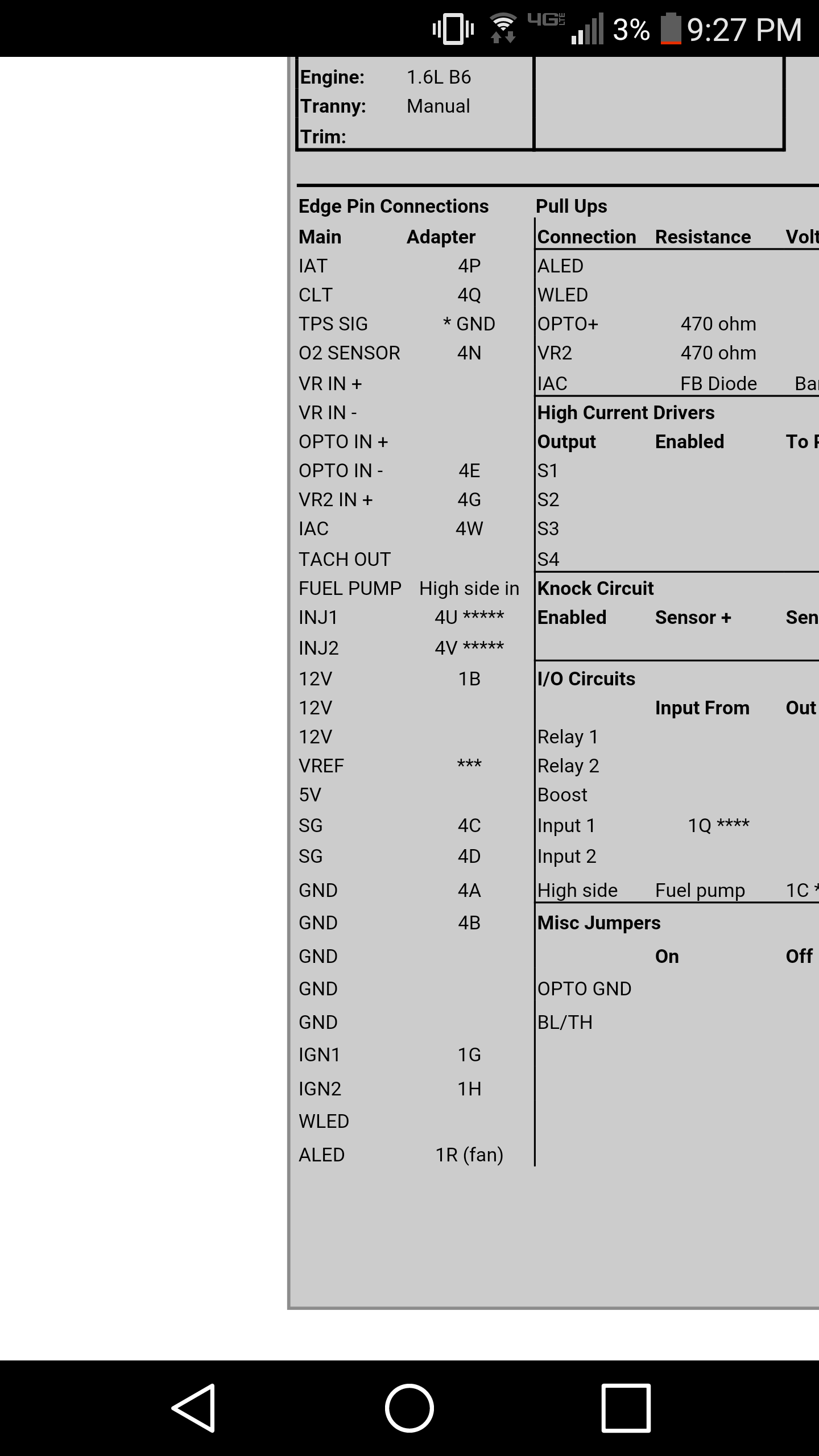

OP- is going to 4E, and VR2 is going to 4G. Correct according to this.
Attached Thumbnails
.43 to a helper-screenshot_2016-02-01-21-27-09.png
Bodhimeister is offline   Reply With Quote
Old 02-02-2016, 09:30 PM   #17
Junior Member
Thread Starter

Join Date: Jul 2015
Posts: 77
Total Cats: -7
Default

Having looked at other posts, I'm appearing to have software issues. If my jumpers are correct, it would seem like this must be the issue. I suppose that when I assumed because the signatures between the tune amd firmware matched after I messed with settings, I figured it would be kosher. From what I've seen, it's probably my attempt to adapt 3.4.0 firmware to the older tune that's messing things up. Could I be wrong? Absolutely. Probably am. Let me know what you guys think?
Bodhimeister is offline   Reply With Quote
Old 02-05-2016, 09:54 PM   #18
Junior Member
Thread Starter

Join Date: Jul 2015
Posts: 77
Total Cats: -7
Default

Brain, think you could take a look at that tune file? I'll gladly send you that fee, I'm just looking to start the car tomorrow, my timing light came in. Thanks.
Bodhimeister is offline   Reply With Quote
Old 02-06-2016, 12:58 AM   #19
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

Did you do anything else other than switch out the ECU since the last time the car ran?
fooger03 is offline   Reply With Quote
Old 02-06-2016, 01:21 AM   #20
Junior Member
Thread Starter

Join Date: Jul 2015
Posts: 77
Total Cats: -7
Default

Nope. Wired in a few gauges, but that's just power and ground.
