Old 04-28-2011, 04:11 PM   #21
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

so go to project properties and point it to the directly of that particular firmware .ini file.
Braineack is offline   Reply With Quote
Old 04-28-2011, 04:46 PM   #22
Newb
Thread Starter

Join Date: Mar 2011
Posts: 29
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
so go to project properties and point it to the directly of that particular firmware .ini file.
3.0.3 20090912 FOUND!!!
http://www.msextra.com/doc/ms2extra/files/alpha/
In the ecu now I have 3.0.3s...I have to upload the 20090912 into the ecu?
eTiLiKo is offline   Reply With Quote
Old 04-28-2011, 04:57 PM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

just d/l the files and point TS to it.
Braineack is offline   Reply With Quote
Old 04-28-2011, 05:14 PM   #24
Newb
Thread Starter

Join Date: Mar 2011
Posts: 29
Total Cats: 0
Default

Thanks mate, done, but tunerstudio find a signature firmware mismatch, and ask me if I want to update ini or connect anyway...

"Project sign 3.0.3h
Controller sign 3.0.3s
Isn't raccomended to connect etc. etc."

Shall I connect anyway? I can upload 2090912 firnware in the ECU if this is the correct procedure.
eTiLiKo is offline   Reply With Quote
Old 04-28-2011, 05:45 PM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

sounds like you still didn't source the correct firmware locally.

try this one
ms2extra_alpha_303s_20100329.zip
Braineack is offline   Reply With Quote
Old 05-01-2011, 10:33 AM   #26
Newb
Thread Starter

Join Date: Mar 2011
Posts: 29
Total Cats: 0
Default

No, there wasn't the correct firmware loaded into the ecu.
Now I have loaded the 3.0.3h, and the base map works.

But the car want start. Not a sign or a "pop", nothing.
I have spark and also fuel (a lot of fuel smell after some starting attempt).
The base map http://www.diyautotune.com/diypnp/ap...00-18bp-mt.zip is for a Jackson supercharger and 330 injectors, and this is a NA car with stock injectors, but no sign of life is strange.
I have tried the base map with from 33ms to 20ms cranking. I have tried to invert coils. Nothing changes.

Last edited by eTiLiKo; 05-01-2011 at 11:01 AM.
eTiLiKo is offline   Reply With Quote
Old 05-01-2011, 10:59 AM   #27
Newb
Thread Starter

Join Date: Mar 2011
Posts: 29
Total Cats: 0
Default

One of the attempt logged
Attached Files
File Type: msl 2011-04-29_20.38.20.msl (24.4 KB, 94 views)
eTiLiKo is offline   Reply With Quote
Old 05-08-2011, 10:54 AM   #28
Newb
Thread Starter

Join Date: Mar 2011
Posts: 29
Total Cats: 0
Default

Someone can give me the injector charateristic (including ReqFuel) of STOCK fuel injectors of a '00 1.8L Miata?

Last edited by eTiLiKo; 05-08-2011 at 11:05 AM.
eTiLiKo is offline   Reply With Quote
Old 05-13-2011, 01:41 PM   #29
Newb

Join Date: May 2011
Location: Athens, GA
Posts: 40
Total Cats: 0
Default

Any luck getting the car to start? I have a 1999 and the same DIYPNP. I just finished the jumpers last night and I will load the firmware on today. If you find a map that works could you post it?
trick2789 is offline   Reply With Quote
Old 05-26-2011, 07:21 AM   #30
Newb
Thread Starter

Join Date: Mar 2011
Posts: 29
Total Cats: 0
Default

Today I have the chance to retest the ecu on the car.
I don't know why but something changed from the last time I try the ecu on the car : after the first two startup tests the ecu show me a config error (with rpm to 65535 and no fuel pump). I have reloaded the base map a lot of times but tunerstudio show me 8 warnings that before than it never showed me. Anyway, I have redownloaded the base map from diyautotune and then into the ecu, only 5 warnings and no config error!!!!

OOOOKKK....rescaled and tweaked the reqfuel for OEM injectors instead of the 330cc of the base map, and the car start!!!!!
I have low idle, no idle control (IACstep is a fixed value of 97), and as soon as i touch the throttle the engine die. Also O2, oem narrowband sensor, is a fixed value of 0.170!
eTiLiKo is offline   Reply With Quote
Old 05-26-2011, 07:26 AM   #31
Newb
Thread Starter

Join Date: Mar 2011
Posts: 29
Total Cats: 0
Default

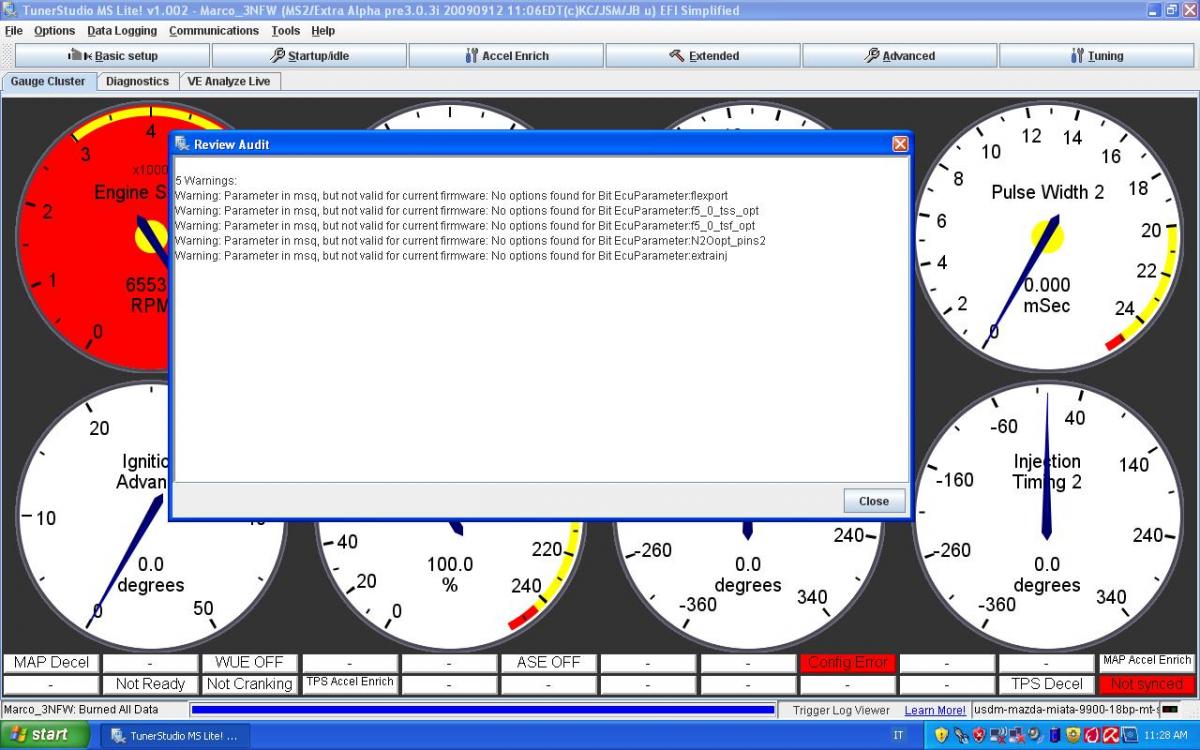

Attached the warnings, and a datalog of some startings of the car
Attached Thumbnails
'00 1.8 european Miata - MS2 assembly-ms-warnings.jpg
Attached Files
File Type: msl 2011-05-26_11.35.28.msl (1.48 MB, 47 views)
eTiLiKo is offline   Reply With Quote
Old 06-07-2011, 06:49 AM   #32
Newb
Thread Starter

Join Date: Mar 2011
Posts: 29
Total Cats: 0
Default

Maybe a stupid question : When I open the project I have to point the ms2extra or us2extra firmware?
eTiLiKo is offline   Reply With Quote
Old 06-15-2011, 01:11 PM   #33
Newb
Thread Starter

Join Date: Mar 2011
Posts: 29
Total Cats: 0
Default

Quote:
Originally Posted by trick2789 View Post
Any luck getting the car to start? I have a 1999 and the same DIYPNP. I just finished the jumpers last night and I will load the firmware on today. If you find a map that works could you post it?
Mate, have you tried nothing?
I had success getting the car start, but it has only a good idle, nothing else...
Batch inj, MAP multiply OFF, req fuel 15ms, massive start enrichment and leaned VE map at idle.

How have you solved the alternator voltage regulator problem?
eTiLiKo is offline   Reply With Quote
Old 06-15-2011, 06:54 PM   #34
Newb

Join Date: May 2011
Location: Athens, GA
Posts: 40
Total Cats: 0
Default

I used a diagram off this website, here is the link: https://www.miataturbo.net/showthrea...ht=1999+diypnp
I purchased all the components from mouser, and have all the part numbers so PM me if you would like them. Alternatively; I ordered enough to do 3 alternator circuits in case I messed up, but I got it on the first try, so I can send you the components or wire it up on a spare circuit board i have and mail it to you so you will just have to connect three wires. (just pay shipping and parts, I will put it together for free!) PM for the built circuit as well.

I was able to get my car running pretty well, but I didn't have a wideband O2 sensor at the time, so it could use some tweaking. If you would like me to send you the map I would be more than happy to. PM for the maps and settings.
trick2789 is offline   Reply With Quote
Old 06-16-2011, 05:10 AM   #35
Newb
Thread Starter

Join Date: Mar 2011
Posts: 29
Total Cats: 0
Default

Thanks, my main problem is that I haven't found the 48.7K resistor and other precision components, so the alternator circuit doesn't work, and I can only do few minutes of tuning on battery.
I'll send you a PM ;-)
eTiLiKo is offline   Reply With Quote
