100 hours, still slightly worse than a stock ecu. - Page 3 - Miata Turbo Forum - Boost cars, acquire cats.

Welcome to Miataturbo.net   Members



MEGAsquirt A place to collectively sort out this megasquirt gizmo

Reply



LinkBack Thread Tools
Old 05-06-2014, 01:04 PM   #41
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

Can I apply turbo spark tables, up to 100kpa?
ryansmoneypit is offline   Reply With Quote
Old 05-06-2014, 01:58 PM   #42
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

A turbo car even at 100kpa will be flowing more than an all motor car. (lower spark values)

Depending on the turbo, some will flow more than others.

Pressure =/= flow
shlammed is offline   Reply With Quote
Old 05-07-2014, 12:03 AM   #43
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

A couple hours searching has only resulted in a few spark tables that don't seam to apply to my build.1995, no turbo 1.8.although don't expect anyone to just hand one over, some simple direction towards one would be awesome.

searched-
spark table, good spark table, solid spark table, can i see your spark table, spark, na spark table..
Am I just this bad at searching???
ryansmoneypit is offline   Reply With Quote
Old 05-07-2014, 12:23 AM   #44
Junior Member

Join Date: Apr 2013
Location: Va
Posts: 87
Total Cats: -4
Default

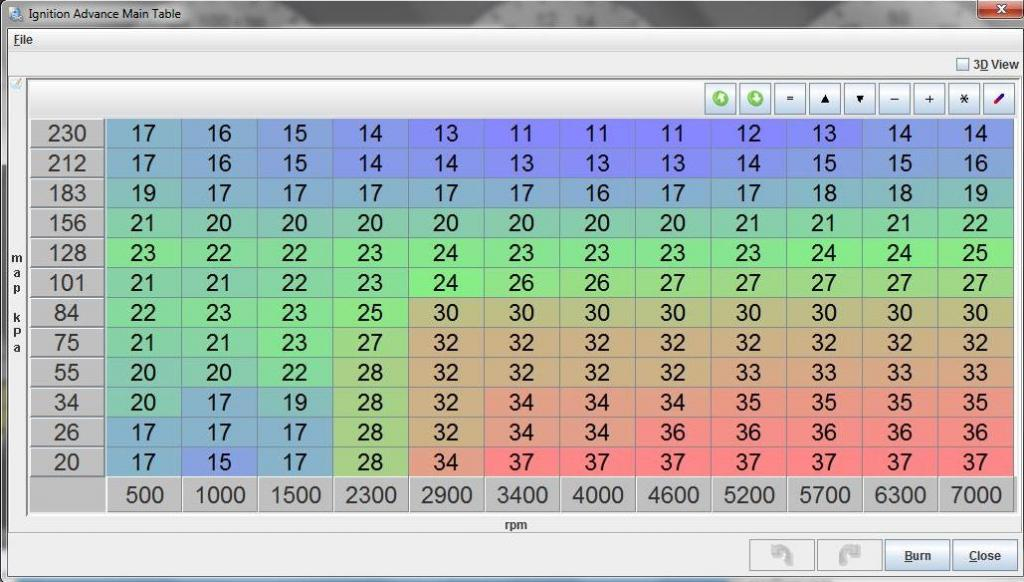

Here ya go

Conservative spark table - pretty sure it is the basic MSPNP table

Attached Thumbnails
100 hours, still slightly worse than a stock ecu.-d40d95fe0e1b02a9f92de80c6a6bcc87_zps4303bf87.jpg
Togeneral99 is offline   Reply With Quote
Old 05-07-2014, 12:34 AM   #45
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

Quote:
Originally Posted by Togeneral99 View Post
Here ya go

Conservative spark table - pretty sure it is the basic MSPNP table

I did have this one. It just seemed like a REALLY conservative map. 14* at wot just sounds weak. I guess I need to search more along the lines of how much spark is beneficial. I think I remember seeing something like that a couple weeks ago.
ryansmoneypit is offline   Reply With Quote
Old 05-07-2014, 12:54 AM   #46
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

Quote:
Originally Posted by ryansmoneypit View Post
I did have this one. It just seemed like a REALLY conservative map. 14* at wot just sounds weak. I guess I need to search more along the lines of how much spark is beneficial. I think I remember seeing something like that a couple weeks ago.
You will never reach that part of the map as N/A. Notice the kpa on the left is at 230 which is ~19psi. You will only ever get to 90-110kpa from and N/A engine depending on the altitude.
Ryan_G is offline   Reply With Quote
Old 05-07-2014, 07:12 AM   #47
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

Quote:
Originally Posted by Ryan_G View Post
You will never reach that part of the map as N/A. Notice the kpa on the left is at 230 which is ~19psi. You will only ever get to 90-110kpa from and N/A engine depending on the altitude.
Ha! That makes sense. I will plug in those numbers today.
ryansmoneypit is offline   Reply With Quote
Old 05-07-2014, 09:11 AM   #48
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

One thing is unclear to me though. If my map is basically 20* static, what is the difference with this base map, besides the fact that it tops out 10* less? Right after idle it quickly jumps to 20 as well. I don't get it. Please teach me.
ryansmoneypit is offline   Reply With Quote
Old 05-07-2014, 09:22 AM   #49
Junior Member

Join Date: Apr 2013
Location: Va
Posts: 87
Total Cats: -4
Default

They are only referring to base timing. Which is something you have to set with the factory ecu. With megasquirt you only have to ensure that the commanded timing is what you are actually running.
With the factory ecu picture the above map but instead of the cell saying say 18* of timing it would be like 3* and that would be added to your base timing. So if your base was 14* vs 20* then you add 3* to each and you get vastly different numbers

You would have to know exactly what the factory map added to the base timing to compare the maps. Hopefully this makes sense to you
Togeneral99 is offline   Reply With Quote
Old 05-07-2014, 09:40 AM   #50
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

Quote:
Originally Posted by Togeneral99 View Post
They are only referring to base timing. Which is something you have to set with the factory ecu. With megasquirt you only have to ensure that the commanded timing is what you are actually running.
With the factory ecu picture the above map but instead of the cell saying say 18* of timing it would be like 3* and that would be added to your base timing. So if your base was 14* vs 20* then you add 3* to each and you get vastly different numbers

You would have to know exactly what the factory map added to the base timing to compare the maps. Hopefully this makes sense to you
What? As far as I know, you set base timing with the new ms...10* locked then reset ms to -10 and follow map.
ryansmoneypit is offline   Reply With Quote
Old 05-07-2014, 10:29 AM   #51
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by ryansmoneypit View Post
One thing is unclear to me though. If my map is basically 20* static, what is the difference with this base map, besides the fact that it tops out 10* less? Right after idle it quickly jumps to 20 as well. I don't get it. Please teach me.
I was suggesting your map is advanced about 10 over the stock map. Some people cant wrap their heads around full control of the map based on load and rpm and still think in terms of advancing by the CAS.

IIRC the stock 90-97 spark map tops out at around 25 at 100kPa.
Braineack is offline   Reply With Quote
Old 05-07-2014, 10:33 AM   #52
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

Quote:
Originally Posted by Braineack View Post
I was suggesting your map is advanced about 10 over the stock map. Some people cant wrap their heads around full control of the map based on load and rpm and still think in terms of advancing by the CAS.

IIRC the stock 90-97 spark map tops out at around 25 at 100kPa.
OK. That I get.
ryansmoneypit is offline   Reply With Quote
Old 05-07-2014, 10:36 AM   #53
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

So you were referring to the top end of my map and how quick it climbs to 40 and 50*, not necessarily the low end?
ryansmoneypit is offline   Reply With Quote
Old 06-08-2014, 01:39 PM   #54
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 200
Default

Update:

The car is running pretty darn good now. I think it is time to schedule some dyno time to find out for sure. good mileage, good power and just a tiny-tiny hesitation off idle (800) when I blip a quick full throttle. I think this may have something to do with the strange map pressure that I have at idle (still unusually high at 40-45).

Thanks MIataTurbo.net users.
ryansmoneypit is offline   Reply With Quote
