Default 12 psi dyno run for 140hp?

First off my set up is a 1.6L with a megasquirt, 550cc injectors, a welbro 255 fuel pump, 2.5 in exhaust without cats, front mount intercooler, and I plan on adding a wideband before I do any more tuning.

I took my car to the dyno over the weekend to get a baseline tune, and it looks like I am only putting getting about 140whp.

It was a dynojet I ran on, not sure if hat makes much of a difference, and I was only running it a little over 6000rpm, due to misfires above that range.

First obvious problem, the misfires, I posted on a discussion on spark plugs on this already, but any advice would be helpful. As of now my plan is for new plugs with narrower gaps. I saw a posting on a better spark circuit, I am guessing that would help, but not sure what the root cause of the issue is.

On the wideband at the dyno I was putting about 12:1 AFR, with my boost peaking at 12.62 and tapering off (I found a vacuum leak after that I need to fix, cracked hose causing a high idle).

The torque curve is anything but smooth, and dies off drastically above 5000rpm. I am wondering if I am not running enough timing, too much fuel or something totally different. Attached are my tables, and current tune.

I realize that this is a long post, that is rather redundant to the other noobs asking how can I get 250hp with 15 min or work, so my apologies in advance if I am missing a thread that can help figure out if my tables are screwed up or if there is something else I should pursue.

thanks for the help,
Tripp
Attached Images

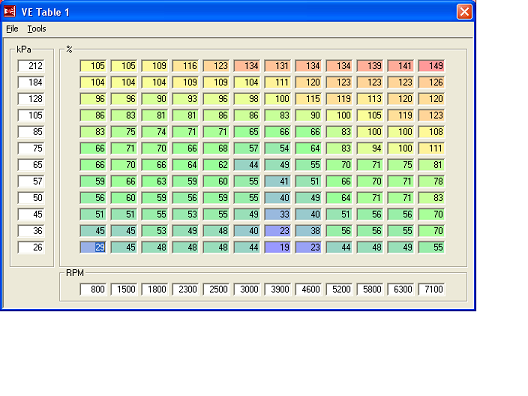

File Type: bmp fuel table 4-25-09.bmp (612.6 KB, 429 views)

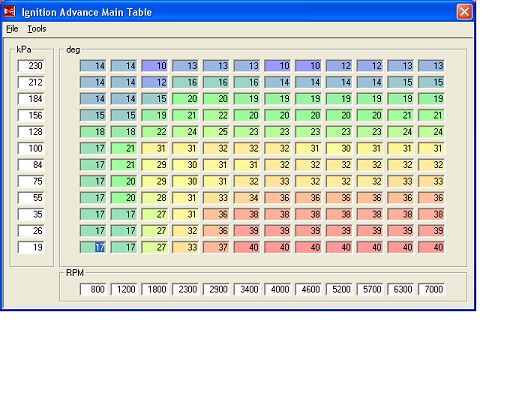

File Type: bmp spark table 4-25-09.bmp (612.6 KB, 425 views)
Attached Files
File Type: msq megasquirt200904251611.msq (35.1 KB, 109 views)
tripp is offline   Reply With Quote
Old 04-28-2009, 12:32 AM   #2
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

You forgot to mention the turbo you are running...
Splitime is offline   Reply With Quote
Old 04-28-2009, 12:32 AM   #3
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

About the spark, you absolutely need more spark energy or less gap to jump. Both are doable, getting more spark (COPs!) is the more expensive solution but worth it. Something sounds amiss with your ignition, what was the gap when you dynoed?

Edit - just found your other thread. COPs might not be in the budget, seeing as it's a $2009 car.

Splitime - it's a Greddy.

You ought to be a little over 200ish at 12 psi, something's up.

Last edited by kotomile; 04-28-2009 at 01:39 AM.
kotomile is offline   Reply With Quote
Old 04-28-2009, 12:50 AM   #4
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Look at your engine constants under the basic settings tab.

Req Fuel looks about right, but what prompted you to set the injector opening time and battery voltage correction like that.

They should be 1.00 and 0.10 respectively.


EDIT: Also, don't take offense, but did you actually set the timing (trigger angle) in MS. Yours shows 65, which is a default, or atleast what everyone starts with. I would doubt that you would end up with exactly that trigger angle.
gospeed81 is offline   Reply With Quote
Old 04-28-2009, 12:53 AM   #5
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Also, your overboost protection is set at 5.9...so I don't know how you were hitting 12 psi.
gospeed81 is offline   Reply With Quote
Old 04-28-2009, 01:41 AM   #6
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Yeesh, if it was just overboost... oh man.
kotomile is offline   Reply With Quote
Old 04-28-2009, 01:55 AM   #7
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by kotomile View Post
Yeesh, if it was just overboost... oh man.
Eh, was just pointing out what I saw. He already said he's seeing higher boost on datalogs...

There are some problems with that setup though. The tables aren't way off or anything. VE looks a little rich, and spark is a little aggressive for my tastes, but he says he's in the 12s, and I guess they were listening for knock.

I would check into those values on the Engine Constants. I can't remember the exact reason, but remember reading that it is pretty important they be set that way.
gospeed81 is offline   Reply With Quote
Old 04-28-2009, 02:22 AM   #8
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,864
Total Cats: 491
Default

140whp from 12 psi? Sign me up too.
Seriously though, something is way off. Check your compression and make sure you aren't blowing boost into a toasted motor.. And get your MS settings right as gospeed has pointed out.
-Ryan
ThePass is offline   Reply With Quote
Old 04-28-2009, 07:57 AM   #9
Newb
Thread Starter

Join Date: Nov 2008
Location: Jax Beach, FL
Posts: 41
Total Cats: 0
Default

Quote:
Originally Posted by ThePass View Post
140whp from 12 psi? Sign me up too.
Seriously though, something is way off.
-Ryan
That's how I was feeling.

I have my boost controller adjsuted to allow the 12-14 psi, but I guess I need to adjust MS also. I am still new to MS and I know I need to get more familiar with the Megatune manual.

Thanks for the ideas to start with. I have been thinking that I need to do a leakdown and compression test to see what is going on.

thanks
Tripp
tripp is offline   Reply With Quote
Old 04-28-2009, 10:25 AM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

Quote:
Originally Posted by gospeed81 View Post
Look at your engine constants under the basic settings tab.

Req Fuel looks about right, but what prompted you to set the injector opening time and battery voltage correction like that.

They should be 1.00 and 0.10 respectively.


EDIT: Also, don't take offense, but did you actually set the timing (trigger angle) in MS. Yours shows 65, which is a default, or atleast what everyone starts with. I would doubt that you would end up with exactly that trigger angle.

+1, it takes an injector 1.0ms to open and close, not 10.0ms


and with overboost set to 5.9psi, there's no way you hit 12psi on the dyno.


post the logs on the dyno...and the dyno plot.
Braineack is offline   Reply With Quote
Old 04-28-2009, 10:35 AM   #11
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by gospeed81 View Post
Eh, was just pointing out what I saw. He already said he's seeing higher boost on datalogs...
I wasn't disagreeing. It would just really suck for him if all of this head-scratching was over the overboost protection setting.
kotomile is offline   Reply With Quote
Old 04-28-2009, 10:47 AM   #12
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by kotomile View Post
I wasn't disagreeing. It would just really suck for him if all of this head-scratching was over the overboost protection setting.
OH yeah, been there recently, that is one fubarred feeling, like you were fighting kudzu.

I think his other settings need some straightening out, then he can get back to regular tuning like spark gapping and datalogging.

THEN back to the dyno.
gospeed81 is offline   Reply With Quote
Old 04-28-2009, 11:25 AM   #13
Newb
Thread Starter

Join Date: Nov 2008
Location: Jax Beach, FL
Posts: 41
Total Cats: 0
Default

I have the dyno sheet and the datalogs from the dyno at home, I will post them tonight.

I have a mechanical boost guage that is reading up to around 14 psi at max boost on the street currently (no changes so settings since the dyno run).

Thanks for the pointers as to where I need to start straightening out my set up.

-Tripp
tripp is offline   Reply With Quote
Old 04-28-2009, 11:44 AM   #14
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I think savingtons's overboost protection has never worked from the get go, maybe tripp has the same problem.
cjernigan is offline   Reply With Quote
Old 04-28-2009, 12:13 PM   #15
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

What exactly does the overboost protection do other than open the EBC completely? I think he's running an MBC, so his overboost might not be doing anything.
samnavy is offline   Reply With Quote
Old 04-28-2009, 12:50 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

overboost protection activates a rev limiter. You can shoot past it if you stay WOT, but you're also retarding timing pretty heavily.
Braineack is offline   Reply With Quote
Old 04-28-2009, 01:00 PM   #17
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by samnavy View Post
What exactly does the overboost protection do other than open the EBC completely? I think he's running an MBC, so his overboost might not be doing anything.
Only if his MS MAP signal line was run off the wastegate can side of the MBC.
gospeed81 is offline   Reply With Quote
Old 04-28-2009, 06:12 PM   #18
Junior Member

Join Date: Dec 2008
Location: Alameda, CA & San Luis Obispo, CA
Posts: 79
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
overboost protection activates a rev limiter. You can shoot past it if you stay WOT, but you're also retarding timing pretty heavily.
The combustion temps would SOAR then, thats not a good thing and definitely an easy way to kill an engine. The overrichness probably kept the engine cool enough if it was actually pulling timing while overboosting but that is no way to run the engine.


140whp at 12psi? Isn't that a little low?
djcommie is offline   Reply With Quote
Old 04-28-2009, 06:30 PM   #19
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by djcommie View Post


140whp at 12psi? Isn't that a little low?


Only about 40% right? Nothing too bad...
gospeed81 is offline   Reply With Quote
Old 04-28-2009, 09:39 PM   #20
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Atlanta, GA
Posts: 293
Total Cats: -3
Default

If you did set the timing with the trigger angle did you make sure to click on "unlock" instead of just pressing "Ok?" It seems stupid but it happened to me and all of a sudden my car got much faster!
jdmaddox88 is offline   Reply With Quote
