Default 90 miata ms3 installed, now no tach

i installed an ms3 in my 1.6 miata and after lots of user error i finally got it running, but no instrument tach. i tried a 1k resistor bewteen ig- to 12v and from ig- to gnd at the diag and also a 1k from 2I to 12v and to gnd at the ecu connector... no results. i tried them separately and together.

any other ideas? the only thing i can think of is i had the spark out transistor in backwards in the megasquirt and they possibly went low for sometime while i was trying to figure it all out. i felt the ignitor get very hot, its amazing i didnt blow up my coils and that the car is running great. but, did it fry the tach out circuit in the ignitor? did it fry the tach?

i have an o-scope i can put on it, its just so hard to see outside in the bright light and its big with no stand.

details in build thread start around page 5
https://www.miataturbo.net/build-thr...4-74776/page5/
hi_im_sean is offline   Reply With Quote
Old 07-14-2014, 03:49 PM   #2
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,702
Total Cats: 319
Default

edit: nevermind, I misunderstooD
psyber_0ptix is offline   Reply With Quote
Old 07-14-2014, 04:03 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

try ig- to b+ through a 1K resistor again.
Braineack is offline   Reply With Quote
Old 07-14-2014, 05:14 PM   #4
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 612
Default

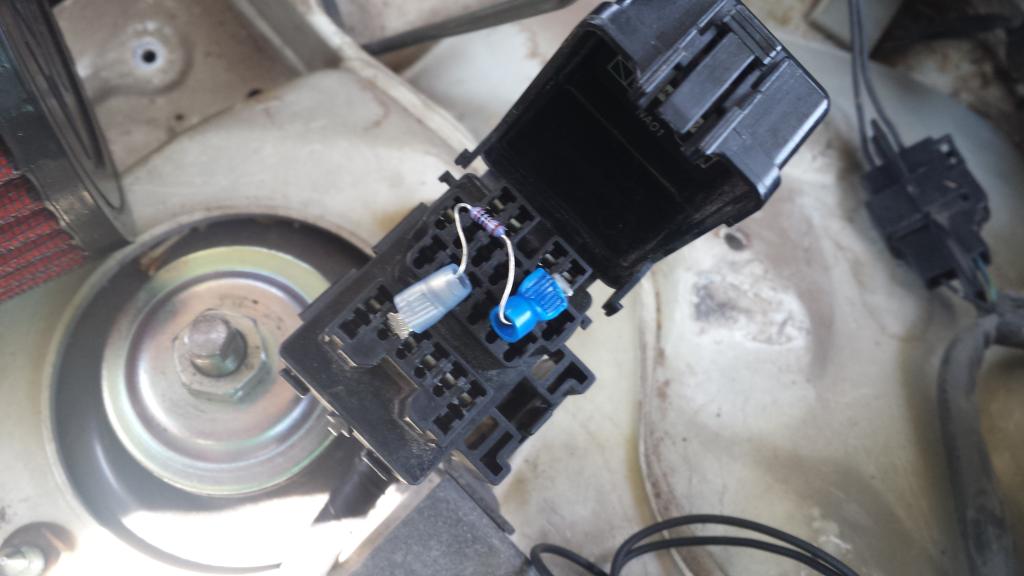

i had the resistor just stuck in the pins prior, this time i crimped on some spades so im sure it has good contact. still nothing. i verified continuity from the ignitor connector to the resitsor lead itslef and it checked out good. resistor measures 998, i tried another anyway. still no tach.

Attached Thumbnails
90 miata ms3 installed, now no tach-20140714_125212_zpswxnff1jz.jpg
hi_im_sean is offline   Reply With Quote
Old 07-14-2014, 05:31 PM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

i guess it wont work so long as you fubared your ignitor.
Braineack is offline   Reply With Quote
Old 07-14-2014, 05:54 PM   #6
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 612
Default

i guess ill be dragging the oscope out there. anyone know what the signal looks like. 12v square wave?
hi_im_sean is offline   Reply With Quote
Old 07-14-2014, 07:30 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,854
Total Cats: 1,788
Default

does ig- goes straight to ground if you test for continuity?
Braineack is offline   Reply With Quote
Old 07-14-2014, 08:02 PM   #8
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 612
Default

with everything plugged in 1.5K from ig- to ground at the diag connector. i unplugged the ignitor and measured 2.56M between pins D and F.
hi_im_sean is offline   Reply With Quote
Old 07-15-2014, 06:40 PM   #9
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 612
Default

so im lead to bvelieve those are good numbers. ill get the scope on it next time i have a chance, to see what if anything, its outputing.
hi_im_sean is offline   Reply With Quote
Old 09-12-2014, 11:48 PM   #10
SadFab CEO
Thread Starter
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 612
Default

i forgot to update this. so for future reference:

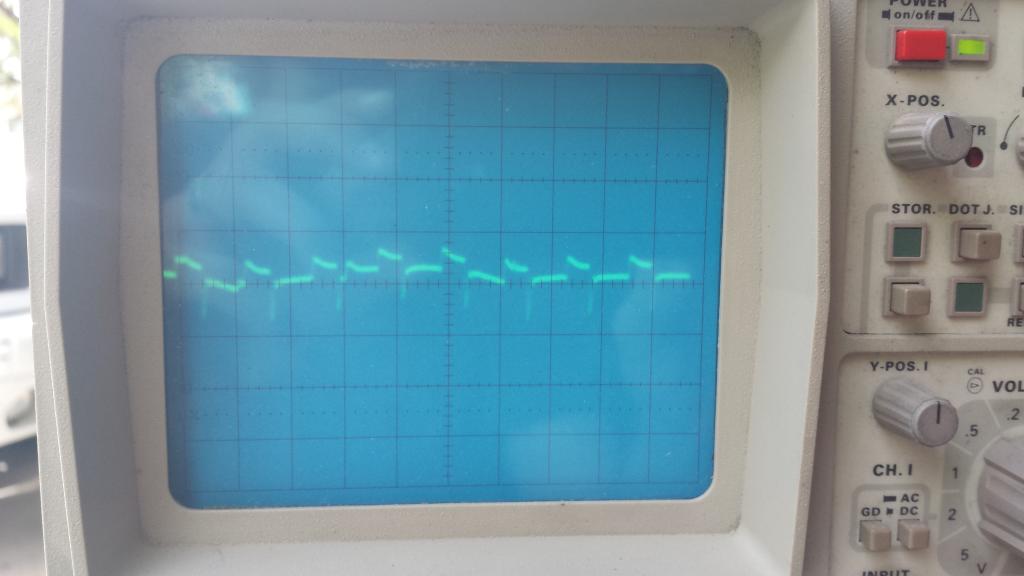

this is what i had on the scope. never mind the fact that its absolute garbage, and didnt change frequency with change in rpm, its also only about 0.9V P-P. my scope could not hold a trigger on it, which tells me it was scattering.





i grabbed a used ignitor from ebay for $30, and...











so an ignitor can just have the tach circuit go bad, and still measure ok.
hi_im_sean is offline   Reply With Quote
