Default 94 FMII Link ecu to MS pnp

Going to switch my 94 fmII turbo, 550cc injectors, wiseco pistons, carillo rods, and LINK ECU to a Mega Squirt PNP tomorrow....any helpful advice with this cross over?
sweetyx991 is offline   Reply With Quote
Old 01-25-2008, 08:57 PM   #2
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

take hammer to LINK afterward for greater satisfaction.

get a wideband if you don't have one.
paul is offline   Reply With Quote
Old 01-25-2008, 10:07 PM   #3
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Follow the manual, don't rush anything, you're moving up in the world.
cjernigan is offline   Reply With Quote
Old 01-25-2008, 11:19 PM   #4
Newb
Thread Starter

Join Date: Jan 2008
Posts: 14
Total Cats: 0
Default yes to the hammer

the link has caused me soo much greif...not to mention the ridiculous amounts of hrs and money to keep it working.

I have a wideband...glad to have that decision reinforced.
sweetyx991 is offline   Reply With Quote
Old 01-26-2008, 03:06 AM   #5
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

MS for the cotton pickin mother ****** win
paul is offline   Reply With Quote
Old 01-26-2008, 03:41 PM   #6
Newb
Thread Starter

Join Date: Jan 2008
Posts: 14
Total Cats: 0
Default wideband

on the 6 stripped wire wideband, do i connect the analog out 1 or 2 to pin 10?
sweetyx991 is offline   Reply With Quote
Old 01-26-2008, 05:50 PM   #7
Junior Member

Join Date: Jan 2007
Posts: 188
Total Cats: 0
Default

If its the LC-1, its analogue 2, the brown wire, to wire 10.
richard_ha is offline   Reply With Quote
Old 01-26-2008, 09:18 PM   #8
Newb
Thread Starter

Join Date: Jan 2008
Posts: 14
Total Cats: 0
Default

it is the LC1. thanks.
sweetyx991 is offline   Reply With Quote
Old 01-26-2008, 09:21 PM   #9
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

It is recommended that you program the LC1 using your computer for 10-20:1 AFR = 1-5volts. Then in configurator set it up as LC1 linear. You should do this for the analog 2 as previously suggested.
Or you can leave it as setup default, just make sure to set it up in configurator and megatune as default. DIYautotune recommends the linear settings.
cjernigan is offline   Reply With Quote
Old 01-26-2008, 09:51 PM   #10
Newb
Thread Starter

Join Date: Jan 2008
Posts: 14
Total Cats: 0
Default

ok. any suggestions on fuel injectors settings for inital start up? I have RC 550cc.
sweetyx991 is offline   Reply With Quote
Old 01-26-2008, 09:54 PM   #11
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

6.0 req fuel and let me find my cranking PWs.
cjernigan is offline   Reply With Quote
Old 01-26-2008, 10:00 PM   #12
Newb
Thread Starter

Join Date: Jan 2008
Posts: 14
Total Cats: 0
Default

Awesome. I think cranking PWs was around 2.5...? not sure.
sweetyx991 is offline   Reply With Quote
Old 01-26-2008, 10:09 PM   #13
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

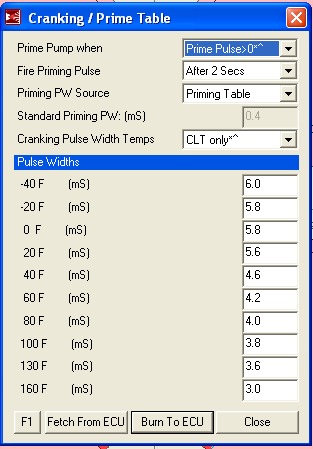

It's different for every temp of course:
Name:  Picture29-1.png
Views: 2
Size:  15.2 KB

Try these, maybe take off .2-.4 ms then add fuel until it's perfect so you know you're not flooding it. Your RC's might flow more or less fuel then my densos.
cjernigan is offline   Reply With Quote
Old 01-26-2008, 10:13 PM   #14
Newb
Thread Starter

Join Date: Jan 2008
Posts: 14
Total Cats: 0
Default

i do appreciate. should i leave my stock O2 sensor in for the first start up or go ahead and set my LC1? is it as lengthy to calibrate the LC1 as they describe?
sweetyx991 is offline   Reply With Quote
Old 01-26-2008, 10:15 PM   #15
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I would install the LC1, get the install over with. Shouldn't be hard to calibrate it if you read the manual. Good luck.
cjernigan is offline   Reply With Quote
Old 01-26-2008, 10:18 PM   #16
Newb
Thread Starter

Join Date: Jan 2008
Posts: 14
Total Cats: 0
Default

thanks. a bunch lol. i hope my first experience with an MS is a good one.
sweetyx991 is offline   Reply With Quote
Old 01-27-2008, 06:46 PM   #17
Newb
Thread Starter

Join Date: Jan 2008
Posts: 14
Total Cats: 0
Default

I have the MSPNP fully installed now. Have my LC1 Wideband connected and working properly. I used the fuel numbers above. I can not get it to start...getting good reads on all gauges in megatune. Any suggestions onto where i should start? Do i need to change any inital configurations to support the turbo on first start up? Stupid questions i know, but begginer tuner here.
sweetyx991 is offline   Reply With Quote
Old 01-27-2008, 07:09 PM   #18
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Read the manual, set up the reqfuel and everything appropriately. Lower the cranking pw's, you're probably flooding it. Then raise the PW value for the temp the engine is at by .1 at a time until it starts.
cjernigan is offline   Reply With Quote
Old 01-28-2008, 02:38 PM   #19
Newb
Thread Starter

Join Date: Jan 2008
Posts: 14
Total Cats: 0
Default

does megatune measure spark input or output? Is it visible and megalog? I dont appear to be getting any spark, but am unsure.
sweetyx991 is offline   Reply With Quote
Old 01-28-2008, 03:29 PM   #20
Junior Member
iTrader: (2)

Join Date: Oct 2007
Location: Louisville, KY
Posts: 419
Total Cats: 9
Default

Hopefully you wont have this issue, but double check your wiring.

I too went from a Link to MSPNP. I had a ton of issues, one being that I didn't convert the wiring back to stock correctly. Take your time and go back through the Link install manual one step at a time.
