Default 99 Miata turbo not starting

So I just finished installing a Shanghai-s kit with an ebay intercooler to use with my diypnp. I installed rx7 460cc injectors and it just cranks and cranks. It was running prior to install on ms so all I did was change the required fuel for the new injectors. Am I missing something? Heres the dl and tune:
Attached Files
File Type: msl 2012-03-18_19.06.54.msl (309.2 KB, 50 views)
File Type: msq CurrentTune.msq (81.6 KB, 49 views)
cowboys647 is offline   Reply With Quote
Old 03-18-2012, 09:37 PM   #2
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

You need to also adjust anything that is in pulsewidth ms. Cranking and Accel tables. Look in the usefull saved posts for a calculator to set up the tables.
240_to_miata is offline   Reply With Quote
Old 03-19-2012, 05:03 AM   #3
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

Its an ms2 so the cranking table is in percent as opposed to Ms. I just got back from the garage moving the cranking percent at 70 degrees up and down about 75 percent in small increments and still couldn't get it started...
cowboys647 is offline   Reply With Quote
Old 03-19-2012, 04:27 PM   #4
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

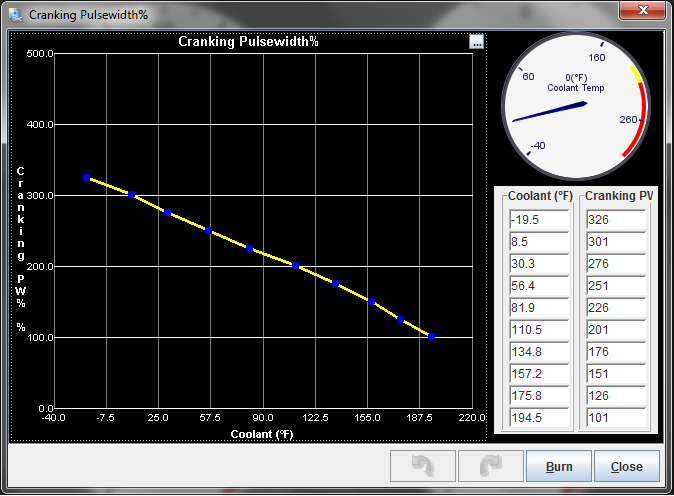

Using rx7 460cc injectors, and calculated my reqfuel at 5.6. Also does my cranking graph look right? Am going to go check to make sure its getting spark.
Attached Thumbnails
99 Miata turbo not starting-cranking-pulsewidth.png
cowboys647 is offline   Reply With Quote
Old 03-19-2012, 10:31 PM   #5
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

Figured it out.

Last edited by cowboys647; 03-20-2012 at 09:24 PM.
cowboys647 is offline   Reply With Quote
Old 03-20-2012, 09:23 PM   #6
Junior Member

Join Date: Nov 2009
Location: Dumfries, VA
Posts: 109
Total Cats: 2
Default

Those cranking values look good for batch injection, but sequential will take much less. I'm in the process of sorting this out myself for a 96 with the 99 motor. My values are about 1/2 of those you listed and my setup is sequential. Those same values worked for my batch setup on 550cc injectors.
sccaax is offline   Reply With Quote
Old 03-20-2012, 09:55 PM   #7
Junior Member
Thread Starter

Join Date: Oct 2009
Location: Anderson, SC
Posts: 321
Total Cats: -2
Default

Oh ok I'll lower them quite a bit and see how it does. Thanks!
cowboys647 is offline   Reply With Quote
