Question Adding second map sensor on V3 board - (like Abe did)

Hi,

while searching my garage I found a spare Motorola map sensor and I know I already added a second sensor on my first MS2 build.
Now I searched the entire board and cannot find the schematics, how you added the second sensor directly to the original board sensor. Can anyone help me out...

I know you had simply to solder 4 of the 5 pins and add some other parts - but I don't know what and how anymore...
Zaphod is offline   Reply With Quote
Old 02-08-2012, 08:12 AM   #2
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

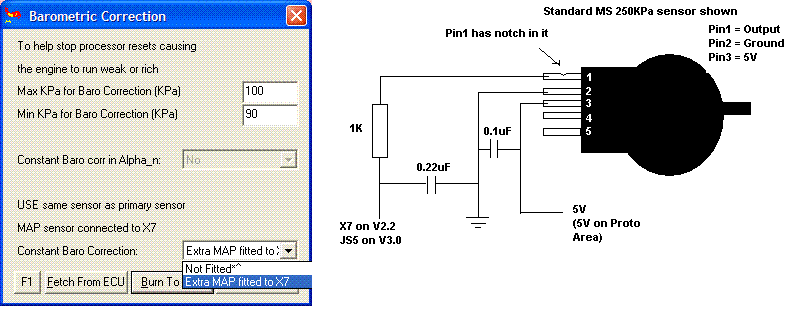

Found it in the MS1 constant barometric correction instructions

http://www.msextra.com/doc/ms1extra/...al.htm#conbaro

Attached Thumbnails
Adding second map sensor on V3 board - (like Abe did)-conbaro.gif
richyvrlimited is offline   Reply With Quote
Old 02-08-2012, 10:15 AM   #3
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Thanks!
Zaphod is offline   Reply With Quote
Old 02-08-2012, 12:31 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

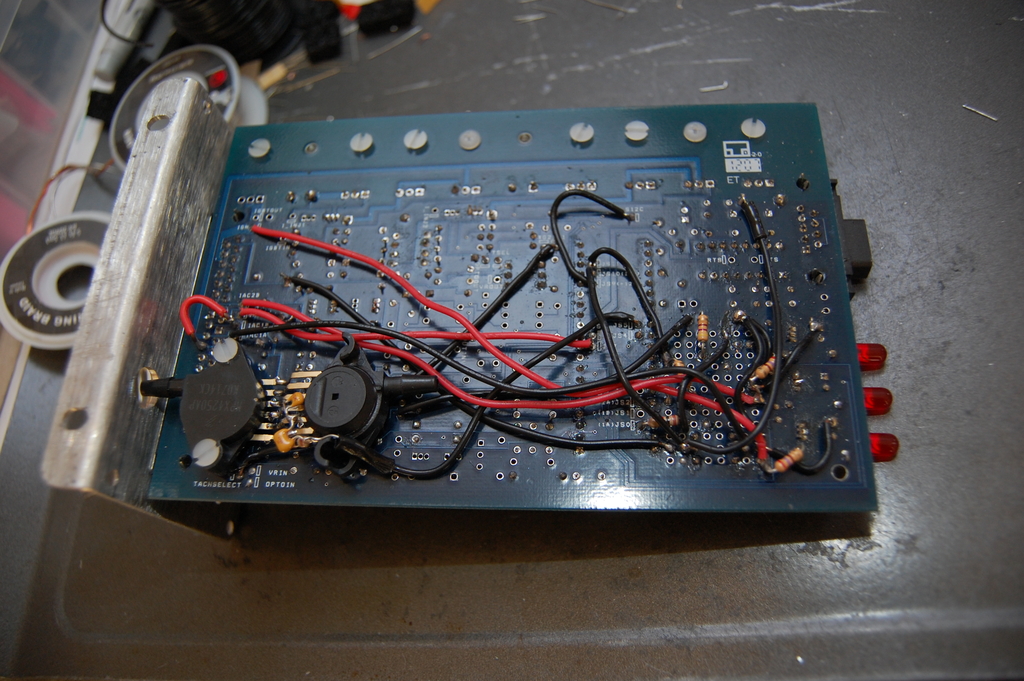

Attached Thumbnails
Adding second map sensor on V3 board - (like Abe did)-dsc_0115.jpg
Braineack is offline   Reply With Quote
Old 02-08-2012, 01:45 PM   #5
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Thanks - done!

BTW does this work better now than in MS1 or MS2?
Zaphod is offline   Reply With Quote
Old 02-08-2012, 01:51 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

Yes, since there's a Baro Corrections Curve.
Braineack is offline   Reply With Quote
Old 02-08-2012, 02:13 PM   #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 197
Default

I don't like the idea of the in-cabin baro. Have you seen what the top does when you set the heater fan to 4 and switch to outside air? Yup, more pressure inside the cabin.
Reverant is online now   Reply With Quote
Old 02-08-2012, 02:37 PM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,037
Total Cats: 406
Default

Quote:
Originally Posted by Reverant View Post
I don't like the idea of the in-cabin baro. Have you seen what the top does when you set the heater fan to 4 and switch to outside air? Yup, more pressure inside the cabin.
in 02 or 03 mazda added a flapper valve to the trunk to let the air out!
y8s is offline   Reply With Quote
Old 02-08-2012, 02:45 PM   #9
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

well, most of the time I am driving Top down...
Zaphod is offline   Reply With Quote
Old 02-08-2012, 02:47 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

would not pressure increase in-bay?
Braineack is offline   Reply With Quote
Old 02-09-2012, 01:13 PM   #11
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Today I got all the parts and finished my MS3X - everything seems to work nice.

Only the Barometer - realtime baro sensor seems to be a bit "more nervous" than the boards mpa sensor (both read normal air pressure on the bench) - the realtime baro jumps around ~0.3-0.5kPa - the board sensor is very steady... Any idea why? (Circuit is as above)
Zaphod is offline   Reply With Quote
Old 02-09-2012, 01:26 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

is there a lag factor setting for just baro? that could be why
Braineack is offline   Reply With Quote
Old 02-09-2012, 01:47 PM   #13
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

who is the brain here... (and MS3 pro...) you or me.
