Default AFR goes <9 when I touch the throttle

Car has just been upgraded from wasted spark to cops.
Starts fine and runs fine as long as I'm extremely gentle with the throttle.
As soon as accelerate a bit, AFR goes pig rich (<9) and car boggs. Black fumes, so it's really going rich.
Anyone care to take a look at my msq because I can't see anything obviously wrong with it.
I don't think that it's related with the cops though.
Car is a 99 miata with MS3X.
MSQ here
LOG here

Last edited by WestfieldMX5; 03-29-2013 at 08:19 AM.
WestfieldMX5 is offline   Reply With Quote
Old 03-28-2013, 03:00 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

dropbox sucks to share files to anyone with secure installed on computer... just upload them directly here.
Braineack is offline   Reply With Quote
Old 03-28-2013, 03:53 PM   #3
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

added files in the first post.

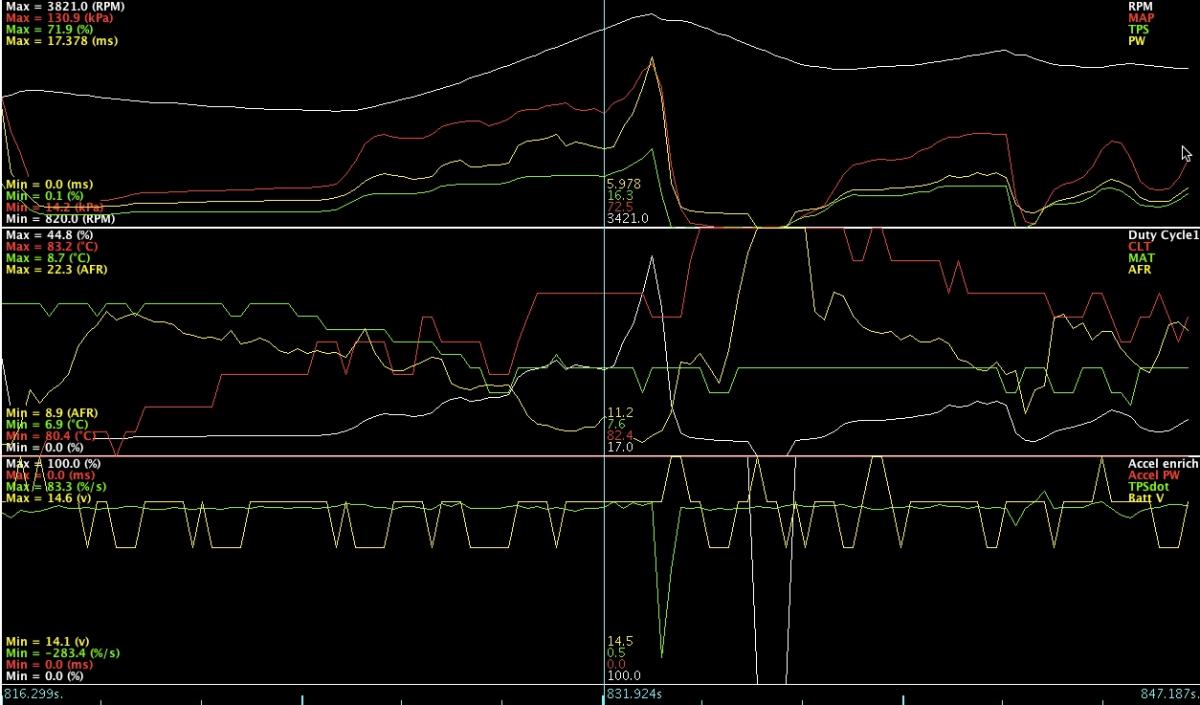

When cruising, afr is fine, but as soon as tps raises just a bit, dutycycle shoots up and afr goes <9.


Attached Thumbnails
AFR goes &lt;9 when I touch the throttle-rich.jpg

Last edited by WestfieldMX5; 03-28-2013 at 04:12 PM.
WestfieldMX5 is offline   Reply With Quote
Old 03-28-2013, 04:18 PM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Looks like it's just not tuned. PW rises in direct proportion to MAP.
Savington is offline   Reply With Quote
Old 03-29-2013, 08:05 AM   #5
Senior Member
Thread Starter

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

tune is ok, turns out I had set baro at vacuum at 100% instead of 0% => twice the baro correction needed. All is well now.
WestfieldMX5 is offline   Reply With Quote
Old 03-29-2013, 07:57 PM   #6
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 377
Total Cats: 0
Default

It happens.

I changed a bunch of stuff that would require tuning and also updated my firmware.

I proceeded to spend an afternoon tuning IdleVE and having massive drift. I then remembered a little sentence about how the Gair corrections had changed. I was running my old settings as they had loaded from my old msq. I fixed it and had everything running in an hour.
3rdCarMX5 is offline   Reply With Quote
