Default AFR and spark map thoughts

Hi everyone,

I'm running 1,6 '93 standard engine with a Begi S3 kit.(GT2560) The ecu is a MSPNP2 running batch fire with VTPS installed.
Currently the boost is limited to 180kpa because of the original rods.
After reading many articles on different forums, and spending hours and hours on reading and tuning, I need some opinions about my current tune.

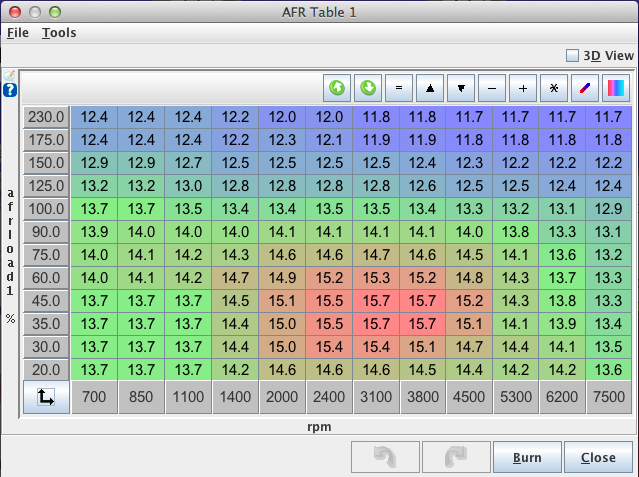

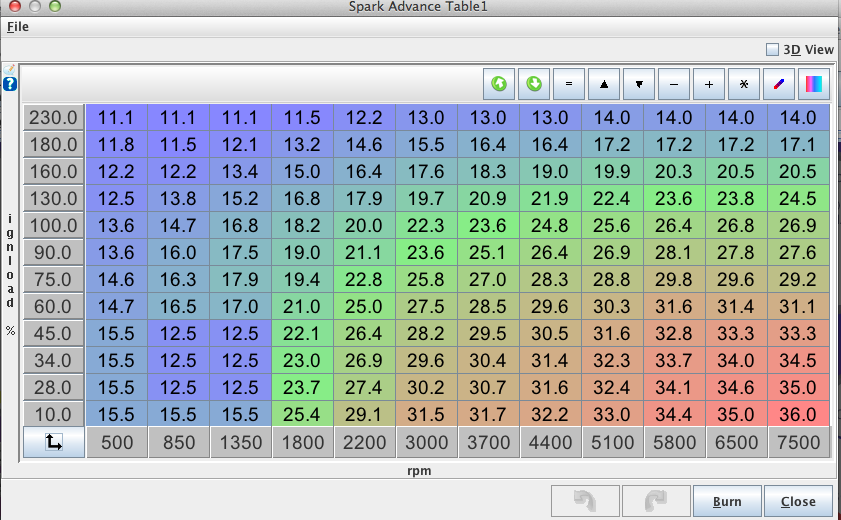

Especially the AFR and spark table. (AFR table is changed, but autotune has not done his magic to the VE table, so AFR and VE do not match for now)

My goal is to have an engine that drives smooth and safe but also powerful without breaking it.This in combination with a decent fuel consumption.
The car feels like about 200HP, not dyno'd yet. But I think not all potential power is used for this setup.



PS: Brain, could you post your 1,6 '93 ignition and AFR map please? All I can find are old maps or little icons (deleted graphs)


Thanks!
Attached Thumbnails
AFR and spark map thoughts-spark.png   AFR and spark map thoughts-afr.png
Attached Files
File Type: msq 2014-12-19_afr en spark agressiever.msq (107.0 KB, 47 views)
miatadaxdriver is offline   Reply With Quote
Old 12-21-2014, 09:03 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

look decent, still retard a lot of timing right away once you enter boost
Braineack is offline   Reply With Quote
Old 12-22-2014, 06:11 AM   #3
Junior Member
Thread Starter

Join Date: Sep 2010
Location: Belgium
Posts: 77
Total Cats: -2
Default

Honestly I do not know how much spark I can add and stay out of detonation.
I think there's at least 15HP to gain in boost when the spark map is raised right there.

I don't have the guts to put them in and try it out on the road without det cans.
Also dyno would be great, but have to install the upgrade rods first.

Any proven tables for this engine setup would be useful.
I can use a little help here.


Thanks
miatadaxdriver is offline   Reply With Quote
Old 12-22-2014, 08:12 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

its actually not that far off from what I send with the MSes I put together. Within 1-2
Braineack is offline   Reply With Quote
Old 12-22-2014, 08:30 AM   #5
Junior Member
Thread Starter

Join Date: Sep 2010
Location: Belgium
Posts: 77
Total Cats: -2
Default

Ok should be fine then.

Yesterday I checked my friend his settings and the spark map looks way more aggressive than what I use.

The car is dyno'd at 176HP @ 0,6bar... which seems great for this little amount of pressure. It's a '93 1,6 running batch fire MSPNP2 with VTPS and GM IAT
2,5DP and exhaust. it has a small Chinese turbo DH033J.
It' more agressive, spools faster and drives good in my opinion.

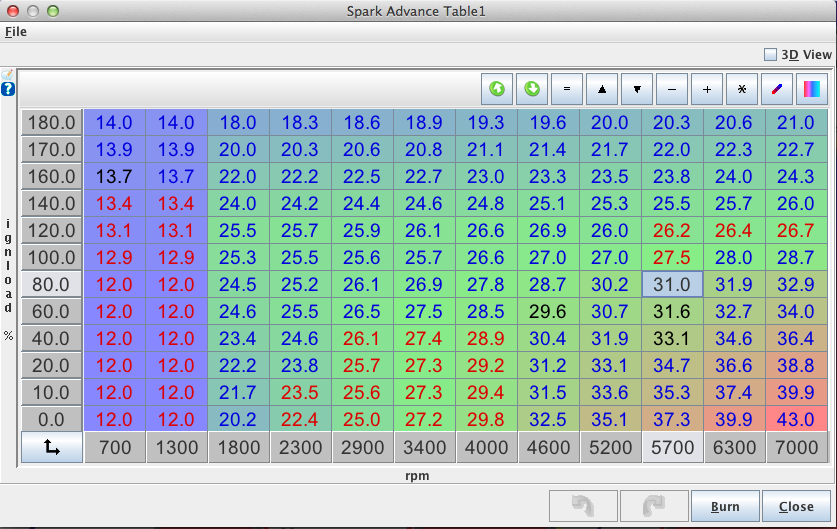

This is the spark map from the above described car. Is this still safe or is this dyno'd to the max?
Attached Thumbnails
AFR and spark map thoughts-mspark.png
miatadaxdriver is offline   Reply With Quote
Old 12-22-2014, 08:35 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

that's probably the limit.
Braineack is offline   Reply With Quote
Old 12-22-2014, 08:43 AM   #7
Junior Member
Thread Starter

Join Date: Sep 2010
Location: Belgium
Posts: 77
Total Cats: -2
Default

Quote:
Originally Posted by Braineack View Post
its actually not that far off from what I send with the MSes I put together. Within 1-2
Is there room for 2 more spark?

Should I advance my map a little more (2 to 3)towards his settings or for safety just let the numbers as they are?
Should the few result in more horse power??


Thanks Brain!
miatadaxdriver is offline   Reply With Quote
Old 12-22-2014, 08:51 AM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

i mean push your motor to the brink, what do i care?
Braineack is offline   Reply With Quote
Old 12-22-2014, 08:58 AM   #9
Junior Member
Thread Starter

Join Date: Sep 2010
Location: Belgium
Posts: 77
Total Cats: -2
Default

Nobody cares.

I'm just learning and observing as being a noob.

That's why I'm glad to get your opinion. I don't need wild guesses from another noob, but advise from people who have experience and knowledge about all this.(like you)
miatadaxdriver is offline   Reply With Quote
