Default AFR Targets

Can people post their AFR target tables please and comment on mine (I'm just about to start tuning)

1990 1.6 MX5 T25 Turbo @ 5(ish)psi, standard injectors.
Thanks

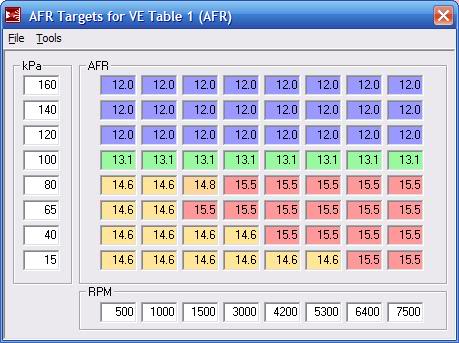

Name:  AFRTargets1.jpg
Views: 7
Size:  38.6 KB
richard_ha is offline   Reply With Quote
Old 03-16-2007, 01:48 AM   #2
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

wouldnt you want it to be a bit leaner at idle? Just a thought.
akaryrye is offline   Reply With Quote
Old 03-16-2007, 03:33 AM   #3
Junior Member
iTrader: (18)

Join Date: Aug 2006
Location: Temple City, Ca
Posts: 305
Total Cats: 0
Default

Quote:
Originally Posted by akaryrye View Post
wouldnt you want it to be a bit leaner at idle? Just a thought.
i think that 14.6 or 14.7 is fine, thast what my goal is too.

you should make your 1000-4200 rpm at 15 kpa richer for cool poping noises lol.

i maybe suggest that dont hit 12 right at 120, you can slowly go into it maybe. you probably want 12 for higher boost

simon
Hi Im Simon is offline   Reply With Quote
Old 03-17-2007, 12:41 AM   #4
Newb

Join Date: Feb 2007
Location: Qc, Canada
Posts: 43
Total Cats: 0
Default

To get a strong idle, I recommend a 13:1 AFR from 500 to 1500rpm. When you'll release the throttle, the idle won't drop low as 500, instead it will stuck at your idle setting target.

Here's one of my AFR target, it's running a bptGTR



As for the poping noise...enable the fuel over run setting, it will shut off the fuel while decelearing. You want the fuel off above 2000 rpm, and set your TPS raw adc, 2 number higher than a closed throtlle and below 20 of MAP
mazdasly75 is offline   Reply With Quote
Old 03-17-2007, 09:16 AM   #5
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by mazdasly75 View Post
To get a strong idle, I recommend a 13:1 AFR from 500 to 1500rpm. When you'll release the throttle, the idle won't drop low as 500, instead it will stuck at your idle setting target.

Here's one of my AFR target, it's running a bptGTR



As for the poping noise...enable the fuel over run setting, it will shut off the fuel while decelearing. You want the fuel off above 2000 rpm, and set your TPS raw adc, 2 number higher than a closed throtlle and below 20 of MAP

the only problem with setting the idle to 13 in the UK is when MOT time comes you'll fail the test
richyvrlimited is offline   Reply With Quote
Old 03-17-2007, 06:02 PM   #6
Newb

Join Date: Feb 2007
Location: Qc, Canada
Posts: 43
Total Cats: 0
Default

your right, at 13:1 you fail the emission test, but it takes 2 min to fix. So prepare your fuel map just before the test. Also for a better emission, retard your timing by 5 to 10 in the range of the test, it will raise the chance to pass.
mazdasly75 is offline   Reply With Quote
Old 03-18-2007, 11:29 AM   #7
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 39
Default

Quote:
Originally Posted by mazdasly75 View Post
your right, at 13:1 you fail the emission test, but it takes 2 min to fix. So prepare your fuel map just before the test. Also for a better emission, retard your timing by 5 to 10 in the range of the test, it will raise the chance to pass.
I'll give it a go
richyvrlimited is offline   Reply With Quote
