Default Base Timing (please confirm my ignorance)

Hey guys,
setting up the base timing on my 2000/MS3X install, but I'm reading conflicting explanations/images about what base timing should look like:

When using a "dumb" timing light (no built in adjustment), fixed advance of 10-degrees in Tunerstudio, after final adjustment of the Ignition Offset Angle(deg), should the two marks on the pulley:
Line up with 10/T,
or
Line up with 20/10

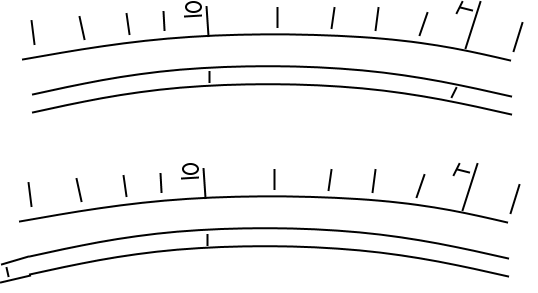

Here's my dumb image showing both examples:




Attached Thumbnails
Base Timing (please confirm my ignorance)-crappytimingdiagram.png
SJP0tato is offline   Reply With Quote
Old 08-27-2016, 05:00 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,497
Total Cats: 1,706
Default

top. bottom would be 20
Braineack is offline   Reply With Quote
Old 08-27-2016, 06:00 PM   #3
Junior Member
Thread Starter
iTrader: (5)

Join Date: Mar 2012
Location: Gilbert, Az
Posts: 336
Total Cats: 26
Default

Quote:
Originally Posted by Braineack View Post
top. bottom would be 20
Thanks Brain, that's what I set mine to, but it took an offset setting of 0.0 to achieve it.

I read here somewhere that has to do with using falling-edge needing more adjustment, vs rising-edge for input capture (I'm on falling).
SJP0tato is offline   Reply With Quote
