Default (Batch fire) Only cylinder 2 and 3 has spark, but not 1 and 4. How to correct?

New Problem
See post #15

Cylinder 2 and 3 are firing together whenever Spark B or D is selected in the output test mode

Cylinder 1 and 4 are dead silent whenever trying A and C

Continuity checks out on the COPS harness. I switched the coils around and the coils themselves all work.


So what would prohibit A and C from firing? anyone have any ideas? I don't know how to proceed with this short of testing continuity back to the ecu plugs, then beyond that...is there any other setting within Tuner Studio that I'm just missing or is this a hardware issue?






Old Problem

Hello all,
I'm seriously at a loss and don't know what to do. Braineack gave some advice to help get the fuel pump priming which is awesome, but I still have no crank signal, spark or fuel. TPS works fine, crank sensor gets voltage. I checked the continuity of my COPS harness and it seems to be fine, but nothing fires when plugs are grounded. I believe that since there is no crank signal, MS3 doesn't know when to fire or inject fuel.

I tried plugging in MSPNP1 and was able to pull a composite log of the trigger wheel, but MS3 is a complete blank.

My setup:
92 Miata
BP4W motor and sensors (Ditched CAS)

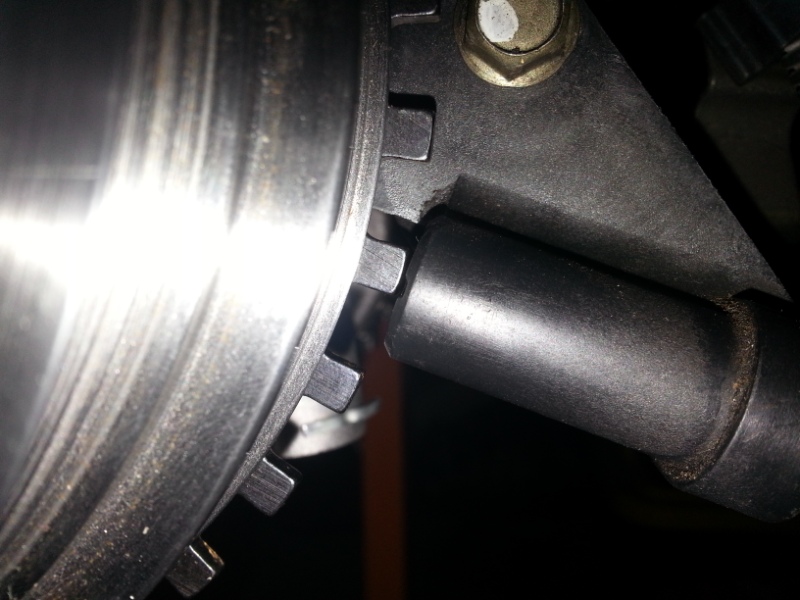

SuperMiata 36-1 trigger wheel (tooth one is ~180 from top when crank is TDC) so about 60-65 offset from crank sensor at TDC
sequential capable but tying to run batch for now
Toyota COPS
Borg Warner EFR6258 Turbo
ID1000 injectors
Innovate MTX-L Wideband O2
Using BP4W throttle body/TPS and IACV


Am I missing something? I feel like my best chance of getting this to run is reverting back to MSPNP1




Attached Thumbnails

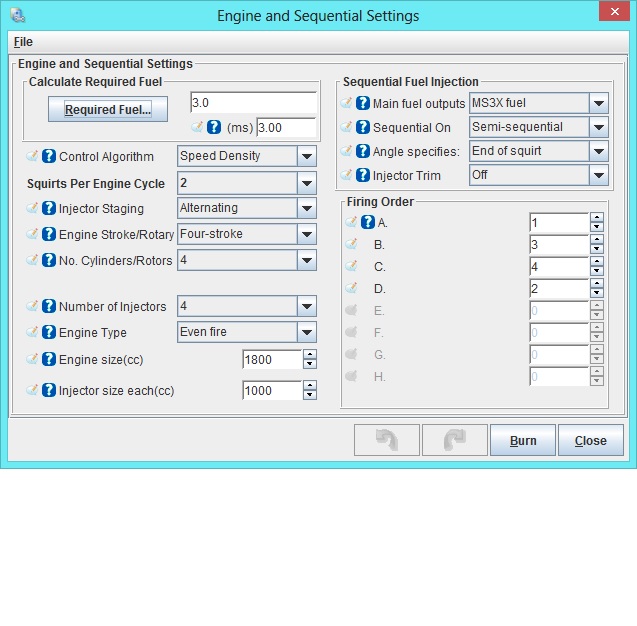

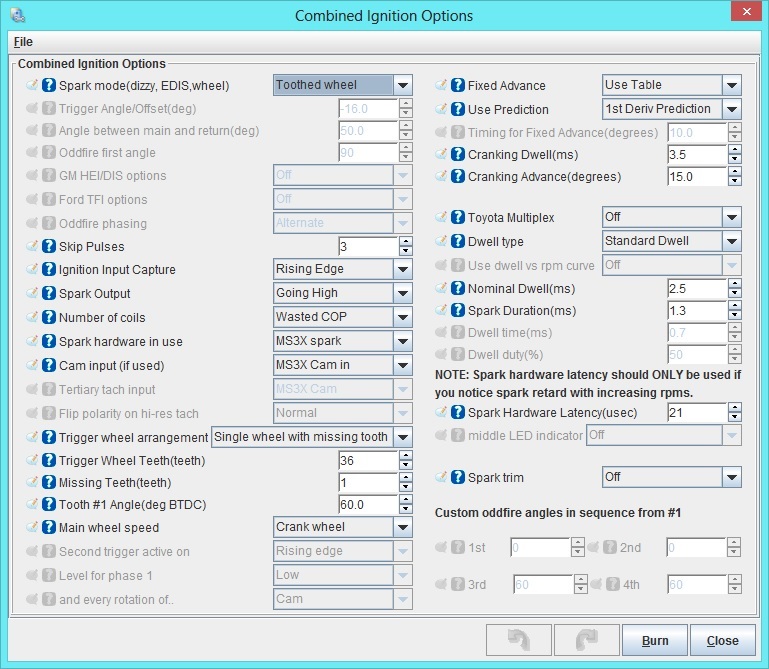

(Batch fire) Only cylinder 2 and 3 has spark, but not 1 and 4. How to correct?-trigger.jpg   (Batch fire) Only cylinder 2 and 3 has spark, but not 1 and 4. How to correct?-fuel.jpg
Attached Files
File Type: msq 2014-04-09_01.18.21.msq (177.5 KB, 44 views)

Last edited by psyber_0ptix; 04-09-2014 at 06:34 PM.
psyber_0ptix is offline   Reply With Quote
Old 04-09-2014, 07:41 AM   #2
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

i'm pretty sure I'm using the correct 99+ crank sensor

psyber_0ptix is offline   Reply With Quote
Old 04-09-2014, 08:25 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

what's the composite log look like? Are you even getting the signal to the MS? It's possible the zero crossing point, tuned with r56, needs adjusting to even get the signal to read.

(you wont be able to run seq. until you mod the CAS for a single tooth and run a 36-1/1 pattern.)
Braineack is online now   Reply With Quote
Old 04-09-2014, 08:39 AM   #4
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

Thanks for the reply.

There is no signal to the MS3. I cracked the unit open last night after reading on the forums, but couldn't find it; or i was just at the point of throwing my hands up in the air. I will try again once Leach0789 gets back home.

I was hoping to run batch just to get it out of his garage. Then I can wire in the inj/spark c and d and take a composite log of the crank and cam signals to see if a code could be generated to support the 36-1 trigger wheel and stock 99-00 cam gear. But for the time being, just batch on the trigger wheel is the goal.
psyber_0ptix is offline   Reply With Quote
Old 04-09-2014, 08:52 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

R56 is on the main board, by the copyright on the bottom edge, it probably needs at least 2 more turns clockwise. You'll probably have to lift the green expander board out of the way.
Braineack is online now   Reply With Quote
Old 04-09-2014, 10:14 AM   #6
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

Thanks, that did the trick! It still does not start though :<

Attached Thumbnails

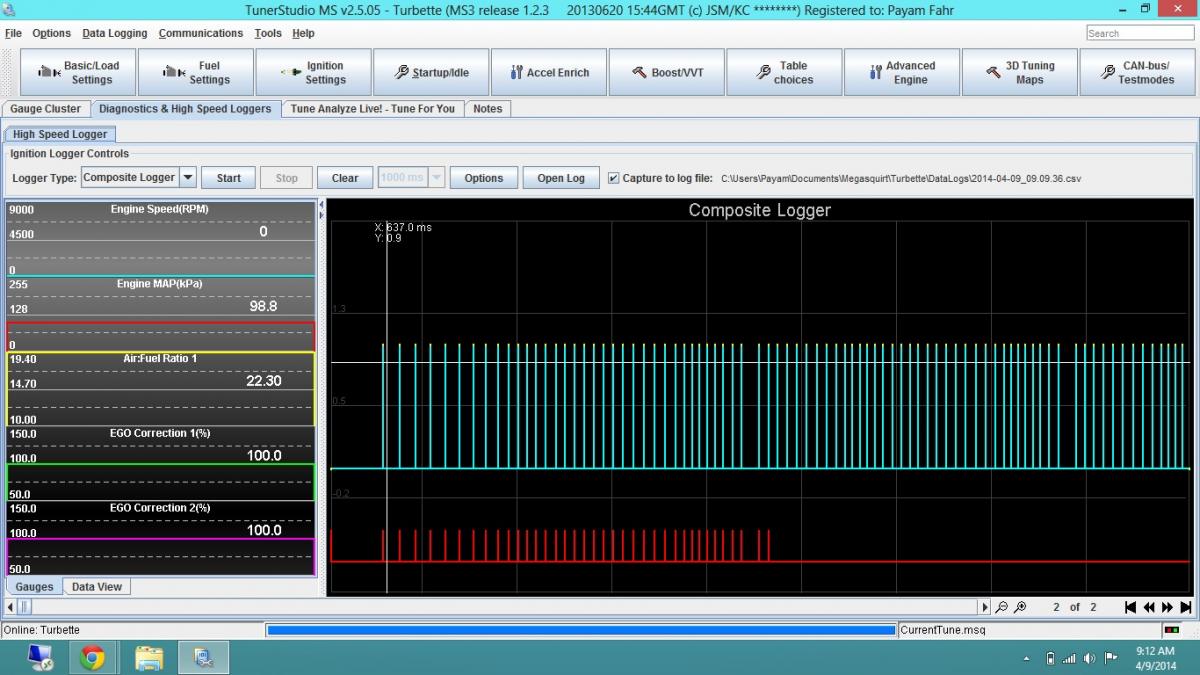

(Batch fire) Only cylinder 2 and 3 has spark, but not 1 and 4. How to correct?-composite.jpg
Attached Files
File Type: csv 2014-04-09_09.09.36.csv (10.9 KB, 25 views)
File Type: msq 2014-04-09_09.13.50.msq (177.5 KB, 38 views)
psyber_0ptix is offline   Reply With Quote
Old 04-09-2014, 10:18 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

i believed wasted cop is incorrect, fwiw, that suggests that you have 4 indivudal spark outputs, but you want to fire them like a wasted setup.

are you getting any RPMs during cranking once it syncs?
Braineack is online now   Reply With Quote
Old 04-09-2014, 10:21 AM   #8
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

Yes it's quite low; around 200 RPM

Ok, so I must wire in spark C and D as well as injector C and D?
psyber_0ptix is offline   Reply With Quote
Old 04-09-2014, 10:22 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

are your cops wired for individually for sequential, right now, or paired for wasted?
Braineack is online now   Reply With Quote
Old 04-09-2014, 10:24 AM   #10
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

Cops are currently paired for wasted spark; I thought that Spark A and B would drive it
psyber_0ptix is offline   Reply With Quote
Old 04-09-2014, 11:08 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

it will, but the spark mode needs to be "wasted", not "wasted cop".

right now it's going to fire A/C and B/D together, individually. I suppose it should still work as is once I think about it. But you should just set it to waste so you're only triggering A and B.
Braineack is online now   Reply With Quote
Old 04-09-2014, 11:36 AM   #12
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

No change, it's not catching.
psyber_0ptix is offline   Reply With Quote
Old 04-09-2014, 12:52 PM   #13
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

I thought I might have a bum COP harness, but continuity checks out for each connection and there's ~11.8 volts powering each coil.

Battery is dying because of cranking so much.

Is there any other way to check for spark and fuel? or to ensure the MS3 is outputting properly?
psyber_0ptix is offline   Reply With Quote
Old 04-09-2014, 12:53 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

you mean something like output test mode?
Braineack is online now   Reply With Quote
Old 04-09-2014, 01:39 PM   #15
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

Cylinder 2 and 3 are firing together whenever Spark B or D is selected in the output test mode

Cylinder 1 and 4 are dead silent whenever trying A and C

Continuity checks out on the harness. I switched the coils around and the coils themselves all work.


So what would prohibit A and C from firing?

Last edited by psyber_0ptix; 04-09-2014 at 05:40 PM.
psyber_0ptix is offline   Reply With Quote
Old 04-09-2014, 05:41 PM   #16
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default



Is there any way aside from output test to see if the MS3 is working properly?

Last edited by psyber_0ptix; 04-09-2014 at 06:34 PM.
psyber_0ptix is offline   Reply With Quote
Old 04-09-2014, 10:10 PM   #17
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

I just checked the continuity from each trigger wire on the coil plugs to Igniter terminals IG/IH and they all check out fine.

I'm not sure what else to check :(

physical issues with the MS3?
psyber_0ptix is offline   Reply With Quote
Old 04-10-2014, 09:00 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,877
Total Cats: 1,790
Default

Can you check where Spark A and Spark B are going on the MS to OEM Connector harness?
Braineack is online now   Reply With Quote
Old 04-10-2014, 09:31 AM   #19
Junior Member

Join Date: Feb 2012
Location: Johnson City, Tn
Posts: 70
Total Cats: 1
Default

I had the same issue and it took me awhile to wrap my head around it.
make sure that you wire:
Spark Inj Physical Plug
A A 1
B B 4
C C 3
D D 2

I kept wanting to call it Spark 1-4 which caused me to wire wrong...

Rev will correct me if I am wrong... (He has helped me out on this greatly)
theemike is offline   Reply With Quote
Old 04-10-2014, 09:59 AM   #20
Ich verstehe nur Bahnhof
Thread Starter
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,709
Total Cats: 319
Default

Spark A runs to the top connector on MS3. Top row, pin 14. If viewed from behind, 6th from the left.
edit: I'll check for spark b location in a moment



firing order is 1-3-4-2 iirc

I haven't wired it sequentially yet since there is yet a code to run the stock NB cam position pulses with a 36-1 trigger wheel. Just trying to get it to run on wasted/batch spark and injection for now which should just alternate between SparkA and SparkB. The trigger for the coils are paired on the COPS harness per the 1.6L instructions

Last edited by psyber_0ptix; 04-10-2014 at 10:33 AM.
psyber_0ptix is offline   Reply With Quote
