Default Boost Control not working

Hi,

Just finished installation of a GT2554r onto a 1.8 with begi cast mani, begi downpipe into a 3" exhaust and ms3x. I'm looking for some help to get my boost control working correctly. I have the DIYAUTOTUNE boost controller connected and was targeting about 5lbs of boost to get me started. I set the overboost protection to about 12lbs. Overboost seems to be working, in the attached 3rd gear run i didn't get into protection, but I ended up with over 10psi of boost so something isn't right with my controller....hoping somebody smart might know what I did wrong with my settings or next things to test. I did try the controller on normal and inverted but that didn't appear to make a difference..Thanks in advance



Attached Thumbnails

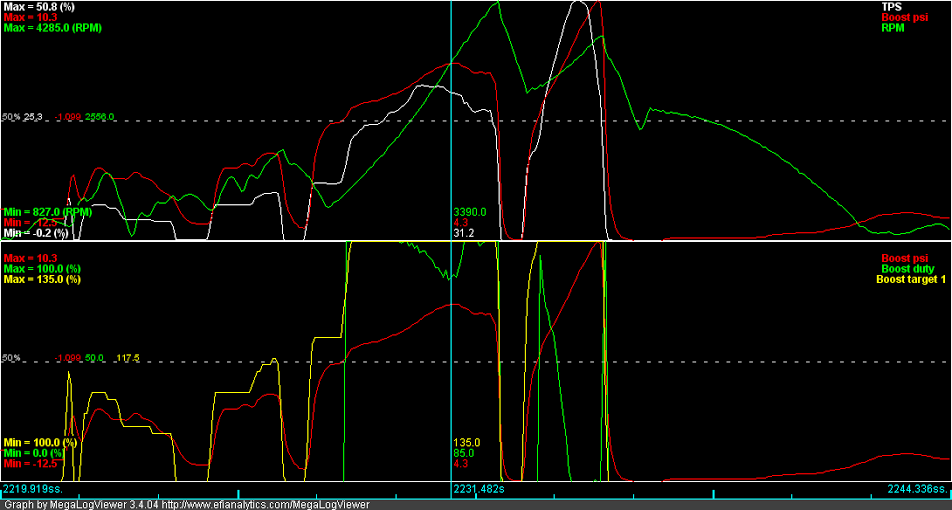

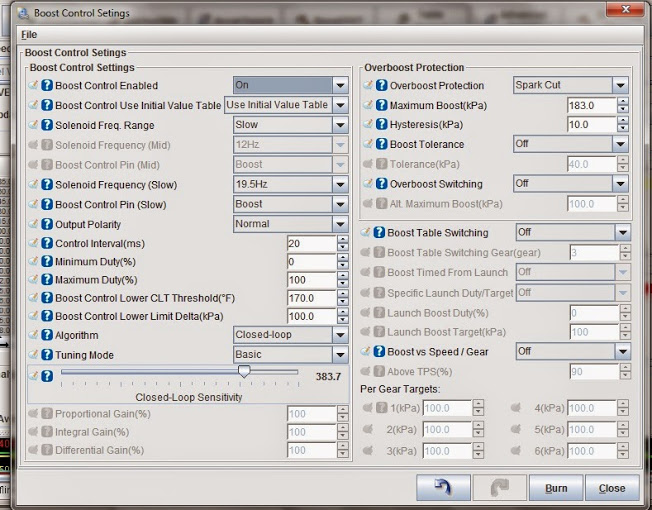

Boost Control not working-closed%252bloop%252bsettings.jpg   Boost Control not working-closed%252bloop%252brun.png

Last edited by TheV's; 03-10-2015 at 12:55 AM.
TheV's is offline   Reply With Quote
Old 03-10-2015, 12:57 AM   #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

I would guess that your wastegate is set at 10psi, and you can't use boost control to make less boost than wastegate pressure. Do a log without EBC and see what boost you end up at. You can't go any lower than that with EBC.
aidandj is offline   Reply With Quote
Old 03-10-2015, 01:02 AM   #3
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default

Wastegate is set to around 6 psi if I plumb it directly
TheV's is offline   Reply With Quote
Old 03-10-2015, 04:55 AM   #4
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Whats your open loop map look like?
nitrodann is offline   Reply With Quote
Old 03-10-2015, 08:26 AM   #5
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default

Quote:
Originally Posted by aidandj View Post
I would guess that your wastegate is set at 10psi, and you can't use boost control to make less boost than wastegate pressure. Do a log without EBC and see what boost you end up at. You can't go any lower than that with EBC.

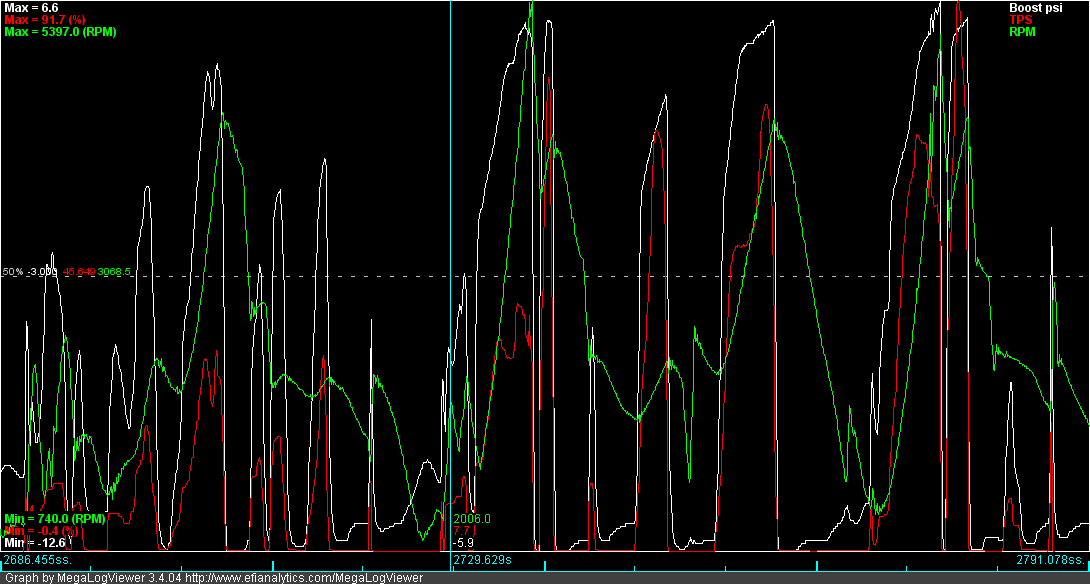

Just for reference this is what it looks like bypassing the EBC, plumbing straight to the wastegate - 6.6psi max.

Attached Thumbnails
Boost Control not working-graph%252bno%252bebc.png
TheV's is offline   Reply With Quote
Old 03-10-2015, 08:27 AM   #6
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default

Quote:
Originally Posted by nitrodann View Post
Whats your open loop map look like?
To be honest I went straight to working with closed loop - do I need to go back a step or two ?
TheV's is offline   Reply With Quote
Old 03-10-2015, 09:09 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

spark cut. lol.
Braineack is offline   Reply With Quote
Old 03-10-2015, 09:19 AM   #8
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,639
Total Cats: 25
Default

Quote:
Originally Posted by TheV's View Post
To be honest I went straight to working with closed loop - do I need to go back a step or two ?

Last TS version I tuned closed loop used the open loop table as a base lookup table.
nitrodann is offline   Reply With Quote
Old 03-10-2015, 10:35 AM   #9
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default

Quote:
Originally Posted by Braineack View Post
spark cut. lol.
Yup ! lots of it too, I don't seem to have any issues getting lotsa boost...problem is controlling it....

Would you recommend Spark and fuel ? - Never done this b4, I need wisdom...
TheV's is offline   Reply With Quote
Old 03-10-2015, 11:11 AM   #10
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

Quote:
Originally Posted by nitrodann View Post
Last TS version I tuned closed loop used the open loop table as a base lookup table.
No, there is a different table for that.
aidandj is offline   Reply With Quote
Old 03-10-2015, 11:36 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by TheV's View Post
Yup ! lots of it too, I don't seem to have any issues getting lotsa boost...problem is controlling it....

Would you recommend Spark and fuel ? - Never done this b4, I need wisdom...
either fuel only or fuel/spark. never spark only.

what does your closed loop boost targets table look like? have you tuned it? what about your intial values table?
and have you tuned the closed-loop senestivity at all?

Quote:
No, there is a different table for that.
except it appears that's how he's configured his boost control to work.
Braineack is offline   Reply With Quote
Old 03-10-2015, 03:31 PM   #12
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default

Quote:
Originally Posted by Braineack View Post
either fuel only or fuel/spark. never spark only.
Done, thanks !


Quote:
Originally Posted by Braineack View Post
except it appears that's how he's configured his boost control to work.
You are giving me way to much credit - I'm not really sure what the optimal way to configure this is - is there a better way ? I'm open to suggestions.

Initial map table is all set to 100, but I just turned that on and had the same problem running with it off.

Closed boost table is basically 135 in all cells except at 0 throttle, I have not tuned it, i was just looking to see when/if it worked.

I haven't played much with the closed loop sensitivity much yet either - I moved it from the middle of the bar to full and then back to about 3/4's that all so far....
TheV's is offline   Reply With Quote
Old 03-10-2015, 03:39 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

135psi = what 5psi?

how is that going to work? :P


set the closed loop targets table up to what you actually wanna hit. so like 170kpa, then try again.
Braineack is offline   Reply With Quote
Old 03-10-2015, 07:20 PM   #14
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default

Quote:
Originally Posted by Braineack View Post
135psi = what 5psi?

how is that going to work? :P


set the closed loop targets table up to what you actually wanna hit. so like 170kpa, then try again.

Ok, will do, thanks, I was perhaps being too conservative.... How should I handle the initial boost table, not totally sure what this does relative to the closed loop table ?
TheV's is offline   Reply With Quote
Old 03-10-2015, 07:23 PM   #15
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

You have quite a bit more searching to do. There are some good how-tos about setting up EBC on this forum and on msextra. I can link you the ones I used when I get home but someone else will chime in too.
aidandj is offline   Reply With Quote
Old 03-15-2015, 05:19 PM   #16
Newb

Join Date: Sep 2014
Posts: 25
Total Cats: 0
Default

I would go open loop and figure out what you need to run at around 9psi. Once that is done, transfer those values to your initial values in closed loop and your closed loop target to the values you want as stated above. My open loop values at around 4000 to 4500 rpm have to be set very low on boost duty or it will spike well past my intended value. The lower values in closed loop kept it from spiking there as well.
linkless is offline   Reply With Quote
Old 03-19-2015, 09:05 AM   #17
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default Update

Thanks for all the help. I managed to confirm it all works in open loop, and am now starting to play with the closed loop settings. I'm following Mr Brianeak"s guide here

here's how I tune CL EBC.

1. Make sure the solenoid is hooked it up and properly configured. This means selecting the correct output pin, freq. (39Hz for DIY solenoid), polarity, etc.
2. Populate CL targets
3. Set PID to 100 0 0
4. Log, do a quick pull to spool up the turbo.
5. If CL targets are not reached, then lower P, repeat #4. (will probably need to go to ~15 0 0)
6. Once PID CL EBC is hitting your CL target lower it slightly so it peaks over it 1-2psi, log and do redline pulls.
7. Increase I until your target is maintained through the revs. Increasing I will lower the sensitivity to P, so P must be added back in as I is increased.
8. Add D to smooth out the boost plot. Increase I and P where necessary.


Through step 5 all is well - my P = 13 doing 2nd gear pulls, 14 would take me just over my target. Now I'm starting to play with I, It seems to be great in 2nd gear but 3rd or 4th I get into a overtarget situation again.

Ran out of time last night but I assume I keep in tweaking up I (an P) until 3rd and 4th gear behave, and I'm reaching my boost target reliably...

I currently have a totally flat boost table - basically 176kpa at all throttle openings and rpm's - I don't totally understand the principals of what to setup here - I don't see why i wouldn't want max boost at all rpms and speeds - can somebody please enlighten me on the principals for setting up the boost target table ? Thanks
TheV's is offline   Reply With Quote
Old 03-19-2015, 10:01 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

that guide is old, and i suggest not plugging in the PID and just using the sensitivity slider.

I wrote that before they made a lot of improvements to the CL PID code.


You'll want to start limiting boost by TPS%. you'll see when you're on the highway and you're hitting 12psi at 5% throttle on a small incline.
Braineack is offline   Reply With Quote
Old 03-19-2015, 12:16 PM   #19
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default

Quote:
Originally Posted by Braineack View Post
You'll want to start limiting boost by TPS%. you'll see when you're on the highway and you're hitting 12psi at 5% throttle on a small incline.
That a good help to start with, thanks - I have tried searching but I can't really find any good info on setting this table up, most posts seem to be about getting EBC to work properly....
TheV's is offline   Reply With Quote
Old 03-20-2015, 10:04 PM   #20
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default Making progress

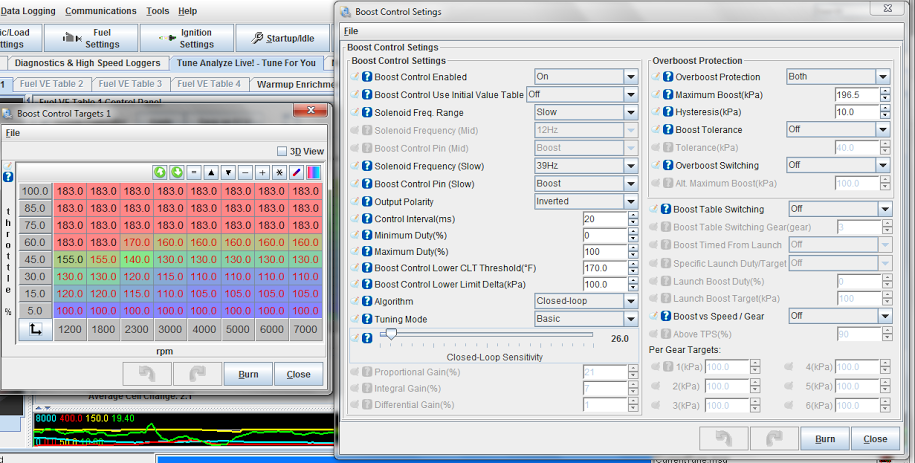

OK, Making progress - I think....Tuning with the slider I seem to be way left - down to 26 in order to get a run without oscillation. Here are my settings and boost table now..

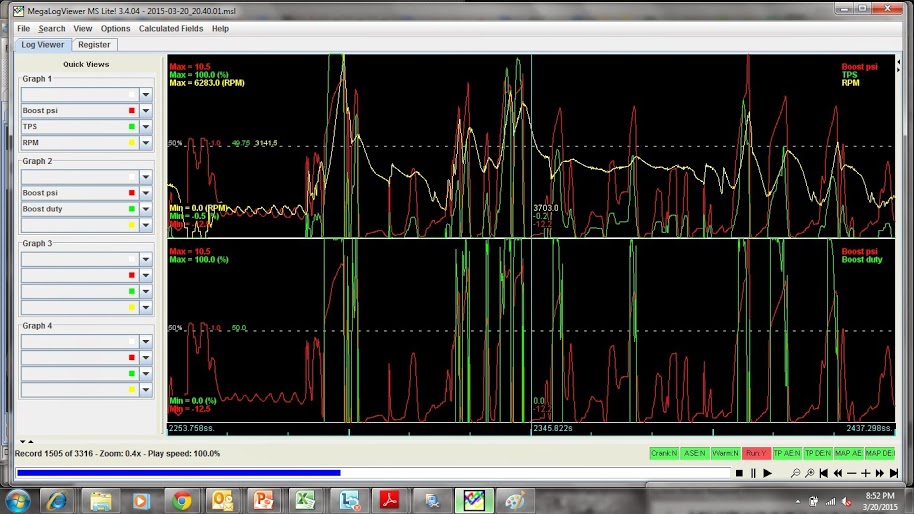

And here is the resultant Boost im getting



I appear to be a little low to my boost target - max I'm seeing is 10.5psi with a target of 12...any thoughts ?
Attached Thumbnails
Boost Control not working-current%252bsettings%252b3_20.png   Boost Control not working-current%252bsettings%252b3_20%252bmlv.jpg
TheV's is offline   Reply With Quote
