Default Boost target table - how does yours look...?

Hi guys,

after I got my MS3(X) running nicely I took a ride yesterday and got the VE dialed in quite a bit.

As I cruised at the Autobahn I had one spot that I had a little problem...

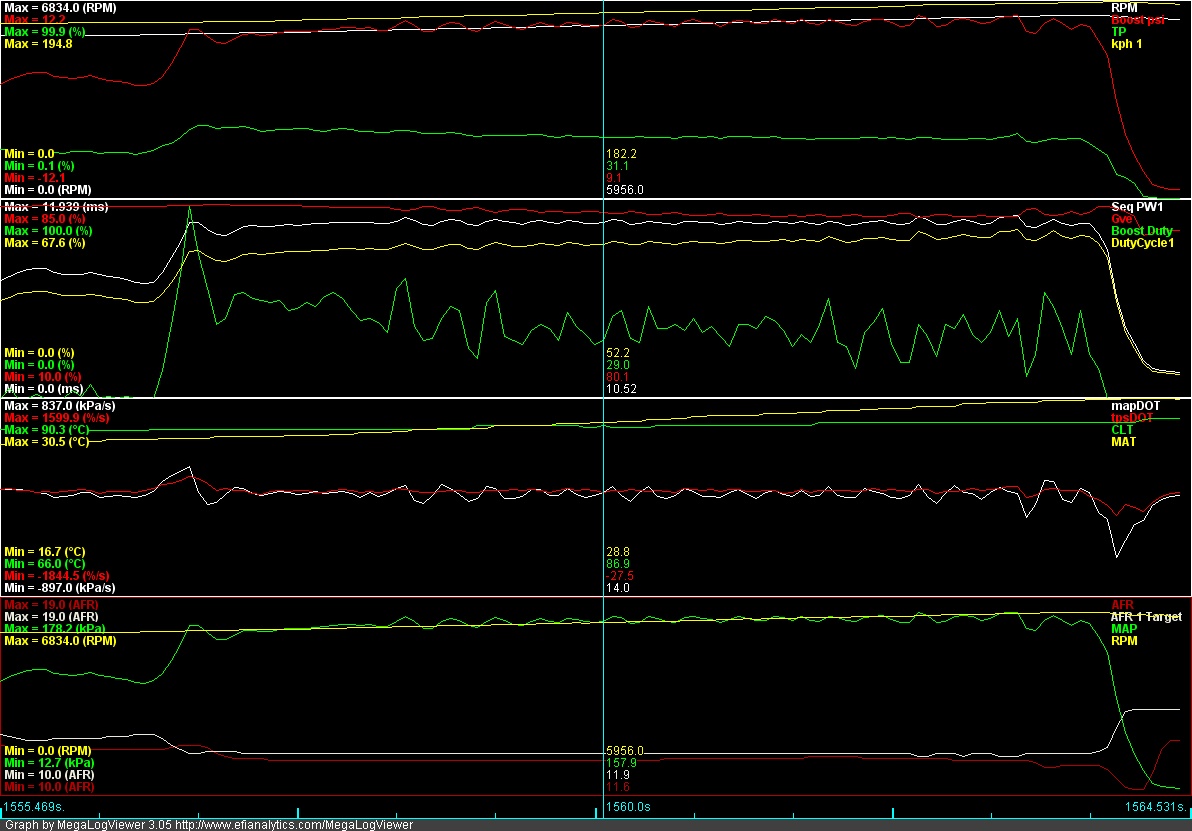

Scenario is - light throttle cruise TP ~30%, speed is a t 180 kph (~ 111mph) and boost is around peak (170kPa). The boost control is working perfectly well when I give the throttle a nice stab, but at that low throttle the MAP is starting to oscillate...

See:

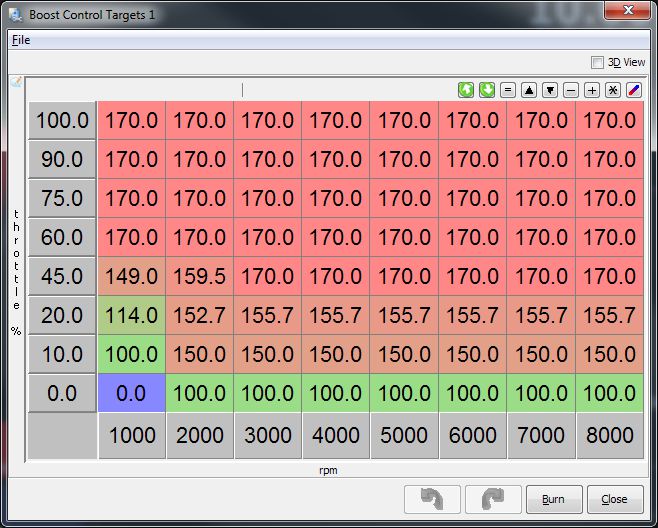

This is how my boost target table looks at the moment:


As you can see - at 30% TPS the boost is exactly between to different targets (I guess the MS interpolates them..?).
The oscillations can well be because of my rough VEtable - but could also be hunting between the two different boost targets. (?)

So I thought a bit about how a correct boost target map would look like...?!
How does yours look?

Thanks
Attached Thumbnails
Boost target table - how does yours look...?-boost_at_low_tps.jpg   Boost target table - how does yours look...?-boost_target_sr.jpg

Last edited by Zaphod; 06-11-2012 at 04:51 AM.
Zaphod is offline   Reply With Quote
Old 06-11-2012, 03:26 AM   #2
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

No see um pic.
Faeflora is offline   Reply With Quote
Old 06-11-2012, 04:51 AM   #3
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Should be working now...
Zaphod is offline   Reply With Quote
Old 06-11-2012, 09:50 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

See if adding a little bit more D helps. What are you PID settings?
Braineack is offline   Reply With Quote
Old 06-11-2012, 10:23 AM   #5
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

PID is at 22/22/70 now -
Control interval is at 10ms.

with higher TPS the boost control is near perfect.

Gets to target fast, holds target till redline, doesn't overshoot too much...
Zaphod is offline   Reply With Quote
Old 06-11-2012, 10:28 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

really close to what i have, but i think Im using 100D. Might want to try it?
Braineack is offline   Reply With Quote
Old 06-11-2012, 10:46 AM   #7
Senior Member
Thread Starter

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

I am going to try for sure - I am always a bit scared of this high D values, because I thought they would bring oscillations...

Ken seid in this thread (where some other member asked about bc tuning) at Msextra just some days ago:

Quote:
just keep adding P to counteract the initial overshoot as you add I. Once you get it working with minimal overshoot with just P and I, and you have it holding the target across the rev range, you can add some D (sparingly) to get rid of overshoot.
Maybe 100 is sparingly... it all depends on point of view...

Edit:
Quote:
Originally Posted by Braineack View Post
really close to what i have
I have noticed, that the PID values on all the Miata MS2/3 tunes I have seen tend to be very close...
Zaphod is offline   Reply With Quote
