Default Brain built MSII no start.

Stand along MSII on my 99. I have spark and can smell fuel. Cam and crank triggers seem to be correct and I have a tach signal. The motor spins over normally and sounds like it wants to start, I can even hear it firing but it just wont catch. I did nothing but install the MS.

Here are some screen shots of the composite logger. I also attached the log file and my MSQ.

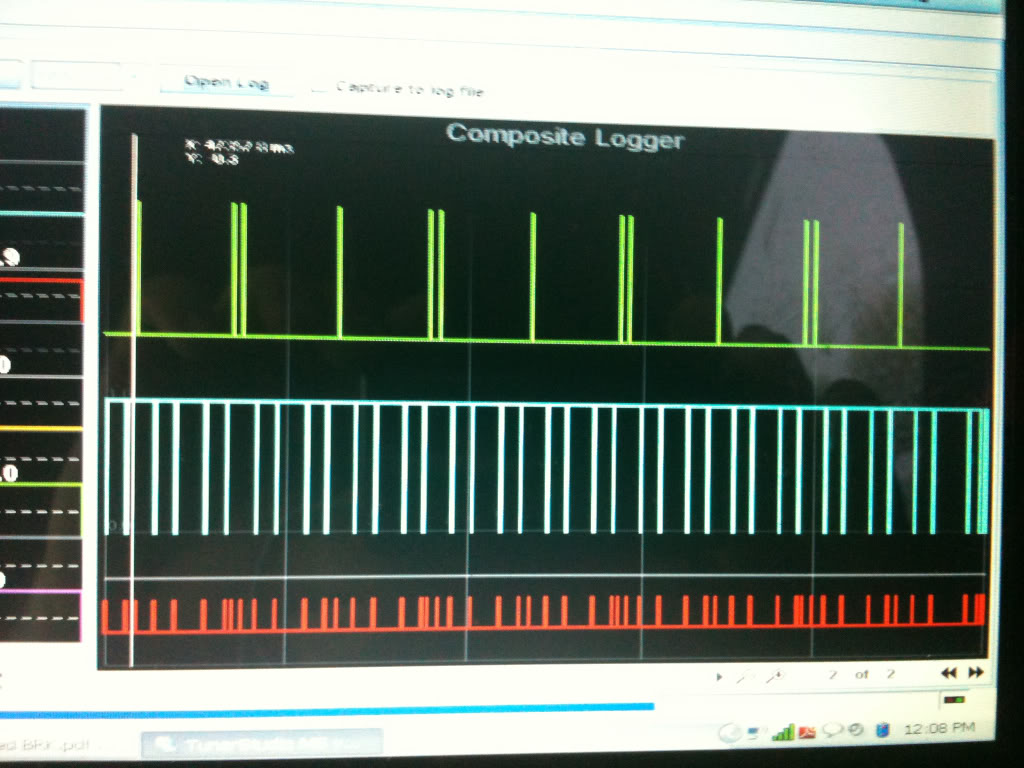

Name:  73601898.jpg
Views: 1
Size:  124.3 KB

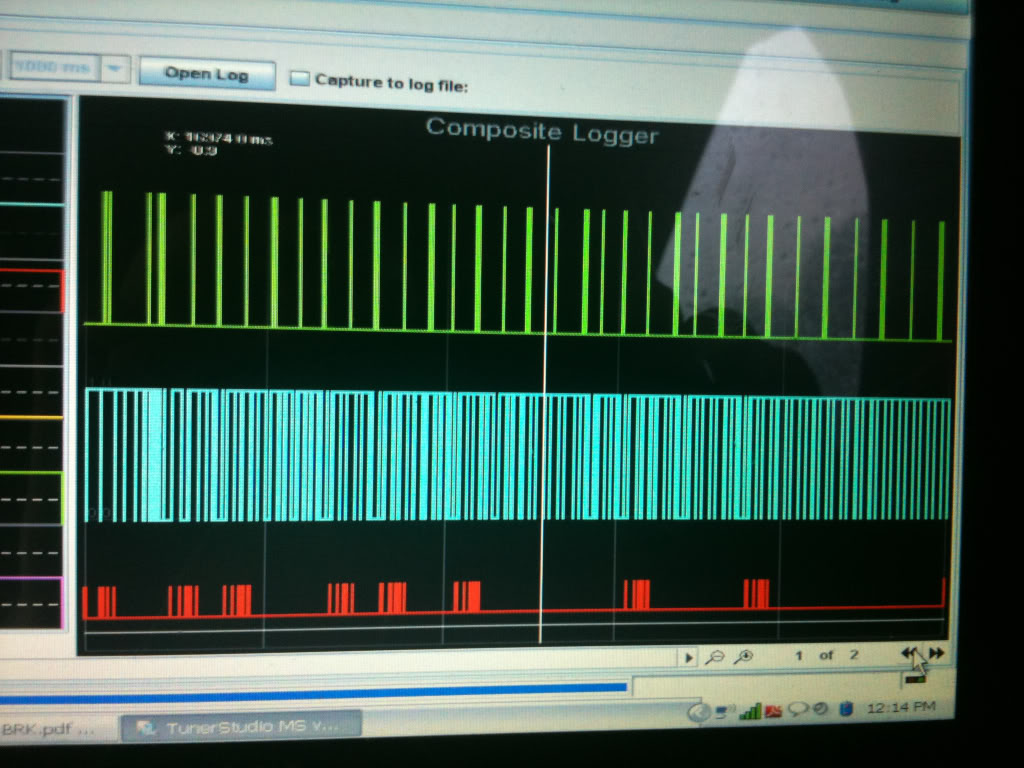

Name:  a1ef1108.jpg
Views: 1
Size:  143.0 KB

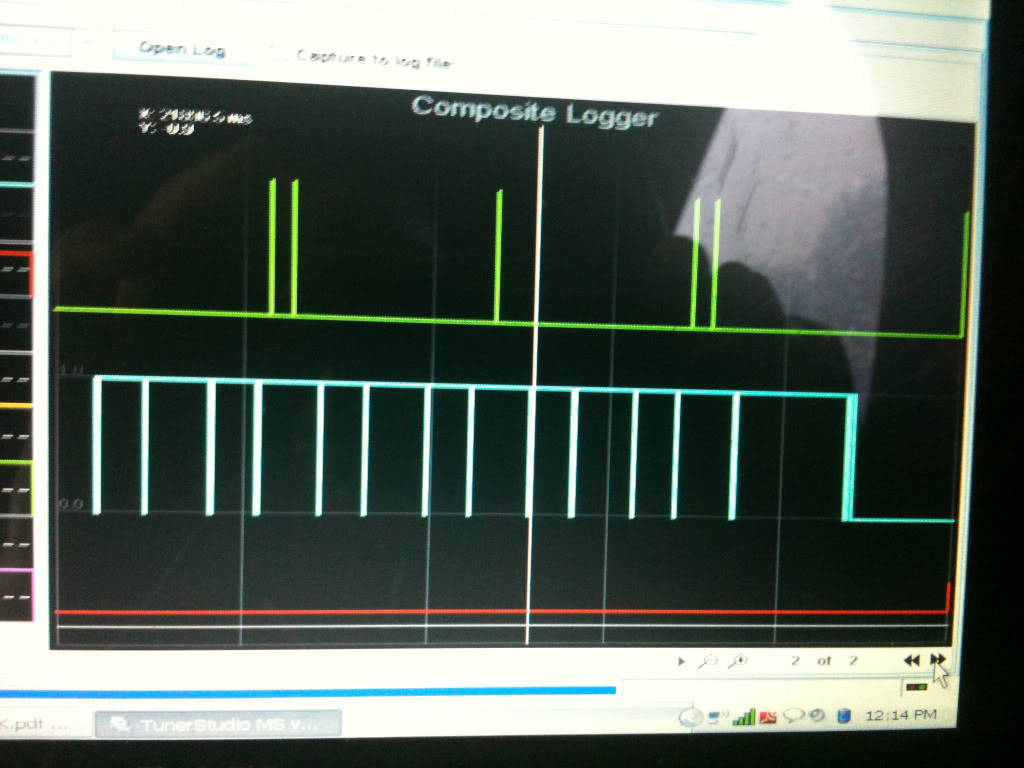

Name:  405afd09.jpg
Views: 1
Size:  91.8 KB

Thanks ladies.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
Attached Files
File Type: csv 2010-10-31_12.18.51.csv (11.0 KB, 60 views)
File Type: msq CurrentTune.msq (78.7 KB, 62 views)
levnubhin is offline   Reply With Quote
Old 10-31-2010, 03:41 PM   #2
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

swap the coils? see if that works.
Marc D is offline   Reply With Quote
Old 10-31-2010, 05:51 PM   #3
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I actually tried that but my battery was nearly dead. I'm going to try it again.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-31-2010, 05:54 PM   #4
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Does the "SYNC" indication on the lower right corner stay green while cranking or does it go green/red/green/red as you crank? I assume the later.
Reverant is offline   Reply With Quote
Old 10-31-2010, 06:13 PM   #5
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I'll have to look again, but I'm pretty sure it flashes back and forth from red to green while cranking.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-31-2010, 06:18 PM   #6
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Two things, either the crank conditioning circuit is not OK (the cam looks good) or something is wrong with the motor (a flat battery that spins the engine slowly could cause this as well).
Reverant is offline   Reply With Quote
Old 10-31-2010, 06:25 PM   #7
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Well my battery is/was really low at the time. I just picked up a charger so I can continue working.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-31-2010, 06:58 PM   #8
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

THe crank and the cam logger shows the proper teeth pattern. It should fire up no problem, so the last thing I would suspect is a loose connection on the coils/injectors, or your coil packs are swapped. Running COPs?
Marc D is offline   Reply With Quote
Old 10-31-2010, 07:00 PM   #9
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Only the last picture is ok, the other ones show unexpected triggers occuring.
Reverant is offline   Reply With Quote
Old 10-31-2010, 08:32 PM   #10
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Marc D View Post
THe crank and the cam logger shows the proper teeth pattern. It should fire up no problem, so the last thing I would suspect is a loose connection on the coils/injectors, or your coil packs are swapped. Running COPs?

I did nothing with any of that before installing the ms, the car ran perfect. Stock coils.


Quote:
Originally Posted by Reverant View Post
Only the last picture is ok, the other ones show unexpected triggers occuring.

Yea and the weird part is that I made no Changes between the 3.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-31-2010, 08:49 PM   #11
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

Do you know what circuits were used for the CKP and CAM sensors?
Marc D is offline   Reply With Quote
Old 10-31-2010, 08:54 PM   #12
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

No, Brain would have to answer that one.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-31-2010, 09:50 PM   #13
Elite Member
iTrader: (17)

Join Date: May 2007
Location: NY
Posts: 1,614
Total Cats: 2
Default

0 psi > car that won't start



Seriously, hope this thing gets sorted out for you. Our trip to Gap is couple days away step up SCOTTY!!
TonyV is offline   Reply With Quote
Old 10-31-2010, 09:56 PM   #14
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default





I believe that Brain built the circuits in those 3 pictures. I remember talking to him while he was doing it.
shuiend is offline   Reply With Quote
Old 10-31-2010, 10:19 PM   #15
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

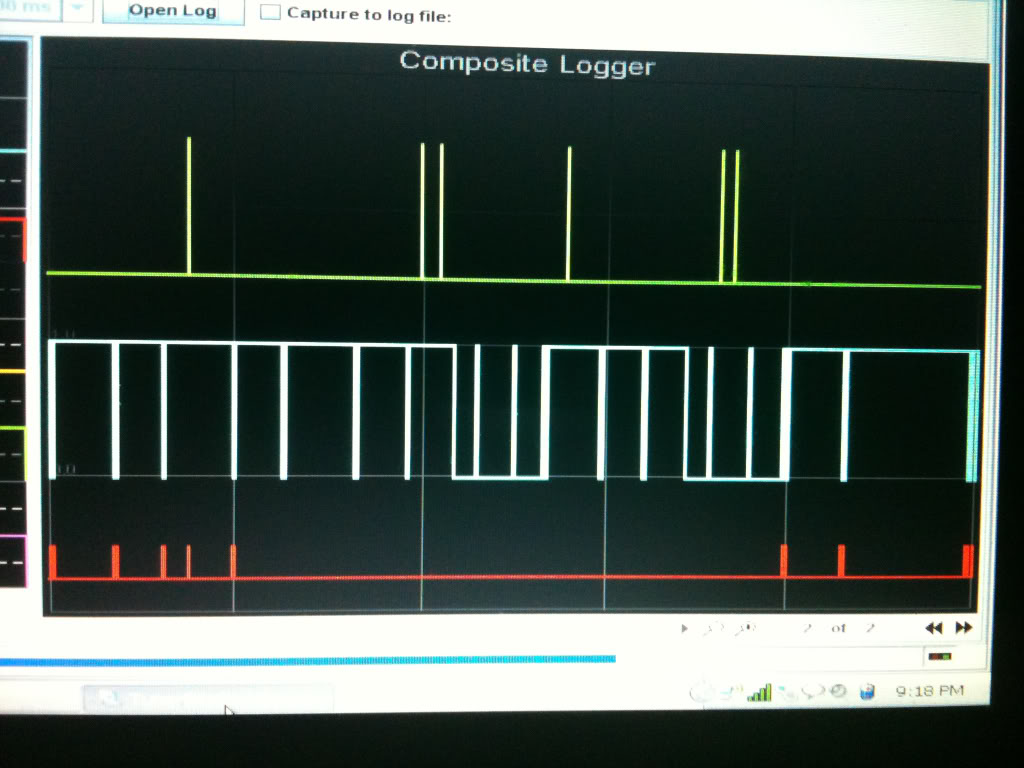

Okay, I've got the battery hooked up to a charger so I have full voltage now. I tried starting the car with the coils in both positions and no luck. The SYNC tab at the lower left stays green while cranking. I just checked for spark again and its good, I can definitely smell fuel and I am getting a tach signal. Here is another screen shot of the composite logger. I know there aren't suppose to be any spikes in the red line. So, what do those spikes mean?

Name:  1a57c3e9.jpg
Views: 1
Size:  89.0 KB
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 10-31-2010, 10:34 PM   #16
Elite Member
Thread Starter
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

I just noticed that I am getting intermittent tach signal and when that happens the sync tab stays red and sometines both come and go while cranking,
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 11-01-2010, 01:52 AM   #17
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

It seems that its not keeping sync. Have to tried move the CKP or replace the crank sensor?
Marc D is offline   Reply With Quote
Old 11-01-2010, 09:06 AM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by Marc D View Post
Do you know what circuits were used for the CKP and CAM sensors?
This:




I asked for his composite logs and they look like it's the correct pattern. When I had it on my stim it synced perfectly.
Braineack is offline   Reply With Quote
Old 11-01-2010, 09:26 AM   #19
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by Braineack View Post
I asked for his composite logs and they look like it's the correct pattern. When I had it on my stim it synced perfectly.
It will always sync perfectly on the stim. Hell, it will sync perfectly on the stim even without Abe's input circuits. Try it - I did and it worked just fine. No luck on the car without them though.

I had the same problem on a customer's car - MS2 V3 board, circuit worked fine on the stim, it wouldn't sync properly on the car. Checked and found a few errors. Fixed them and it would sync, but wouldn't go past 5100rpm, even free-revving. Promptly upgraded the unit to a DIYPNP free of charge and I promised myself never to do a V3 on a NB again.
Reverant is offline   Reply With Quote
Old 11-01-2010, 09:34 AM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Boo!!!!

Phil maybe I'll have to go back over the board.
