Default Cam sensor and 4 wire tps connectors

Hi,

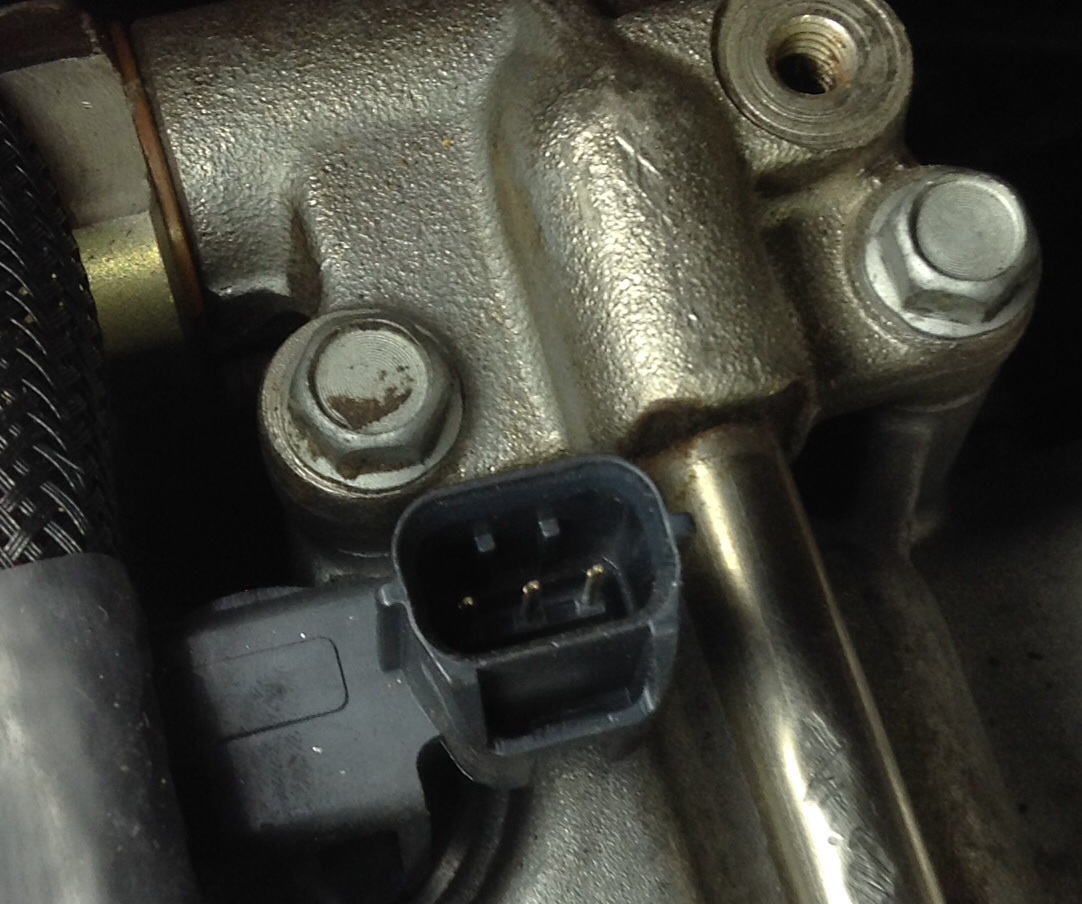

I'm looking for a little help wrapping up my wiring project. I have a VVT with 3 pin cam sensor and can't seem to find the wire inputs/outputs for the connector ? Looks like I need a 5v vref, grnd and sensor to pin 32 on my ms3x.

For the tps my pigtail has different color wiring from all the posts I can find

Black/blue (1)
Red (2)
Red/black (3)
Green/white (4)

Appreciate if anybody can confirm grnd, power, sig etc to get this hooked up right too, thanks !
Attached Thumbnails
Cam sensor and 4 wire tps connectors-image.jpg

Last edited by TheV's; 07-18-2014 at 10:36 PM. Reason: Photo added
TheV's is offline   Reply With Quote
Old 07-19-2014, 06:33 AM   #2
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Given the 4-wire TPS, you have an 1.8 NA that you're swapping the VVT motor into? Cam signal is +12, ground and signal. The 4-wire TPS is also 5v ref, ground, signal and a 4th one I don't remember.

What year car etc? Need some more info.
Oscar is offline   Reply With Quote
Old 07-19-2014, 07:08 AM   #3
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default

Thanks Oscar. Car is a 91, TPS and engine is from a '94, Head and Cam sensor is from a 2003 VVT.

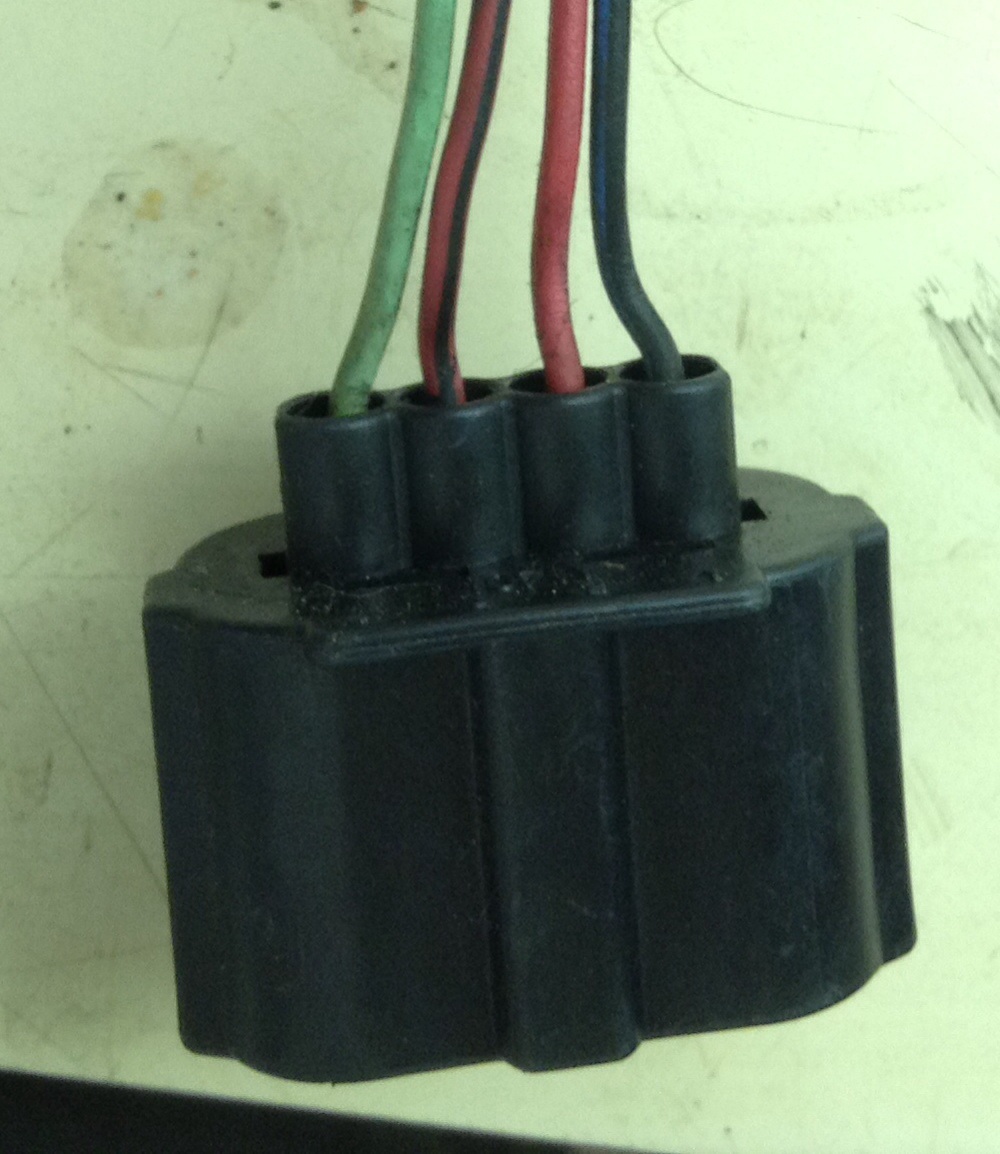

Here is a picture of the TPS pigtail, I'm not sure what this came from. It connects, I just can't seem to find reference to these wire colors anywhere...
Attached Thumbnails
Cam sensor and 4 wire tps connectors-image.jpg
TheV's is offline   Reply With Quote
Old 07-19-2014, 07:21 AM   #4
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Ok, I assume you have the 03 throttlebody/IAC and TPS too? I'd use the latter since it's 3-wire. I have notes about connecting that TPS to earlier harnesses but don't have them with me right now.
Oscar is offline   Reply With Quote
Old 07-19-2014, 10:37 AM   #5
Junior Member
Thread Starter
iTrader: (2)

Join Date: Jan 2013
Location: Michigan
Posts: 195
Total Cats: 5
Default

Nope, I only have a tps from a 1994 motor....
TheV's is offline   Reply With Quote
Old 07-19-2014, 03:44 PM   #6
Junior Member

Join Date: Sep 2011
Location: finger lakes NY
Posts: 444
Total Cats: 17
Default

It should be easy enough to figure out the tps with a dmm. 3 of the wires are just a pot and the 4th is a switch... indicates idle iirc.
DaveC is offline   Reply With Quote
