Default Car stalls in the heat when coming to a stop

My car seems to be stalling several times a day when coming to a stop. It's typically under hot circumstances so I'm thinking perhaps my IAT is getting heatsoaked? It's located on the intake throttle body and I'm not intercooled yet. Hot highways and slow speeds are especially deadly.

I found this thread in a search:

https://www.miataturbo.net/forum/t34473/

Is that what I want to be doing? It's not a big issue when it's once every couple of weeks but it's getting ridiculous now. AC doesn't even stand a chance!

I've attached my msq and a recent datalog of the problem. Albeit the datalog isn't as good as I had hoped because it wasn't as hot yesterday but I managed to provoke the problem once I turned the AC on.

Thanks.
Attached Files
File Type: xls idletimebaby.xls (1.47 MB, 47 views)
File Type: msq wallmart145.msq (35.3 KB, 100 views)
jdmaddox88 is offline   Reply With Quote
Old 06-07-2009, 01:28 AM   #2
Junior Member
iTrader: (3)

Join Date: Dec 2007
Posts: 219
Total Cats: 0
Default

Did you adjust the coolant density settings...that helped me and I also wrapped my IAT sensor in aluminum foil to reflect radiant heat
scottv is offline   Reply With Quote
Old 06-07-2009, 02:39 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Atlanta, GA
Posts: 293
Total Cats: -3
Default

Nope, that is still on "Normal Correction" as per the PNP base map. Did wrapping it really make a difference?
jdmaddox88 is offline   Reply With Quote
Old 06-07-2009, 07:54 PM   #4
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Atlanta, GA
Posts: 293
Total Cats: -3
Default

Anything obvious I'm missing out on here? Got a new job I'm starting tomorrow, really not looking forward to the car cutting out during rush hour in downtown Atlanta. :(
jdmaddox88 is offline   Reply With Quote
Old 06-07-2009, 08:20 PM   #5
Junior Member

Join Date: Jul 2005
Location: Hillsborough, NC
Posts: 273
Total Cats: 0
Default

Have you taken scotty's advice and enabled coolant/iat air density correction? If your IAT sensor is getting heatsoaked, then that's what you need.
JustinHoMi is offline   Reply With Quote
Old 06-07-2009, 08:26 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Atlanta, GA
Posts: 293
Total Cats: -3
Default

Nope, I'll enable it then. Are the settings already in there ok? I didn't want to enable it and have it running on anything that could potentially mess it up even more.

This post from that thread up top confuses me:

https://www.miataturbo.net/forum/t34473/#post401384

These attached settings good?
Attached Thumbnails

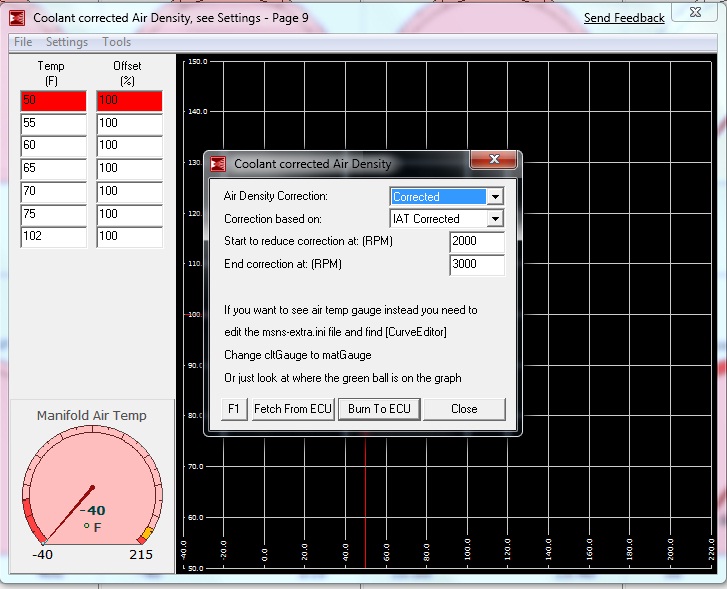

Car stalls in the heat when coming to a stop-coolant.jpg
jdmaddox88 is offline   Reply With Quote
Old 06-07-2009, 08:37 PM   #7
Junior Member

Join Date: Jul 2005
Location: Hillsborough, NC
Posts: 273
Total Cats: 0
Default

No. Try something like this:

Temp/Offset
50/105
55/110
60/115
65/119
70/124
75/129
102/155


It can be improved upon, but that's what was in the MSPnP config.
JustinHoMi is offline   Reply With Quote
Old 06-07-2009, 10:18 PM   #8
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Atlanta, GA
Posts: 293
Total Cats: -3
Default

The MSPNP config? Odd, this is a MSPnP for a 96. Reading up in the help section it talks about only doing this if your car is tuned, which makes me think, what's the actual problem with the "Normal Correction" setting?

Last edited by jdmaddox88; 06-08-2009 at 12:06 AM.
jdmaddox88 is offline   Reply With Quote
Old 06-08-2009, 01:06 PM   #9
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Try adding more advance at idle - change the advance at those two low RPM bins from 12 to 18 degrees and see if that helps.
Matt Cramer is offline   Reply With Quote
Old 06-08-2009, 08:10 PM   #10
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Atlanta, GA
Posts: 293
Total Cats: -3
Default

Cheers Matt, not quite sure why that got reduced. Will report back after findings!
jdmaddox88 is offline   Reply With Quote
Old 06-09-2009, 12:17 AM   #11
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Atlanta, GA
Posts: 293
Total Cats: -3
Default

Ok, I upped the timing there and then spent some time tuning the fuel for idle and it seems to be better. I didn't get to drive it properly after I got it tuned in as I noticed an unpleasant noise coming from my supercharger... bollocks
jdmaddox88 is offline   Reply With Quote
