BRG_Dylan

I have a 91 miata with a 1.8 swap and megasquirt now installed and I am having trouble getting the car to start. Also i went and pulled back on the throttle and tuner studio now says offline and will not reconnect.

acedeuce802

iTrader: (1)

Which Megasquirt? Any custom wiring? Has the car run on Megasquirt before the swap? Figure out if you have power getting to the ECU. If you do, take a composite log to see if you have crank/cam sensors. If that checks out, check for fuel/spark.

BRG_Dylan

Its Ms pnp2
No custom wiring
It ran on the stock ecu after the swap for a year

Oil Leak

i guarantee you that you have the spark plug wire order wrong. I had the same issue. use the 1.6 wiring order. not the 1.8

BRG_Dylan

So what is the order exactly

Oil Leak

Yep order is wrong, one second and ill show you how i have mine routed.

Oil Leak

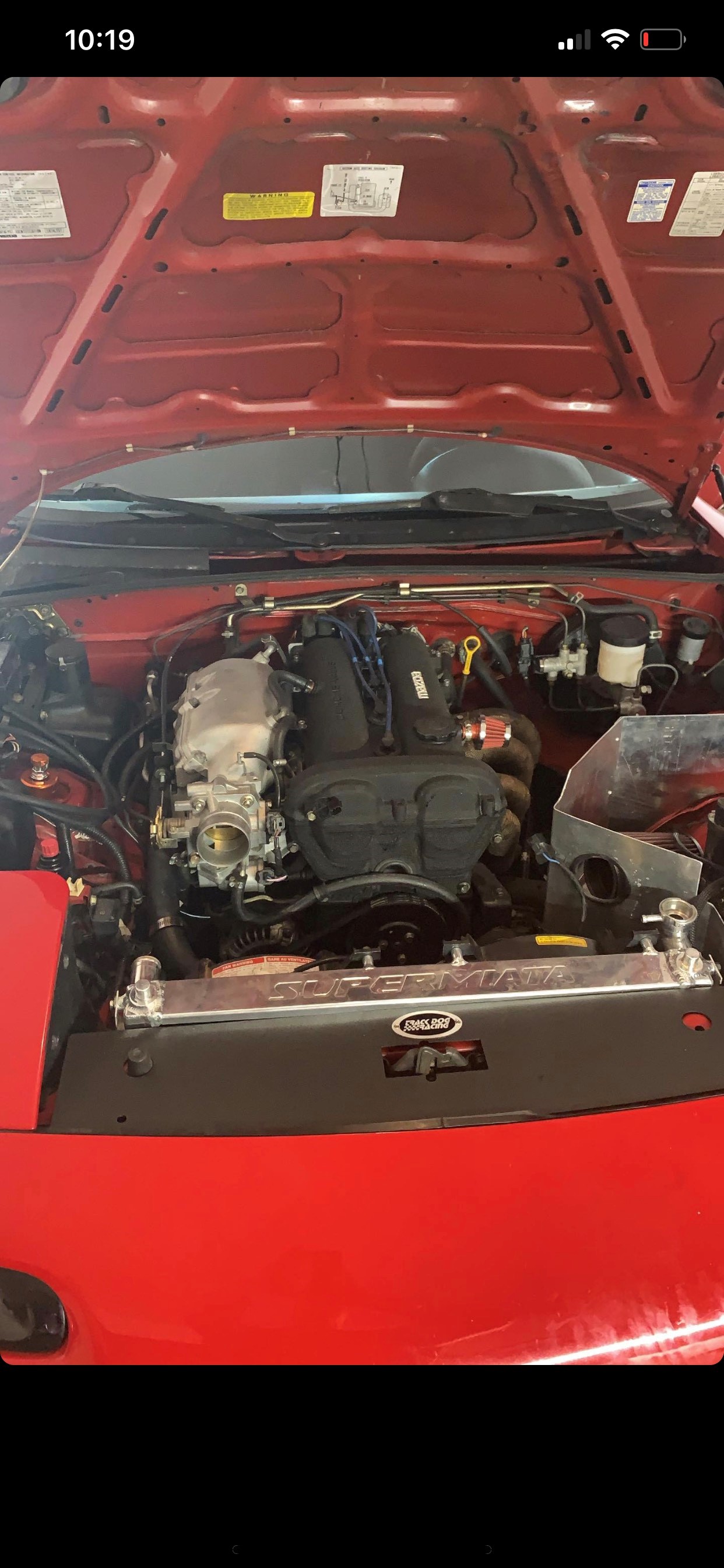

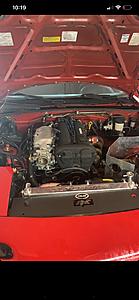

try this and report back

Oil Leak

you will have to play around with different plug lengths, kind of annoying.

BRG_Dylan

So then would it matter if I had the 1.6 base map vs the 1.8 base map

Oil Leak

Change your engine displacement to 1800cc, and see if it wants to start.

BRG_Dylan

Ok so I should use the 1.8 map?

Oil Leak

yes, please do.

BRG_Dylan

I've been getting there errors aswell

Oil Leak

BOII.... Wut.

BRG_Dylan

also when the throttle pedal is pulled backwards it doesnt detext the ecu but then when u push it in and then let it come back on its own it detects it. But the gauge thinks the throttle is at 30%

Oil Leak

did you calibrate your TPS? Do you even have a variable TPS.

BRG_Dylan

No I dont, I'm using the stock mazda one

Oil Leak

the 1.6 doesnt have a variable tps so that reading probably is useless.

BRG_Dylan

Couldnt get it to start. I have the injector settings changed and i moved the plug wires but still nothing

BRG_Dylan

Does it matter that it's the 1.6 coil pack
