Default Does this board have the Voltage circuit Built In?

Hi,
This is currently running on my car now. It's a 00 SE. I am starting to have some alt problems. It's looks like the previous owner cut the wiring harness to go back to the non ECU controlled type of alt. Can you guys look at the pics of the board and tell me of the voltage regulator circuit is in there. I have a spare alt that uses the ECU for regulation. I would like to reconnect the wires and use the volt-reg if it's there.
Thanks for the help.
-JB
Attached Thumbnails

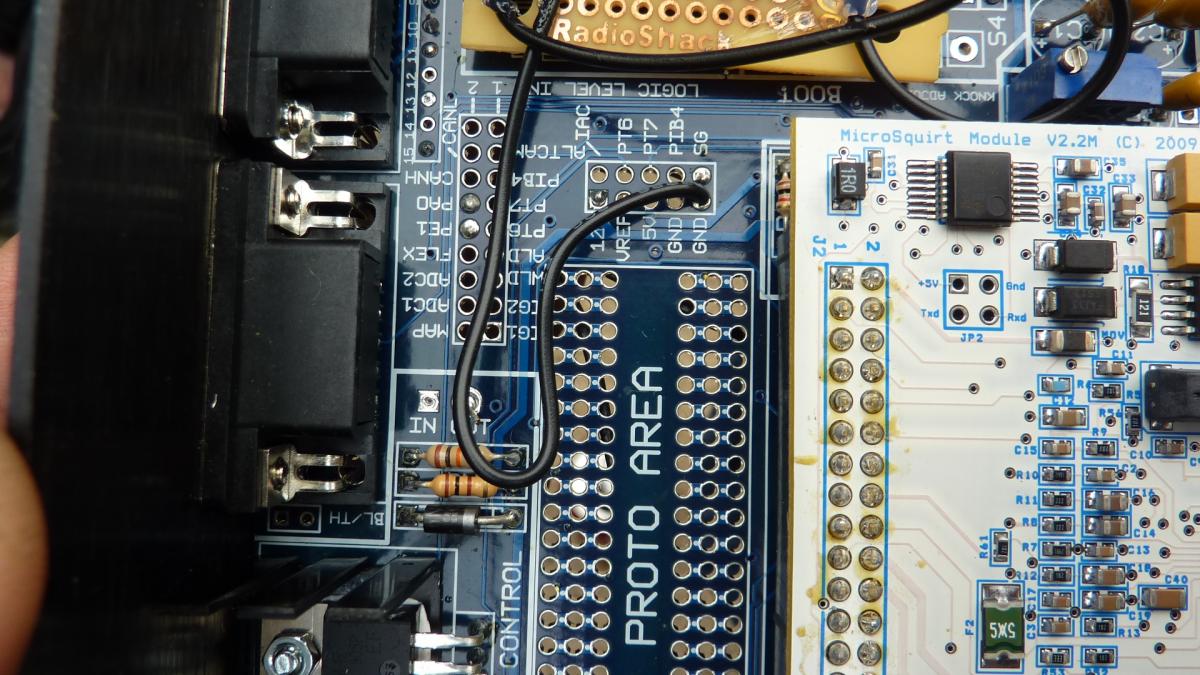

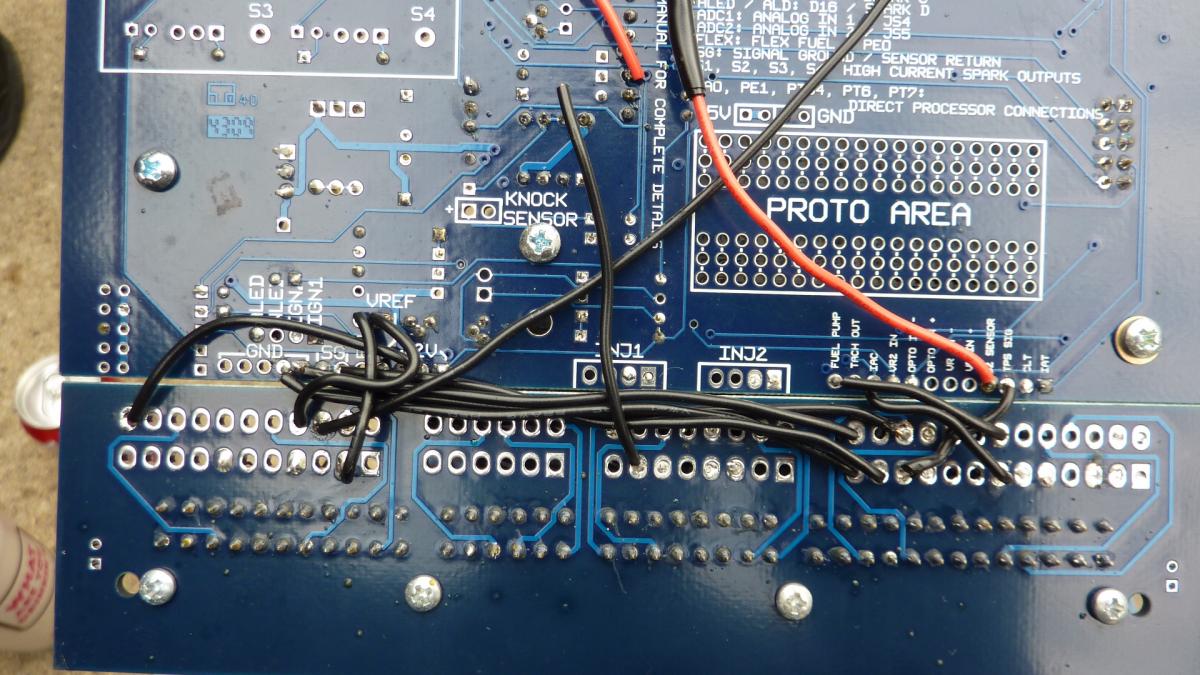

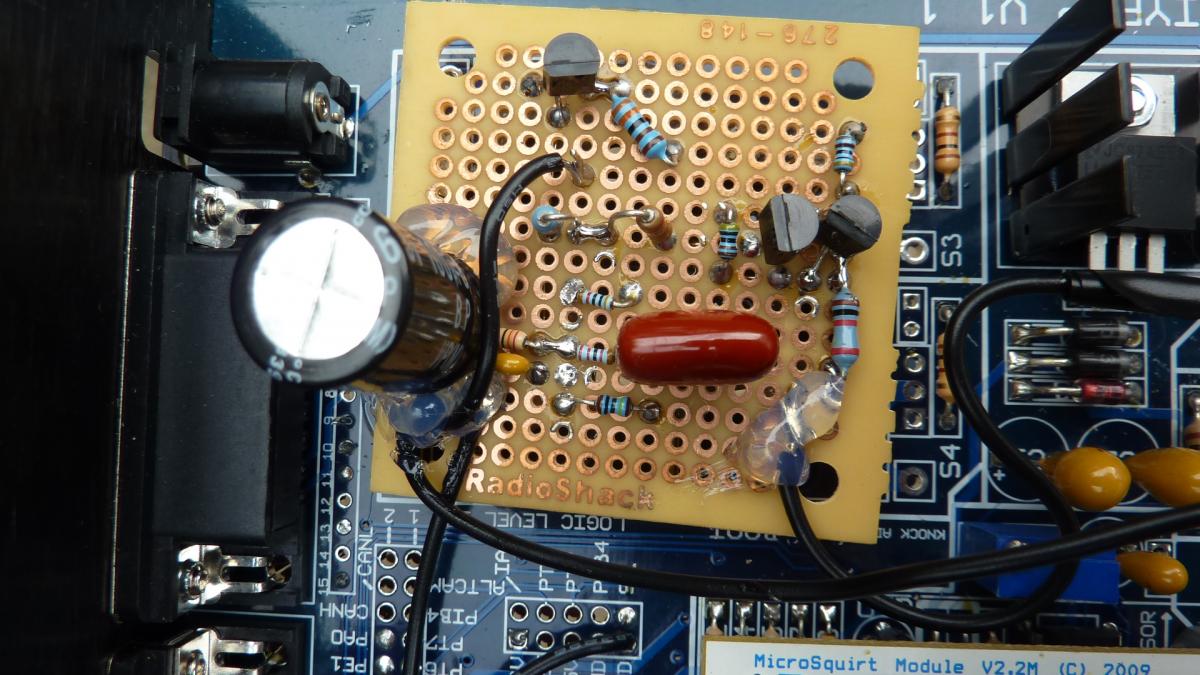

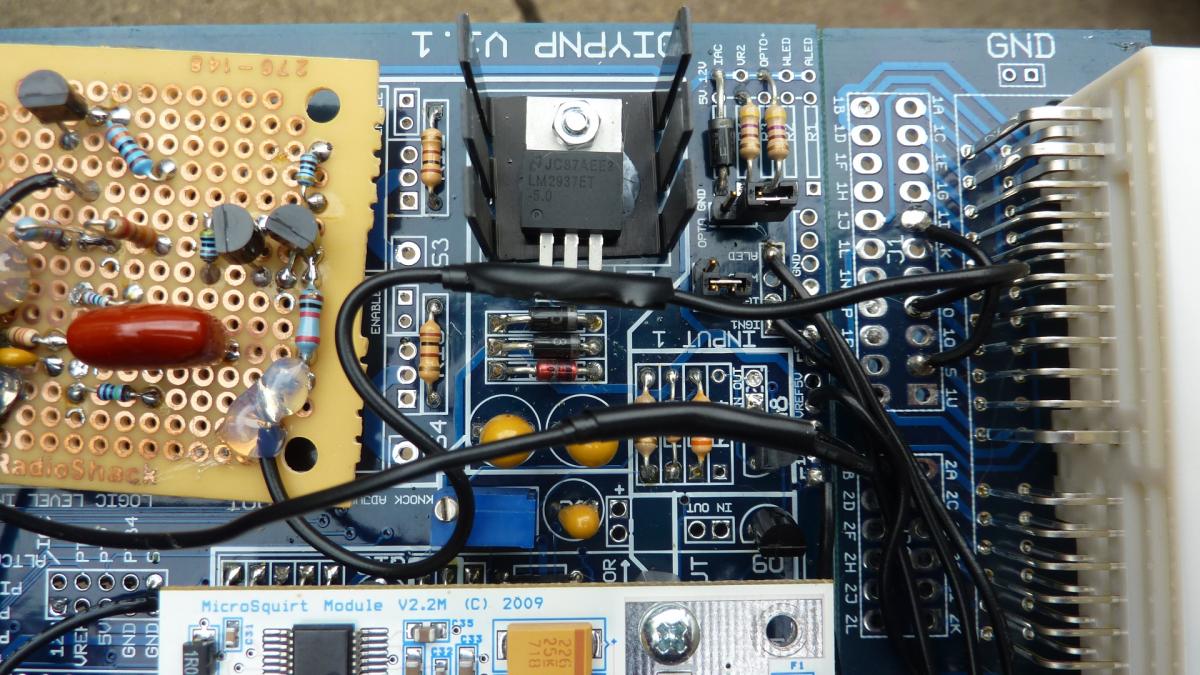

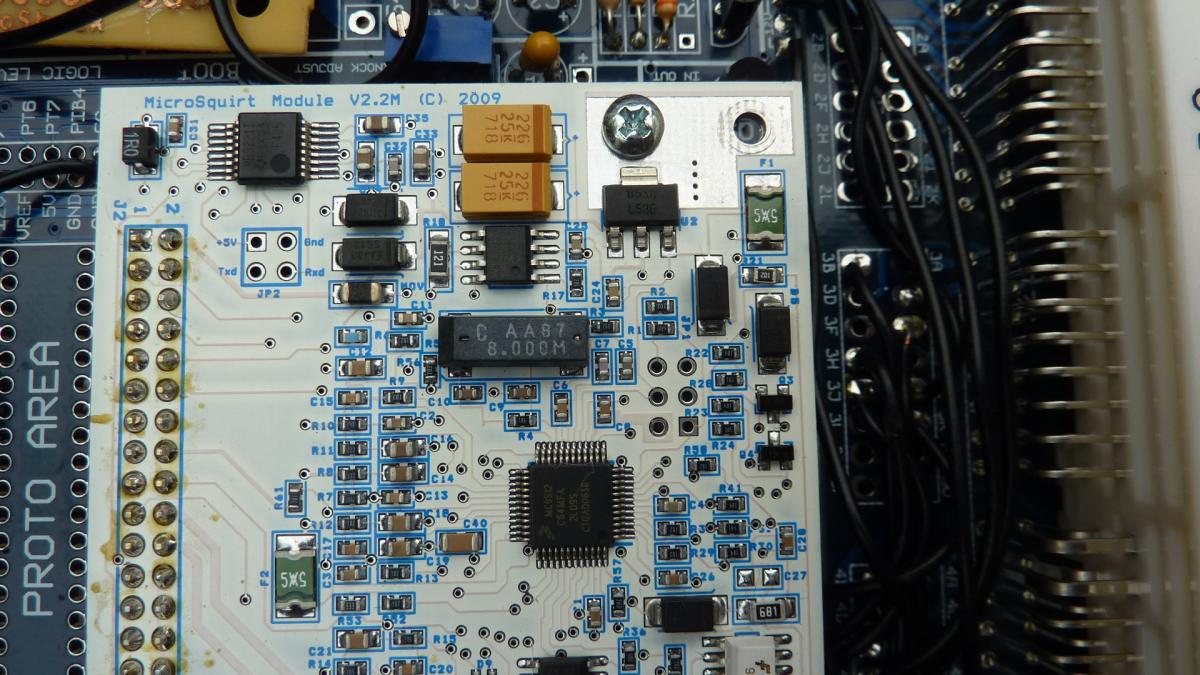

Does this board have the Voltage circuit Built In?-p1010915.jpg   Does this board have the Voltage circuit Built In?-p1010916.jpg   Does this board have the Voltage circuit Built In?-p1010917.jpg   Does this board have the Voltage circuit Built In?-p1010918.jpg   Does this board have the Voltage circuit Built In?-p1010922.jpg

2manyhobyz is offline   Reply With Quote
Old 12-05-2011, 10:31 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

yes, and it's one of the ones I built. It's possible that circuit didn't work out and why he went to the different style alt -- i made an error on one/two of the first I built, that one is the older DIYPNP so could have been one of them; plus it looks like the circuit layout that I failed with. I've since changed how I did the circuit on the breadboard and now I build it into the proto area, so I'm assuming it's one I messed up.
