Default Does this look right?

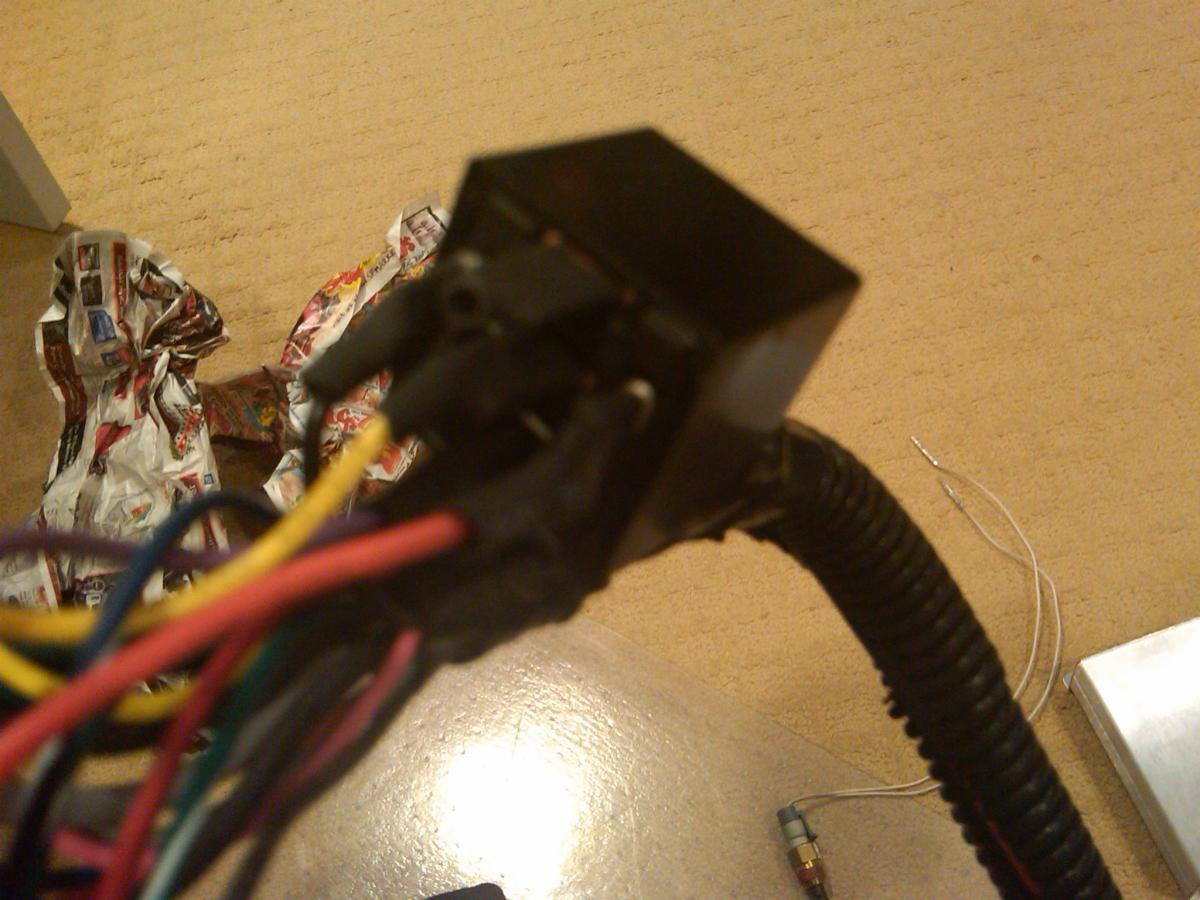

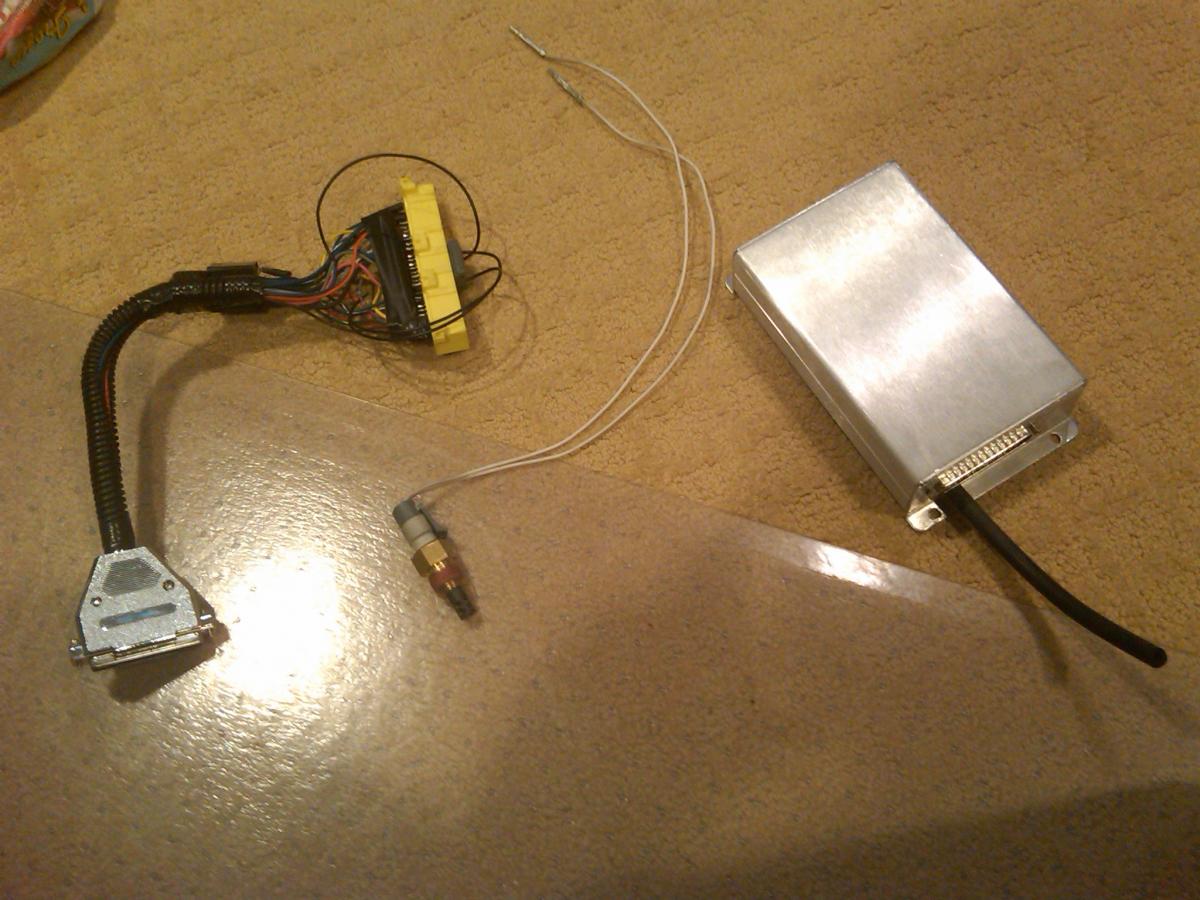

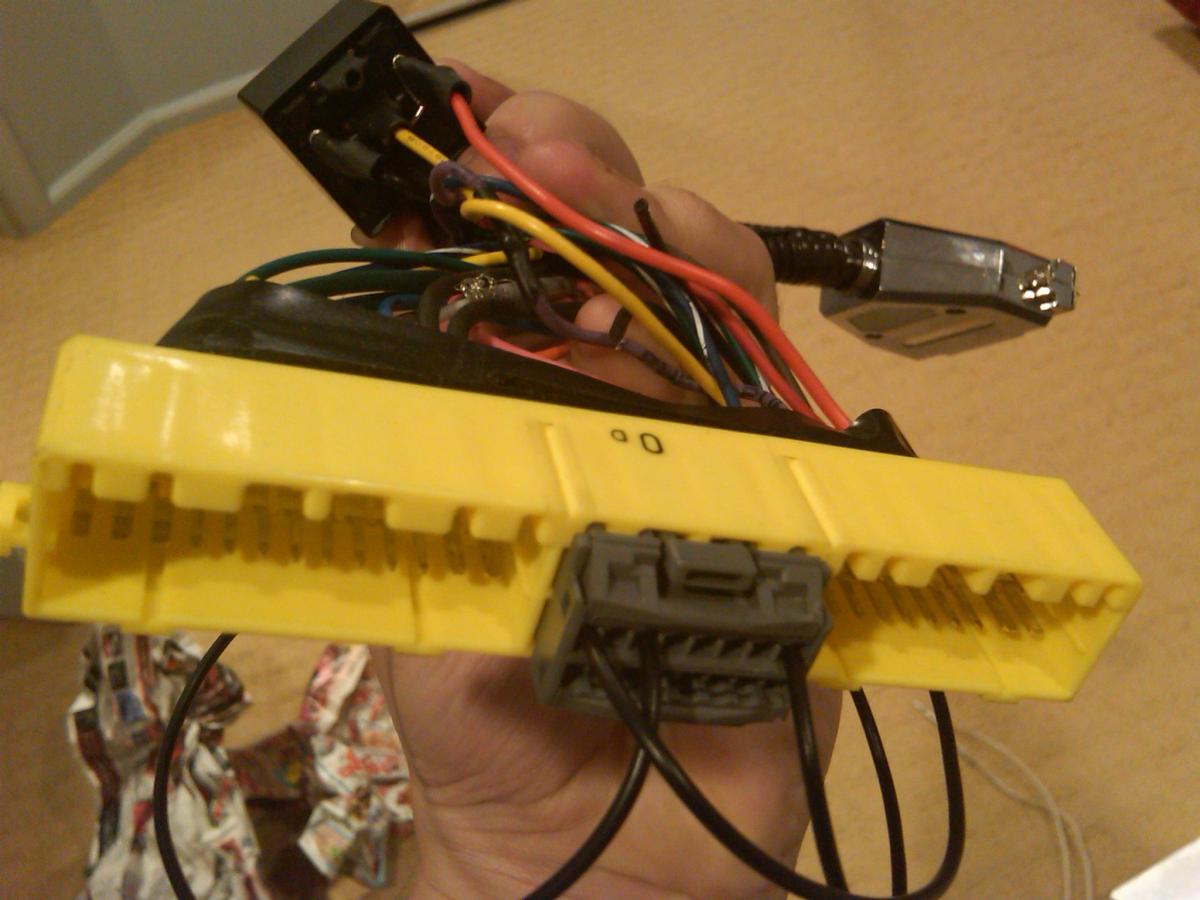

Just bought it from a member here. Want to know if it looks right. I am a little unsure about the harness specifically. It has some small black thing attached to it that I have never seen before. Am I crazy or just a megesquirt noob Also there is a small piece already attached in the harness. Is that normal too? Also, is there any way to attach the MS to my comp just to see if it is working properly or do I have to wait any install it? Thanks in advance everyone. Your are appreciated.
Attached Thumbnails
Does this look right?-megasquirt-1.jpg   Does this look right?-megasquirt-harness.jpg   Does this look right?-megasquirt-harness-2.jpg
1stproject is offline   Reply With Quote
Old 12-03-2009, 08:51 AM   #2
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

The black tumor is the AC circuit.
gospeed81 is offline   Reply With Quote
Old 12-03-2009, 09:21 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

it's a relay that will turn off the a/c once you hit a certain tps, rpm, or etc. (whatever parameter is setup).

MS and harness were built by yours truly.

hose coming out of the MS, is just a hose. pull it off and run a new vacuum line to it.
Braineack is offline   Reply With Quote
Old 12-03-2009, 01:26 PM   #4
Senior Member
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

You need a stim to test it, or at least 12V power to the unit and a serial cable connected to your computer. It won't show anything interesting without the stim, though, just that the processor works and you can connect to it.
