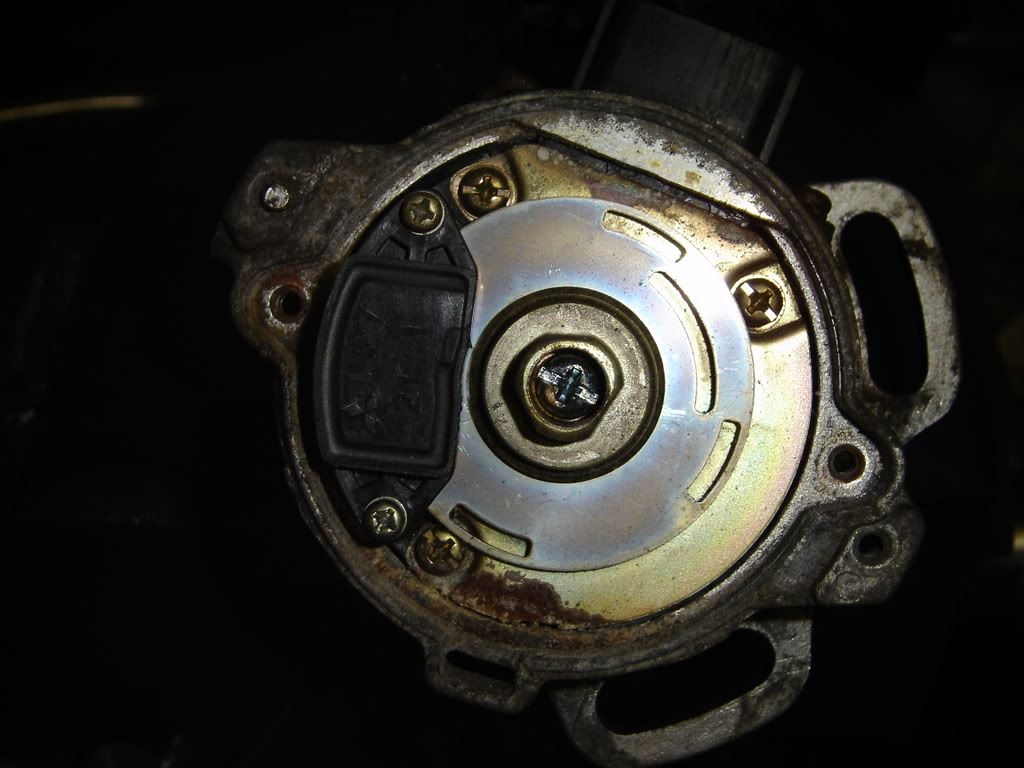

I took a picture of my progt disty. My question is: does it looks the same as 1.8L/1.6L miata?
Name:  distyprogt90.jpg
Views: 1
Size:  100.3 KB
mazdasly75 is offline   Reply With Quote
Old 03-07-2007, 01:35 PM   #2
Junior Member

Join Date: Aug 2006
Location: Ridgecrest, Ca
Posts: 308
Total Cats: 0
Default

It looks similar to the pictures I've seen of the 94-97 cam/crank position sensor.

Thats from a distributor?
arga is offline   Reply With Quote
Old 03-07-2007, 04:11 PM   #3
Junior Member

Join Date: Aug 2006
Location: Ridgecrest, Ca
Posts: 308
Total Cats: 0
Default

It might be the the 1.6 version. I can't remember which one has the optical sensor.
arga is offline   Reply With Quote
Old 03-07-2007, 06:20 PM   #4
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

Looks like a 1.6 CAS, I think. Never actually taken mine off.

yep: http://members.aol.com/solomiata/Fuel-elec.html
Al Hounos is offline   Reply With Quote
Old 03-07-2007, 11:38 PM   #5
Newb
Thread Starter

Join Date: Feb 2007
Location: Qc, Canada
Posts: 43
Total Cats: 0
Default

Thanks guys,

Al, your link provide sweet info. The 1.6 miata has 2 slot in the cylinder identification, while proGT90 has only one. Also it says the NE signal is triggered at 70deg wich should simplify the setting. I tired a 60-63 deg and I was getting pre-detonation, lol.

Another difference is the G signal is actually 5V....and I installed a 5V pullup, I don't know how it influence the signal?

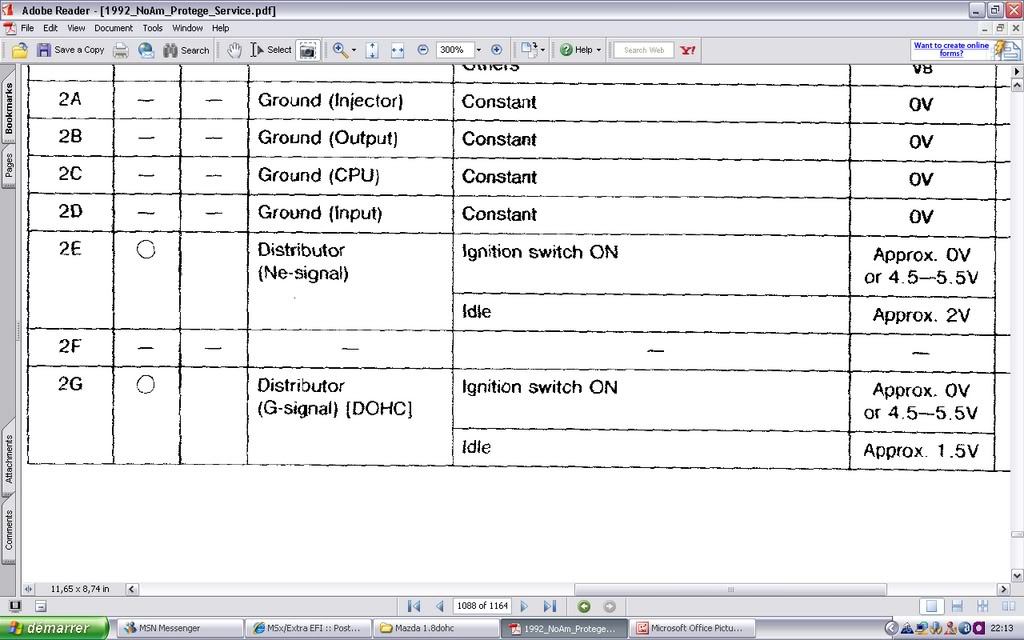

right from the manual pages, 2E-2G are 5v input in the ecu...someone could take a look to the miata manual??
Name:  distymanualpinout.jpg
Views: 1
Size:  127.2 KB

Last edited by mazdasly75; 03-07-2007 at 11:49 PM.
mazdasly75 is offline   Reply With Quote
Old 03-08-2007, 12:01 AM   #6
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

ah, figured the slot in your pic was covered by the sensor. the miata cas has the same voltages.
Al Hounos is offline   Reply With Quote
Old 03-08-2007, 12:16 AM   #7
Newb
Thread Starter

Join Date: Feb 2007
Location: Qc, Canada
Posts: 43
Total Cats: 0
Default

I wonder why have to build a 5v pullup to the 2nd trigger, when it's already a 5v signal then??!

From another angle:
Name:  distyproGToffset.jpg
Views: 1
Size:  51.7 KB
mazdasly75 is offline   Reply With Quote
Old 03-08-2007, 02:36 AM   #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

You will need to run in dizzy mode with this setup, ie 4 main, 1 extra, A=1, B=2, C=3, D=4.

Jim
Reverant is offline   Reply With Quote
Old 03-08-2007, 09:03 AM   #9
Newb
Thread Starter

Join Date: Feb 2007
Location: Qc, Canada
Posts: 43
Total Cats: 0
Default

I've setup this to the megatune page:
A--->1
A return---->0
B--->2
B return--->0

-Wheel decoder
-second trigger enable, what's determine if signal rising or falling, a pullup or not must influence the choice.
mazdasly75 is offline   Reply With Quote
Old 03-08-2007, 03:33 PM   #10
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,441
Total Cats: 198
Default

This is what you should put in:

A--->1
A return---->0
B--->2
B return--->0
C--->3
C return---->0
D--->4
D return--->0

Jim
Reverant is offline   Reply With Quote
Old 03-10-2007, 01:49 AM   #11
Newb
Thread Starter

Join Date: Feb 2007
Location: Qc, Canada
Posts: 43
Total Cats: 0
Default

Jim,

the CKP wheel has 4 slots, but the cam runs half the speed of the crank, so there's 2 pickups signal per revolution, that's how I understand the thing.

Also, I use 2 spark output channel (led 17 and 19) for "A" and "B" in wasted spark mode. So you can't really use "C" and "D" in the equation.

Someone agree with that?
mazdasly75 is offline   Reply With Quote
