Default drifting timing with rpm

I have a 99 turbo runing MS3 Basic stock triger and GM coils, i see an increasing timing discrepancy as rpm rise when i look at timing on the engine with a timing light, i could see it on the dyno when i set all the timing numbers to 12 deg on timing table 1 and did a run and i can see it reving the engine after setting timing to 10deg fixed timing (not the timing table) the timing shift is about 14 deg at 6000RPM and aroud 16 at 7000rpm.
I will test a different cranck sensor tomorrow to see if that changes anything.
Any ideas of what can cause this?
Attached Files
File Type: msq 2015-11-14_19.07.13fixed timing.msq (242.9 KB, 188 views)
File Type: msl 2015-11-14_19.07.57ft.msl (852.9 KB, 74 views)
HHammerly is offline   Reply With Quote
Old 11-14-2015, 10:11 PM   #2
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Here is a utube video of what i see with a timing light when reving the engine with fixed timing set at 19 deg

HHammerly is offline   Reply With Quote
Old 11-15-2015, 12:22 AM   #3
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,877
Total Cats: 344
Default

What do you have the spark hardware latency set to?

--Ian
codrus is offline   Reply With Quote
Old 11-15-2015, 09:49 AM   #4
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

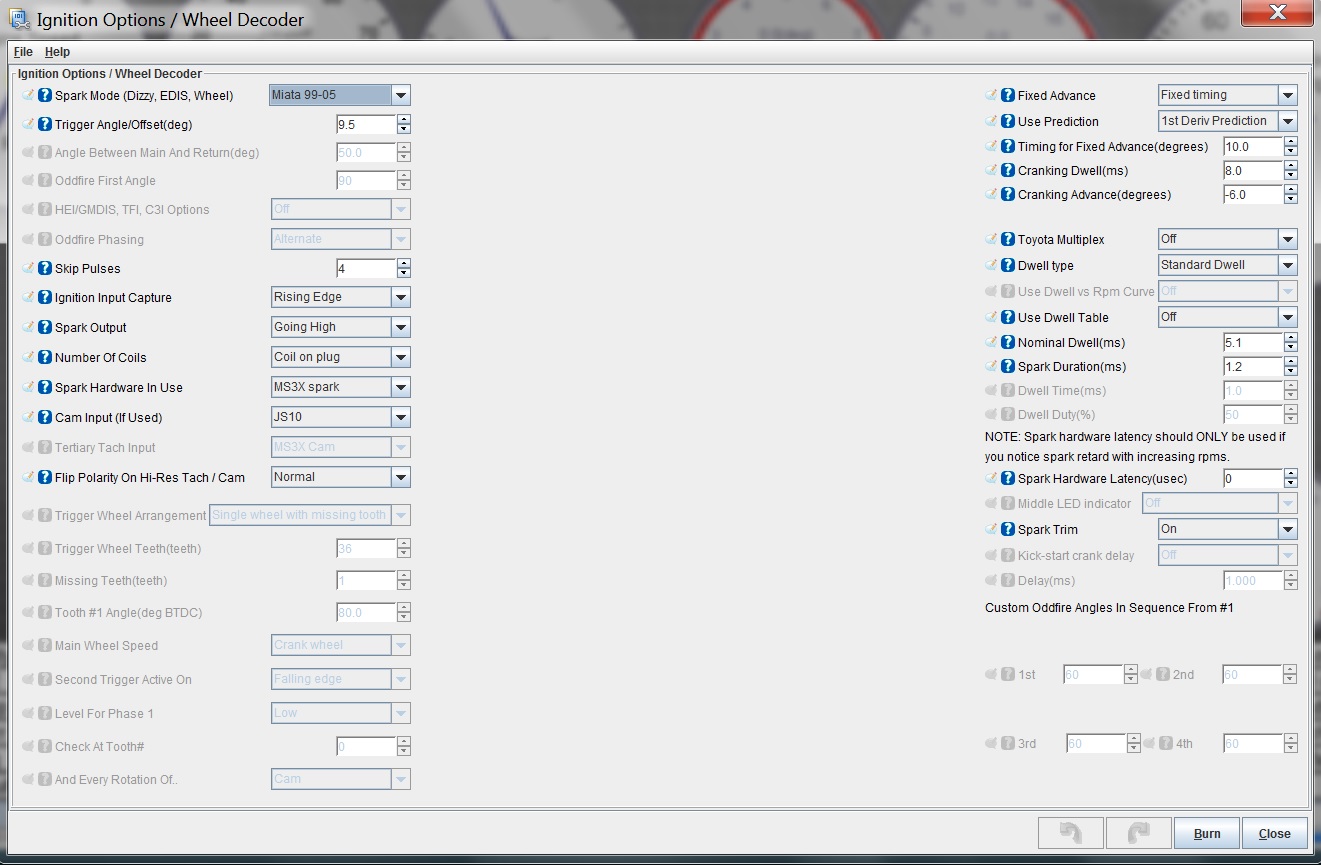

it is set to 0, can i put a negative number there?
Attached Thumbnails
drifting timing with rpm-spark-settings.jpg
HHammerly is offline   Reply With Quote
Old 11-15-2015, 04:17 PM   #5
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Start with 100, see what happens. That's what rev used for a 32-1 wheel I've used.
curly is offline   Reply With Quote
Old 11-15-2015, 05:05 PM   #6
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,322
Total Cats: 1,918
Default

The exact number varies from car to car, but it will always be a positive number (representing electrical delay from crankshaft to ECU) and will generally be in the tens to lower hundreds.

It's a trial-and-error setting.
Joe Perez is online now   Reply With Quote
Old 11-15-2015, 05:52 PM   #7
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Thanks, i will test it tonight
HHammerly is offline   Reply With Quote
Old 11-15-2015, 06:14 PM   #8
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

I progresevelly changed and burned with each change the spark latancy from 0 to 255 (the maximum) with fixed timing set to 10 BTDC, the timing still advances with rpm from 10 at idle to arownd 20 BTDC at 6000rpm, there did not seem to be a difference as i changed the latency number, my tuner said that some cars have this issue and is caused by sensor variation, he dos say that this is the only Miata he has seen with this issue.
HHammerly is offline   Reply With Quote
Old 11-15-2015, 06:55 PM   #9
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Chiming in, as it's definitely the first time I see it as well.

I would start by updating to the latest stable firmware, which is 1.4.0.

The latency is only used if the timing retards, not if it advances.

Also, this might seem silly, but do try with a different timing light as well.
Reverant is offline   Reply With Quote
Old 11-15-2015, 07:02 PM   #10
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,322
Total Cats: 1,918
Default

Quote:
Originally Posted by Reverant View Post
The latency is only used if the timing retards, not if it advances.
Just noticed that myself.

Strange happenings afoot. Prediction?
Joe Perez is online now   Reply With Quote
Old 11-15-2015, 08:27 PM   #11
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Thanks everybody, i will try a diferent timing light, pickup sensor, and the latest firmwere, i am still runing 1.4 alpha 9 that Scott Clark from DYI installed before tuning my car earlier this year.
HHammerly is offline   Reply With Quote
Old 11-15-2015, 09:57 PM   #12
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Quote:
Originally Posted by Reverant View Post
Chiming in, as it's definitely the first time I see it as well.
Also, this might seem silly, but do try with a different timing light as well.

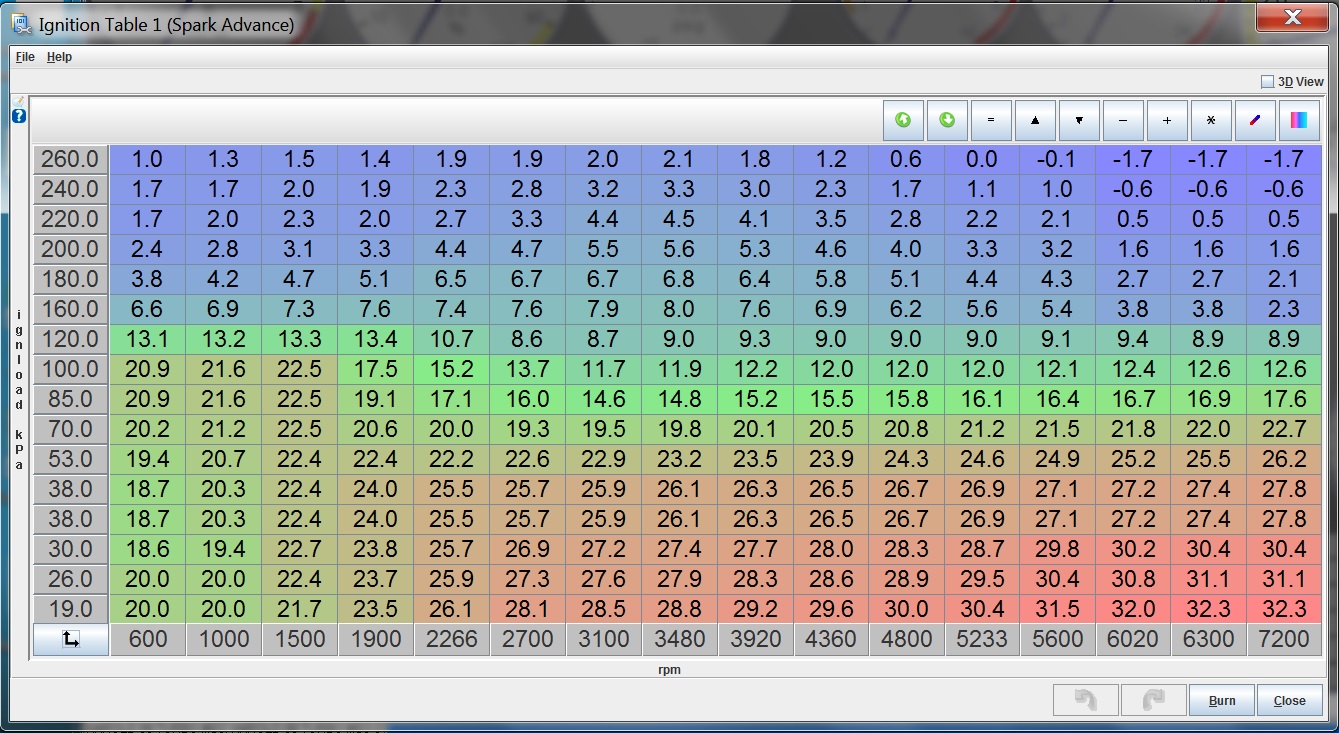

Reverant, I think that the engine is getting the timing i see with the timing light, take a look at the timing table we ended up with (only tuned to 15PSI and it makes 300HP at 14 on 93 octane) but it would have ended up in some big negative numbers timing wise if we would have gone to 18 or 20 PSI.
We were going to tune with the flex fuel sensor and E85 but desided to wait until i can figure out what is going on with the timing.
Attached Thumbnails
drifting timing with rpm-timing-table.jpg
HHammerly is offline   Reply With Quote
Old 11-15-2015, 10:28 PM   #13
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

The spark latency setting is to help control timing retard induced by the vehicle's electronics. It will not correct self advancing ignition in relation to RPM.

You may be triggering off the wrong edge of the tooth. I have seen cases where an unstable edge will cause timing advance with increased RPM.
Ben is offline   Reply With Quote
Old 11-15-2015, 10:51 PM   #14
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

Ben, i am runing OEM triger wheel and sensor, i see that you reccomend 2mm tall teeth and thicker steel with your sensors.
Do you reccoment i install one of your wheels? I dont see a bolt on wheel on your website but would like to know if you have one that you reccomend.
Thanks
HHammerly is offline   Reply With Quote
Old 11-16-2015, 05:12 PM   #15
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Why?

Just try different input capture edges and see if you find a combo that works better than current.
Ben is offline   Reply With Quote
Old 11-16-2015, 05:32 PM   #16
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

All my units work with rising edge and going high. Setting to falling edge will cause the edges to overlap and the car won't start. These units use optocouplers, and I've never seen this issue before.

Which firmware are you on right now?
Reverant is offline   Reply With Quote
Old 11-16-2015, 06:20 PM   #17
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

I am runing 1.4 alpha 9 that Scott installed before tuning the car earlier this year
HHammerly is offline   Reply With Quote
Old 11-17-2015, 04:01 AM   #18
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Alpha firmware should NEVER be installed if you don't have a reason to try it. Scott should know that. Upgrade to 1.4.0 or downgrade to 1.3.4.
Reverant is offline   Reply With Quote
Old 11-17-2015, 06:08 AM   #19
Senior Member
Thread Starter
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

The reason for loading it before the tuning was that we wanted to run the flex fuel sensor and E85 blending maps during that session and 1.4 had some new features in this area.
I will load 1.4.0 and see if that changes anything
HHammerly is offline   Reply With Quote
Old 11-21-2015, 05:58 AM   #20
Junior Member

Join Date: Aug 2006
Location: Cedar City, UT
Posts: 228
Total Cats: 4
Default

Quote:
Originally Posted by Reverant View Post
All my units work with rising edge and going high. Setting to falling edge will cause the edges to overlap and the car won't start. These units use optocouplers, and I've never seen this issue before.

Which firmware are you on right now?
Is this true with your MS2's as well?

Mine is showing falling edge and going high (inverted) and I've had issues cranking forever but once it starts it runs ok. That is what it was on default when I got it.
