Default E30 TPSSS MEGASQUIRT PNP HELPPPP



Can somone please help me figure out what wire goes to what? I am splicing into the stock harness.... and need to figure out what is ground, what is ref, and what is signal..... Thanks in advance!!!! Oh and if there is no way to tell can somone explain in depth how to test each wire and how i will know? Thanks!1
Attached Thumbnails

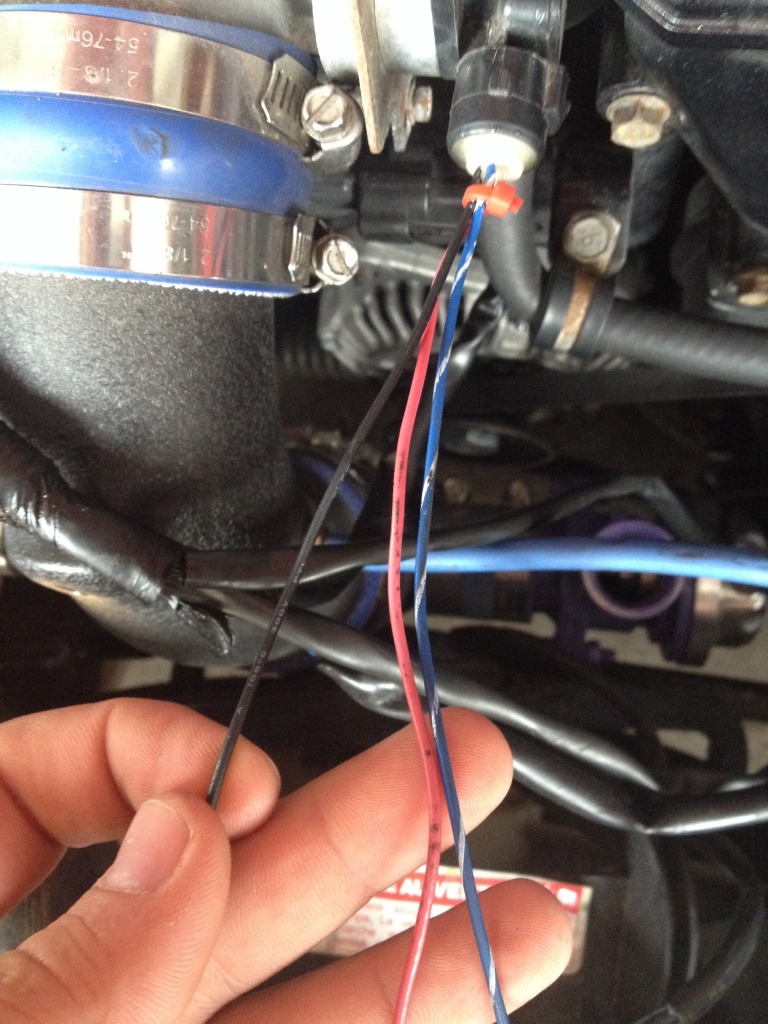

E30 TPSSS MEGASQUIRT PNP HELPPPP-a7a28fd7-0e9c-46f2-ab89-003d285fa142-10348-000004c7b344c4ca_zpsc446e3bc.jpg
slammedkouki is offline   Reply With Quote
Old 10-26-2013, 07:13 PM   #2
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Easy to do if you have a multimeter.
Look for 2 wires that have no change in resistance when you move the throttle, they will be Vref and GND.
The 3rd wire is your signal. -> you've found the signal wire
Now measure the resistance between the signal wire and any of the 2 other wires. If the resistance goes up as you open the throttle, than you've found the Vref wire.
The 3rd wire is easy
WestfieldMX5 is offline   Reply With Quote
Old 10-26-2013, 09:11 PM   #3
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

What he said ^ It's always best to verify, but I'll go out on a limb and say:

black: ground
red: vref
blue/white: signal

Either way you should report back with your findings for future reference.
