Default Easy peasy pins for wiring harness

If like me you want to use connectors in the engine bay but dont want to hack up the loom then this is an easy way of making some pins for the various sockets encountered.

Its fairly self explanatory.

Name:  SNB11415.jpg
Views: 1
Size:  221.0 KB

Name:  SNB11416.jpg
Views: 1
Size:  214.2 KB

Name:  SNB11418.jpg
Views: 1
Size:  194.1 KB

Name:  SNB11419.jpg
Views: 1
Size:  78.6 KB

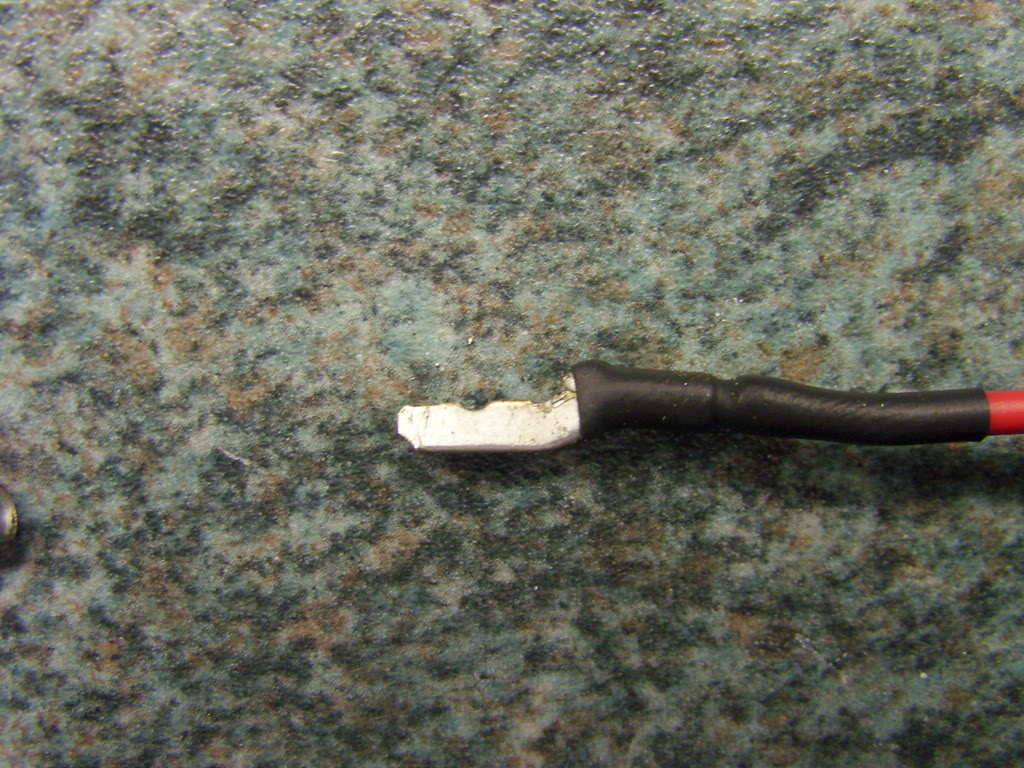

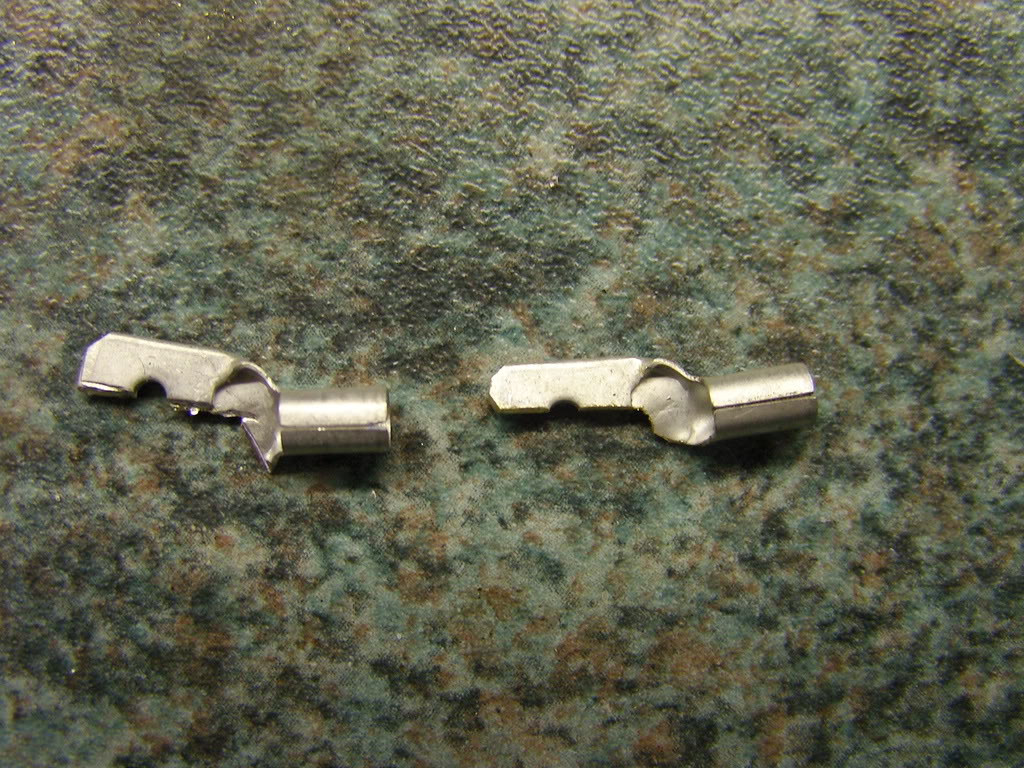

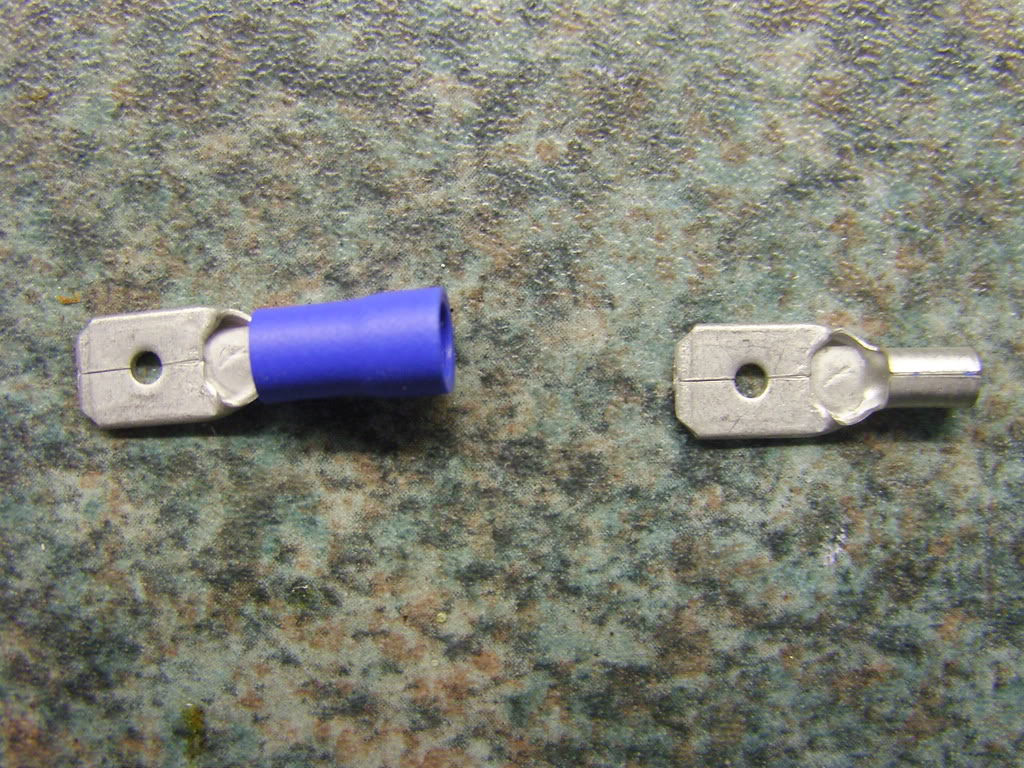

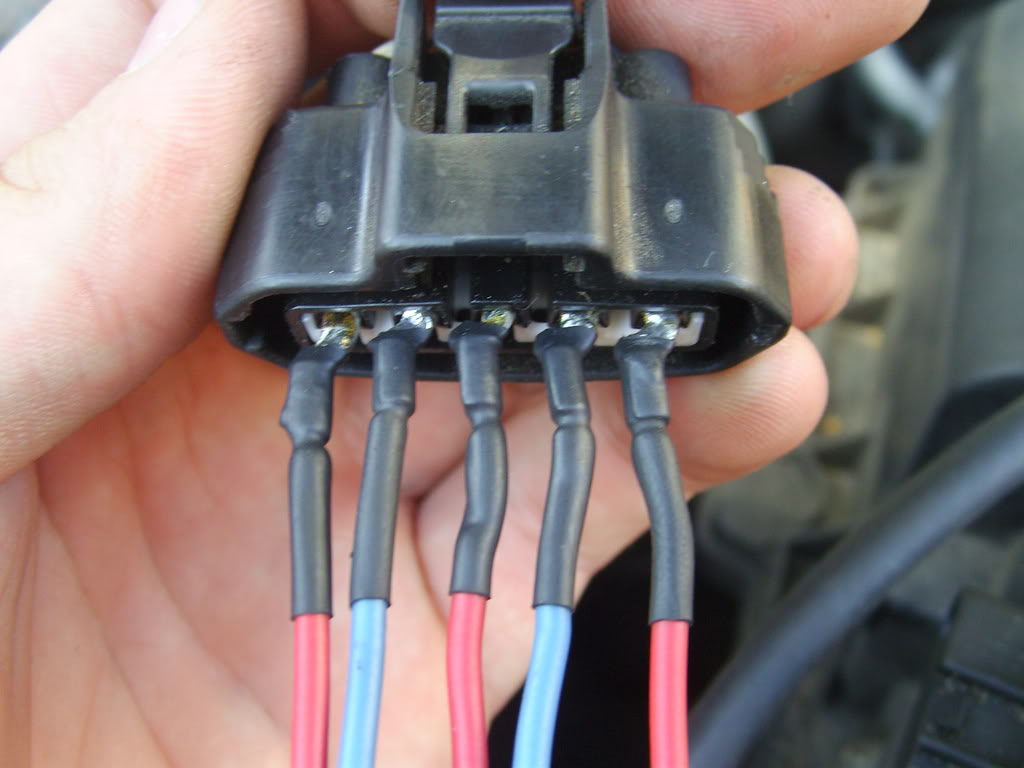

I just cut half of the spade away with side cutters and then file it untill it fits. Then a bit of solder and some heatshrink.
Duckie_uk is offline   Reply With Quote
Old 07-25-2008, 08:12 AM   #2
Elite Member
iTrader: (5)

Atlanta93LE's Avatar

Join Date: Sep 2006
Location: Marietta, GA
Posts: 2,198
Total Cats: 1
Default

Very nice. Snug fit?
Atlanta93LE is offline   Reply With Quote
Old 07-25-2008, 08:18 AM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Apr 2008
Location: Bristol
Posts: 442
Total Cats: 0
Default

No way they are coming out without someone yanking on them. The fit can be a little too tight, so just file em till they slot in nicely.
Duckie_uk is offline   Reply With Quote
