Default EE Question -- Some Kind of Circuit Interference with AC Clutch Spark Table Switching

I recently made a software mod to fix my 1st gen MSPNP AC idle once and for all:

https://www.miataturbo.net/megasquir...de-hack-73751/

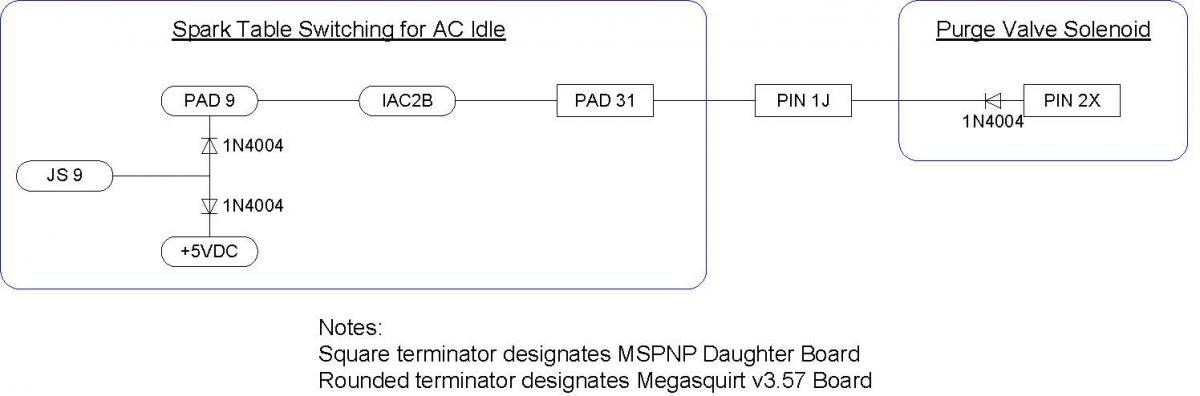

While I was working on implementing this, I discovered that the MSPNP was not doing spark table switching as expected. When I first installed the MSPNP, I implemented spark table switching and verified operation. At a later date, I also implemented the purge valve solenoid mod. These two circuits looked like this (1J to AC Clutch, 2X to Purge Valve Solenoid):



Long story short, when I removed the purge valve solenoid circuit from 1J, spark table switching began working again. This is OK because with the code hack I don't need the purge valve anymore, but it bothers me that I don't know why there was interference. It looks like it should have worked OK. ??
Attached Thumbnails
EE Question -- Some Kind of Circuit Interference with AC Clutch Spark Table Switching-question.jpg
hornetball is offline   Reply With Quote
Old 07-09-2013, 01:21 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

why do you need spark table switching for a/c?
Braineack is offline   Reply With Quote
Old 07-09-2013, 01:27 PM   #3
Elite Member
Thread Starter
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,010
Total Cats: 583
Default

Quote:
Originally Posted by Braineack View Post
why do you need spark table switching for a/c?
It's for AC idle where I run more timing in the idle region. One of the recommended methods from the sticky. My code hack also uses the signal to increase the IACV DC.
