Default Electronics are clearly NOT my specialty. MS was worky, now no worky.

As the title states, Electronics are not my specialty at all. I was working today to do a few things to the car. I was trying to get my cops running in sequential (Couldnt get spark in output test mode) Tried to get my variable tps to work. and finally I tried to get my fan control to work again. When I tried my fans, I was testing for voltage with the car on, I ended up accidentally touching the 12v in to the fan output, either that or 12v to IAC1B. Im not entirely sure which two touched, all I know is that two wires touched, and one of them was the 12v. heard a bit of a pop. and the MS shut down. The computer was connected at the time, and went offline as soon as this happened. I cannot get the computer to reconnect to MS.

The LEDs do not turn on currently. I am still getting 12v in at the harness. I pulled the ecu apart and see nothing blown, but I havent gotten the chance to check anything with a meter yet, mainly because Im not sure where to start.

Anyone have any thoughts of what to do or check?

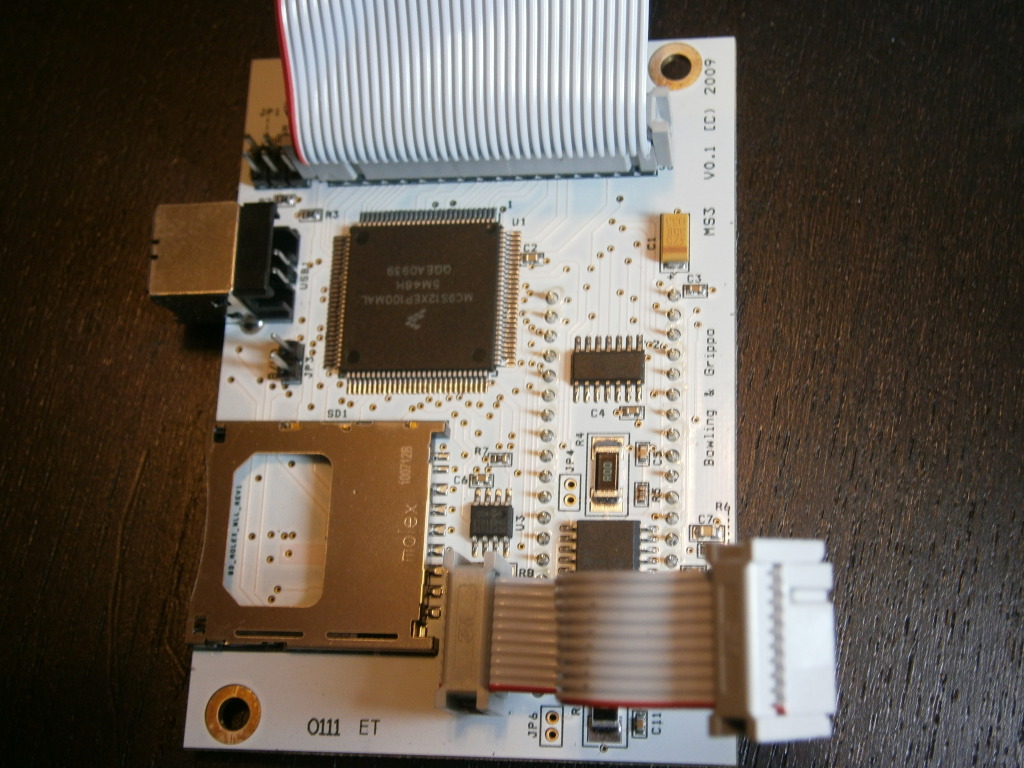

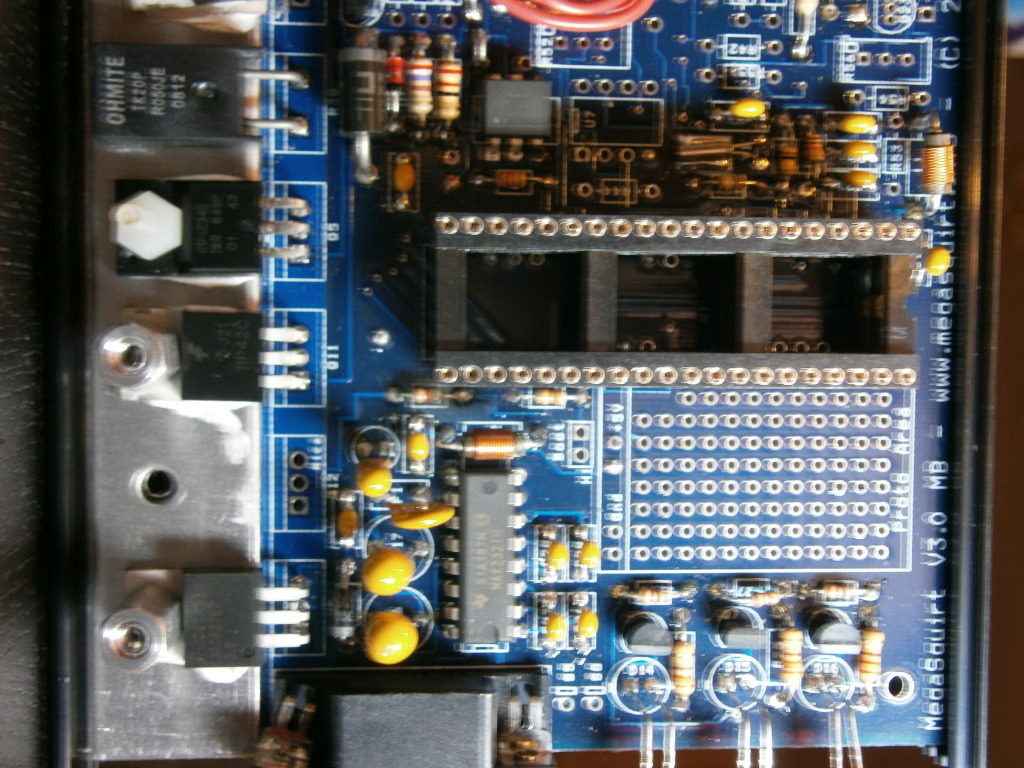

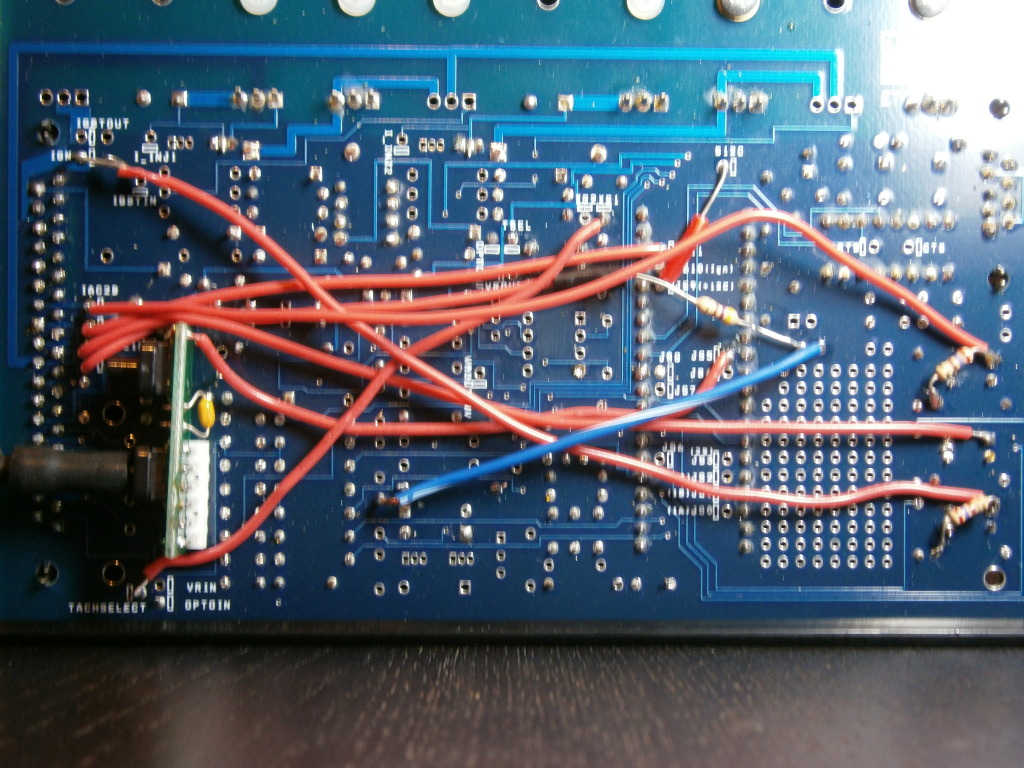

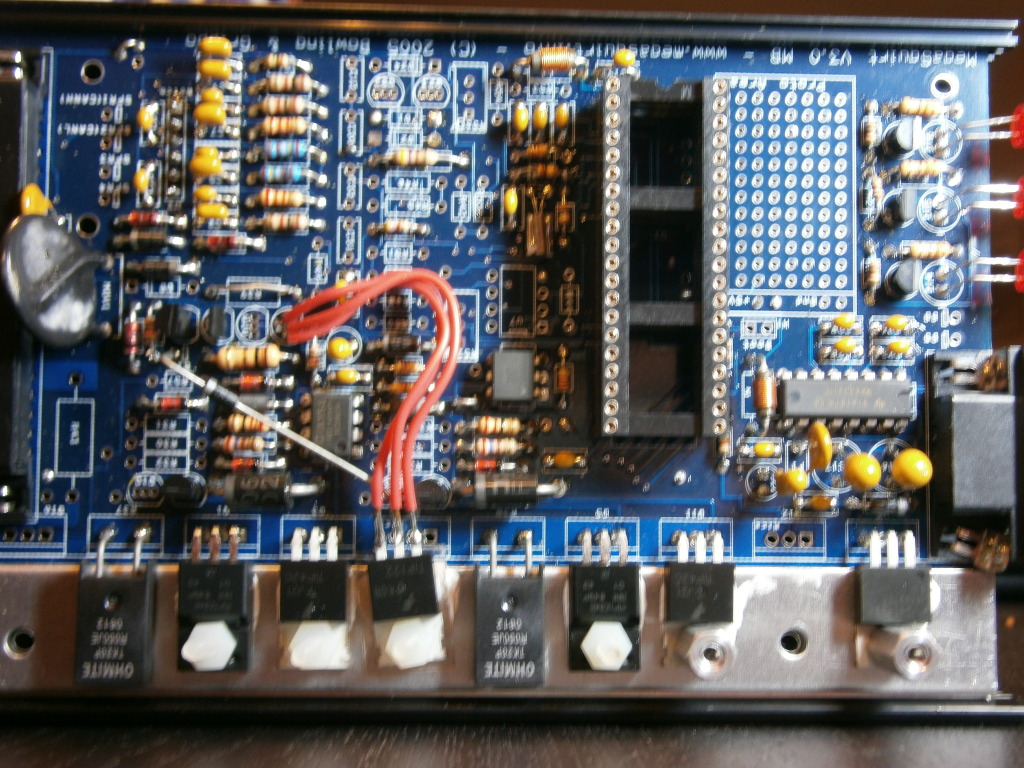

Anyways, pics below:









Attached Thumbnails
Electronics are clearly NOT my specialty. MS was worky, now no worky.-p1290169.jpg   Electronics are clearly NOT my specialty. MS was worky, now no worky.-p1290168.jpg   Electronics are clearly NOT my specialty. MS was worky, now no worky.-p1290166.jpg   Electronics are clearly NOT my specialty. MS was worky, now no worky.-p1290164.jpg   Electronics are clearly NOT my specialty. MS was worky, now no worky.-p1290163.jpg


Last edited by Gryff; 01-31-2012 at 12:48 PM.
Gryff is offline   Reply With Quote
Old 01-30-2012, 11:55 AM   #2
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

First see if you can connect with a laptop - getting the LED spark outputs working should be a bit further down on your priority list.
Matt Cramer is offline   Reply With Quote
Old 01-30-2012, 01:48 PM   #3
Senior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

I can try again once I get back to the car. but at the time, I tried to connect to the ecu, and the laptop would not connect. When it happened the ecu was connected to the laptop, and TS went offline.
Gryff is offline   Reply With Quote
Old 01-30-2012, 02:31 PM   #4
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

Quote:
Originally Posted by Gryff View Post
I can try again once I get back to the car. but at the time, I tried to connect to the ecu, and the laptop would not connect. When it happened the ecu was connected to the laptop, and TS went offline.
If it won't connect, first try reloading firmware.
Matt Cramer is offline   Reply With Quote
Old 01-30-2012, 02:39 PM   #5
Senior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Ok, The car is at my friends house, which I cant get to until tomorrow at the earliest. Are there any other things to check after trying to reload firmware, that way I have a list of things to check
Gryff is offline   Reply With Quote
Old 01-31-2012, 12:19 PM   #6
Senior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Bump,

Anyone have any other suggestions, I haven't been to the car yet. but I don't want to go all the way to the car, just to try reloading the firmware and have it not work afterall. If there is a list of things I can check while im at the car, I feel like I would at least be able to narrow things down, in the event that the firmware isnt the issue.

Also Matt, Just to make sure we are on the same page, The car was running prior to this, I was mentioning the spark outputs because it was something I was messing with a few minutes prior to having issues. Mentioning the leds is just me saying that the leds that turn on when the ms is powered up arent turning on currently.
Gryff is offline   Reply With Quote
Old 01-31-2012, 01:34 PM   #7
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,266
Total Cats: 51
Default

You can also try this voltage check to look for short circuits: power up the Megasquirt on a Stimulator or on the car and check the following points for voltage with a multimeter.

You should find the same voltage as the battery voltage on the following points: S12, S12C, the center legs of Q9 and Q12, the left (non-banded) end of D3, the left leg of U5, and the left (banded) end of D9.

You should have 5 volts at the following points: S5, the two +5V holes in the proto area, the right (non-banded) end of D9, the right leg of U5, the left (banded) end of D19, and pins 1, 20, and 31 of the CPU.

I do not, however, have a flowchart for how to follow this check up at present.
Matt Cramer is offline   Reply With Quote
Old 01-31-2012, 01:44 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

You need to mail the daughterboard to Peter Florance and give him lots of money to replace the CPU chip and the CANbus driver.

There's little doubt in my mind that you blew it.
Braineack is offline   Reply With Quote
Old 01-31-2012, 03:00 PM   #9
Senior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Thanks matt! I will give that a shot as well!

Mine neither scott, but I want to be 100% sure before I take any action.
Gryff is offline   Reply With Quote
Old 01-31-2012, 03:24 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

If you touched 12v to the wire going back to JS11, the cpu is fried.
Braineack is offline   Reply With Quote
Old 01-31-2012, 04:19 PM   #11
Senior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

It was JS0/IAC1A, If I recall correctly.

Regardless, Im going to do these tests just to make sure, And im taking my 1.6 injectors and ecu to get the car drivable at the very least.
Gryff is offline   Reply With Quote
Old 01-31-2012, 04:30 PM   #12
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by Gryff View Post
It was JS0/IAC1A, If I recall correctly.
If you touched 12v to pretty much any wires that directly interfaces with the CPU, the CPU is fried.

Unfortunately, microprocessors just aren't very tolerant of voltages higher than VDD on their I/O pins. This is why most (all?) of the external analog and switch-sensing circuits you see in the MS "hacks" section have series resistors and zener diodes in them- to protect the ECU from this specific condition.
Joe Perez is offline   Reply With Quote
Old 01-31-2012, 04:37 PM   #13
Senior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Quote:
Originally Posted by Joe Perez View Post
If you touched 12v to pretty much any wires that directly interfaces with the CPU, the CPU is fried.

Unfortunately, microprocessors just aren't very tolerant of voltages higher than VDD on their I/O pins. This is why most (all?) of the external analog and switch-sensing circuits you see in the MS "hacks" section have series resistors and zener diodes in them- to protect the ECU from this specific condition.
This is pretty much what I was thinking as soon as I heard the little pop. The big thing I wasnt sure of was what component exactly would be taking the hit.
The good news is I have a few people local that possibly have spare daughtercards. I may just get one from one of them.
Gryff is offline   Reply With Quote
Old 01-31-2012, 04:43 PM   #14
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

If that's the case I call dibs on the dead one
Braineack is offline   Reply With Quote
Old 01-31-2012, 04:58 PM   #15
Senior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Would you really have a use for it?

Edit: Random thought, I cant find the little terminator plug for connecting to innovate (change back to narrow band signal for stock ecu) Does anyone have any experience with connecting to innovate with just the one connector and no terminating plug?
Gryff is offline   Reply With Quote
Old 01-31-2012, 05:00 PM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

yeah, I'd buy a new cpu/canbus for it and try to repair it myself and then bribe Ken to load the boot on it.
Braineack is offline   Reply With Quote
Old 01-31-2012, 05:06 PM   #17
Senior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

Lars was telling me that one could do that, or send it to http://www.pftuning.com/

But he said that cost you quite a bit of money back when ms3 was brand new.
If I get a new board im sure we could figure something out.
Gryff is offline   Reply With Quote
Old 01-31-2012, 05:09 PM   #18
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

Quote:
Originally Posted by Braineack View Post
If that's the case I call dibs on the dead one
Damn you. I wanted the dead one. :(
Joe Perez is offline   Reply With Quote
Old 01-31-2012, 05:16 PM   #19
Senior Member
Thread Starter
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

it goes to the highest bidder!

lol.

in all seriousness, I cant find my damn terminator plug for the innovate and its pissing me off.....
Gryff is offline   Reply With Quote
Old 01-31-2012, 07:37 PM   #20
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

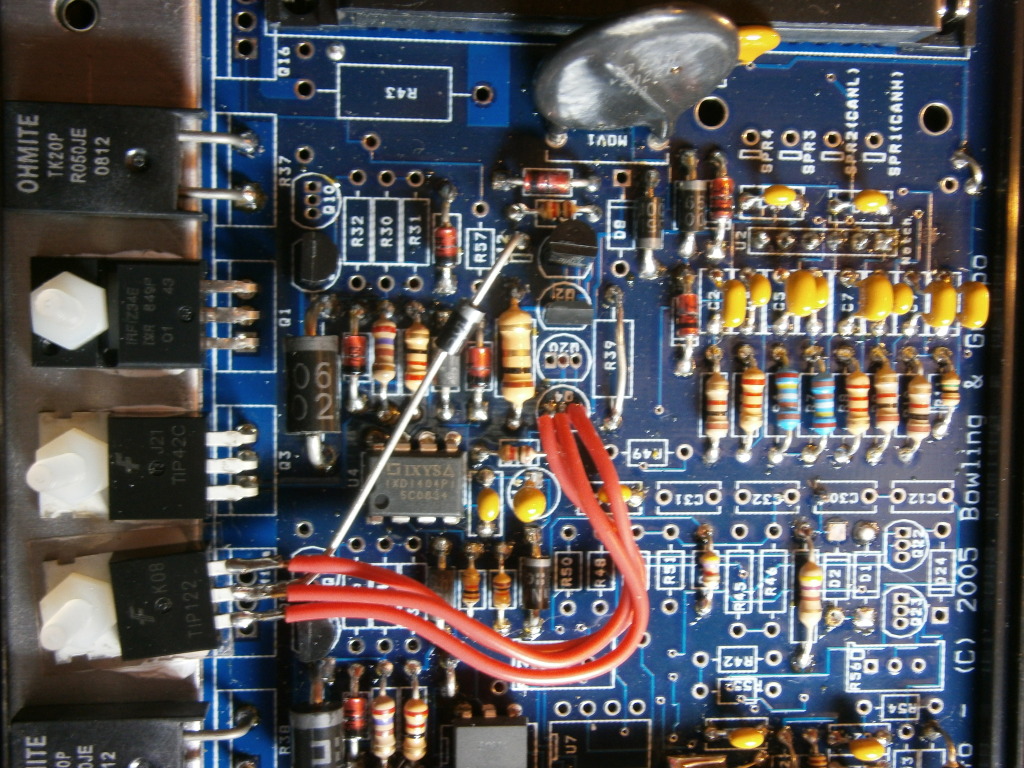

Not sure if anyone noticed, but MOV1 looks pretty burnt! Isn't that what dumps the voltage in case of a surge?
bcrx7 is offline   Reply With Quote
