Default Fuel economy and trigger wheel offset

I have been getting poor fuel economy. Running NA, I have it tuned so that normal driving almost never gets richer than 14.7 and often is at 16:1. I use the diyautotune base spark map and have been running aggressive EGO correction. Still, I am getting about 10 - 20% fewer miles per gallon.

So looking through my msq to see what (if anything) could be causing this, i noticed that my spark settings are 55 +22.5. I must have done this because the stock ECU at 10* Base timing did not line up perfectly with a trigger offset of 77 or 78. Could this trigger offset be causing problems?

Last edited by akaryrye; 02-21-2009 at 05:04 AM. Reason: No replies, edited title.
akaryrye is offline   Reply With Quote
Old 02-21-2009, 05:05 AM   #2
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

nobody has any idea if this would make a difference?
akaryrye is offline   Reply With Quote
Old 02-21-2009, 09:26 AM   #3
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

The trigger offset is just an electronic version of twisting the CAS. Seems like you should have been able to get it right at 77 or 78, but if 55 +22.5 gets you at 10 degrees with "10" in the Fixed Angle box, then you should be good to go.

What does your spark map look like? Could it be that you're simply not running enough advance there?
Joe Perez is offline   Reply With Quote
Old 02-21-2009, 11:34 AM   #4
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Ok, so its just as i thought ... makes no difference how I get to the correct trigger angle. Its not that it wasn't good enough with 77 or 78, just was better with 55 +22.5.

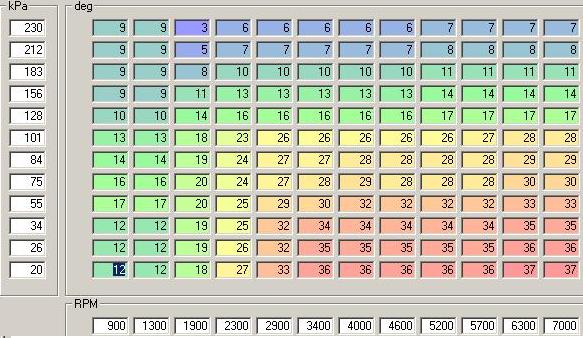

So here is the ignition advance table I have been running. It is the base map from the MSPNP. Also attatched is my msq which reflects changes i have made recently to the spark map in the idle and high vacuum areas.
Attached Thumbnails
Fuel economy and trigger wheel offset-ign-table.jpg
Attached Files
File Type: msq Ryan 230cc NA.msq (35.2 KB, 66 views)
akaryrye is offline   Reply With Quote
Old 02-22-2009, 12:54 PM   #5
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

145 miles of 70% highway / 30% light canyon driving with very little wide open throttle got me 21mpg yesterday. Oh well, i guess it could be worse ... its just that on the OEM ecu I would have gotten more like 25mpg
akaryrye is offline   Reply With Quote
Old 02-22-2009, 06:08 PM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

what do your logs suggest? I think you can run more spark advance in the cruise cells too...not as much as mine of course, but a few degrees more.

Spark plays a huge role in fuel economy. I advanced on my stock 1.6 and scored roughly 5mpg in highway driving.
hustler is offline   Reply With Quote
Old 02-22-2009, 08:09 PM   #7
Junior Member
iTrader: (3)

Join Date: Jul 2008
Location: Pinellas park Fl
Posts: 308
Total Cats: 1
Default

I got 21.9 out of my last tank on MS about the same driving as yours.
92Miata is offline   Reply With Quote
Old 02-22-2009, 08:17 PM   #8
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

I really should get a knock sensor and an egt to really get my map dialed in. I guess I am just a bit timid when it comes to tuning spark, but ill try adding a few degrees to that map above 2900 and below 75kpa
akaryrye is offline   Reply With Quote
Old 02-22-2009, 08:19 PM   #9
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Weird deal. During a 180 mile trip that included 5 runs of near 2 min autocross runs I got 25 mpg. This is running 550cc injectors and I was seeing like 11.5:1 in boost, peak boost of 14 psi.
cjernigan is offline   Reply With Quote
Old 02-22-2009, 08:21 PM   #10
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

egg is best but the headphones work well too and are a must for tuning.
hustler is offline   Reply With Quote
Old 02-23-2009, 07:54 PM   #11
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Maybe Ill just get a det can then ... or make one. Not like I am going to be rolling around wearing that crap all the time.
akaryrye is offline   Reply With Quote
Old 02-23-2009, 08:03 PM   #12
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

I've got the same issue related to timing. Fuel economy sux nuts.

I've noticed that compared to the stock ecu, the car pulls hard as **** down low scootin' around town but up high (getting on the freeway) it seems to run out of breath. You notice this?

I've just been assuming it wont make a difference when my turbo goes on this weekend.
wayne_curr is offline   Reply With Quote
Old 02-23-2009, 08:06 PM   #13
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Hustler, is there a writeup on how you built yours? Is it just simply a hose attatched to the block?
akaryrye is offline   Reply With Quote
Old 02-23-2009, 08:07 PM   #14
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

I have a feeling that my fuel economy is largely related to ignition timing, so I will have to play with it a bit. Oh an I forgot to mention, that I have 3.9 gears in the differential so that is 5% difference. That means that my trip was actually closer to 23mpg which is closer. I know that on the stock ecu though, i was getting 20mpg around town and 27mpg on the highway. I would like to get back to that.
akaryrye is offline   Reply With Quote
