Default fuel injectors, pressure, power, and tuning

I'm going to the dyno hopefully for the last time tomorrow. Currently I'm at 67% duty at 12psi with 550cc injectors, walbro 255 in-tank and unknown fuel pressure...and not sure how much power thats making but not much. My goal is 250whp with some head-room, I'd like to see a 300whp pull so I can crank up the boost when I get the 6-speed in.

will I need more fuel pressure?

Last edited by hustler; 02-06-2009 at 12:04 PM.
hustler is offline   Reply With Quote
Old 02-06-2009, 11:52 AM   #2
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

You got a 190HP? If so, you got the fuel system for 300whp. But that's the upper limit. With rich AFR's, you may not hit 300whp. A RRFPR in conjunction may be needed.
patsmx5 is offline   Reply With Quote
Old 02-06-2009, 11:52 AM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

you should have enough fuel to see 300rwhp.
Braineack is offline   Reply With Quote
Old 02-06-2009, 12:12 PM   #4
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
you should have enough fuel to see 300rwhp.
I had a bad fuel pump that wouldn't go north of 200whp at 100% duty. I put the 255 in and duty dropped to 67% or whatever at 12psi (overboost)...the motor has loosened up but considering that 85% duty is actually 100% open, do you still think your assumption is reasonable? I'll take it up to 18psi or 301whp, whichever comes first. I'm considering upping fuel pressure tonight. I'm putting afr in boost at 11.5:1
hustler is offline   Reply With Quote
Old 02-06-2009, 12:16 PM   #5
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

With injectors, it's like:

Duty cycle..... Actual duty cycle
0...................0
10..................10
etc....
75....................75
80....................80
83....................83
84.....................84
85....................85
86....................86
87.....................100
88.....................100
100.....................100

You reach a point where it can't open and then close, and it just stays open. 80-85 is the limit. I would tune for higher than 80% as to still have a spec of headroom. You don't want to tune it for 90% duty cycle (really 100%) and then on a warm day it runs 86% and fuel actually falls to 86%.
patsmx5 is offline   Reply With Quote
Old 02-06-2009, 12:24 PM   #6
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by patsmx5 View Post
With injectors, it's like:

Duty cycle..... Actual duty cycle
0...................0
10..................10
etc....
75....................75
80....................80
83....................83
84.....................84
85....................85
86....................86
87.....................100
88.....................100
100.....................100

You reach a point where it can't open and then close, and it just stays open. 80-85 is the limit. I would tune for higher than 80% as to still have a spec of headroom. You don't want to tune it for 90% duty cycle (really 100%) and then on a warm day it runs 86% and fuel actually falls to 86%.
thanks for driving that home. I won't go north of 85%...or should I drop it back lower? (shouldn't you be concrned with lower temperatures, considering colder air needs more fuel?) Its supposed to be 70* that day, what should I do for max duty?


I think I need to do some logs tonight because after about 500-miles on the new pump, idle AFR went from 14.7 to 12.8:1. Apparently there's a break-in period for Walbro pumps./
hustler is offline   Reply With Quote
Old 02-06-2009, 12:29 PM   #7
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

i'm seeing ~85% duty on rx7 550's at 6800rpm, if that helps. thats at 320whp/325ft-lbs, mid 11's AFR.
therieldeal is offline   Reply With Quote
Old 02-06-2009, 12:33 PM   #8
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by therieldeal View Post
i'm seeing ~85% duty on rx7 550's at 6800rpm, if that helps. thats at 320whp/325ft-lbs, mid 11's AFR.
what fuel pressure?
hustler is offline   Reply With Quote
Old 02-06-2009, 12:37 PM   #9
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

stock FPR, walbro 255 pump. if i prime the pump with the engine off it stays at 43 psi as it should.

i have a fuel pressure gauge on the rail, but i forgot to watch it when i had the thing on the dyno... so i dont know if it's running at exactly 1:1 but it seems to be. i'm running 23psi of boost.
therieldeal is offline   Reply With Quote
Old 02-06-2009, 12:46 PM   #10
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by therieldeal View Post
stock FPR, walbro 255 pump. if i prime the pump with the engine off it stays at 43 psi as it should.

i have a fuel pressure gauge on the rail, but i forgot to watch it when i had the thing on the dyno... so i dont know if it's running at exactly 1:1 but it seems to be. i'm running 23psi of boost.
I have a gt2860rs, so I will most likely make 250whp at 12-16psi...so the regulator is not on my side. I guess I'm a little late to worry about it now.
hustler is offline   Reply With Quote
Old 02-06-2009, 12:56 PM   #11
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

it also put down 275whp last fall at 18psi with a slightly less agressive timing map. the VJ23 is fairly comperable to the 2860... my compressor wheel is 65mm at the exducer. i dont recall the trim at the moment.

i think you will be just fine
therieldeal is offline   Reply With Quote
Old 02-06-2009, 01:17 PM   #12
Elite Member
iTrader: (22)

Join Date: Dec 2006
Location: Sunny Spanish speaking Non US Caribbean
Posts: 3,257
Total Cats: 3
Default

Quote:
Originally Posted by therieldeal View Post
stock FPR, walbro 255 pump. if i prime the pump with the engine off it stays at 43 psi as it should.

i have a fuel pressure gauge on the rail, but i forgot to watch it when i had the thing on the dyno... so i dont know if it's running at exactly 1:1 but it seems to be. i'm running 23psi of boost.
What year is your car?

Built motor?
Rafa is offline   Reply With Quote
Old 02-06-2009, 02:18 PM   #13
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

its a 95 escort gt with a 323 GTR motor. it's "built" from the factory, i'm sure most of you guys have heard of it?
therieldeal is offline   Reply With Quote
Old 02-06-2009, 07:56 PM   #14
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

ok i remembered wrong...

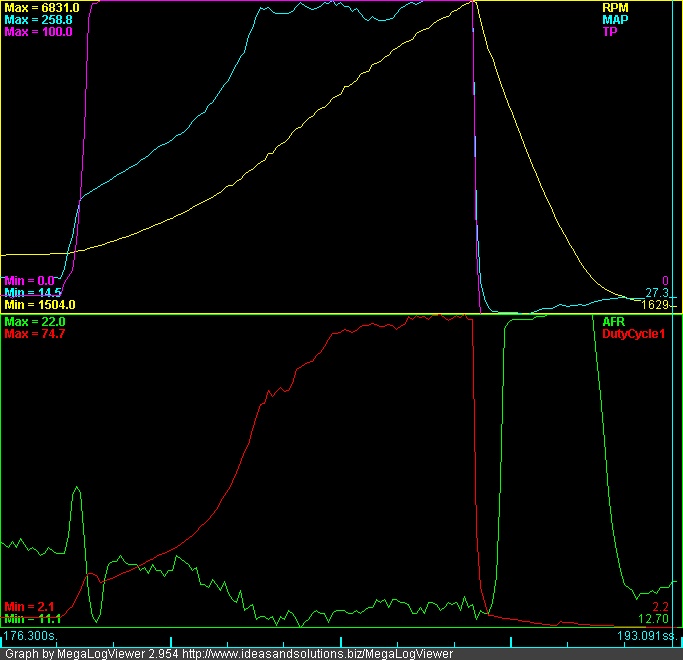

i just opened up the logs from my dyno runs, on both runs i saw a peak of 74% duty cycle.
Attached Thumbnails
fuel injectors, pressure, power, and tuning-graph.jpeg
therieldeal is offline   Reply With Quote
Old 02-06-2009, 08:37 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

258kPa gives me a boner.
Braineack is offline   Reply With Quote
Old 02-07-2009, 12:34 AM   #16
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

yeah, its a good time lol. i just desperately need a stiffer wastegate spring - as you can see in that log my wastegate control sucks even with an EBC.
therieldeal is offline   Reply With Quote
Old 02-07-2009, 01:10 AM   #17
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by therieldeal View Post
yeah, its a good time lol. i just desperately need a stiffer wastegate spring - as you can see in that log my wastegate control sucks even with an EBC.
MBC. Get an external gate, dual port, and MBC. Win Win Win.
patsmx5 is offline   Reply With Quote
Old 02-07-2009, 12:18 PM   #18
Senior Member
iTrader: (2)

Join Date: Oct 2007
Location: Northeastern CT
Posts: 547
Total Cats: 2
Default

i do have a dual port external gate (tial 38mm) with a greddy EBC
therieldeal is offline   Reply With Quote
Old 02-07-2009, 12:35 PM   #19
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Is it setup using the dual port? What spring you running? From my research, a dual port setup and stiff WG spring is the best setup for best spool.
patsmx5 is offline   Reply With Quote
Old 02-07-2009, 12:50 PM   #20
Junior Member
iTrader: (2)

Join Date: Jan 2009
Location: Houston
Posts: 194
Total Cats: 0
Default

Quote:
Originally Posted by therieldeal View Post
i do have a dual port external gate (tial 38mm) with a greddy EBC
Some Greddy EBC's have a setting one for internal wastegate and one for external. Not sure if you were awhere of this.
ChuckyZ is offline   Reply With Quote
