Old 12-07-2015, 11:48 AM   #21
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

No, it should be one long line. If you have two long lines, the input polarity is backwards.
Matt Cramer is offline   Reply With Quote
Old 12-07-2015, 11:52 AM   #22
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,398
Total Cats: 200
Default

Quote:
Originally Posted by Matt Cramer View Post
No, it should be one long line. If you have two long lines, the input polarity is backwards.
So I have the bar, then the long one, followed by a shorter one, but taller than the bar. What does this represent? Kind of like this, as best as I can represent on a cell phone.

I. I. I.
I I. I I. I I.
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII IIII
ryansmoneypit is offline   Reply With Quote
Old 12-07-2015, 11:57 AM   #23
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,398
Total Cats: 200
Default

Well that was a big fail..
ryansmoneypit is offline   Reply With Quote
Old 12-08-2015, 10:29 AM   #24
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

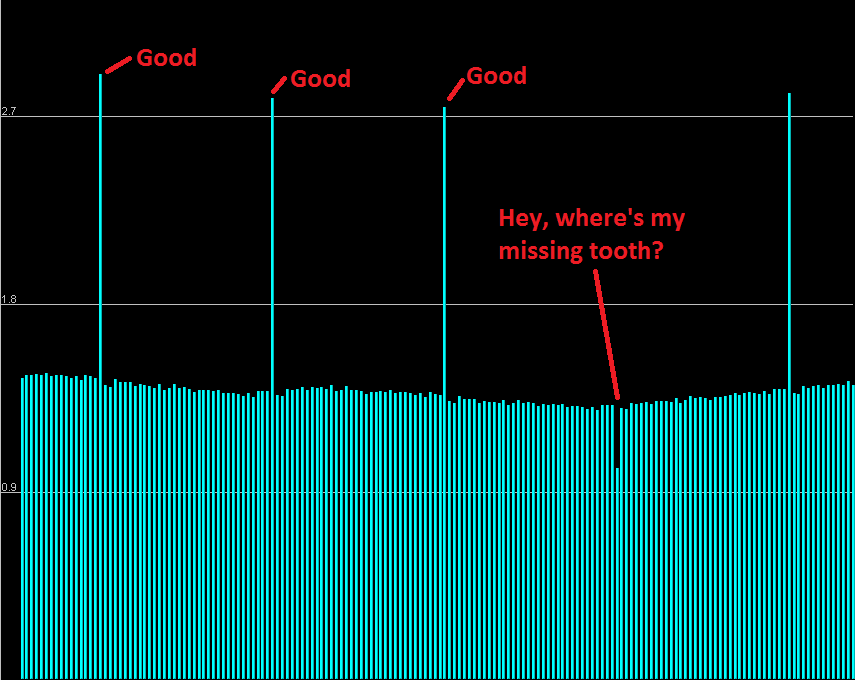

Here is an example of what a 36-1 wheel should (and should not) look like on a tooth log.



A 36-2 would have one less short bar and the tall bar would be three times as tall as the short bars instead of twice as tall.
Attached Thumbnails
Fuel pump shuts off at low RPM-toothlog.png
Matt Cramer is offline   Reply With Quote
