Default Going back to MBC ... with benefits!

This weekend I decided to go back to an MBC, after getting fed up with the moody behavior of a boost solenoid via Megasquirt. I decided the hassle of the EBC just isn't worth the benefit of throttle position settings.

I mentioned this to Paul, who said he's been considering the same thing. He had a great idea: we can use the boost solenoid TPS option as a way to activate the MBC! So you get the best of both worlds.

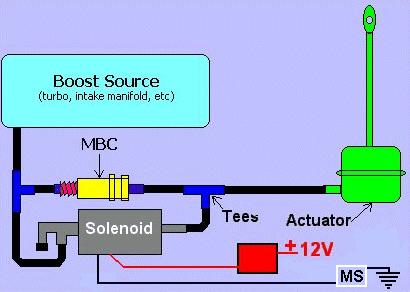

I sorta-kinda understood, so Paul made this useful diagram:


What we'll do is set all the top rows in the EBC table to 100%, and all the bottom rows to 0%, with the change at any percentage (for example 30, 40, 50) .... that way you have just actuator pressure at first (with the solenoid letting pressure pass through, effectively creating a "massively leaking" MBC) followed by 100% MBC pressure with the solenoid blocking the bypass route.

This is a very simple and very clever idea.
evank is offline   Reply With Quote
Old 03-23-2009, 01:59 AM   #2
Junior Member
iTrader: (6)

Join Date: Aug 2008
Location: New Zealand
Posts: 250
Total Cats: 3
Default

Yeh thats cool!

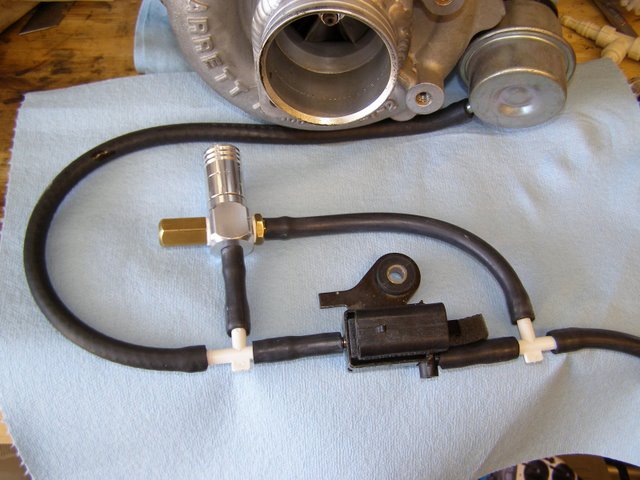

Seen something recently that is quite similar. Looks like a few people don't like the EBC with MS unless it has extra help.
EBC MBC

Not my idea though.
Attached Thumbnails
Going back to MBC ... with benefits!-ebc-mbc-setup-easy.jpg
ogwazza is offline   Reply With Quote
Old 03-23-2009, 02:10 AM   #3
Senior Member
Thread Starter
iTrader: (2)

Join Date: Jun 2006
Location: Springfield, NJ
Posts: 670
Total Cats: 0
Default

Oh. I guess it's not that original an idea after all.
