Default Hard reset after clutch job (with log)

Recently changed the clutch on my car and replaced the main ground on the back of the motor that had melted during the last track session. I replaced the spark plugs which helped.


My thought is it may be a grounding issue, or possibly a coil going out.

The weird thing is the reset happens only in boost, at the same psi consistently. There is enough slack in the coils ground that it is not pulling loose from the motor moving.

1.6 sav's cops, mspnp.

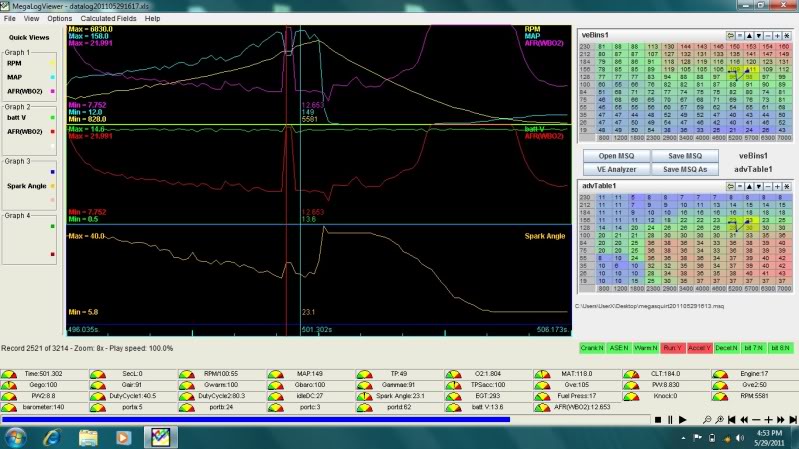

Name:  HardReset.jpg
Views: 2
Size:  80.0 KB


I would really appreciate any advice.
BenR is offline   Reply With Quote
Old 05-28-2011, 08:25 PM   #2
I'm Miserable!
iTrader: (11)

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

Mine did that shart when the coil was only bolted on by one bolt. Also, the ground under my alternator was a little loose. Check everything with a fine toothed comb.
chicksdigmiatas is offline   Reply With Quote
Old 05-29-2011, 12:47 PM   #3
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Was it resetting at the exact same boost pressure?
BenR is offline   Reply With Quote
Old 05-29-2011, 12:51 PM   #4
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Check plug gap. I was fine for a few years at larger gaps and now I'm down to .025 or something like that.
hustler is offline   Reply With Quote
Old 05-29-2011, 02:22 PM   #5
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Hmm.. that helped a little bit, I got 2 more psi. But still not where it was. Thanks for the suggestion hustler. Maybe it's time to throw new coils at it.
BenR is offline   Reply With Quote
Old 05-29-2011, 03:17 PM   #6
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by BenR View Post
Hmm.. that helped a little bit, I got 2 more psi. But still not where it was. Thanks for the suggestion hustler. Maybe it's time to throw new coils at it.
I bought 8-new coils on eBay, tried new plugs, and kept the gap low. I don't know why, I assume it's something like temp or humidity, maybe even summer vs. winter fuel, who knows. I also added a few 10AWG ground wires to the body and the block. I could run .040" a few years ago, now it's down to .025" or so...however it's back to driving itself.
hustler is offline   Reply With Quote
