Default Heckfire, Huck! 30v's confounded my MS

So after having no voltage regulator via 01+ alternator I managed to send 30 volts thru my car. Causing this:

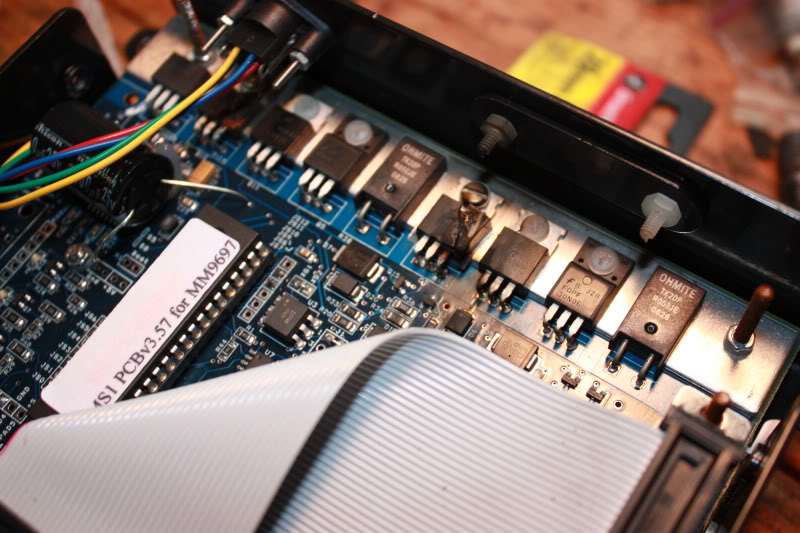

Name:  IMG_4049.jpg
Views: 1
Size:  110.7 KB

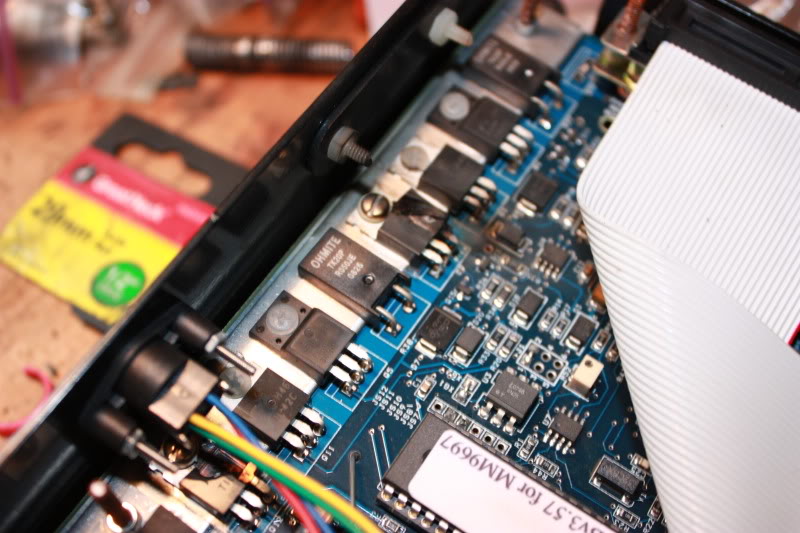

Name:  IMG_4048.jpg
Views: 1
Size:  105.3 KB

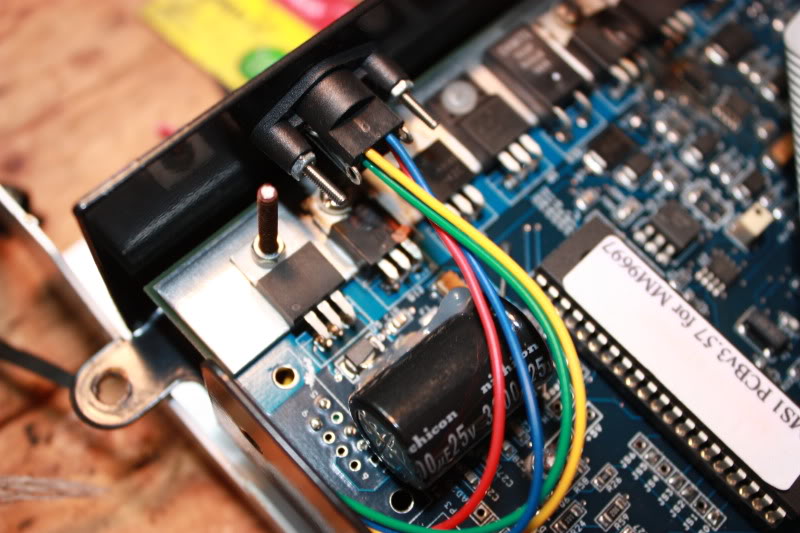

Name:  IMG_4047.jpg
Views: 1
Size:  105.3 KB
Name:  IMG_4050.jpg
Views: 1
Size:  93.8 KB

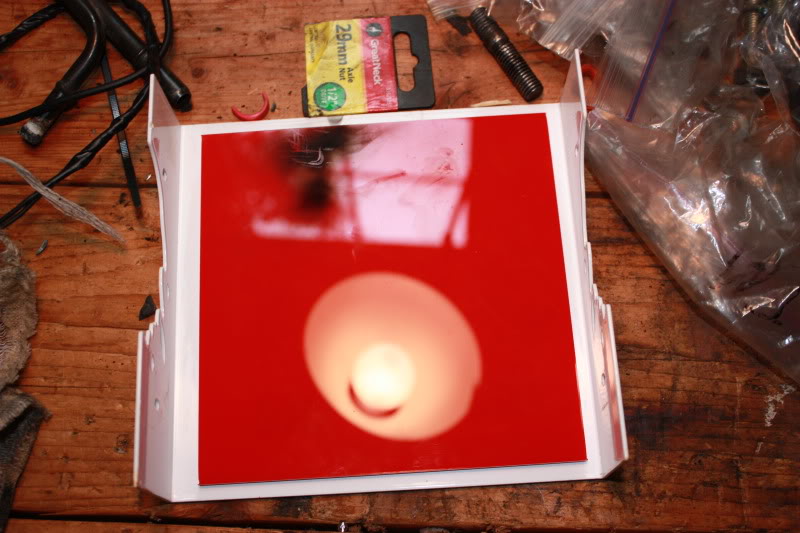

Left a nice black spot to show me how bad I am. Burned and crack two transistors :(

Is this fixable? It seems to be but just want an experience eye to tell me yay or nay.
flier129 is offline   Reply With Quote
Old 04-27-2010, 04:33 PM   #2
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Totally fixable. How easy it will be will depend on whether or not you killed any surface mount capacitors in the process.

Also -> Who has to thumbs and called that **** like a pro?
<--This guy .
Jeff_Ciesielski is offline   Reply With Quote
Old 04-27-2010, 04:34 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

You don't need the one labeled MICA underneath it. But it's a tip125.

the 5V voltage regulator can be picked up at radio shack and replaced...hopefully that's the only thing that fried.
Braineack is online now   Reply With Quote
Old 04-27-2010, 04:35 PM   #4
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,116
Total Cats: 43
Default

Quote:
Originally Posted by Jeff_Ciesielski View Post
Totally fixable. How easy it will be will depend on whether or not you killed any surface mount capacitors in the process.

Also -> Who has to thumbs and called that **** like a pro?
<--This guy .
Yeah, you made my day sad :(.

Im taking it to a computer guru friend of mine. He's worked on **** like this for a good while, he will hopefully be able to fix it for me.
flier129 is offline   Reply With Quote
Old 04-27-2010, 04:35 PM   #5
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,682
Total Cats: 216
Default

Hopefully the track didnt lift
Full_Tilt_Boogie is offline   Reply With Quote
Old 04-27-2010, 04:40 PM   #6
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,116
Total Cats: 43
Default

Quote:
Originally Posted by Braineack View Post
You don't need the one labeled MICA underneath it. But it's a tip125.

the 5V voltage regulator can be picked up at radio shack and replaced...hopefully that's the only thing that fried.
so the 5v is the one that you can barely see?

what is the tip125 used for?
flier129 is offline   Reply With Quote
Old 04-27-2010, 04:49 PM   #7
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Quote:
Originally Posted by flier129 View Post
Yeah, you made my day sad :(.
Sorry for that :(. Look on the bright side though, at least you were saved from dumping a bunch of money chasing gremlins while all the while the megasquirt had fried bits.

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Hopefully the track didnt lift
Also a good consideration, but the MS boards are built pretty sturdy.
Jeff_Ciesielski is offline   Reply With Quote
Old 04-27-2010, 05:13 PM   #8
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by flier129 View Post
so the 5v is the one that you can barely see?

what is the tip125 used for?
The 5v reg (U5) is the left-most TO220 part.

The two TIP125s are part of the PWM damping circuit, which are used only when you are running low-impedance injectors.
Joe Perez is offline   Reply With Quote
Old 04-27-2010, 05:30 PM   #9
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,116
Total Cats: 43
Default

Oh I see that I fried 3 transistors. That 5v, the most left-most one that Joe said and the two tip125s near where it says MICA. Im going to replace all of them for sure though.

The track doesnt look to be lifted or swollen in any way as well.


Another thing, when I plugged a plug to check spark, when I turn the key over it sparked, but wouldn't spark when I was cranking. Is that because the 5v is fried?
flier129 is offline   Reply With Quote
Old 04-27-2010, 05:33 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

it'll spark with power on. but it's now not seeing your CAS input. If the insulators underneath the TIP125s failed and the body is making contact to the heatsink it will fail to operate...plus it's not getting VCC power to most things from the 5v reg that blew.
Braineack is online now   Reply With Quote
Old 04-27-2010, 05:37 PM   #11
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,116
Total Cats: 43
Default

Quote:
Originally Posted by Braineack View Post
it'll spark with power on. but it's now not seeing your CAS input. If the insulators underneath the TIP125s failed and the body is making contact to the heatsink it will fail to operate...plus it's not getting VCC power to most things from the 5v reg that blew.
Cool, makes sense. Now I just need to get it fixed.
flier129 is offline   Reply With Quote
Old 04-27-2010, 06:07 PM   #12
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

hope you didn't fry the processor!

Last edited by WestfieldMX5; 04-27-2010 at 06:24 PM.
WestfieldMX5 is offline   Reply With Quote
Old 04-27-2010, 06:28 PM   #13
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by f_devocht View Post
hope you didn't fry the processor!
The CPU, ironically, is not the most expensive component in that device. DIY sells 'em for $18.
Joe Perez is offline   Reply With Quote
Old 04-27-2010, 06:32 PM   #14
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,116
Total Cats: 43
Default

Quote:
Originally Posted by Joe Perez View Post
The CPU, ironically, is not the most expensive component in that device. DIY sells 'em for $18.

What are the chances the processor and other important components went out as well? I've seen some pretty worn down processors from overclocking but this is a totally different ballgame lol.
flier129 is offline   Reply With Quote
Old 04-27-2010, 06:45 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

I've had two boxes in my hand that had caught on fire...only a few select spark circuit components were bad. everything else was fine! Looked a LOT worse than yours.
Braineack is online now   Reply With Quote
Old 04-28-2010, 09:44 AM   #16
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

Quote:
Originally Posted by autoluxury View Post
WOW looks like the Mega Squirt is pretty sturdy!!!!!!
wow, looks like you are going to be banned soon...
Braineack is online now   Reply With Quote
Old 04-28-2010, 11:10 AM   #17
Supporting Vendor

Matt Cramer's Avatar

Join Date: Sep 2006
Posts: 2,264
Total Cats: 51
Default

It's possible you may have fried D12 or MOV1 as well. But I have fixed ECUs with worse damage than what I can see in that picture.
Matt Cramer is offline   Reply With Quote
Old 04-28-2010, 11:48 AM   #18
Elite Member
Thread Starter
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,116
Total Cats: 43
Default

Quote:
Originally Posted by Matt Cramer View Post
It's possible you may have fried D12 or MOV1 as well. But I have fixed ECUs with worse damage than what I can see in that picture.
here

Are those transistors as well? If so which ones are they and can I buy them from somewhere?
flier129 is offline   Reply With Quote
Old 04-28-2010, 11:56 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,814
Total Cats: 1,780
Default

D12 is a diode. MOV1 is that big flat disc thing.
Braineack is online now   Reply With Quote
Old 04-28-2010, 12:25 PM   #20
Senior Member
iTrader: (2)

Join Date: Jan 2010
Location: Denver
Posts: 909
Total Cats: 14
Default

Sorry about the bad news. I do have one question though. Why were you running the 01 alternator? Is there a perceived benefit to running it or was it just what you had laying around?
hingstonwm is offline   Reply With Quote
