Quote:
Originally Posted by 18psi View Post
Its mostly personal preference, but certain rpm and kpa breakpoints are definitely helpful.

IMO:

You want at least one row in high vacuum, 10-20kpa
You want as many rows in the part throttle and cruise areas because that's where you'll be most of the time
You want at least one row over your target kpa in case you overshoot target

You want 1 rpm row lower than your idle target, 1 at target, and 1 slightly over
You want to stagger them evenly in the midrange/cruise
You want 1 rpm row at or a little past your redline/fuel cut

That's how I try to set mine up anyways
thanks, helpful
mx594m is offline   Reply With Quote
Old 06-27-2013, 06:28 AM   #82
Junior Member

Join Date: May 2011
Location: UK
Posts: 47
Total Cats: 0
Default

personally i wouldn't run quite so lean at 70kPa and high revs.

also, spark table looks much better - i think a 3D plot on your original one would have shown up a wall of timing coming in sharply up to 2300rpm.
skinny is offline   Reply With Quote
Old 06-29-2013, 08:52 AM   #83
Junior Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

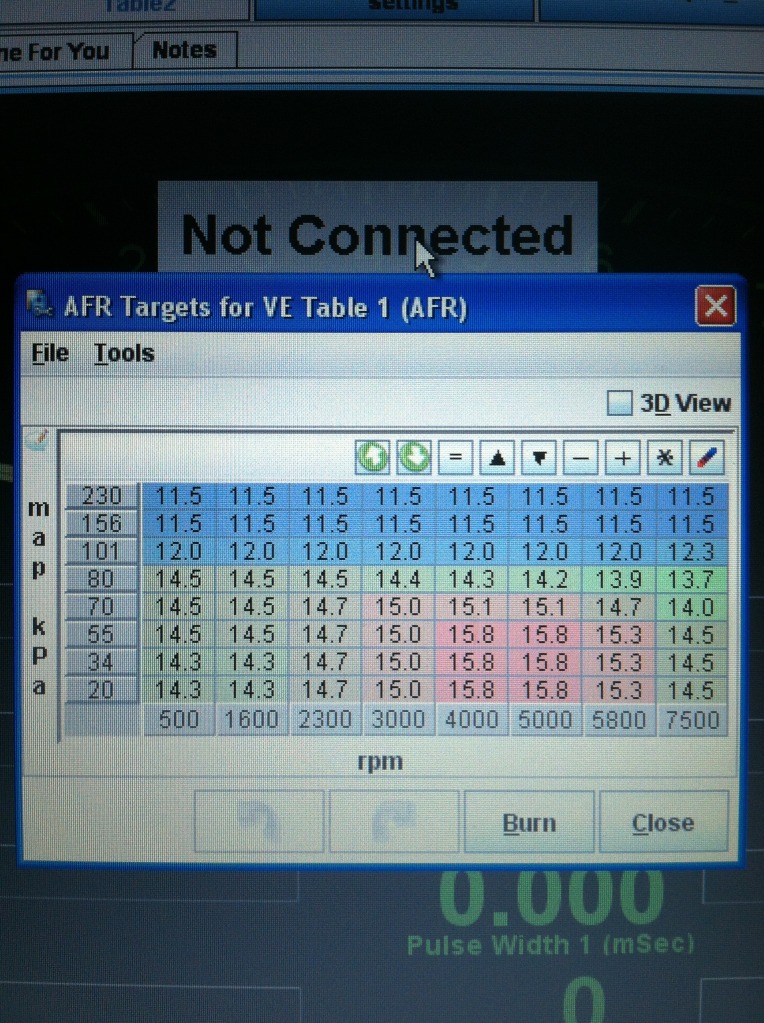

Tweaked my target table based on some of the feedback that was received (was out of town all week, and did not have my laptop):



Better?

Thanks,

Jason
Attached Thumbnails
HELP!  Blew engine, and am now paranoid.  Need help/opinions.-134e2b49-843d-4b68-ae86-b318954c4208-6217-000001e0d669984c.jpg
jrmotorsports55 is offline   Reply With Quote
Old 06-29-2013, 09:40 AM   #84
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Horrible. Way too rich in the cruise, way too lean in the upper rpms.

55kpa to 4k rpm 15.5afr, 5k and above 14.0 going down to 13 by redline

70kpa up to 4k rpm 14.7
triple88a is offline   Reply With Quote
Old 06-29-2013, 09:55 AM   #85
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

it's not horrible stfu.
Braineack is offline   Reply With Quote
Old 06-29-2013, 01:56 PM   #86
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

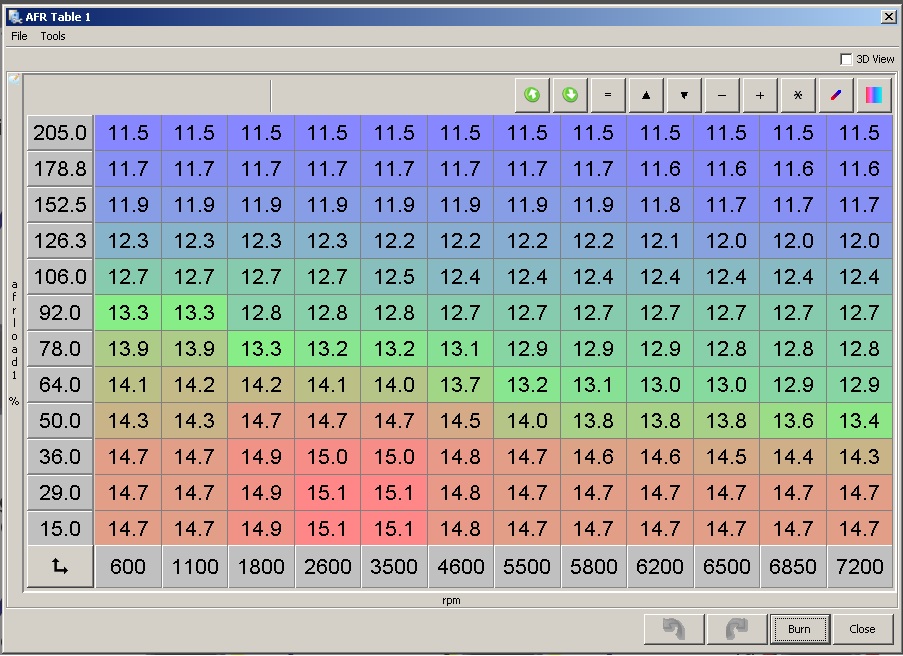

The table generator will give you something like this:



Yes, it is rich. Hence, it is a safe starting point. I highly recommend turning on "include AFR target" under general settings. Once the VE table is well tuned with VEAL you can go back to change the AFR table for better mpgs.
Attached Thumbnails
HELP!  Blew engine, and am now paranoid.  Need help/opinions.-t8fb.jpg
southernmx5 is offline   Reply With Quote
Old 06-29-2013, 10:58 PM   #87
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

how do you get a 12 x 12 AFR table?
I see a VE table generator, where is the AFR table generator?
mx594m is offline   Reply With Quote
Old 06-30-2013, 12:31 AM   #88
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

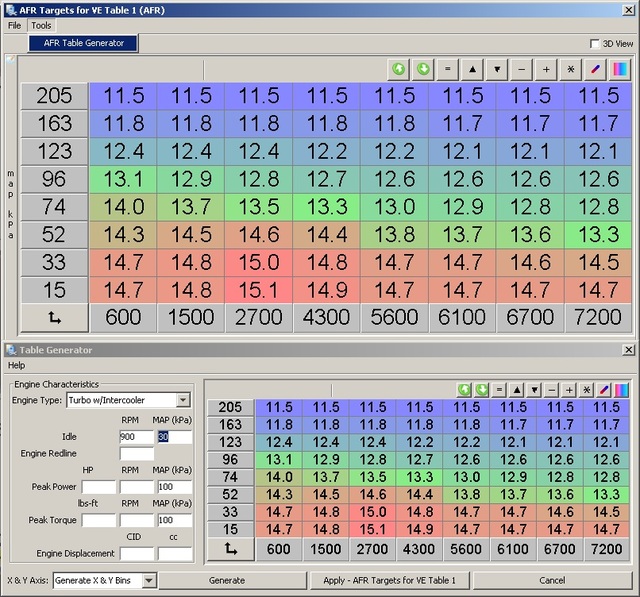

I forgot the ms1/pnp folks do not have the include afr target option. For ms1 you must retune VE after changing the AFR targets.

Attached Thumbnails
HELP!  Blew engine, and am now paranoid.  Need help/opinions.-zgh3.jpg
southernmx5 is offline   Reply With Quote
Old 06-30-2013, 07:42 AM   #89
Junior Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

Yep, that's why I'm trying to get the best AFR targets that I can so I can manually tund the thing line by line. I learned the hard way that just using VEAL is NOT the way to go.

Thanks,

Jason
jrmotorsports55 is offline   Reply With Quote
Old 06-30-2013, 10:48 AM   #90
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

This thread now sucks.
Braineack is offline   Reply With Quote
Old 06-30-2013, 10:52 AM   #91
Junior Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

Pretty sure I have good targets now. Just need to get parts back from machine shop (will probably be a while). Once I get it back together and start tuning, I'll post up my progress. Thanks to everyone for the info that has been provided.

Jason
jrmotorsports55 is offline   Reply With Quote
Old 06-30-2013, 11:11 AM   #92
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

no your targets are bad, you really need to use random generator to come up with good ones, make sure to focus the most on areas youll never hit with a turboed motor; you should scale the table so only 5000RPM and above and 30-70kPa have resolution.

Last edited by Braineack; 06-30-2013 at 11:22 AM.
Braineack is offline   Reply With Quote
Old 06-30-2013, 11:28 AM   #93
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

The're a bit rich in the 74kpa row, and perhaps also in the top two rows.
Joe Perez is offline   Reply With Quote
Old 06-30-2013, 02:52 PM   #94
Junior Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

Quote:
Originally Posted by Braineack View Post
no your targets are bad, you really need to use random generator to come up with good ones, make sure to focus the most on areas youll never hit with a turboed motor; you should scale the table so only 5000RPM and above and 30-70kPa have resolution.
Funny guy.
jrmotorsports55 is offline   Reply With Quote
Old 06-30-2013, 02:57 PM   #95
Junior Member
iTrader: (1)

Join Date: May 2009
Location: TN
Posts: 328
Total Cats: 4
Default

Quote:
Originally Posted by Braineack View Post
no your targets are bad, you really need to use random generator to come up with good ones, make sure to focus the most on areas youll never hit with a turboed motor; you should scale the table so only 5000RPM and above and 30-70kPa have resolution.
Give Phil Tobin some feedback on his table generator if you think it needs improvement. I bet he was thinking of tuning safety too.

We have seen so many engine failures due to poor initial tuning. VEAL works well if you give it a good place to start. It is easy to rescale tables, smooth VE, and lean out cruise areas after the tune is safe.
southernmx5 is offline   Reply With Quote
Old 06-30-2013, 03:05 PM   #96
Junior Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

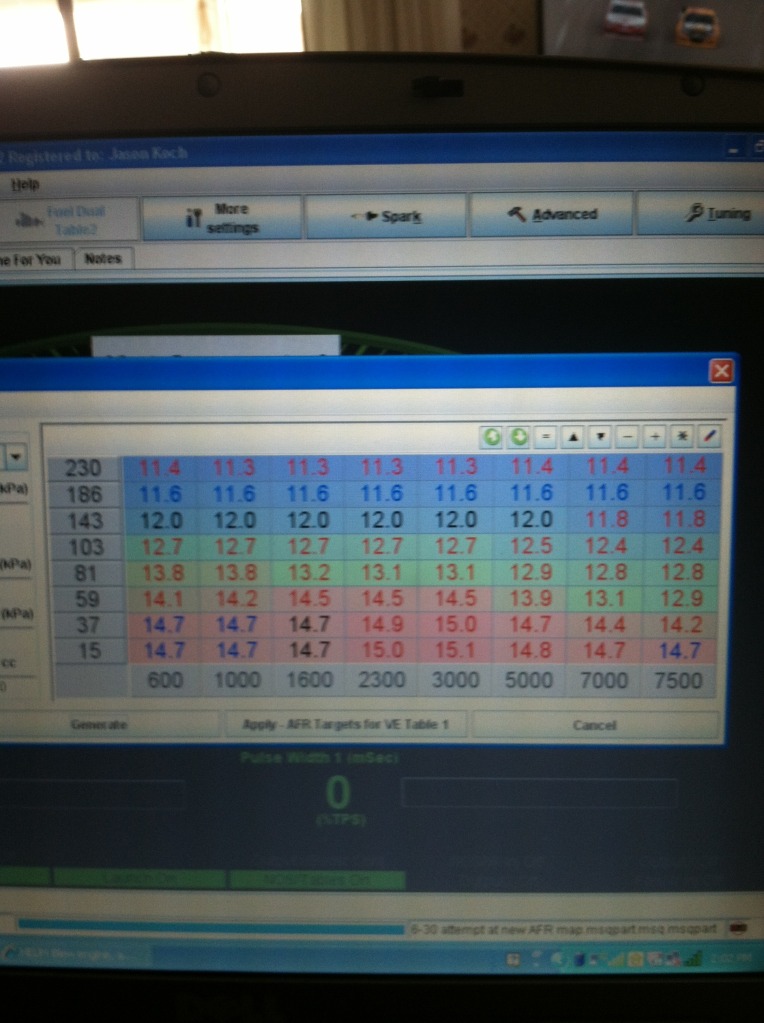

Here is what the table generator gave me:

Attached Thumbnails
HELP!  Blew engine, and am now paranoid.  Need help/opinions.-c511b633-0d4c-41bd-990c-8a8f561a3e70-9626-000002e417098b72.jpg
jrmotorsports55 is offline   Reply With Quote
Old 06-30-2013, 03:56 PM   #97
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Quote:
Originally Posted by southernmx5 View Post
Give Phil Tobin some feedback on his table generator if you think it needs improvement.
Many of the algorithms in TS, and in the MS community as a whole, were originally intended to deal with 19th century steam engines, Chevy V8s, and other similar devices.

More modern engines (those designed using math and science) have somewhat different requirements.
Joe Perez is offline   Reply With Quote
Old 07-01-2013, 07:18 PM   #98
Junior Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

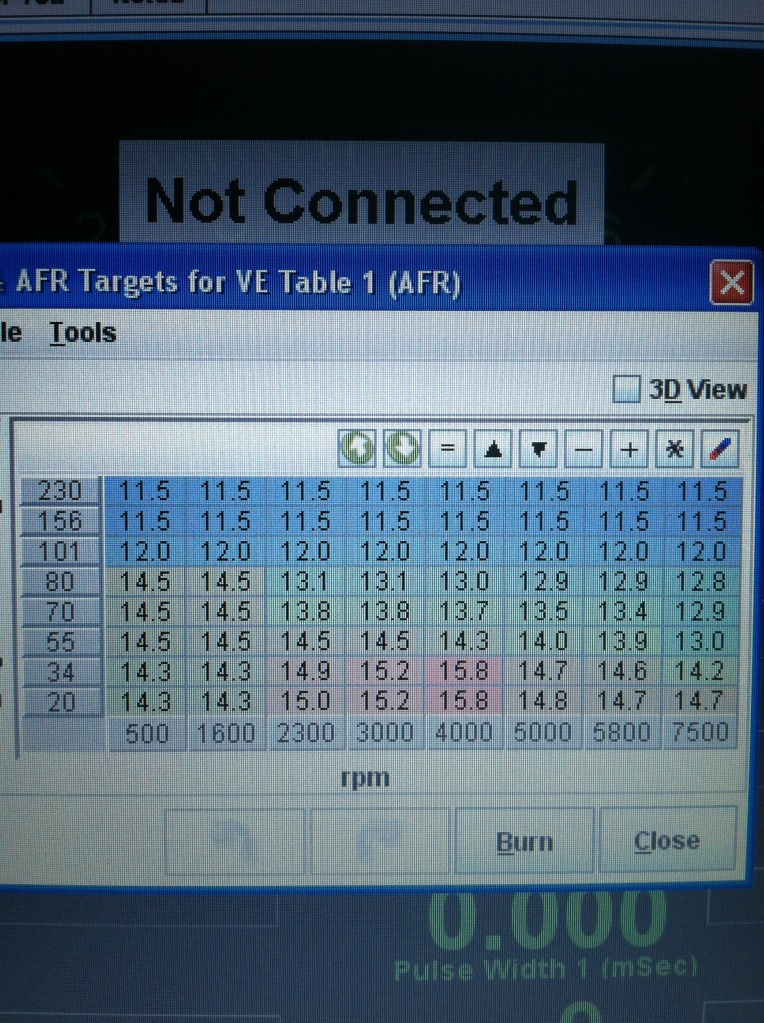

So, after looking at what the table generator created, and some of the feedback that was received, I made a few more tweaks to my targets:



Did I make a mistake? Should I go back to what I had?

Thanks,

Jason
Attached Thumbnails
HELP!  Blew engine, and am now paranoid.  Need help/opinions.-64912260-4e32-4bd3-b409-bfcf5daf4ba3-13129-000003edd88a8ab3.jpg
jrmotorsports55 is offline   Reply With Quote
Old 07-01-2013, 10:53 PM   #99
Junior Member
iTrader: (1)

Join Date: Dec 2010
Location: Knoxville, TN
Posts: 279
Total Cats: 2
Default

what is the purpose of the AFR table?
my understanding if enabled it is a "goal" that the EMU attempts to achieve [but never does because of the dynamic environment]

in the absence of an AFR, what?

is the VE table the same, a goal?
my understanding is it is a fact, at any given KPa:rpm pair, xxx quantity of fuel is injected

is this right
mx594m is offline   Reply With Quote
Old 07-01-2013, 11:00 PM   #100
Junior Member
Thread Starter
iTrader: (8)

Join Date: Aug 2007
Posts: 392
Total Cats: -50
Default

VE should be what is actually being injected, afr table is targets for tuning.

Jason
jrmotorsports55 is offline   Reply With Quote
