Old 06-27-2008, 11:49 AM   #61
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Okay, i flashed to HR and it fixed my surging idle problem, my intake backfire problem, my bucking problem and the car starts INSTANTLY. I mean, we are talking cranking for less than 1 second to start cold, warm, hot whatever, this thing ******* starts. The only thing now is the miss. I picked up the capacitor yesterday and i will be putting it in tonight or tomorrow. Is there a positive and negative to the capacitor?
wes65 is offline   Reply With Quote
Old 06-27-2008, 11:57 AM   #62
Junior Member

Join Date: Feb 2007
Location: 11368 miles from where i would like to be
Posts: 269
Total Cats: 92
Default

Quote:
Originally Posted by wes65 View Post
Okay, i flashed to HR and it fixed my surging idle problem, my intake backfire problem, my bucking problem and the car starts INSTANTLY. I mean, we are talking cranking for less than 1 second to start cold, warm, hot whatever, this thing ******* starts. The only thing now is the miss. I picked up the capacitor yesterday and i will be putting it in tonight or tomorrow. Is there a positive and negative to the capacitor?
If it explodes you'll know you screwed it up :-) (the cap)
rb26dett is offline   Reply With Quote
Old 06-27-2008, 11:59 AM   #63
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by rb26dett View Post
If it explodes you'll know you screwed it up :-) (the cap)
lol not what i wanted to hear.
wes65 is offline   Reply With Quote
Old 06-27-2008, 12:32 PM   #64
Junior Member

Join Date: Feb 2007
Location: 11368 miles from where i would like to be
Posts: 269
Total Cats: 92
Default

They are well marked :-) (assuming we are talking about an electro or tantalum)

Only tant and electro are polarised.
rb26dett is offline   Reply With Quote
Old 06-27-2008, 02:20 PM   #65
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

wes65 is offline   Reply With Quote
Old 06-27-2008, 02:25 PM   #66
Junior Member

Join Date: Feb 2007
Location: 11368 miles from where i would like to be
Posts: 269
Total Cats: 92
Default

Those are fine so long as you keep the voltage below max, or preferably below 75% or so of max. They aren't polarised. The are just ordinary ceramic disk caps. See if you can get X5R? X7R? mono ones, they are quite a bit better quality and are usually smaller and blue. (not that it matters, and those will work if a cap will work at all)

Is there a reference about this hyped "cap mod" ? caps can do good and bad things depending on where you put them.
rb26dett is offline   Reply With Quote
Old 06-27-2008, 02:31 PM   #67
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Quote:
Originally Posted by wes65 View Post
I put one of those in last night... hopefully it works
Splitime is offline   Reply With Quote
Old 06-27-2008, 02:53 PM   #68
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Quote:
Originally Posted by rb26dett View Post
Is there a reference about this hyped "cap mod" ? caps can do good and bad things depending on where you put them.
you put it between js8 and ground.
wes65 is offline   Reply With Quote
Old 06-29-2008, 08:15 PM   #69
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

So far so good. Did the hi-res update and added a cap to the MS. Also added the 10k cap to my COPs.

Smoother idle, feels smoother everywhere. Tune was close enough that a few logs and MLV and its all back to normal.

Very pleased.
Splitime is offline   Reply With Quote
Old 07-01-2008, 07:04 PM   #70
Junior Member

Join Date: Sep 2007
Posts: 108
Total Cats: 0
Default Palmlog and HiRes?

Does anyone know if Palmlog will work with the HiRes release (I am running 10g)? (if so, what settings are used for configuration?)
aseer is offline   Reply With Quote
Old 09-02-2008, 03:09 PM   #71
Junior Member
iTrader: (2)

Join Date: Jun 2008
Posts: 121
Total Cats: 4
Default

Sorry for the revival:

I had installed HR code on my MAF system and it went wonderfully. Now i am eliminating the MAF and my "MSPNP MM9495 without MAF" folder does not have a "src" folder in it. I was about to copy the msns-extra.s19 into that folder and well, it doesn't exist. Is that supposed to be that way? Every other folder for 90-93 and 94-95 has it.

Thanks guys.
Mr. Wob is offline   Reply With Quote
Old 09-02-2008, 03:33 PM   #72
Junior Member
iTrader: (1)

Join Date: Jun 2007
Location: Plano
Posts: 83
Total Cats: 0
Default

Yes, just copy the src folder.

Quote:
Originally Posted by Mr. Wob View Post
Sorry for the revival:

I had installed HR code on my MAF system and it went wonderfully. Now i am eliminating the MAF and my "MSPNP MM9495 without MAF" folder does not have a "src" folder in it. I was about to copy the msns-extra.s19 into that folder and well, it doesn't exist. Is that supposed to be that way? Every other folder for 90-93 and 94-95 has it.

Thanks guys.
tilt is offline   Reply With Quote
Old 09-02-2008, 04:00 PM   #73
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

No, don't just copy the source folder. That source folder contains files specific to MAF calibrations. You need the without MAF inc files for the GM sensor.

Be sure to set up the MSQ for your car as it's currently set up for my timing, my size injectors(460s), my COPs(dwell times), etc.
Attached Files
File Type: zip MSPNP9495-HiRes10g.zip (460.2 KB, 49 views)
paul is offline   Reply With Quote
Old 09-02-2008, 04:25 PM   #74
Junior Member
iTrader: (1)

Join Date: Jun 2007
Location: Plano
Posts: 83
Total Cats: 0
Default

Sorry, I should been more clear. You can copy the existing inc folder (which has the flashing software you need) to your "MSPNP MM9495 without MAF HI RES 10G" (or whatever foldername you want to call it) folder, then import/unzip/copy the high res files for your specific application to that folder (see the file paul attached).
tilt is offline   Reply With Quote
Old 09-02-2008, 04:34 PM   #75
Junior Member
iTrader: (2)

Join Date: Jun 2008
Posts: 121
Total Cats: 4
Default

Thanks Paul. So forgive my ignorance, but if i take your folder and copy the MSPNP9495 base map and reload the firmware I should have a fresh map but all the files and highres info I need?

Also, I tuned for my 550's on the old w/MAF msq. Is there any way to bring those settings over or do i need to hand write them down. Sorry, but I am still very new to the MSPNP.
Mr. Wob is offline   Reply With Quote
Old 09-02-2008, 04:45 PM   #76
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

Yes, that is my complete working folder. You can copy that to your laptop, disconnect your coils, and run the download-firmware.bat to flash the HiRes-10g firmware to your 9495MSPNP.

You should be able to load your existing MSQ into firmware version 10G without fatal errors. Someone can correct me if I'm wrong. You can at least export your VE, Spark, AFR target tables etc. as vex files and import them into the diy base map.
paul is offline   Reply With Quote
Old 09-20-2008, 09:39 PM   #77
Junior Member

Join Date: Mar 2007
Location: Chile
Posts: 95
Total Cats: 0
Default

Quote:
Originally Posted by paul View Post
Yes, that is my complete working folder. You can copy that to your laptop, disconnect your coils, and run the download-firmware.bat to flash the HiRes-10g firmware to your 9495MSPNP.

You should be able to load your existing MSQ into firmware version 10G without fatal errors. Someone can correct me if I'm wrong. You can at least export your VE, Spark, AFR target tables etc. as vex files and import them into the diy base map.
can be used for a 97 miata (maf removed)
macanha is offline   Reply With Quote
Old 09-21-2008, 02:08 AM   #78
Junior Member

Join Date: Mar 2007
Location: Chile
Posts: 95
Total Cats: 0
Default

Quote:
Originally Posted by macanha View Post
can be used for a 97 miata (maf removed)
Just put paul file and flash it. kload my MSQ.
the engine stalls, and stops. even if I push the throtle.
can somebody help (I left the datalog)
Attached Files
File Type: xls datalog200809202129.xls (41.0 KB, 48 views)
macanha is offline   Reply With Quote
Old 03-12-2014, 11:17 PM   #79
Newb

Join Date: May 2010
Location: Okeechobee,Fla
Posts: 13
Total Cats: 0
Default

hate to drag up an ancient thread but I'm trying to figure my idle problem out with big injectors(550cc or higher) and MS-1.
I currently have 460cc rx7 Hi-Z injectors and 660cc High-Imp injectors and my idle and cruise is freakin insane inconsistent and loads up on fuel when the 660's are used. the 460's idle great but dont have enough fuel supply for the power i want.

the reason i drag this OLD AZZ thread up is 2 things
1: what functions will i loose when i convert to hi-res code
2: what cap and where does it have to be installed

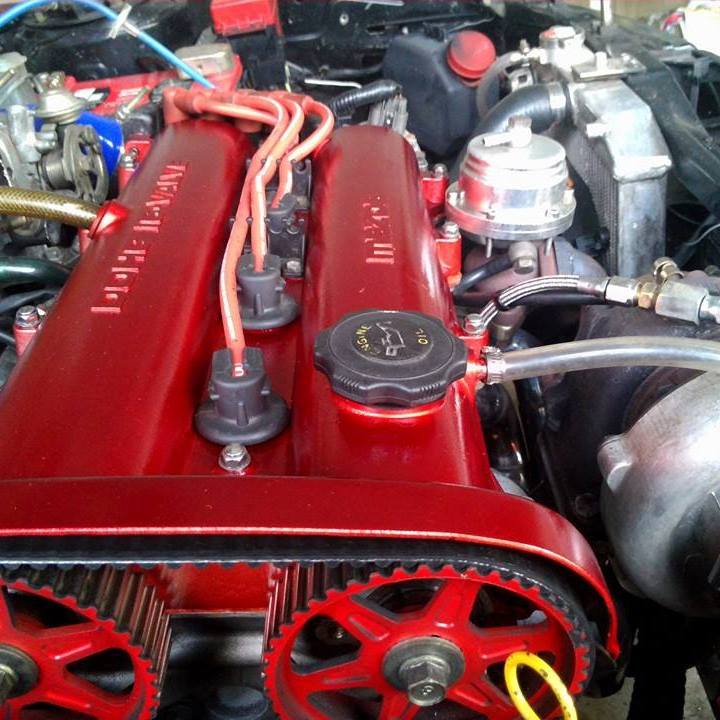

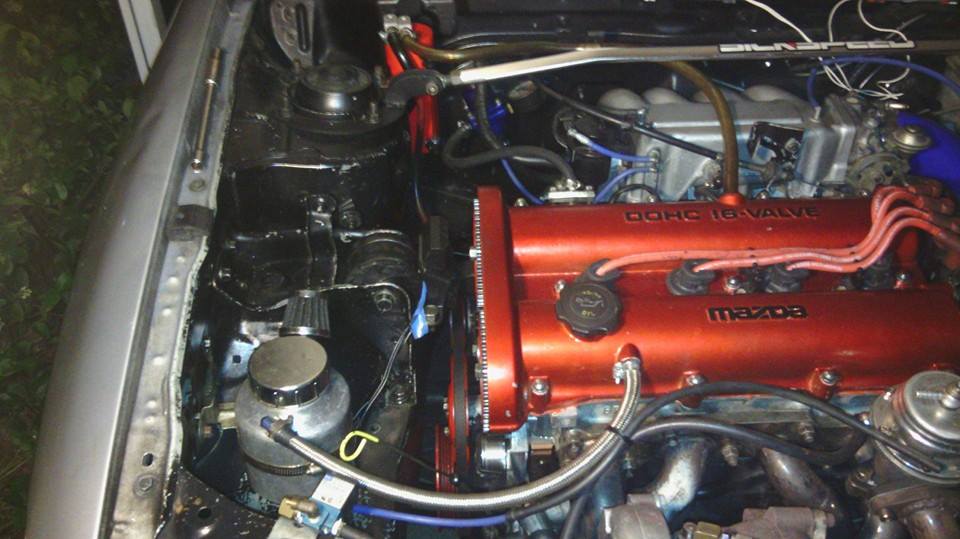

setup:
car: ford escort wagon
1.8L bp 9:1 pistons forged h-beam rods, pnp head w/ Somender grooves
XSPower t3 top-mount turbo manifold
t3 63 hot .50 cold
97 miata coilpacks using wasted spark
KV85 magnecor plug wires
ms1 3.0 (not plug n play) but wired same as 97 miata
hks ssqv 4 BOV
XSPower FMIC
3" exhaust
2.5" Innercooler piping
EBC
14psi spring on external WG
walbro 255lph pump
AFPR
rx7 red-top 460cc injectors(currently installed)


Attached Thumbnails
Hi-Res code = ohmymotherfuckinggodamazing-1653901_800309319986308_688293176_n.jpg   Hi-Res code = ohmymotherfuckinggodamazing-1458579_764341850249722_2136782504_n.jpg   Hi-Res code = ohmymotherfuckinggodamazing-945439_697232263627348_2070481577_n.jpg   Hi-Res code = ohmymotherfuckinggodamazing-1653901_800309319986308_688293176_n.jpg   Hi-Res code = ohmymotherfuckinggodamazing-1458579_764341850249722_2136782504_n.jpg

Hi-Res code = ohmymotherfuckinggodamazing-945439_697232263627348_2070481577_n.jpg

Last edited by agrowagon; 03-12-2014 at 11:24 PM. Reason: adding pictures
agrowagon is offline   Reply With Quote
Old 03-12-2014, 11:39 PM   #80
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

You need hi-rez code. There are no downsides if you are using those rx7 460's, with hi-rez code the only "downside" is that you lose the ability to run low-z (non oem style) injectors.

However, that said - you should also upgrade from those terrible EV1 style injectors that you have if you want to get your idle steady. Get at least ID injectors, or at the very least some DW.
Fireindc is offline   Reply With Quote
