Default Homebrewed MS3-Pro DIY BOB

I picked up an MS3-Pro on Black Friday and am building a short PNP harness rather than cut up the 8 long generic harness that came with it.

Following are the TE Connectivity part numbers for the connector housings and terminals as well as current pricing from Onlinecomponents.com.

- AMPSEAL white 35 position connector housing part number 776164-2 / $8.12 each
- AMPSEAL gray 35 position connector housing part number 776164-4 / $8.14 each
- AMPSEAL tin contact part number 770854-1 / $0.09 each

$23.01 in total for the two connector housings and 75 contacts. Onlinecomponents.com has a $30 minimum order, so I added a 64 pin ECU connector for $11.96 (part number 174518-7).

I also found a breakout board for $10 shipped here ecu-64p-connector-bare-pcb.
skou is offline   Reply With Quote
Old 01-14-2015, 12:29 PM   #2
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

That pcb board is awesome!
aidandj is offline   Reply With Quote
Old 01-14-2015, 02:32 PM   #3
Senior Member
iTrader: (5)

Join Date: Jul 2005
Posts: 715
Total Cats: 53
Default

And DIY charges $60 for this?
bcrx7 is offline   Reply With Quote
Old 01-14-2015, 03:03 PM   #4
Junior Member
Thread Starter
iTrader: (42)

Join Date: Dec 2010
Location: Meridian, ID
Posts: 280
Total Cats: 32
Default

Quote:
Originally Posted by bcrx7 View Post
And DIY charges $60 for this?
+$89 for the DIYBOB kit.
skou is offline   Reply With Quote
Old 01-14-2015, 03:08 PM   #5
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by bcrx7 View Post
And DIY charges $60 for this?
Over head of having a building and staff, getting metal cases made, keeping capital tied up in having inventory, R&D costs. DIY charges what they do because that is what the market will pay for. You are paying more for the convenience of getting it all from 1 spot already done for you.
shuiend is offline   Reply With Quote
Old 01-14-2015, 05:12 PM   #6
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,459
Default

Add one of the middle 26(?) pin connectors so that you can add extra stuff like sequential ignition and whatnot.
aidandj is offline   Reply With Quote
Old 01-14-2015, 05:25 PM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

what are you going to do to the pcb? wrap it in electrical tape?
Braineack is offline   Reply With Quote
Old 01-14-2015, 06:10 PM   #8
Junior Member
Thread Starter
iTrader: (42)

Join Date: Dec 2010
Location: Meridian, ID
Posts: 280
Total Cats: 32
Default

Mount it in a suitable enclosure.
skou is offline   Reply With Quote
Old 01-14-2015, 08:24 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

how are you going to connect to a pc?
Braineack is offline   Reply With Quote
Old 01-14-2015, 09:47 PM   #10
Junior Member
Thread Starter
iTrader: (42)

Join Date: Dec 2010
Location: Meridian, ID
Posts: 280
Total Cats: 32
Default

An IP68 rated USB 2.0 panel mounted connector.

http://www.vpi.us/pdf/usb2-bf-wtp-cs-fl.pdf
skou is offline   Reply With Quote
Old 01-15-2015, 12:01 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

too bad that pcb doesn't have a proto area like the DIYBOB :P
Braineack is offline   Reply With Quote
Old 01-15-2015, 12:17 AM   #12
Junior Member
Thread Starter
iTrader: (42)

Join Date: Dec 2010
Location: Meridian, ID
Posts: 280
Total Cats: 32
Default

Quote:
Originally Posted by Braineack View Post
too bad that pcb doesn't have a proto area like the DIYBOB :P
Maybe the guy who sells them can develop one. I believe he goes by Russian on this forum.
skou is offline   Reply With Quote
Old 01-15-2015, 01:29 AM   #13
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

I'd be super down to buy this if I could find a decent enclosure for it, and if I could figure out how i'm going to mount the megasquirt that close to the ECU cable. I wasn't able to find a spot when I originally put it there... ('00)
Schuyler is offline   Reply With Quote
Old 01-15-2015, 07:31 AM   #14
Senior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 524
Total Cats: 18
Default

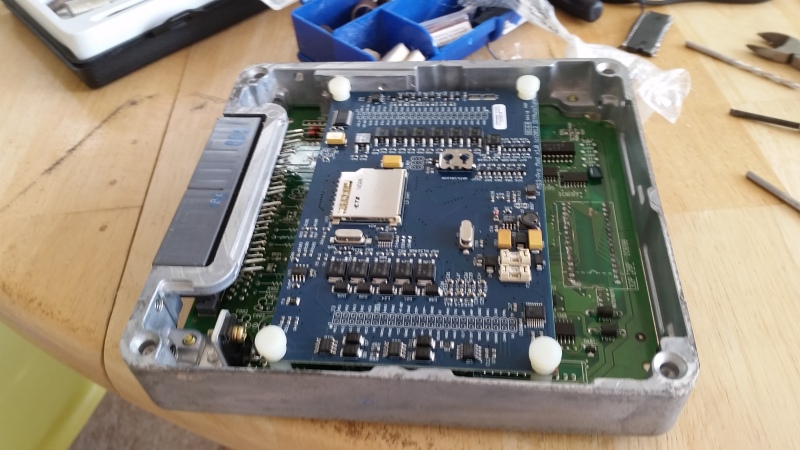

Haha, I took advantage of BF to buy a MS3pro module, two map sensors and four bip373s. Im mounting it inside the original Mazda ecu case. I thought about getting Franks adapter boards which are awesome but it wouldnt work with my extra uotputs.

Anyhow, havent done much but preliminary mounting of the boards and placement of the bips. Did snap a pic of it though.

Attached Thumbnails
Homebrewed MS3-Pro DIY BOB-wrnrtg.jpg
hector is offline   Reply With Quote
Old 01-15-2015, 10:53 AM   #15
Junior Member
Thread Starter
iTrader: (42)

Join Date: Dec 2010
Location: Meridian, ID
Posts: 280
Total Cats: 32
Default

Quote:
Originally Posted by Schuyler View Post
I'd be super down to buy this if I could find a decent enclosure for it, and if I could figure out how i'm going to mount the megasquirt that close to the ECU cable. I wasn't able to find a spot when I originally put it there... ('00)
That's good to know. This is for a '99 I just bought over in Oregon, but have yet to pick up. A Hammond 1455T1601 enclosure looks to be about the same size as the OEM case. This is the concept I am now fiddling with....





Attached Thumbnails
Homebrewed MS3-Pro DIY BOB-assembly_1_1_low.jpg   Homebrewed MS3-Pro DIY BOB-assembly_1_2_low.jpg   Homebrewed MS3-Pro DIY BOB-assembly_1_3_low.jpg
skou is offline   Reply With Quote
Old 01-15-2015, 11:53 AM   #16
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by bcrx7 View Post
And DIY charges $60 for this?
Maybe DIY uses the $.63 each gold pins because we care more about doing this the best way possible instead of the cheap $.09 each tin pins.

Maybe next time thank companies like DIY for providing all of the R&D, tech support, and forum sponsorship before bad mouthing. Last I checked, online components doesn't help pay for the sandbox you enjoy playing in.
Ben is offline   Reply With Quote
Old 01-15-2015, 12:11 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by skou View Post
That's good to know. This is for a '99 I just bought over in Oregon, but have yet to pick up. A Hammond 1455T1601 enclosure looks to be about the same size as the OEM case. This is the concept I am now fiddling with....





this is confusing to me. where would those connectors connect to? the ms3pro? why not put that pro inside that case then and not use the two connectors?
Braineack is offline   Reply With Quote
Old 01-15-2015, 12:45 PM   #18
Junior Member
Thread Starter
iTrader: (42)

Join Date: Dec 2010
Location: Meridian, ID
Posts: 280
Total Cats: 32
Default

Quote:
Originally Posted by Braineack View Post
this is confusing to me. where would those connectors connect to? the ms3pro? why not put that pro inside that case then and not use the two connectors?
No reason really other than that I've got the standalone version of the MS3-Pro and would need a bigger case. Don't know yet if I'll have sufficient space under the dash where the ECU goes. At 2 am last night it seemed logical to put the MAP sensor, USB port and whatever else in the space provided for in the case and just run an extension harness between the case and the MS3-Pro, wherever that ends up.
skou is offline   Reply With Quote
Old 01-15-2015, 12:48 PM   #19
Junior Member
Thread Starter
iTrader: (42)

Join Date: Dec 2010
Location: Meridian, ID
Posts: 280
Total Cats: 32
Default

Quote:
Originally Posted by Ben View Post
Maybe DIY uses the $.63 each gold pins because we care more about doing this the best way possible instead of the cheap $.09 each tin pins.

Maybe next time thank companies like DIY for providing all of the R&D, tech support, and forum sponsorship before bad mouthing. Last I checked, online components doesn't help pay for the sandbox you enjoy playing in.
Sorry for opening the door to that. Thank you.
skou is offline   Reply With Quote
Old 01-15-2015, 12:48 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

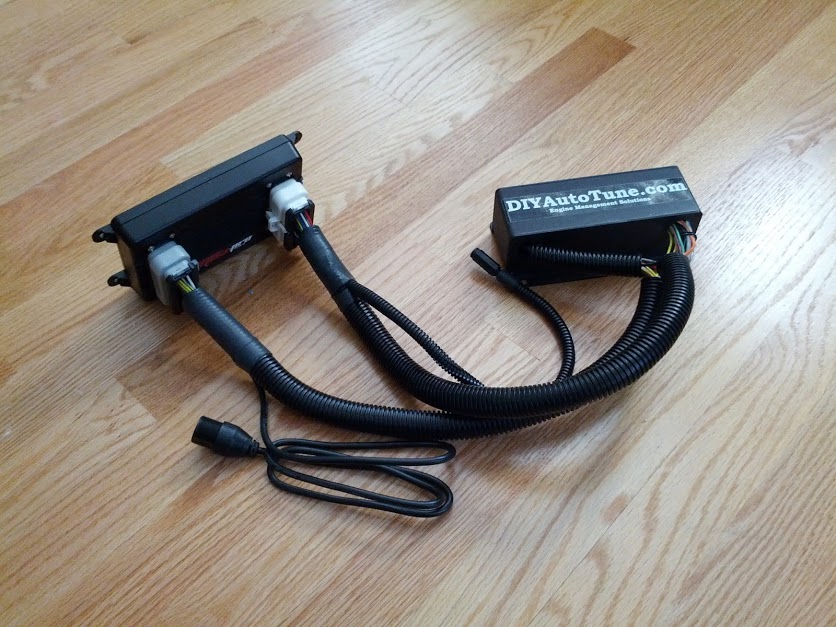

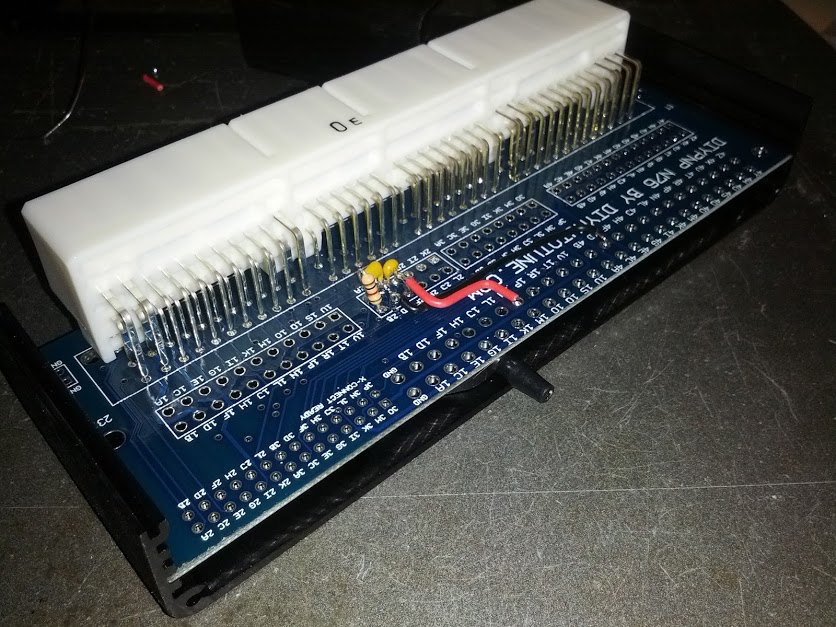

case just seems a bit large is all.

i did that in my bob.



i had it all done in about an hour.

Attached Thumbnails
Homebrewed MS3-Pro DIY BOB-img_20130103_174740.jpg   Homebrewed MS3-Pro DIY BOB-img_20130106_102515.jpg
