Default How to convert MS2 to stand alone

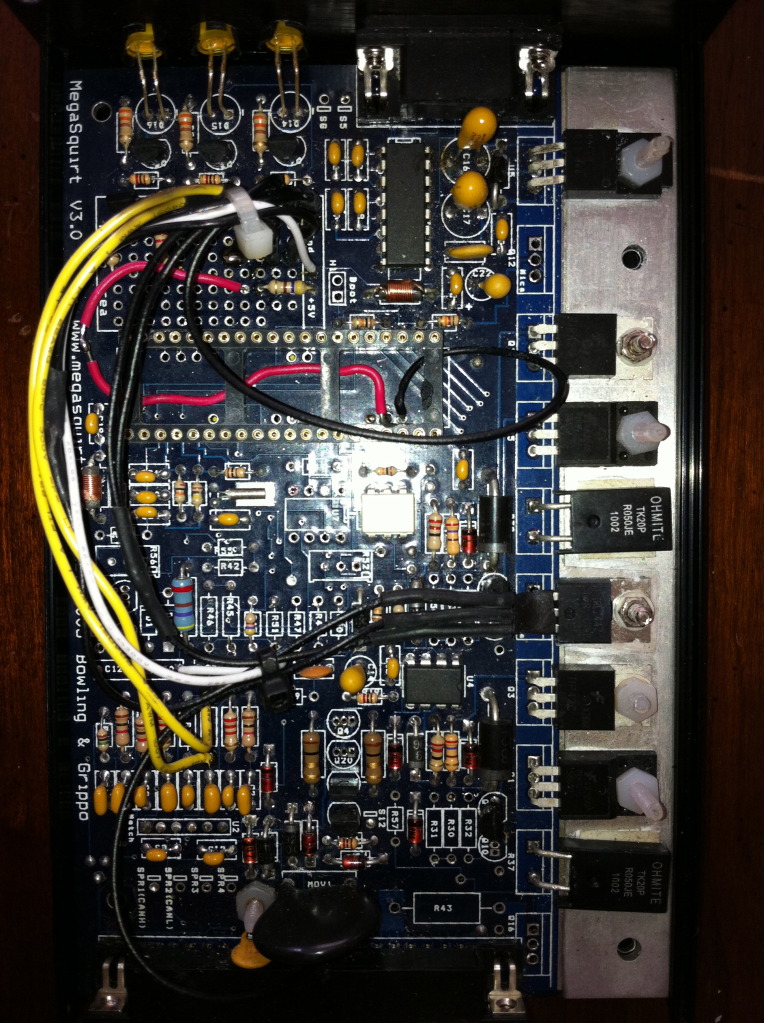

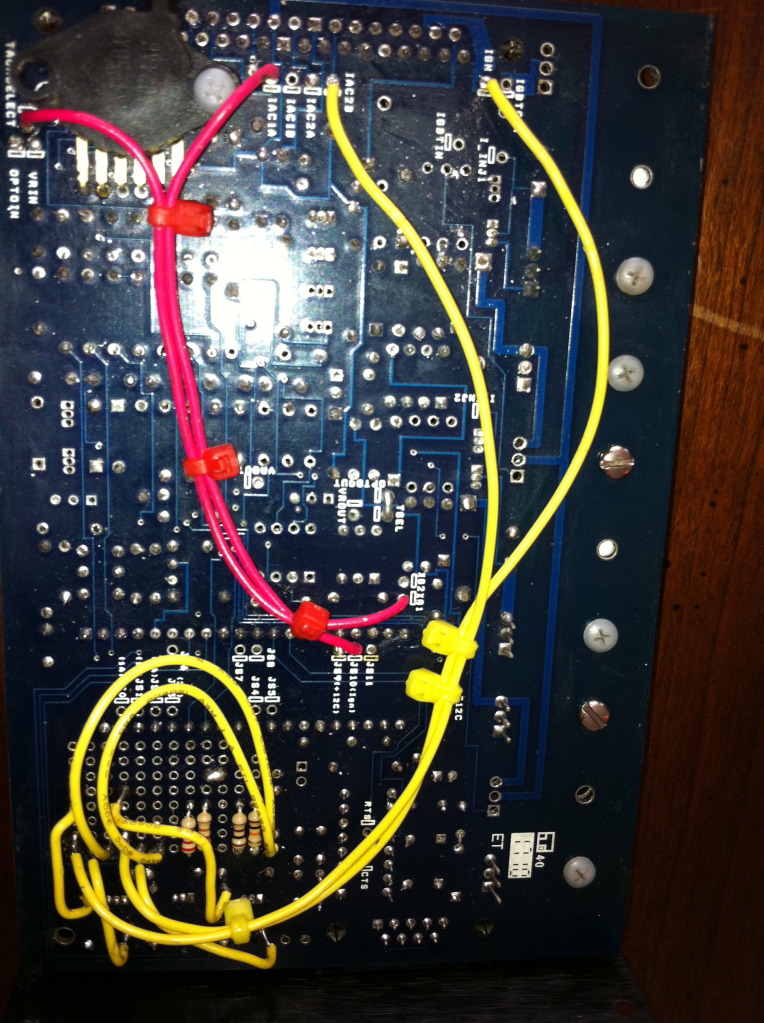

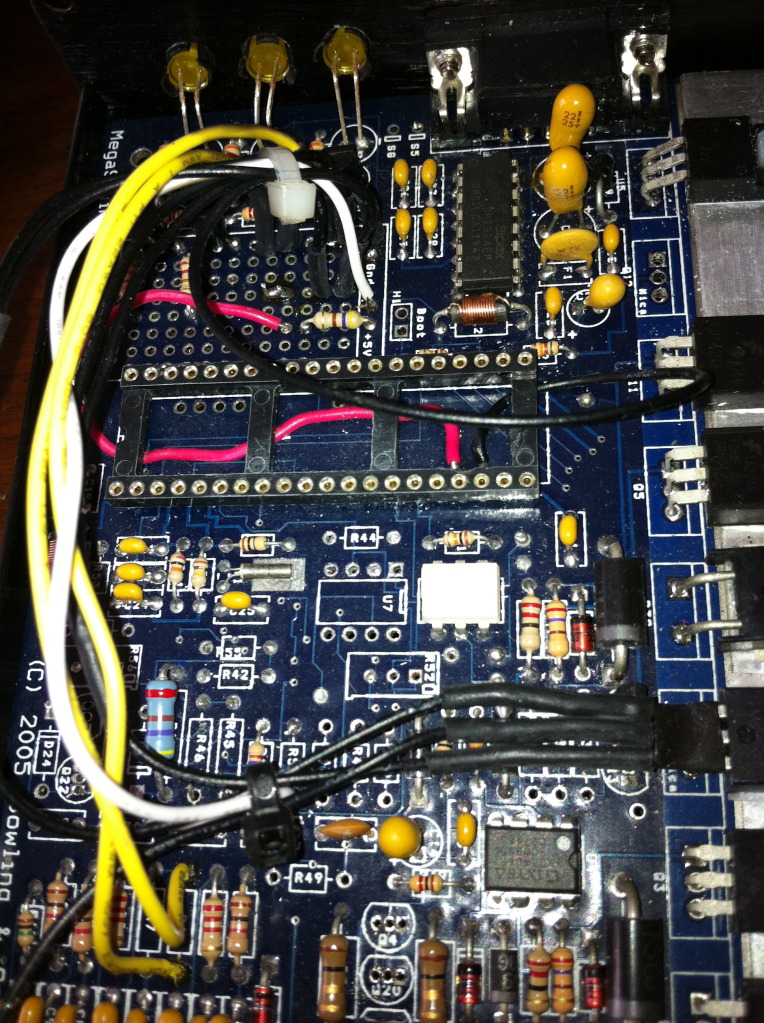

Picked this unit up for my mazdaspeed swap into 99. Previous owner had it in parallel & don't know what mods are done internally. Can someone tell me what mods are done, just by looking at pics below & what mods I need to run as a stand alone?


Attached Thumbnails
How to convert MS2 to stand alone-img_0695.jpg   How to convert MS2 to stand alone-img_0693.jpg   How to convert MS2 to stand alone-img_0696.jpg
speester1 is offline   Reply With Quote
Old 06-14-2012, 03:02 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

unsure whats going on with r6 and r7 and the yellow wires and what/why they go back to in the proto area. I'd replace r6 and r7 with a 1% 1K resistor -- make whenever you ever calibrate the sensors, you change the bias from 2450 to 1000.

otherwise, unplug the stock ECU, add the idle valve PWM circuit, and voila -- standalone.
Braineack is offline   Reply With Quote
Old 06-14-2012, 03:25 PM   #3
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by Braineack View Post
otherwise, unplug the stock ECU, add the idle valve PWM circuit, and voila -- standalone.
+ needs more processor
Ben is offline   Reply With Quote
Old 06-14-2012, 03:31 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

i guess that helps.
Braineack is offline   Reply With Quote
Old 06-14-2012, 09:30 PM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: May 2010
Location: Big Tex
Posts: 49
Total Cats: 0
Default

After a lil research, looks like am setup for standalone already(fan relay & EBC mods) except for PWM idle mod. I can't find anything about those yellow wires, R6, & R7 maybe its an alternator mod.

Removed the processor for clearer pics. LOL

Thanks, Braineack!
