Old 04-09-2014, 02:03 PM   #41
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by 18psi View Post
hahahaha and there it is, Leafy was actually right


and now I'm curious what in the world made you look at the WUE, go "hmmmmmm, lets go ahead and completely alter it drastically" without trying to 1st figure out why it was the way it was in the 1st place.

oh well you live you learn.

protip: when learning to tune, baby steps are the only steps you should take. if you're altering something more than 10% at a time, you should thoroughly question your method
THIS X10!!!
ScottyP3821 is offline   Reply With Quote
Old 04-09-2014, 02:04 PM   #42
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Agreed.

You really gotta have a game plan/method/approach. changing multiple values in multiple places almost always results in frustration and waste of time.
18psi is offline   Reply With Quote
Old 04-09-2014, 02:36 PM   #43
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 201
Default

Quote:
Originally Posted by Braineack View Post
You're effectively telling the MS to remove 100% of fuel away from your total fueling and then you're autotuning and the MS is all like: holy **** this moron is making his car go so lean, lets try to help him from blowing it up since he couldnt' be bothered to use any of the great basemaps out there that would get this car 80% of the way to perfection at key-on.
I started with a dIY base map for 94-95. Right off the bat it was so rich I was almost passing out from carbon monoxide in my driveway. Like I said, I will re load it again and start over.
ryansmoneypit is offline   Reply With Quote
Old 04-09-2014, 02:43 PM   #44
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 201
Default

The base map cuts off enrichment at 175* my car runs at about 200. Not a lot different than what I have done.
My question regarding the map pressure on the base map still remains. Why does their non turbo base map have kpa pressures to 240???
ryansmoneypit is offline   Reply With Quote
Old 04-09-2014, 02:48 PM   #45
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 201
Default

I have read the mega manual quite a bit, some sections over and over and over.Some things are just different. From the first start of my install, following their directions exactly when trying to hook up my AIT sensor, per the 1995 1.8 section It said " connect to the yellow and brown wires" I do not have yellow or brown on mine. Differences like that make it hard for me to follow direct instruction.
ryansmoneypit is offline   Reply With Quote
Old 04-09-2014, 03:04 PM   #46
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

its scaled to 230 cause they're lazy and it won't make a difference much and you'll be re-scaling anyway. their base map is just to get the car fired up and able to at least get on the road.

temp scaling is not what screwed you over, changing enrichment % from 100 to 0 on the low end is what we're pointing out to you.

I can't see the msq though since at work, so I'm just going off what was posted
18psi is offline   Reply With Quote
Old 04-09-2014, 03:12 PM   #47
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 201
Default

So should I be hitting 100% at like 150 deg.F. and then run it out past 200 deg. F at 100%?
ryansmoneypit is offline   Reply With Quote
Old 04-09-2014, 03:53 PM   #48
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Something like that. 100% = no extra fuel, >100% = add fuel for warm up. You should not have it go below 100%, that definitely sounds like what is causing your problems.
thenuge26 is offline   Reply With Quote
Old 04-09-2014, 04:11 PM   #49
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 201
Default

10-4. Thanks. Thanks to all of you guys. I'm gonna get this thing right.
ryansmoneypit is offline   Reply With Quote
Old 04-09-2014, 04:14 PM   #50
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

yep, 0* = 150 or 130 or whatever
tapering to 150* or 180* = 100. never less than 100, and the taper needs to e really smooth,
18psi is offline   Reply With Quote
Old 04-09-2014, 04:58 PM   #51
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 784
Default

I think we setting the red car to turn off WUE at 148-150F. Steve, do you remember?


**** was set up to carry on until 180F. With the Racer Re-route, damn car never even got that hot, so that was.... *awesome*
concealer404 is offline   Reply With Quote
Old 04-09-2014, 06:17 PM   #52
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Yeah one of the downfalls of the Reverant ECU is that the WUE was perfect out of the box, so I never learned how to tune it.

One of the reasons I'm looking forward to tuning the truck, I'll actually have to learn all that ****.
thenuge26 is offline   Reply With Quote
Old 04-10-2014, 05:39 PM   #53
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by thenuge26 View Post
Yeah one of the downfalls of the Reverant ECU is that the WUE was perfect out of the box, so I never learned how to tune it.

One of the reasons I'm looking forward to tuning the truck, I'll actually have to learn all that ****.
Thats debatable. Though it is very good WUE changes depending on several values in your tune. I save the fine tuning of WUE till Im practically done tuning. Usually Ill do everything but WUE and wait till the next morning and tune it while the car warms up.
ScottyP3821 is offline   Reply With Quote
Old 04-10-2014, 05:43 PM   #54
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by concealer404 View Post
I think we setting the red car to turn off WUE at 148-150F. Steve, do you remember?


**** was set up to carry on until 180F. With the Racer Re-route, damn car never even got that hot, so that was.... *awesome*
Mine turns off around 155-160 cause I run more fuel at idle to help with hot restarts at 160+ and use EGO to lean it out. With seq Im warming up at 14.3-14.7 then idle at 14.5-15.3ish
ScottyP3821 is offline   Reply With Quote
Old 04-10-2014, 05:44 PM   #55
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by ScottyP3821 View Post
Mine turns off around 155-160 cause I run more fuel at idle to help with hot restarts at 160+ and use EGO to lean it out. With seq Im warming up at 14.3-14.7 then idle at 14.5-15.3ish
Cant you tune the hot restart leanness out with ASE, thats on a timer isnt it?
Leafy is offline   Reply With Quote
Old 04-10-2014, 05:51 PM   #56
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Quote:
Originally Posted by Leafy View Post
Cant you tune the hot restart leanness out with ASE, thats on a timer isnt it?
Yeah but you have to run it for a lot of time. I still run ASE but as soon as it kicks off EGO takes over. Not necessarily the best method but it works good for me.
ScottyP3821 is offline   Reply With Quote
Old 04-10-2014, 08:23 PM   #57
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 201
Default

Started again with a base map from DIY, smoked out my whole neighborhood. Went fo a short drive to let autotune take over for a bit. Back to the same place I was three weeks ago with an idle that I cannot get below 2200. I am back on open loop now.

I made a block of the timing at twelve just to make sure that I wasnt getting any influence from other cells.

Idles at 13.9 AFR @2200 rpm.

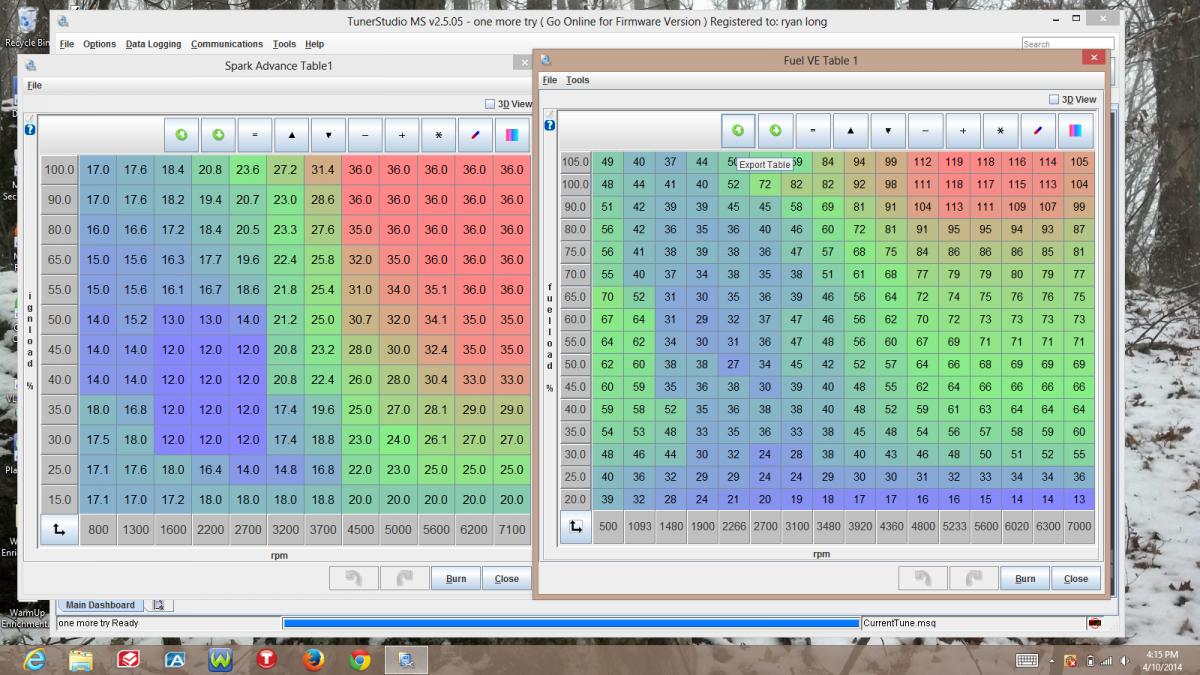

How is this engine even running??-screenshot-9-.jpg

CurrentTune.msq
ryansmoneypit is offline   Reply With Quote
Old 04-10-2014, 09:37 PM   #58
Senior Member
iTrader: (1)

Onyxyth's Avatar

Join Date: May 2013
Location: Boyertown, PA
Posts: 719
Total Cats: 55
Default

Well at least your fuel map looks somewhat normal.
What happens if you go into idle valve test mode and close the valve completely?
You might have to close your idle screw a bunch.
Onyxyth is offline   Reply With Quote
Old 04-10-2014, 09:55 PM   #59
Elite Member
Thread Starter
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 201
Default

Quote:
Originally Posted by Onyxyth View Post
Well at least your fuel map looks somewhat normal.
What happens if you go into idle valve test mode and close the valve completely?
You might have to close your idle screw a bunch.
I'll try and see what I get.
ryansmoneypit is offline   Reply With Quote
Old 04-11-2014, 10:22 AM   #60
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 51
Default

Well your fuel mad a major improvement but still got a ways to go no fear. let me dig for that post hornetball wrote that explains tuning idle well
ScottyP3821 is offline   Reply With Quote
