Default How much boost on stock 1.8 injectors???

So as you may know I have been having many problems with my low z injectors and have a track day on wednesday, leaving tomorrow. How much boost can I run if I put the stock 1.8l injectors back in, SAFELY???
kylelind is offline   Reply With Quote
Old 10-01-2007, 10:50 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

the '94 stock injectors?
Probably around 5 psi on most turbos. I run 7 on mine but they're the bigger 1.8 being a '99. We're also using the same turbo. .80 A/R compressor?
cjernigan is offline   Reply With Quote
Old 10-01-2007, 11:33 PM   #3
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

I was running 7psi on my 305s and seeing 100% DC.
Braineack is offline   Reply With Quote
Old 10-02-2007, 12:46 AM   #4
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

How could I limit the boost to 4-5psi without cutting the engine spark/fuel with the MegaSquirt? I need to be able to rev it up with the 5 psi?
kylelind is offline   Reply With Quote
Old 10-02-2007, 01:30 AM   #5
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

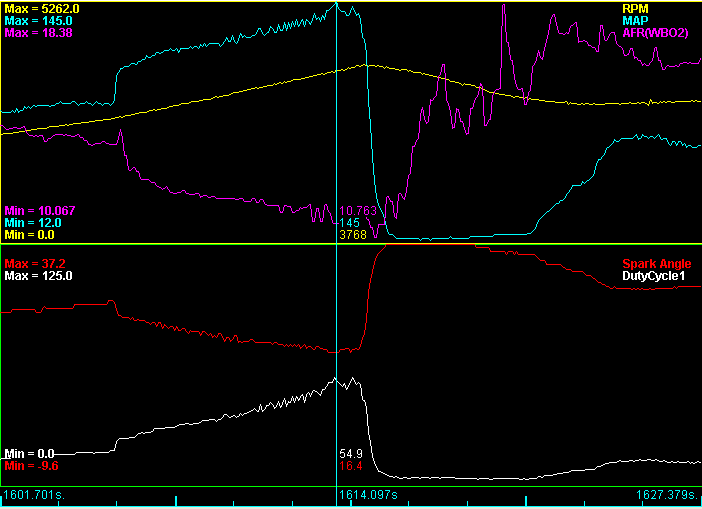

Looks like i'm seeing about 55% at ~6psi or 145 kpa. No idea if this is an accurate reading for the injectors though.
Name:  Picture29.png
Views: 14
Size:  14.6 KB
cjernigan is offline   Reply With Quote
Old 10-02-2007, 03:00 AM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Kyle, what time are you leaving tomorrow? I know a couple of people who may have some spare injectors that will work. No guarantees.

Edit: Found you a set of 680cc PnPs in Los Gatos. Let me know if you want them. It won't idle great, but they will work.

Last edited by Savington; 10-02-2007 at 03:23 AM.
Savington is offline   Reply With Quote
Old 10-02-2007, 04:12 AM   #7
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Yeah, if I can run them then I will definately go get them. I am trying to leave at 3 or 4, getting off work at 1:30 or 2pm. Please call me or email ASAP to let me know how to get them. Thanks!!
kylelind is offline   Reply With Quote
Old 10-02-2007, 04:46 AM   #8
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Another option is to use a rising rate fpr. When I first hooked up megasquirt and had not picked up 550cc injectors yet, i ran the 1.6 injectors with an aux. fpr around 5-7psi. I had some trouble getting consistant AFRs, but I think that had much to do with my ineptitude with megasquirt at that point (its still a learning experience at this point) rather than mechanical FPR though. 305cc injectors at 60-70psi may get you to 10 to 12psi ... just a thought, and they would idle a bit better as well.
akaryrye is offline   Reply With Quote
Old 10-02-2007, 09:56 AM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

nothing wrong with an fmu and MS with smaller injectors....you'd just want to swap them out eventually.
Braineack is offline   Reply With Quote
Old 10-02-2007, 09:59 AM   #10
Junior Member
Thread Starter

Join Date: May 2007
Location: Mountain View, CA
Posts: 220
Total Cats: 0
Default

Ok, thanks for the good ideas....I think I am going to run the 680's and see what happens
kylelind is offline   Reply With Quote
Old 10-02-2007, 10:01 AM   #11
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

about 400hp is what's going to happen
Braineack is offline   Reply With Quote
Old 10-02-2007, 11:24 PM   #12
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

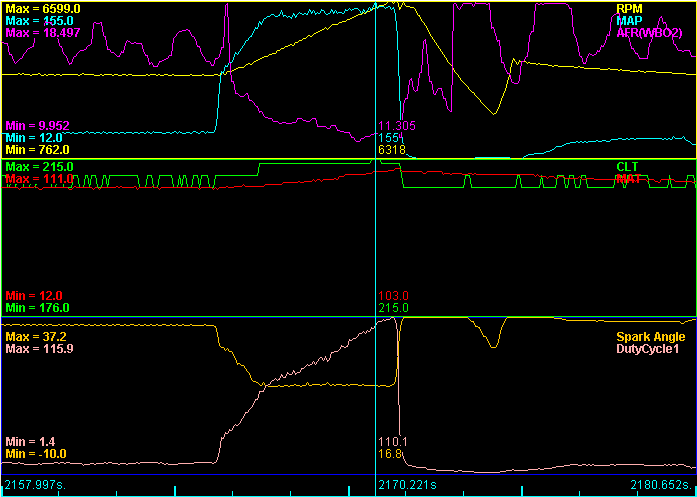

Looks like I lied. Something weird about that datalog for some reason. Here is one from today. Considering it's saying 110% dutycycle i'm thinking they're maxed out.
Name:  Picture30.png
Views: 14
Size:  15.9 KB
cjernigan is offline   Reply With Quote
Old 10-02-2007, 11:38 PM   #13
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

you're done at 7.5 psi it looks like. but you're also running 11.2:1 at 7.5 psi, so you could stand to trim some fuel back which will lower duty cycle
Ben is offline   Reply With Quote
Old 10-04-2007, 02:38 PM   #14
Senior Member
iTrader: (2)

Join Date: Mar 2006
Location: MA
Posts: 885
Total Cats: 2
Default

heh, yeah, i hit 111% the other night with mine around 7psi. i don't quite get how that's even possible...

same deal, though, pig rich at that point...
devin mac is offline   Reply With Quote
