Old 05-27-2016, 10:57 AM   #21
Junior Member

Join Date: Jun 2015
Location: VIC, Australia
Posts: 104
Total Cats: 13
Default

You should be able to use the tinyiox for boost control. I think these settings will work but I can't be 100% sure until I test it.

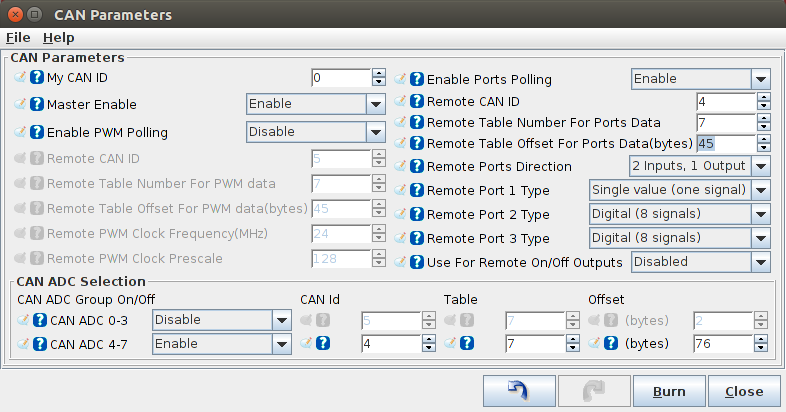

MS2 CAN Settings:

Set port 1 to 'single value (one signal)' and use ID: 4, table: 7, offset: 45.

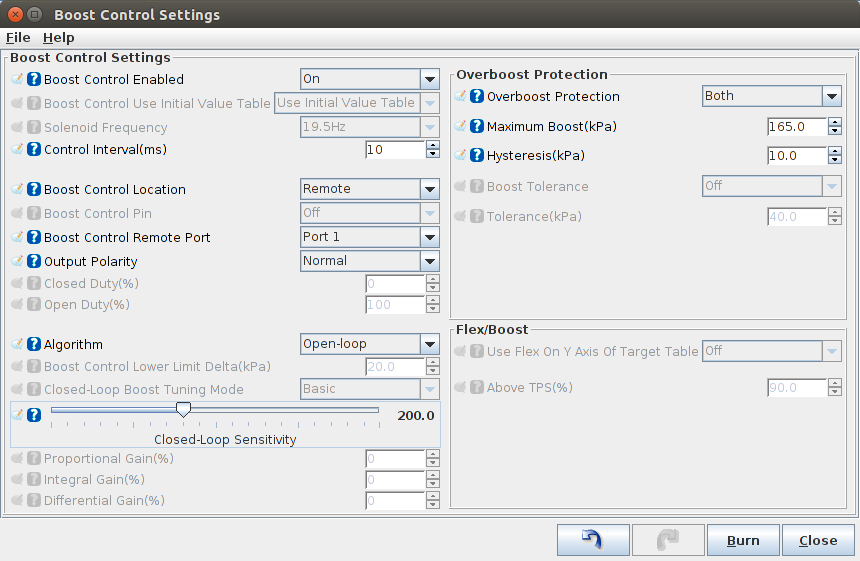

Boost Control Settings:

Set boost control location to 'remote' and the port to 'port 1'

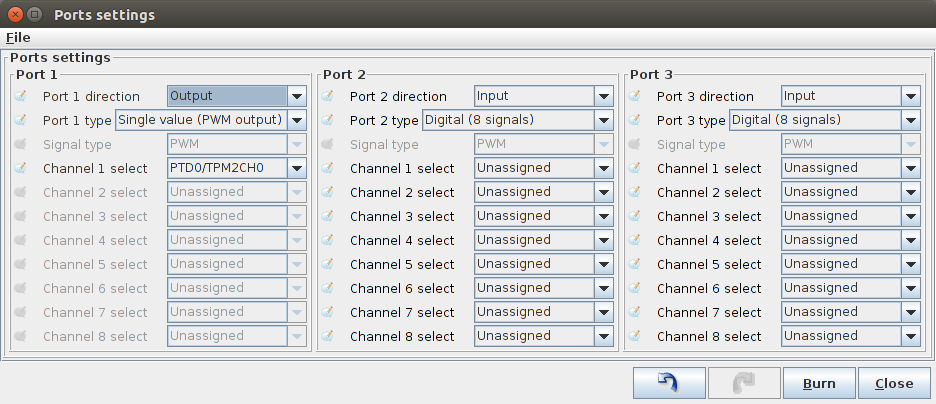

TinyIOx Port Settings:

Set port type to 'single value (PWM output) and then choose either TPMCH0 or TPMCH1


As for the EGT you'll have to buy/build an amplifier that outputs a 0-5V to the tinyiox.
Attached Thumbnails
How to use the TinyIOx-x4whfwv.png   How to use the TinyIOx-q9mvqrz.png   How to use the TinyIOx-90gotuf.png
Barton is offline   Reply With Quote
Old 05-27-2016, 11:02 AM   #22
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,991
Total Cats: 1,457
Default

You will also have to build output circuits for boost control. My next post will include the EGT circuit
aidandj is offline   Reply With Quote
Old 05-27-2016, 01:34 PM   #23
Newb

Join Date: Dec 2014
Posts: 30
Total Cats: 0
Default

Cant i just connect the tinylox to the boost control circuit on my diypnp

And for a amp i was thinking the max6675
It works in arduino
So i was thinking to let teensy do the talk instead of tinylox
But then i have to do some programming
creon is offline   Reply With Quote
Old 01-17-2017, 04:33 PM   #24
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,991
Total Cats: 1,457
Default

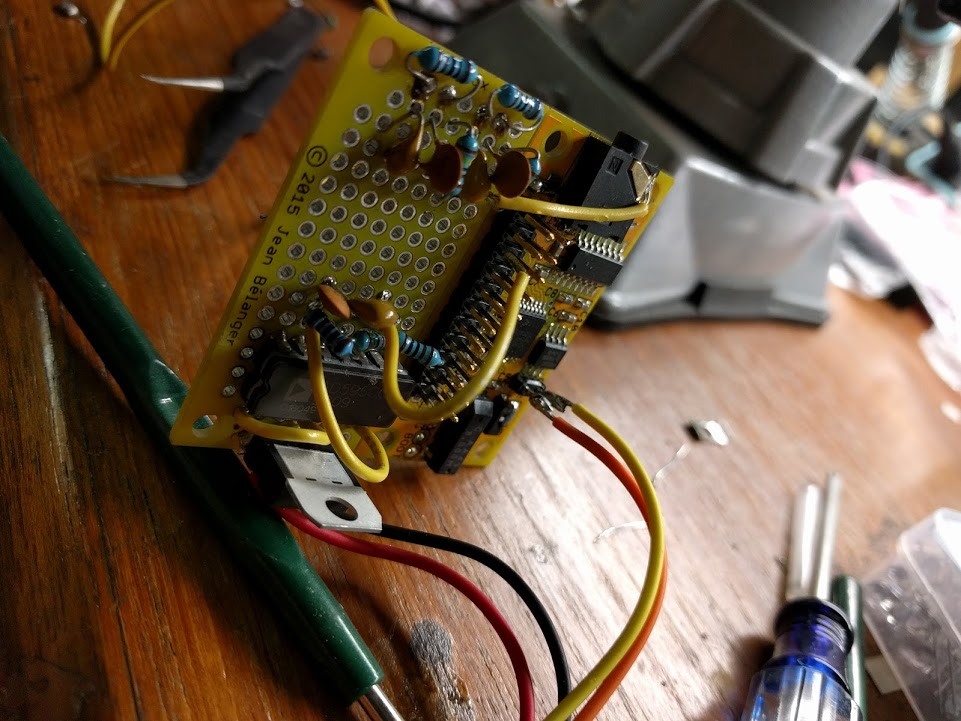

Ive been doing some tinyIOx wiring. Got the EGT circuit built. and 2 of the ADC input protection circuits. Plugged everything back in for a proof of concept test.

Probably the last time this motor will run in the car.

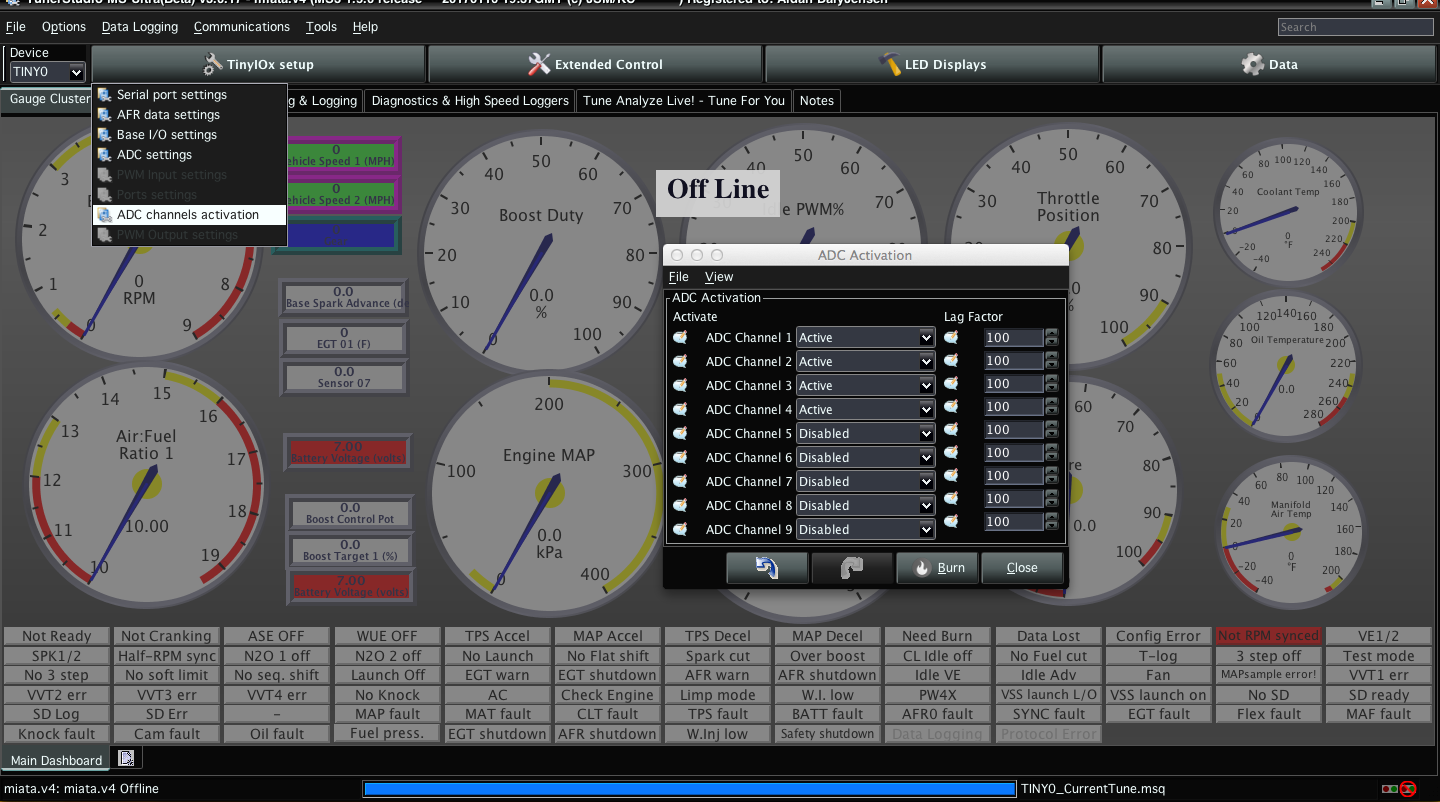

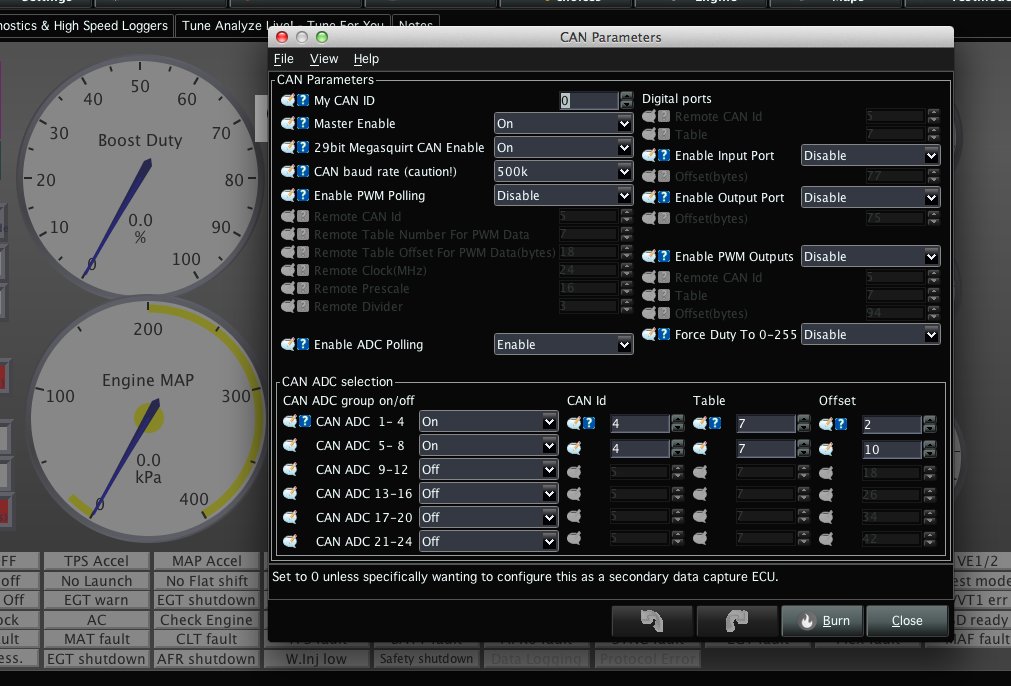

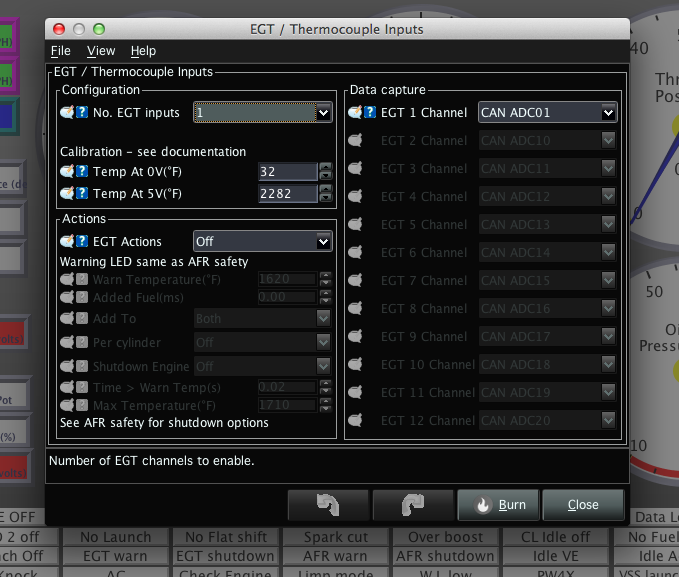

Took some screenshots of my settings if anyone wants to follow along.




aidandj is offline   Reply With Quote
Old 03-16-2017, 06:42 PM   #25
Senior Member

Join Date: Nov 2007
Location: Belgium
Posts: 939
Total Cats: 59
Default

Thanks for this. It saved me a lot of time today, setting up my TinyIOx for the first time
WestfieldMX5 is offline   Reply With Quote
Old 03-16-2017, 06:49 PM   #26
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,991
Total Cats: 1,457
Default

I used your ms3x instructions. So glad I could return the favor
