Default I think my ASE is all jacked up...

Hey all- my Miata starts and idles like a champ when cold or warm.

When hot- it won't idle without me helping with the throttle for a few seconds.

Once I get going, things are fine.
dwink is offline   Reply With Quote
Old 01-27-2016, 11:04 PM   #2
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

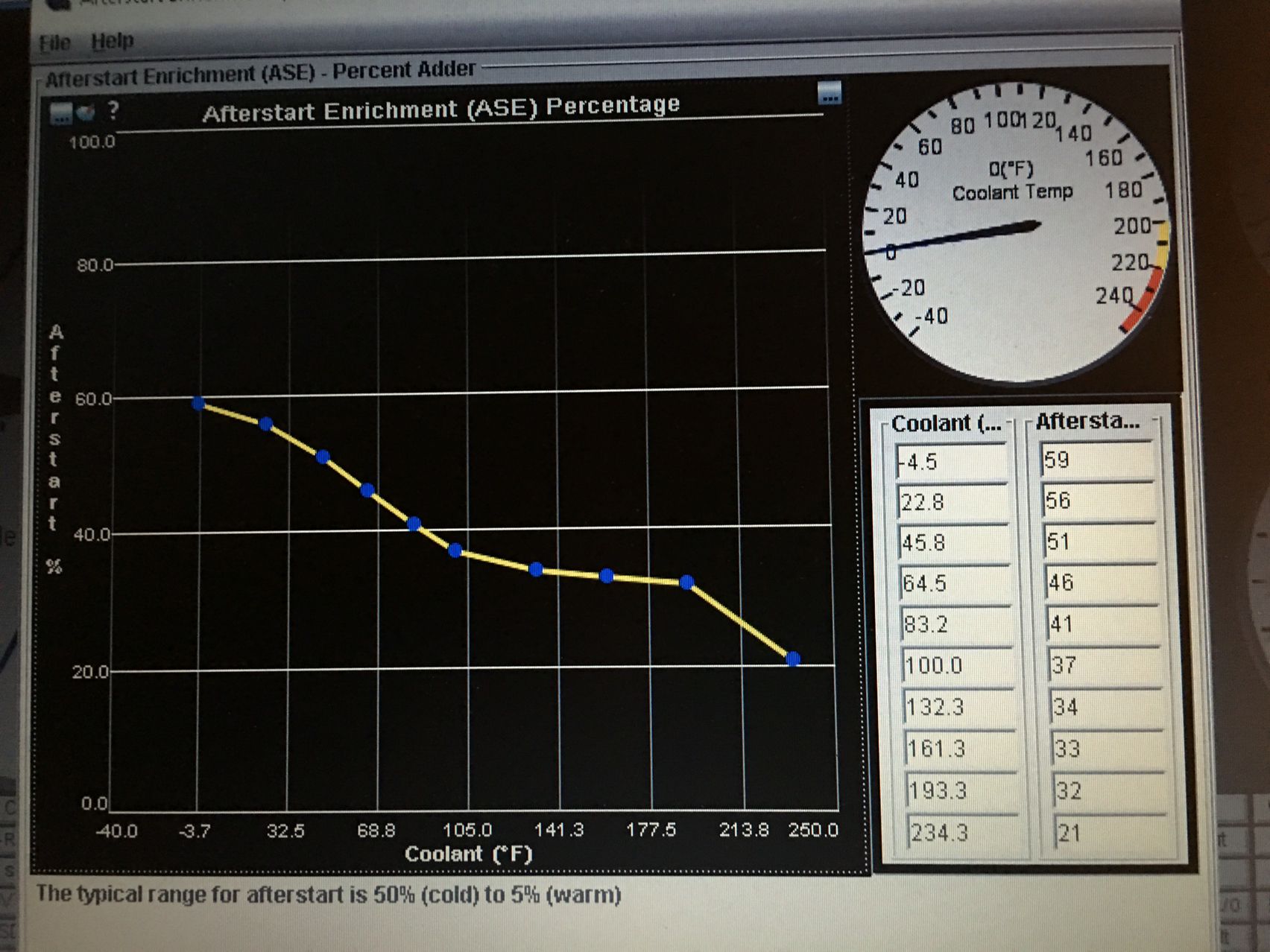

Pic below
Attached Thumbnails
I think my ASE is all jacked up...-photo578.jpg
dwink is offline   Reply With Quote
Old 01-27-2016, 11:06 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

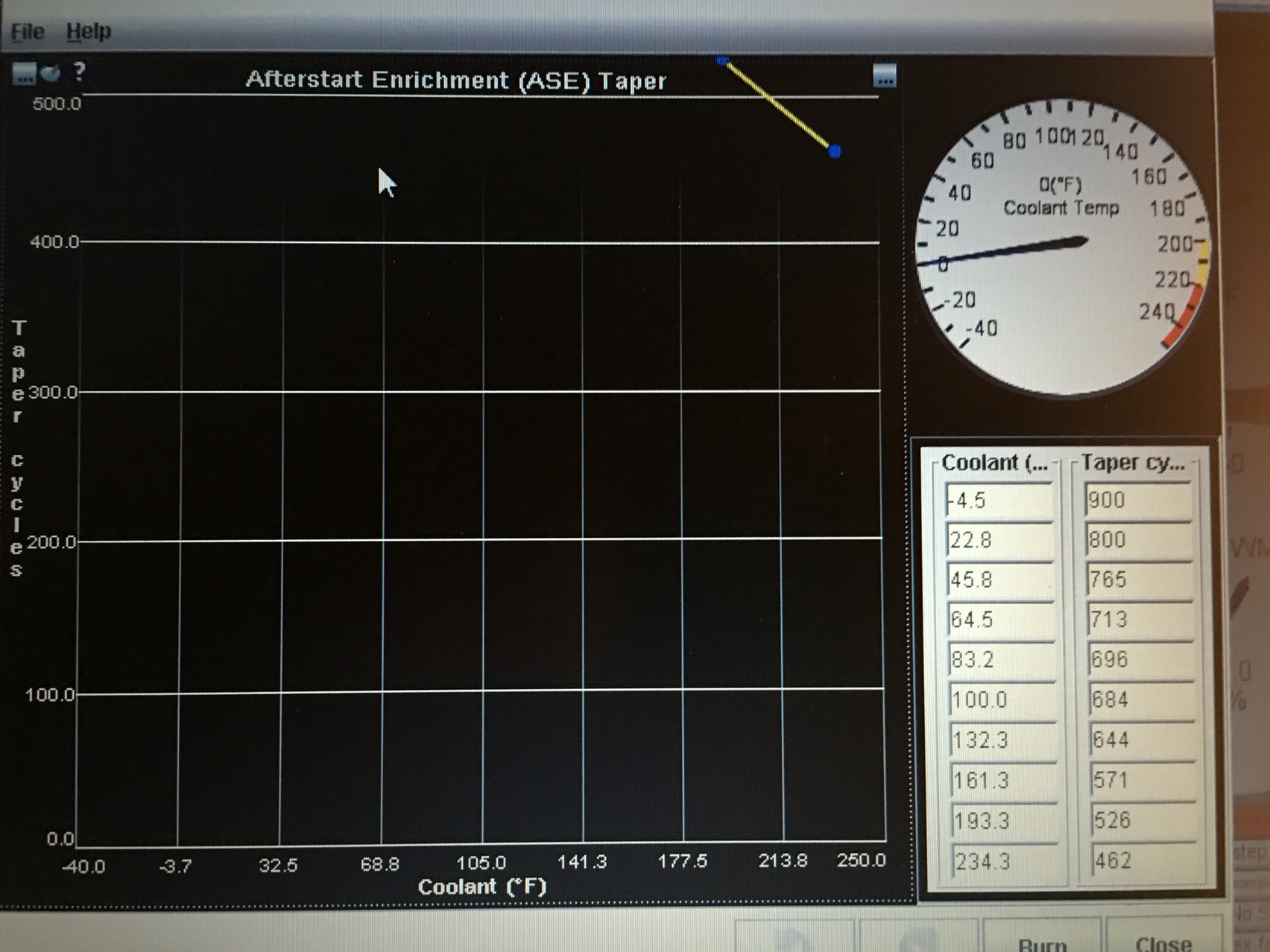

Taper settings
Attached Thumbnails
I think my ASE is all jacked up...-photo376.jpg
dwink is offline   Reply With Quote
Old 01-28-2016, 12:52 AM   #4
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

why is it not linear, or close to it?
and why is the taper so ridiculously high?
18psi is offline   Reply With Quote
Old 01-28-2016, 07:07 AM   #5
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

Quote:
Originally Posted by 18psi View Post
why is it not linear, or close to it?
and why is the taper so ridiculously high?
I don't really know the answer to either. I believe this is how the base map looked when I got the initial tune.

Any better starting points are appreciated!
dwink is offline   Reply With Quote
Old 01-28-2016, 09:56 AM   #6
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

Think about what ASE is doing for a minute...

Let's say that "hot" is 190*F. Your ASE settings are telling the MS to add 32% more fuel after starting for about 2 minutes.

Do a log when you perform a hot start. Are you pig-rich? This (above) is the reason why. You don't say what car this is, so it's really hard to know what's going on.

I have a 99 with the return-less fuel system. On hot starts the fuel has a tendency to heat-soak in the fuel rail (because it has nowhere to go) so when the hot fuel hits the hot manifold it vaporizes quicker than normal (as in "no puddle in the manifold") so the engine will run very lean for about 3/4 of a minute in a hot start. So I have to do some weird things with ASE to "flush out" that hot fuel with a bigger than normal ASE percentage for just under a minute. If you've got a full-return system, you shouldn't have to deal with that. And even with this "flush", my ASE percentage doesn't go above 20% when "hot".
rwyatt365 is offline   Reply With Quote
Old 01-28-2016, 10:49 AM   #7
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2013
Location: Reno/Tahoe
Posts: 159
Total Cats: 2
Default

Super helpful! That makes a lot of sense.

Car is a 94 with no mods to the fuel return, so I suspect that is the problem. It does run rich and is fussy for a couple of minutes. I suspect I could bring that down close to 100%.
dwink is offline   Reply With Quote
Old 01-28-2016, 10:51 AM   #8
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

You have a return fuel system then. So that problem wouldn't affect you.
aidandj is offline   Reply With Quote
Old 01-28-2016, 11:04 AM   #9
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

Quote:
Originally Posted by aidandj View Post
You have a return fuel system then. So that problem wouldn't affect you.
^^^^ This...

Your ASE percentage should drop as CLT increases - how much is dependent on your car. Follow this simple rule, "Tweak. Measure. Analyze. Adjust. Repeat." Also, make sure that you note (or log) what the starting CLT is. If you don't, you'll be chasing you tail if the start temps vary by a lot (i.e. cold mornings vs warmer afternoons).

Likewise, your ASE taper should drop as CLT increases. Remember, the taper is measured in cycles so the length of time that the ASE is in effect (dictated by the taper) depends on your idle RPM divided by the taper cycles (in minutes). My rule of thumb with the taper is, "The hotter the start temp, the shorter the taper time".

Enjoy!
rwyatt365 is offline   Reply With Quote
Old 01-28-2016, 11:11 AM   #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Whats your warmup enrichments look like?
curly is offline   Reply With Quote
Old 01-28-2016, 11:13 AM   #11
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

Yeah...watch out for those too 'cause they're "on" even after ASE shuts down (typically).
rwyatt365 is offline   Reply With Quote
Old 01-28-2016, 12:30 PM   #12
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,836
Total Cats: 1,786
Default

post a log.

ASE lasts like a few seconds. warmup is what matters, but it could also be your intial idle duty table or even just the AIT corrections from heatsoak (where is your AIT located?).
Braineack is online now   Reply With Quote
Old 01-28-2016, 12:32 PM   #13
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,836
Total Cats: 1,786
Default

Quote:
Originally Posted by rwyatt365 View Post
Let's say that "hot" is 190*F. Your ASE settings are telling the MS to add 32% more fuel after starting for about 2 minutes.
2 minutes? ~400 cycles is like 2 seconds (unless seconds was selected -- think ms3 can do that).

ASE should only be active for a few moments.


this is why we need to see a log and msq for all MS tuning questions.
Braineack is online now   Reply With Quote
Old 01-28-2016, 12:40 PM   #14
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

step 1: learn exactly what ASE is, how it works, and how it affects your tune.
you cannot move forward until you do

but like already said: it's very short and if your car has issues longer than a few seconds after start, then you have other things that are off
18psi is offline   Reply With Quote
Old 01-28-2016, 01:01 PM   #15
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,698
Total Cats: 267
Default

ASE taper can be set to be seconds or cycles. The graph will show cycles regardless. With the information given we don't know if the taper is 400 cycles or 400 seconds.

RWyatt: Hot fuel on restart actually affects injector coil temps, and therefore dead time. That is the leaning effect you see, rather than a change in fuel evaporation rate.
DNMakinson is offline   Reply With Quote
Old 01-28-2016, 06:38 PM   #16
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

Quote:
Originally Posted by DNMakinson View Post
ASE taper can be set to be seconds or cycles. The graph will show cycles regardless. With the information given we don't know if the taper is 400 cycles or 400 seconds.

RWyatt: Hot fuel on restart actually affects injector coil temps, and therefore dead time. That is the leaning effect you see, rather than a change in fuel evaporation rate.
Since I saw "cycles" in the plot, that's what I based my comment on.

Thanks for the info about the inj coil temps. So, am I just cooling the coils by flowing more fuel through the injectors on hot starts (not to hijack the thread)?
rwyatt365 is offline   Reply With Quote
Old 01-29-2016, 01:25 AM   #17
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,698
Total Cats: 267
Default

Quote:
Originally Posted by rwyatt365 View Post
Thanks for the info about the inj coil temps. So, am I just cooling the coils by flowing more fuel through the injectors on hot starts (not to hijack the thread)?
I think that is the correct perspective. Jason was the first to propose hot coils, and it makes good sense as higher temp = higher resistance which yields the same effect as low voltage (both reduce coil current), and we all know low voltage increases dead time.
DNMakinson is offline   Reply With Quote
Old 01-29-2016, 09:32 AM   #18
Junior Member

Join Date: Oct 2012
Posts: 138
Total Cats: 4
Default

One comment... Lean running on hot restarts is definitely an issue with the OEM NB2 injectors, MS3X, and the NA return type fuel system! I have been fighting that problem for a while now...
noname4me is offline   Reply With Quote
Old 01-29-2016, 10:20 AM   #19
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,836
Total Cats: 1,786
Default

where is your AIT located?
Braineack is online now   Reply With Quote
Old 01-29-2016, 12:03 PM   #20
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

AIT is just before the TB, in the tube from the IC.
rwyatt365 is offline   Reply With Quote
